Kenmore
Top-Mount Refrigerator

Model # 11160719910 Official Kenmore top-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore 11160719910 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

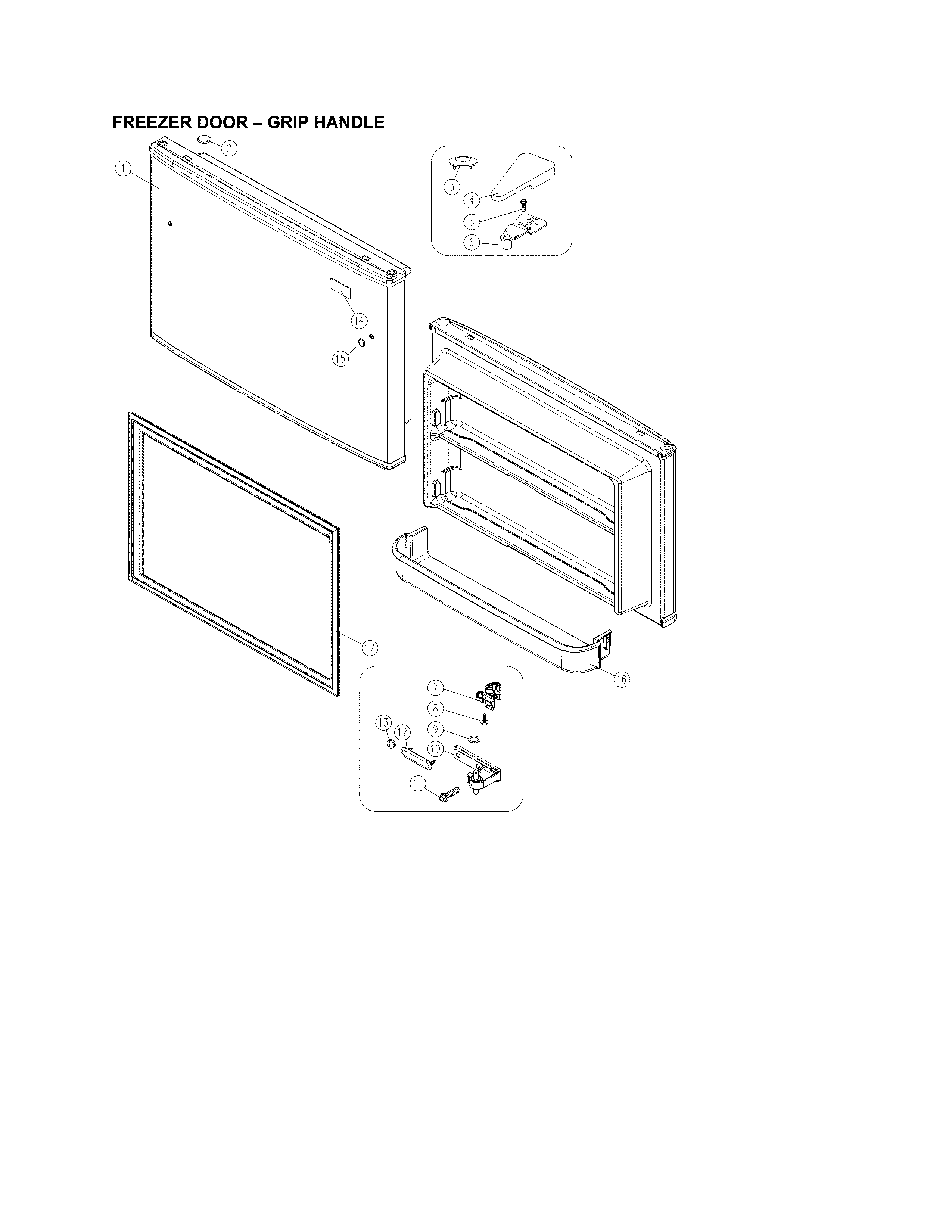

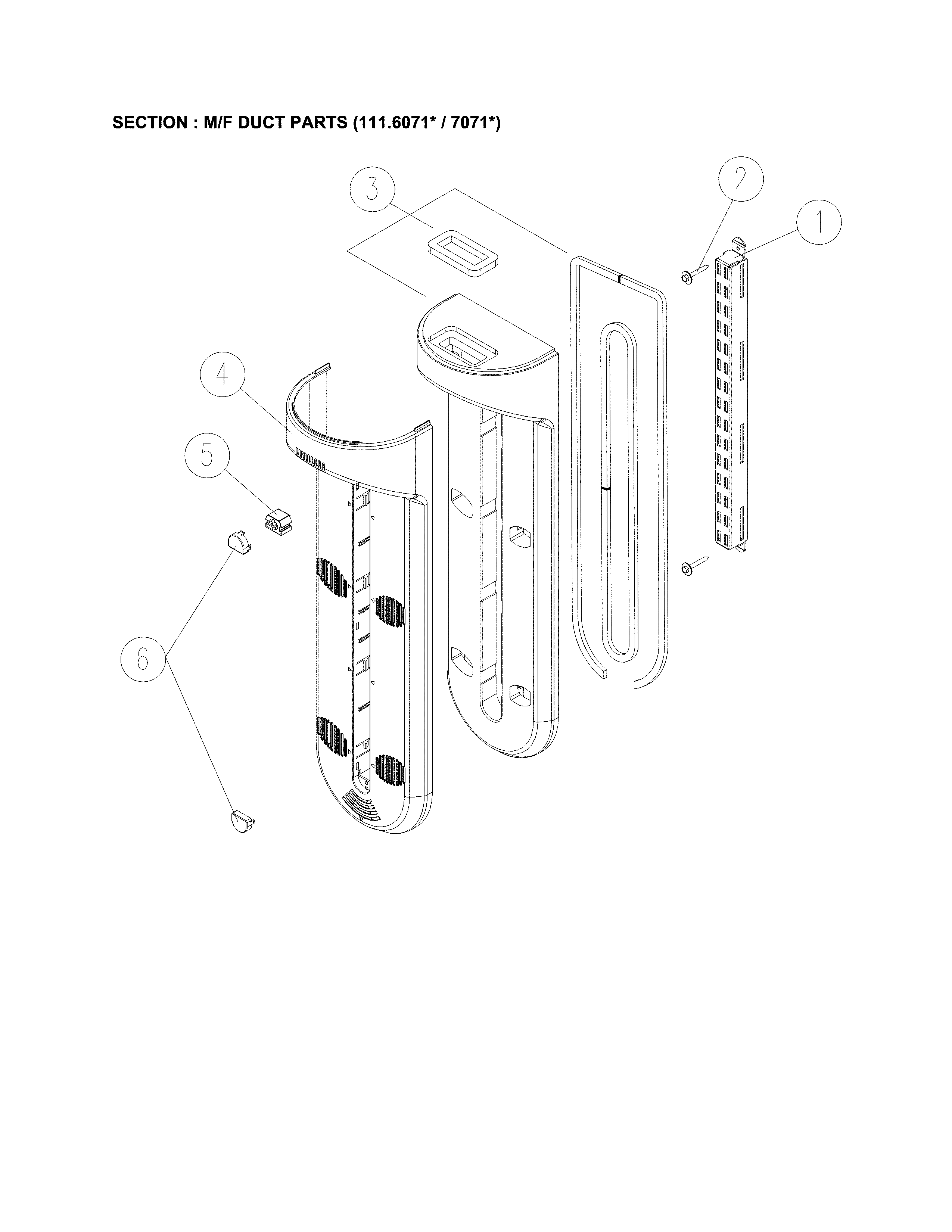

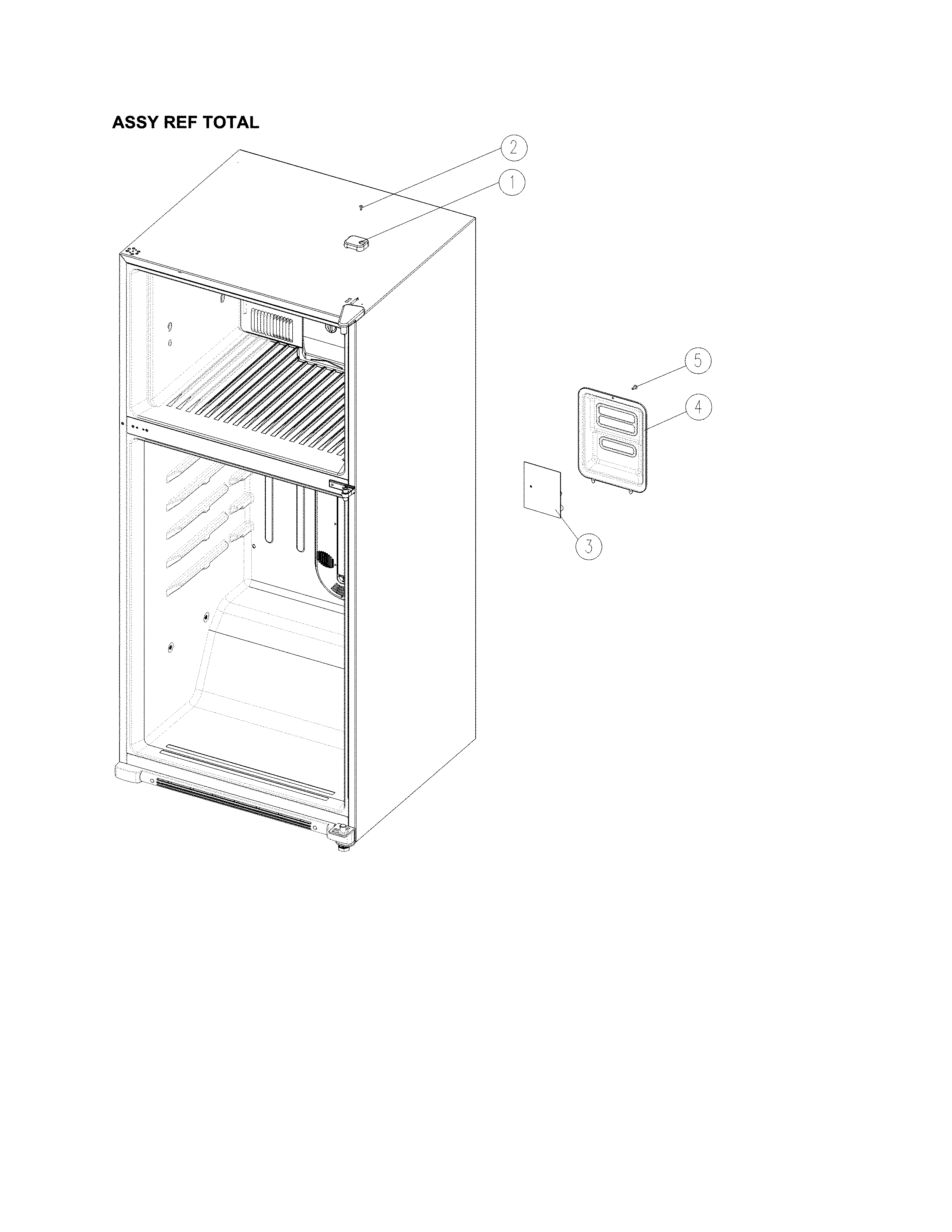

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 196 parts  |
Refrigerator Defrost Sensor 60148-0007500
#11-A

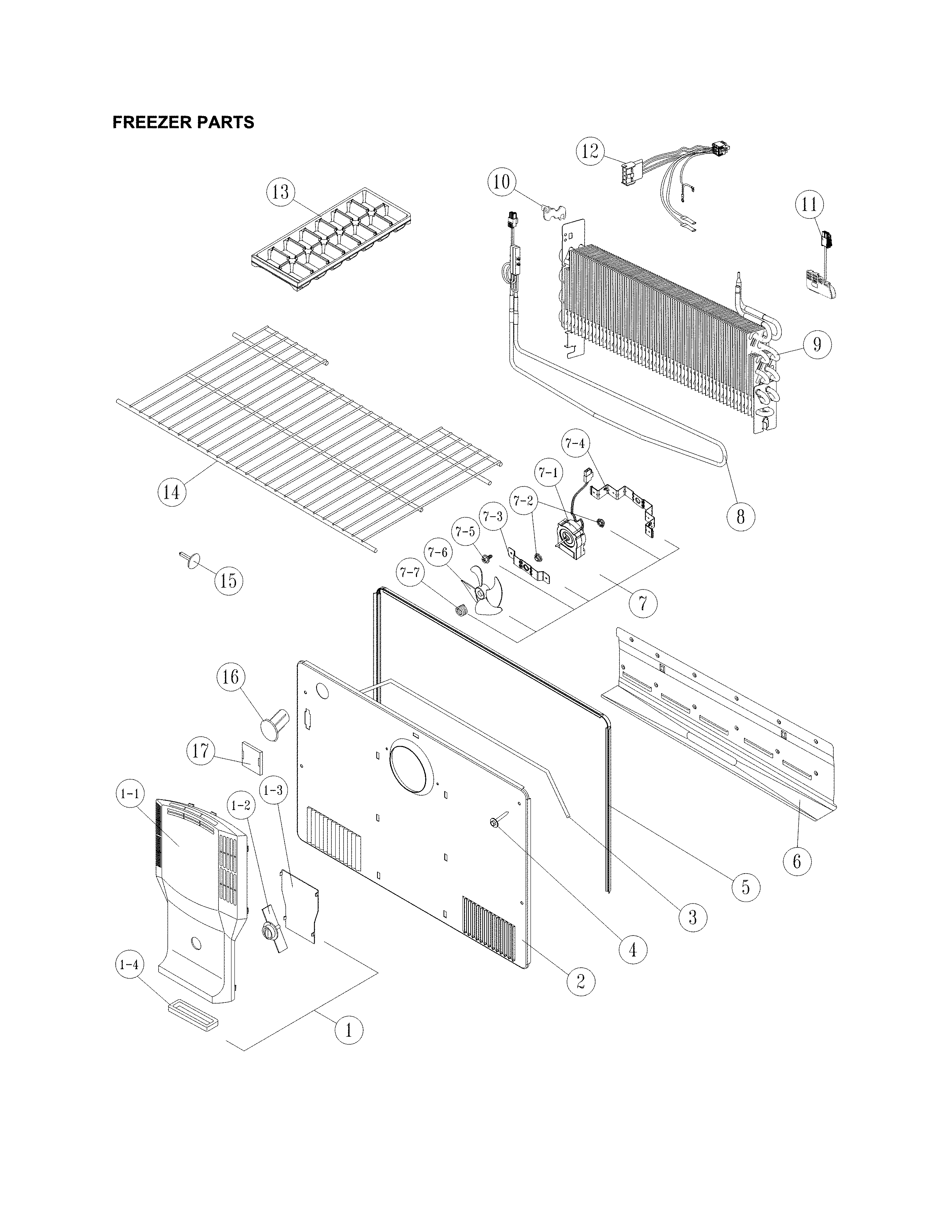

Freezer parts diagram

Refrigerator defrost sensor

Part #60148-0007500

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Ice Maker (replaces 30111-0050101) 30111-0050101-00
#1

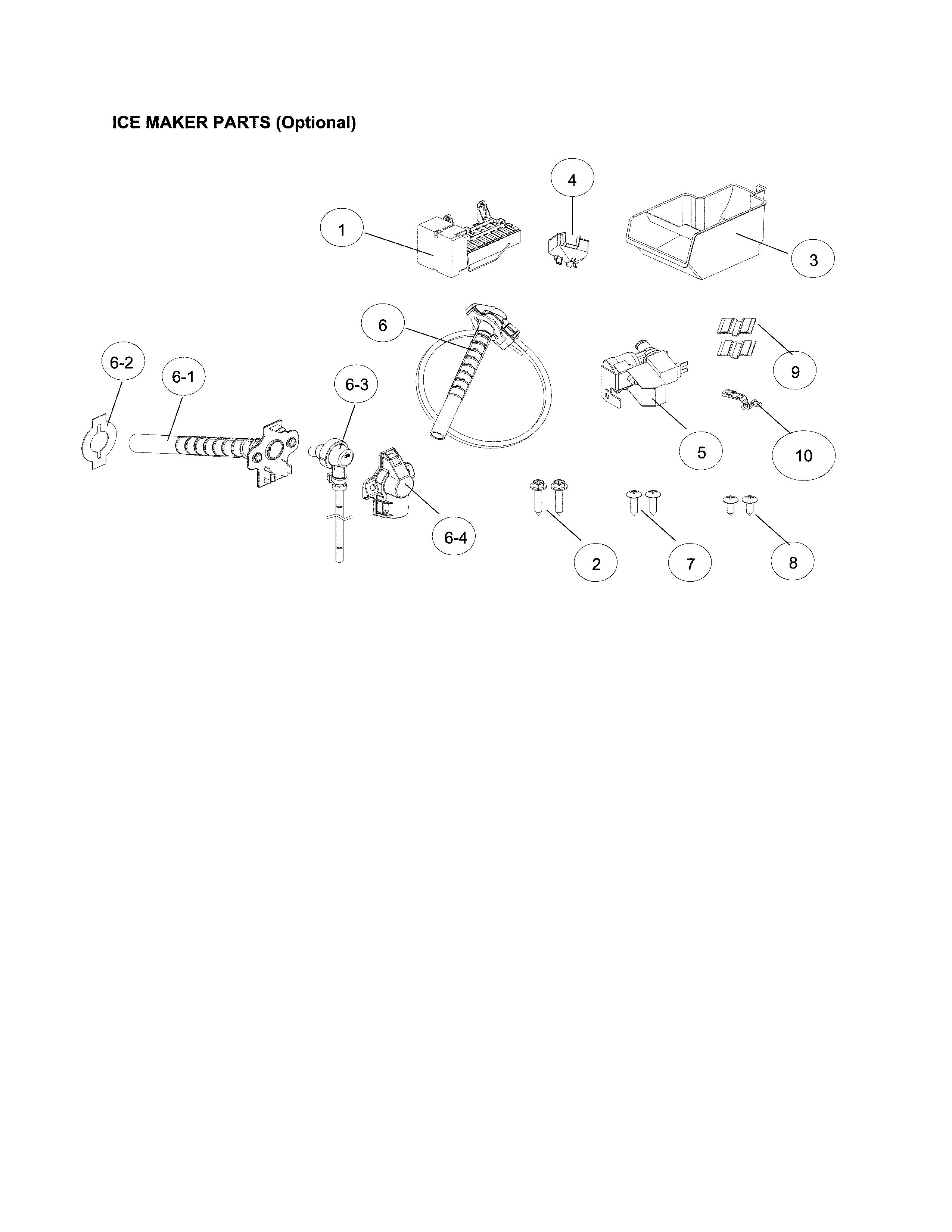

Ice maker parts (optional) diagram

Refrigerator ice maker (replaces 30111-0050101)

Part #30111-0050101-00

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Led Light Assembly 60136-0001800
#4

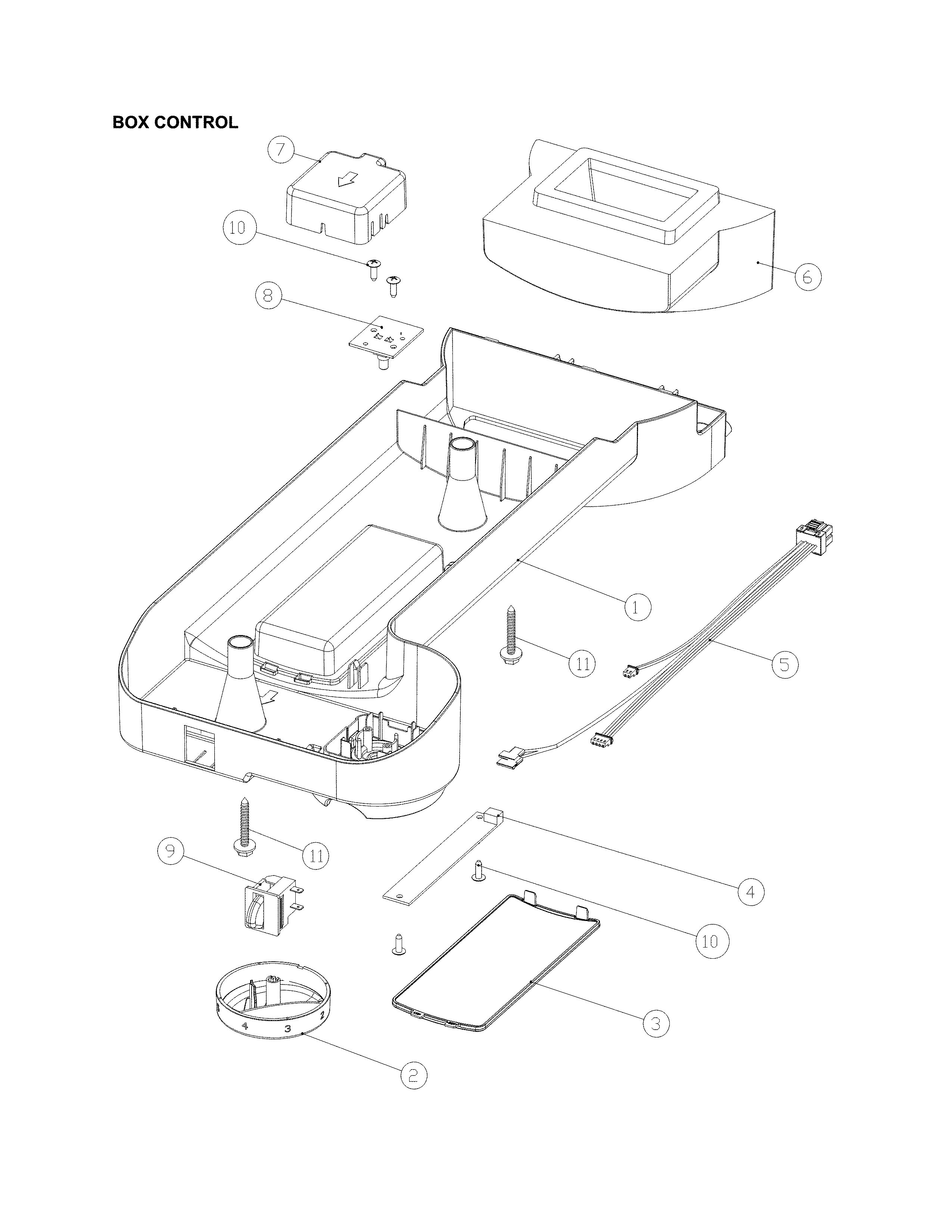

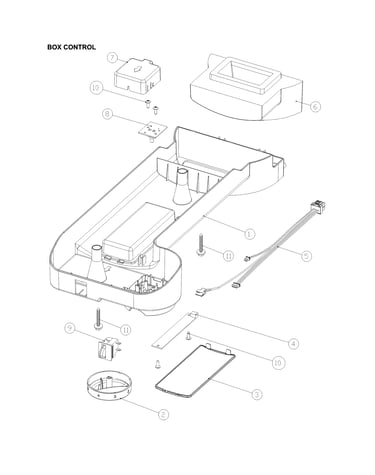

Box control diagram

Refrigerator led light assembly

Part #60136-0001800

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Water Inlet Valve 60154-0004101
#5

Ice maker parts (optional) diagram

Refrigerator water inlet valve

Part #60154-0004101

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Power Cord 60113-0006601
#1

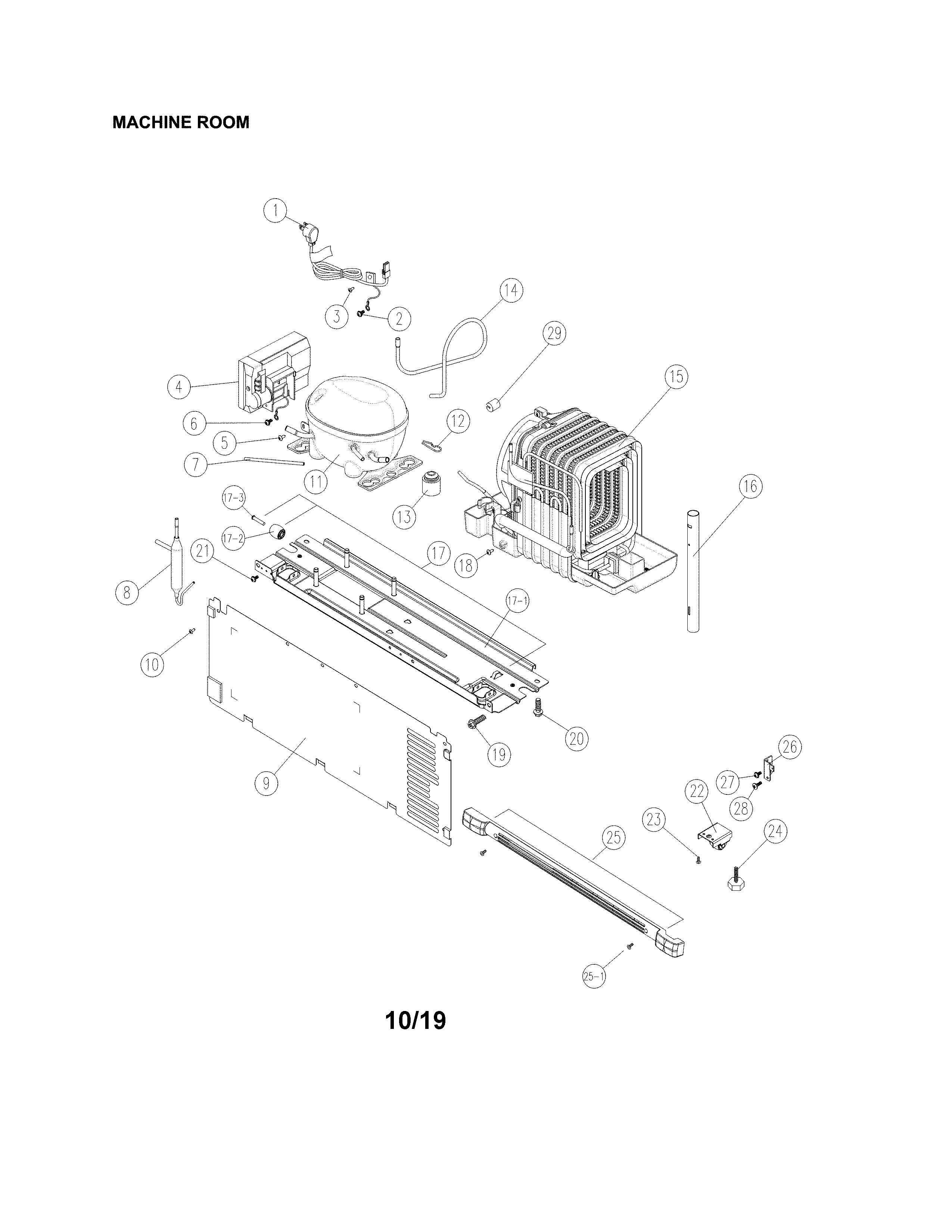

Machine room diagram

Refrigerator power cord

Part #60113-0006601

The manufacturer no longer makes this part, and there's no substitute part

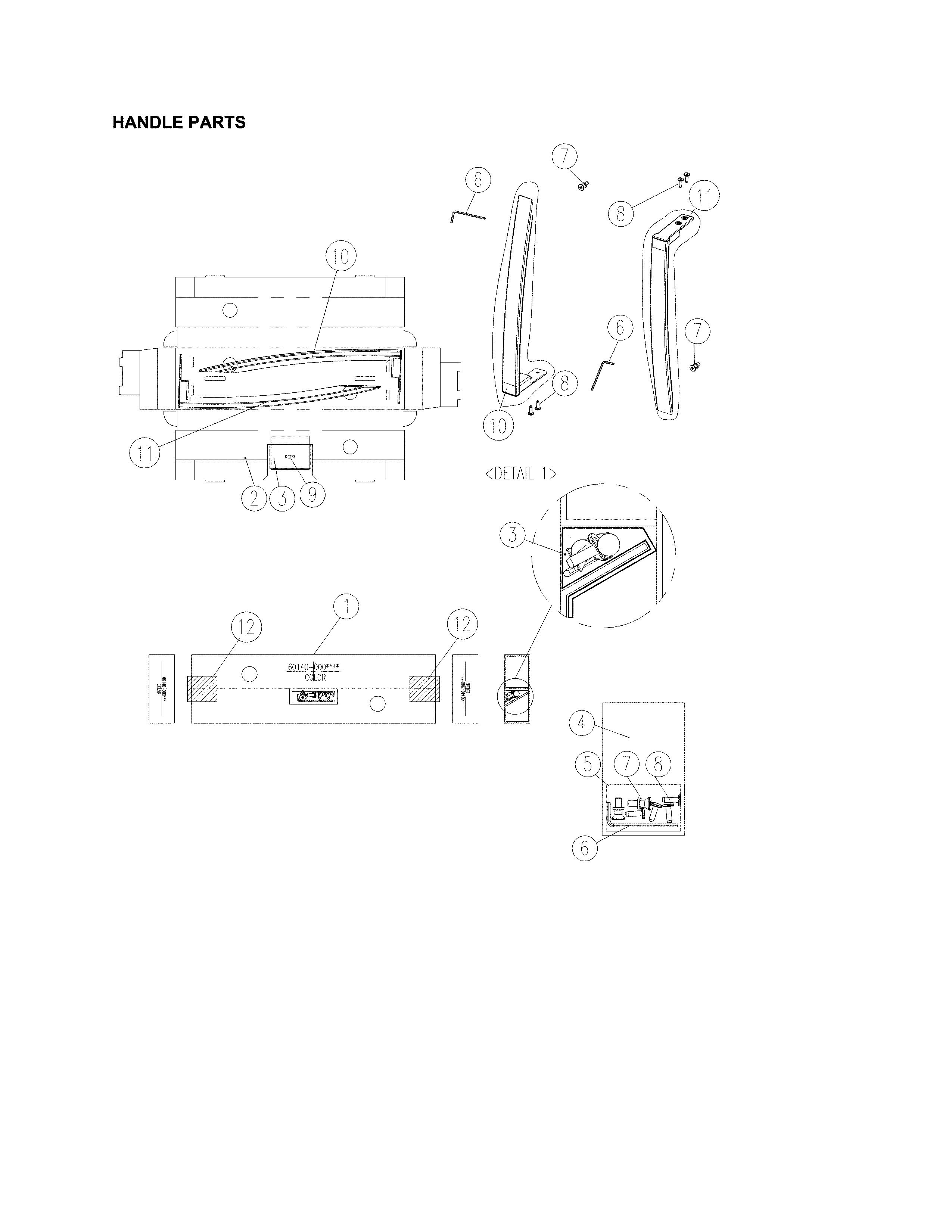

Refrigerator Door Hinge Pin 3014911400
#6

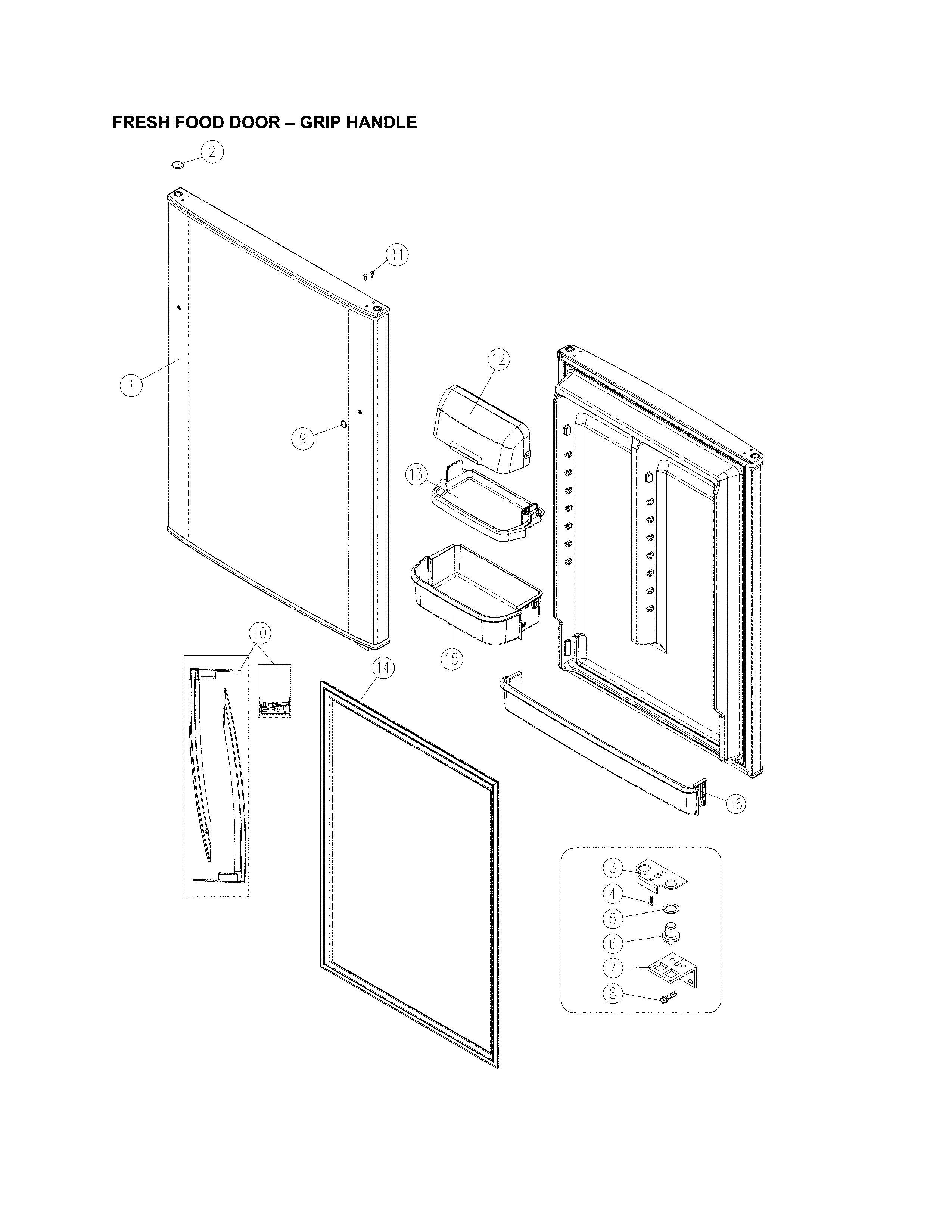

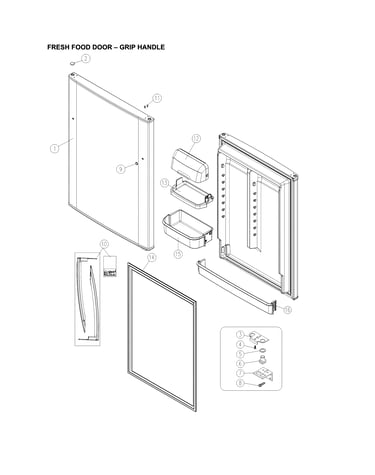

Fresh food door - grip handle diagram

Refrigerator door hinge pin

Part #3014911400

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Crisper Drawer 3011180500
#4

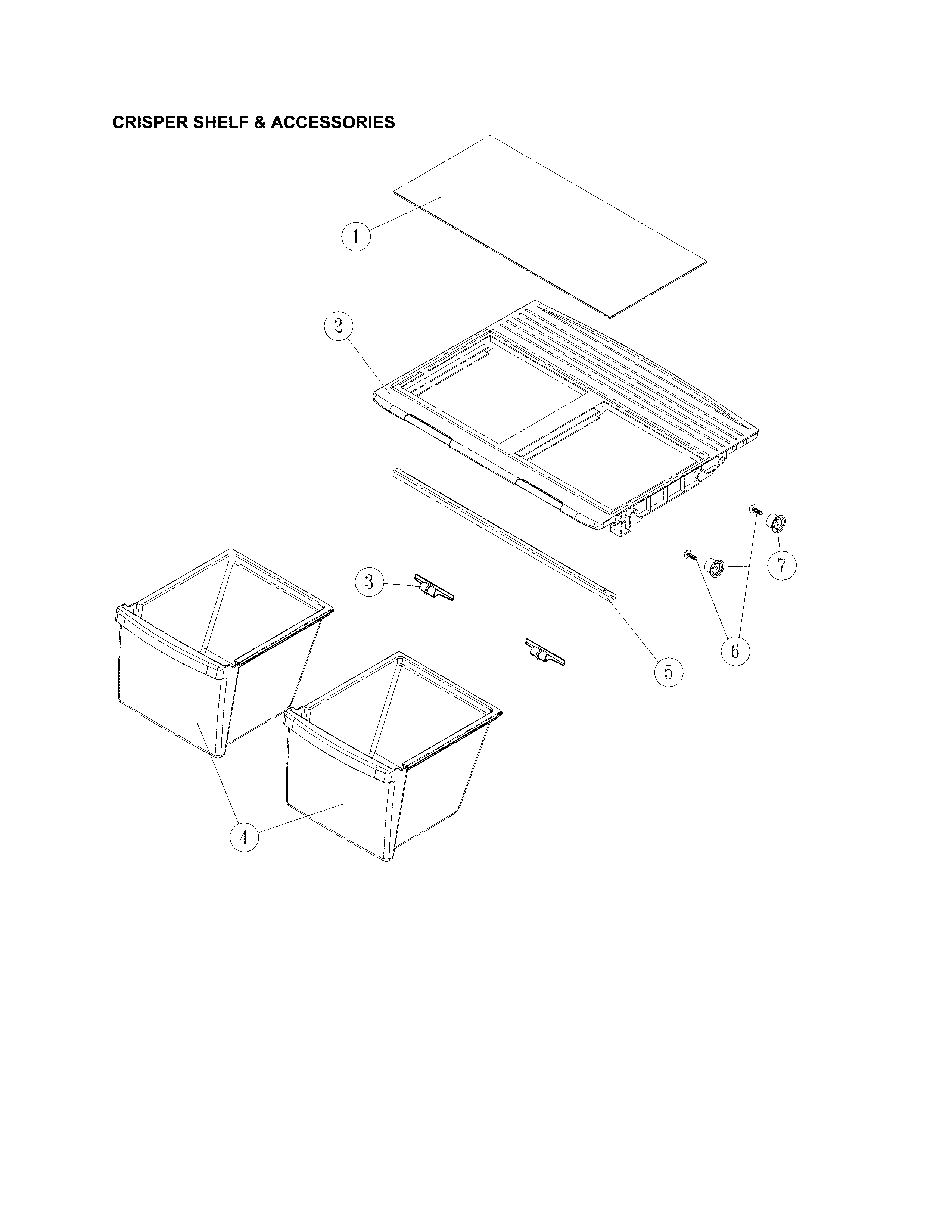

Crisper shelf and assessories diagram

Refrigerator crisper drawer

Part #3011180500

The manufacturer no longer makes this part, and there's no substitute part

Motor C Fan 60159-0010900
#9

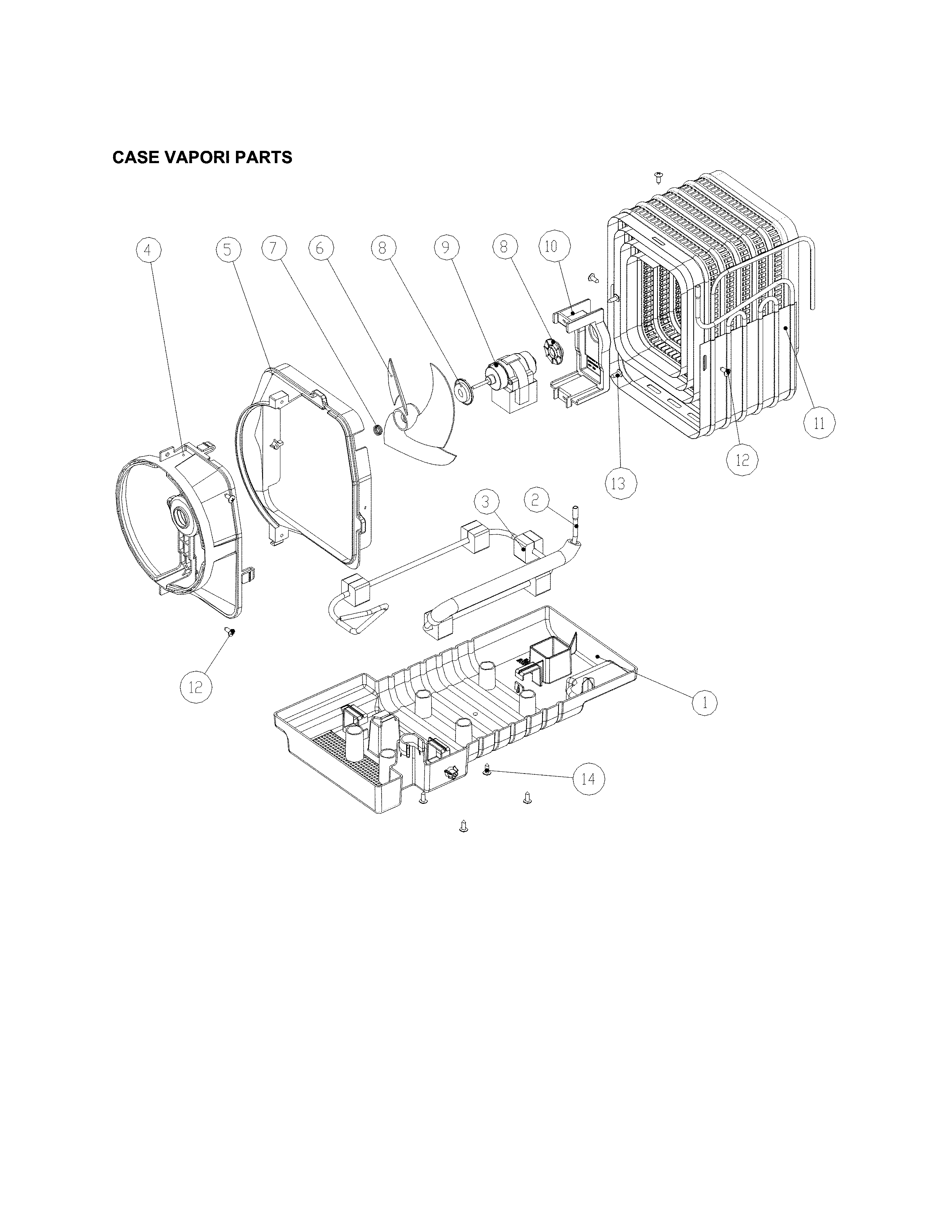

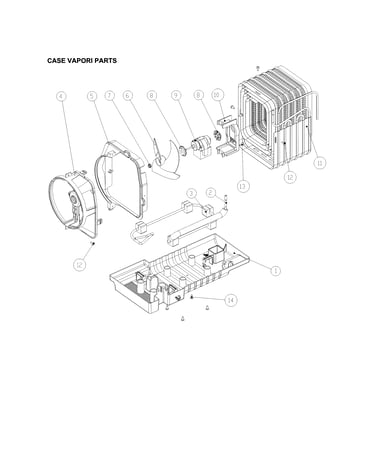

Case vapori parts diagram

Motor c fan

Part #60159-0010900

The manufacturer no longer makes this part, and there's no substitute part

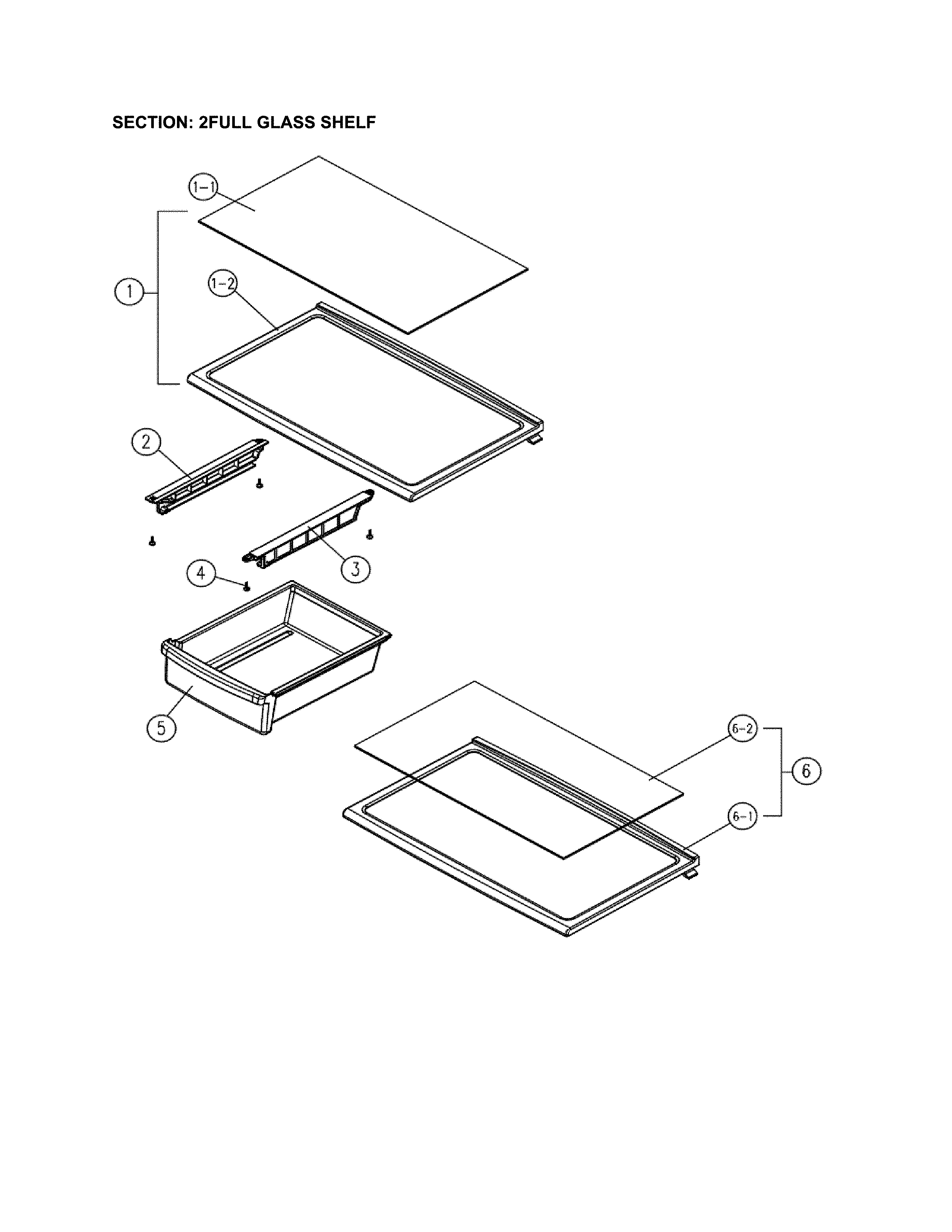

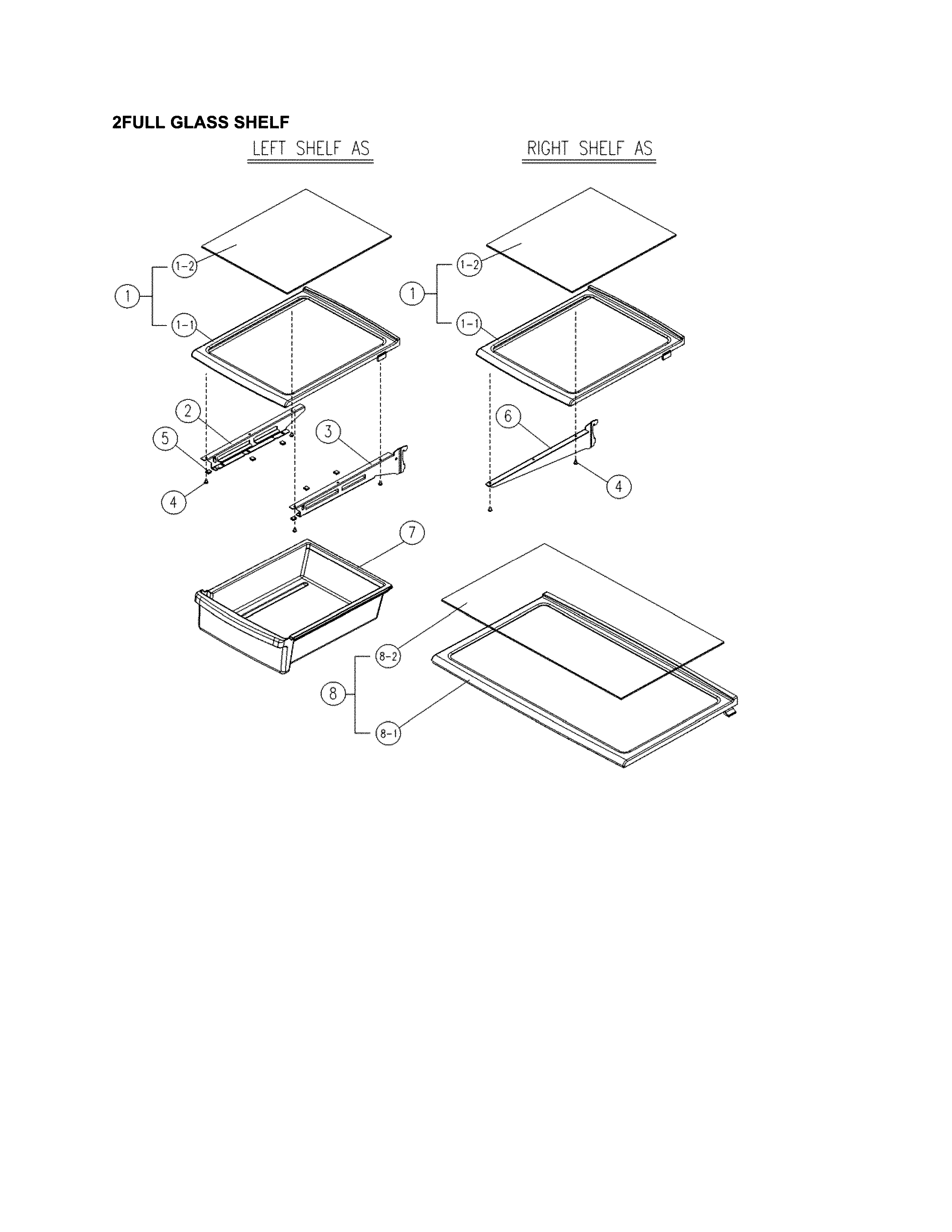

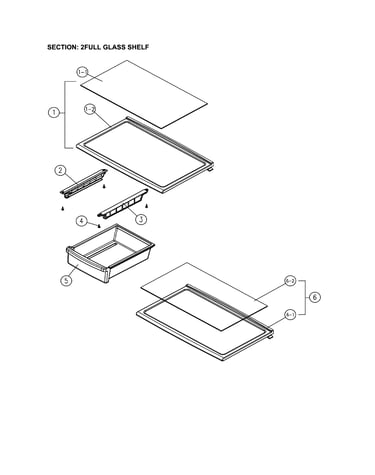

Refrigerator Glass Shelf 301456960A
Refrigerator glass shelf

Part #301456960A

The manufacturer no longer makes this part, and there's no substitute part

Absorber Motor (2) 3010142700
#8

Case vapori parts diagram

Absorber motor (2)

Part #3010142700

The manufacturer no longer makes this part, and there's no substitute part
