Jenn-Air
Gas Range

Model # SVD8310SD Official Jenn-Air gas range

Here are the diagrams and repair parts for Official Jenn-Air SVD8310SD gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

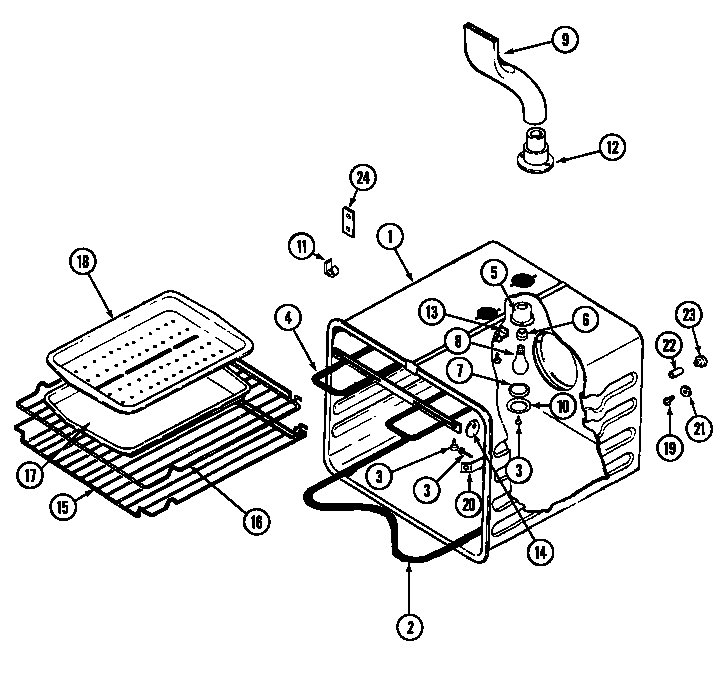

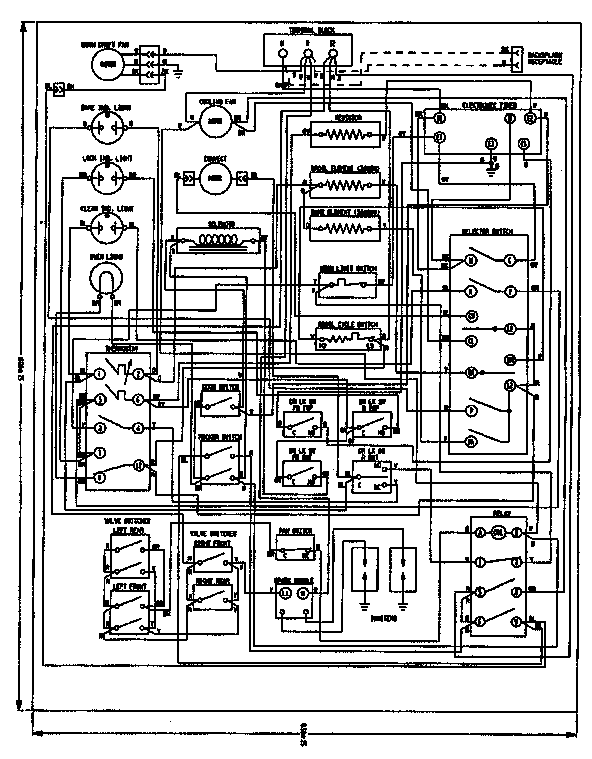

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 232 parts  |
Range Downdraft Vent Grease Filter 71002111
#8

Blower motor-plenum (svd8310sf) (svd8310sg) (svd8310sk) (svd8310sr) (svd8310su) diagram

Range downdraft vent grease filter

Part #71002111

Replaced by #WP71002111

?
Manufacturer substitution
This part replaces 71002111. Substitute parts can look different from the original.
This item is not returnable
$17.99 |
10% OFF Was : $19.99
In Stock
Burner, Front 705401
#6

Gas controls (svd8310sf) (svd8310sg) (svd8310sk) (svd8310sr) (svd8310su) diagram

Burner, front

Part #705401

Replaced by #WP7505P283-60

?
Manufacturer substitution
This part replaces 705401. Substitute parts can look different from the original.
$155.38 |
7% OFF Phone Price : $167.38
In Stock
Screw 705026
#23

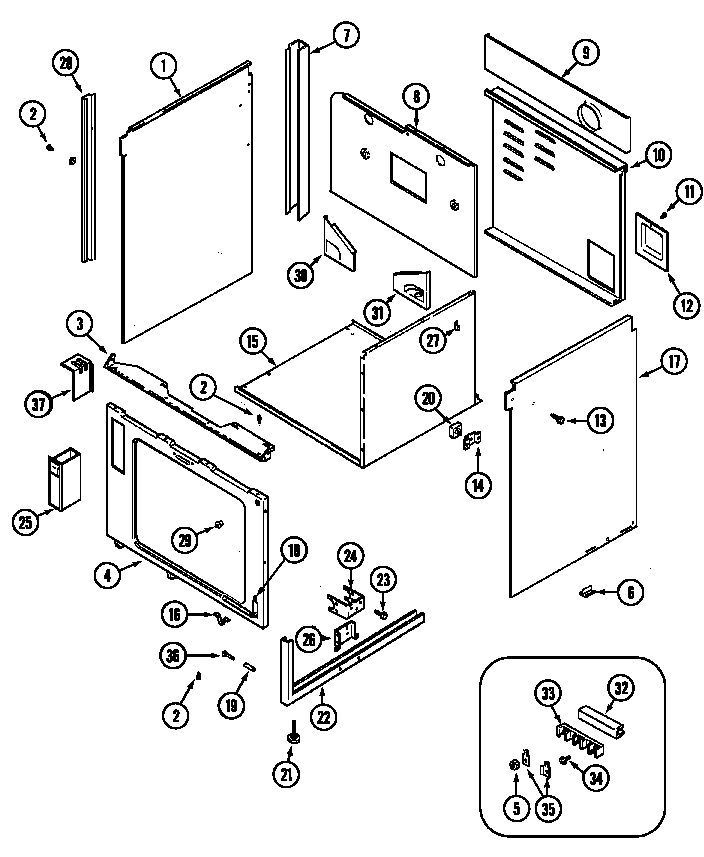

Body (svd8310sf) (svd8310sg) (svd8310sk) (svd8310sr) (svd8310su) diagram

Screw

Part #705026

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 705026. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Screw 700906
#11

Body (svd8310sf) (svd8310sg) (svd8310sk) (svd8310sr) (svd8310su) diagram

Screw

Part #700906

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 700906. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Burner Grate 71001757
#2

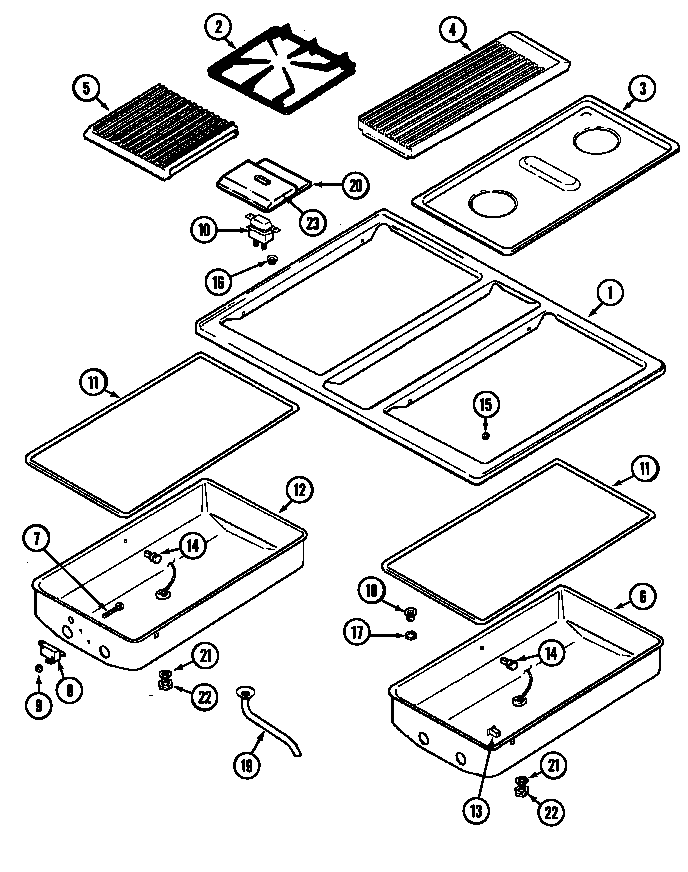

Top assembly (svd8310sf) (svd8310sg) (svd8310sk) (svd8310sr) (svd8310su) diagram

Burner grate

Part #71001757

Replaced by #12001481

?
Manufacturer substitution
This part replaces 71001757. Substitute parts can look different from the original.
$136.03 |
8% OFF Phone Price : $148.03
In Stock
Rear Burner 705402
#2

Gas controls (svd8310sf) (svd8310sg) (svd8310sk) (svd8310sr) (svd8310su) diagram

Rear burner

Part #705402

Replaced by #74005189

?
Manufacturer substitution
This part replaces 705402. Substitute parts can look different from the original.
$157.98 |
7% OFF Phone Price : $169.98
In Stock
Terminal Block 702284
#33

Body (svd8310sf) (svd8310sg) (svd8310sk) (svd8310sr) (svd8310su) diagram

Terminal block

Part #702284

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 702284. Substitute parts can look different from the original.
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
"switch, Hi-l" 702548
#5

Internal controls (svd8310sf) (svd8310sg) (svd8310sk) (svd8310sr) (svd8310su) diagram

"switch, hi-l"

Part #702548

Replaced by #WP7403P899-60

?
Manufacturer substitution
This part replaces 702548. Substitute parts can look different from the original.
$88.32 |
6% OFF Phone Price : $94.32
In Stock
Gas Valve 04100184
#16

Gas controls (svd8310sf) (svd8310sg) (svd8310sk) (svd8310sr) (svd8310su) diagram

Gas valve

Part #04100184

Replaced by #Y04100184

?
Manufacturer substitution
This part replaces 04100184. Substitute parts can look different from the original.
$118.86 |
9% OFF Phone Price : $130.86
In Stock
Screw 707172
#8C

Body (svd8310sf) (svd8310sg) (svd8310sk) (svd8310sr) (svd8310su) diagram

Screw

Part #707172

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707172. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
