Ikea
Range Hood

Model # IHW6302VM0 Official Ikea range hood

Here are the diagrams and repair parts for Official Ikea IHW6302VM0 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Range Hood Light Bulb W10298151
#26

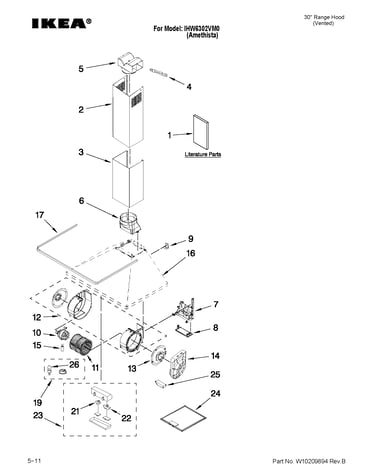

Hood parts diagram

Range hood light bulb

Part #W10298151

Replaced by #WPW10298151

?
Manufacturer substitution
This part replaces W10298151. Substitute parts can look different from the original.
This item is not returnable
$23.69 |
20% OFF Phone Price : $29.69
In Stock
Jenn-air Capacitor 8186687
#15

Hood parts diagram

Jenn-air capacitor

Part #8186687

$55.58
In Stock
Transformer 8186686
#25

Hood parts diagram

Transformer

Part #8186686

Replaced by #W11186486

?
Manufacturer substitution
This part replaces 8186686. Substitute parts can look different from the original.
$114.79 |
9% OFF Phone Price : $126.79
In Stock
Range Hood Light Bulb 8186678
#19

Hood parts diagram

Range hood light bulb

Part #8186678

Replaced by #WP8186678

?
Manufacturer substitution
This part replaces 8186678. Substitute parts can look different from the original.
$58.13 |
9% OFF Phone Price : $64.13
Back Order
Chimney 8186695
#3

Hood parts diagram

Chimney

Part #8186695

The manufacturer no longer makes this part, and there's no substitute part

Slide Switch 8190854
#21

Hood parts diagram

Slide switch

Part #8190854

The manufacturer no longer makes this part, and there's no substitute part

Filter 8186692
#14

Hood parts diagram

Filter

Part #8186692

The manufacturer no longer makes this part, and there's no substitute part

Vent Grille 8190816
#13

Hood parts diagram

Vent grille

Part #8190816

The manufacturer no longer makes this part, and there's no substitute part

(left W/dual) N/P
#16

Hood parts diagram

(left w/dual)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Hardware 8186710
#NI

Hood parts diagram

Hardware

Part #8186710

The manufacturer no longer makes this part, and there's no substitute part
