Model # RS2555SW/XAA Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RS2555SW-XAA refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

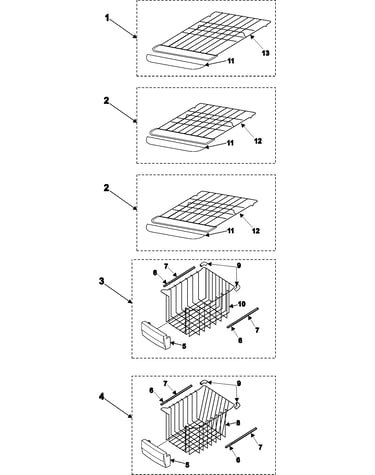

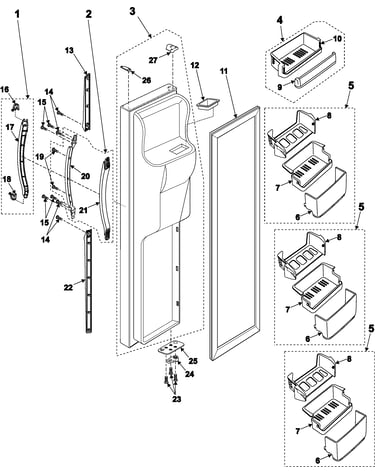

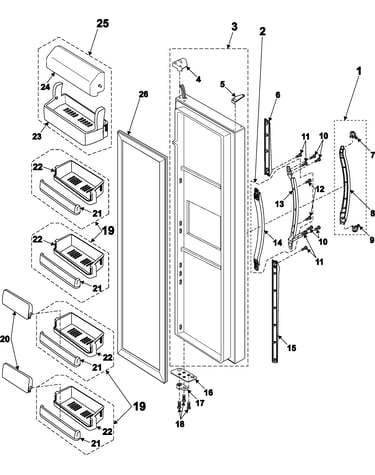

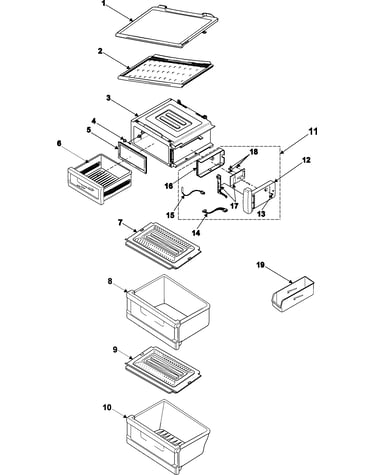

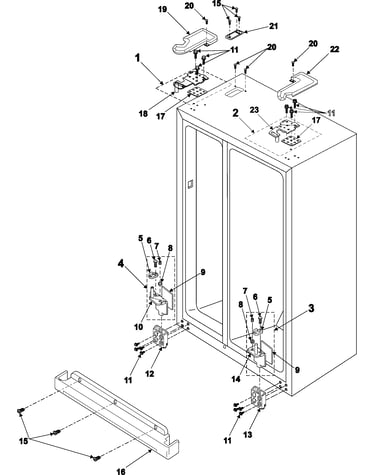

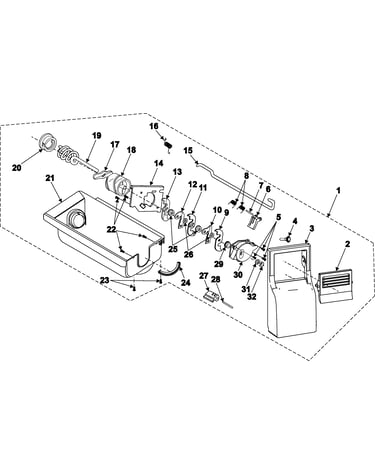

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 348 parts  |
Refrigerator Temperature Sensor (replaces Da32-10104f, Da32-10104g) DA32-10109W
#14

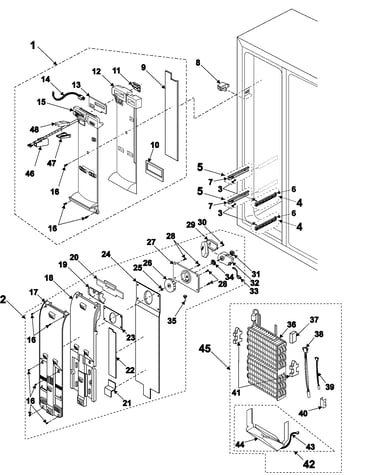

Freezer compartment diagram

Refrigerator temperature sensor (replaces da32-10104f, da32-10104g)

Part #DA32-10109W

BEST SELLER
$32.95 |
15% OFF Phone Price : $38.95
In Stock
Kenmore Pro Refrigerator Compressor Overload And Start Relay Cover DA63-01866A
#32

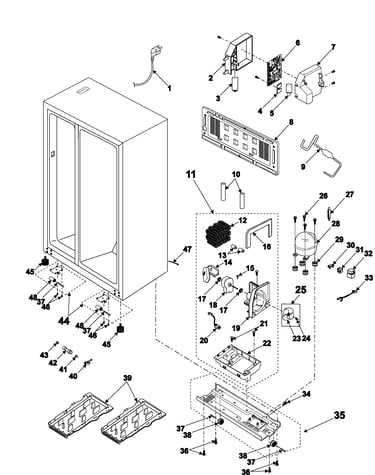

Machine compartment & cabinet back diagram

Kenmore pro refrigerator compressor overload and start relay cover

Part #DA63-01866A

This item is not returnable
$14.78 |
12% OFF Phone Price : $16.78
In Stock
Refrigerator Micro-switch DA34-00011A
#16

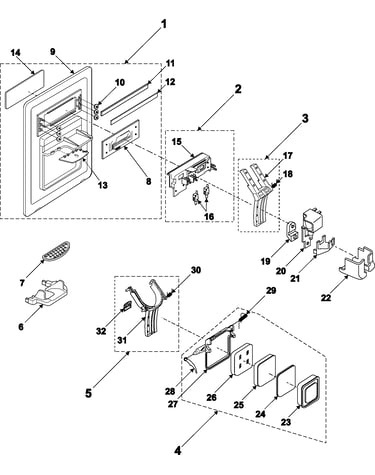

Fountain diagram

Refrigerator micro-switch

Part #DA34-00011A

Replaced by #3405-001117

?
Manufacturer substitution
This part replaces DA34-00011A. Substitute parts can look different from the original.
This item is not returnable
$10.82 |
16% OFF Phone Price : $12.82
In Stock
Refrigerator Sensor Assembly DA32-00006B
#49

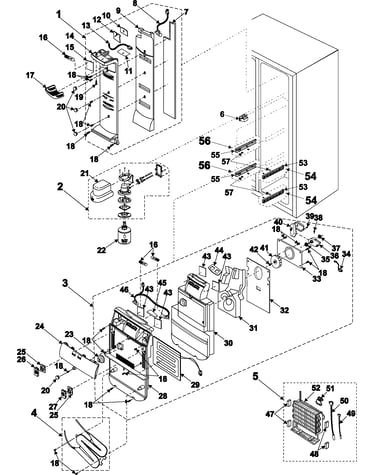

Refrigerator compartment diagram

Refrigerator sensor assembly

Part #DA32-00006B

Replaced by #DA32-00006W

?
Manufacturer substitution
This part replaces DA32-00006B. Substitute parts can look different from the original.
$23.61 |
20% OFF Phone Price : $29.61
In Stock
Refrigerator Compressor MK183CL2U/E07
#28

Machine compartment & cabinet back diagram

Refrigerator compressor

Part #MK183CL2U/E07

Replaced by #MSA182DL2H/ASH

?
Manufacturer substitution
This part replaces MK183CL2U/E07. Substitute parts can look different from the original.
$220.24 |
5% OFF Phone Price : $232.24
In Stock
Refrigerator Ice Dispenser Solenoid DA74-40151G
#13

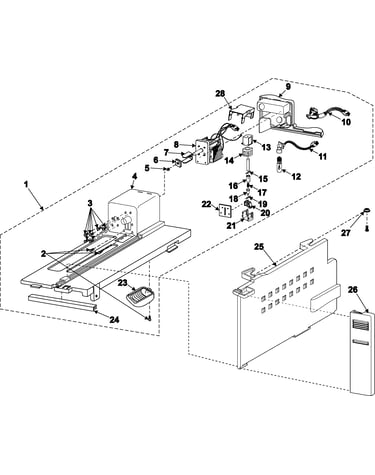

Enclosure assembly diagram

Refrigerator ice dispenser solenoid

Part #DA74-40151G

$80.04 |
7% OFF Phone Price : $86.04
In Stock
Refrigerator Ice Maker Thermostat Cover DA63-02183A
#4

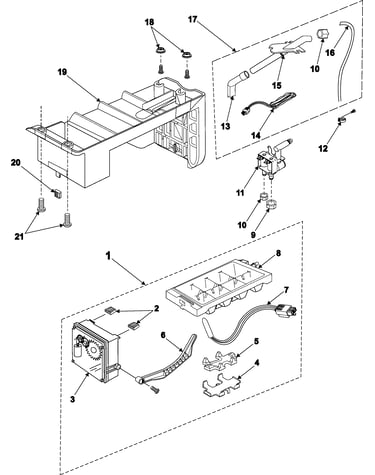

Icemaker diagram

Refrigerator ice maker thermostat cover

Part #DA63-02183A

This item is not returnable
$5.49 |
15% OFF Phone Price : $6.49
In Stock
Refrigerator Dryer Assembly DA73-30102B
#27

Machine compartment & cabinet back diagram

Refrigerator dryer assembly

Part #DA73-30102B

Replaced by #DA81-06026A

?
Manufacturer substitution
This part replaces DA73-30102B. Substitute parts can look different from the original.
$105.73 |
10% OFF Phone Price : $117.73
In Stock
Refrigerator Ice Maker Fill Tube DA71-20208A
#41

Machine compartment & cabinet back diagram

Refrigerator ice maker fill tube

Part #DA71-20208A

This item is not returnable
$2.26
In Stock
Kenmore Pro Grommet DA63-40171B
#13

Machine compartment & cabinet back diagram

Kenmore pro grommet

Part #DA63-40171B

This item is not returnable
$3.63
In Stock
