Craftsman
Angle Grinder

Model # 172417760 Official Craftsman angle grinder

Here are the diagrams and repair parts for Official Craftsman 172417760 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Craftsman Angle Grinder Power Cord Clamp PGA230SU-49
#49

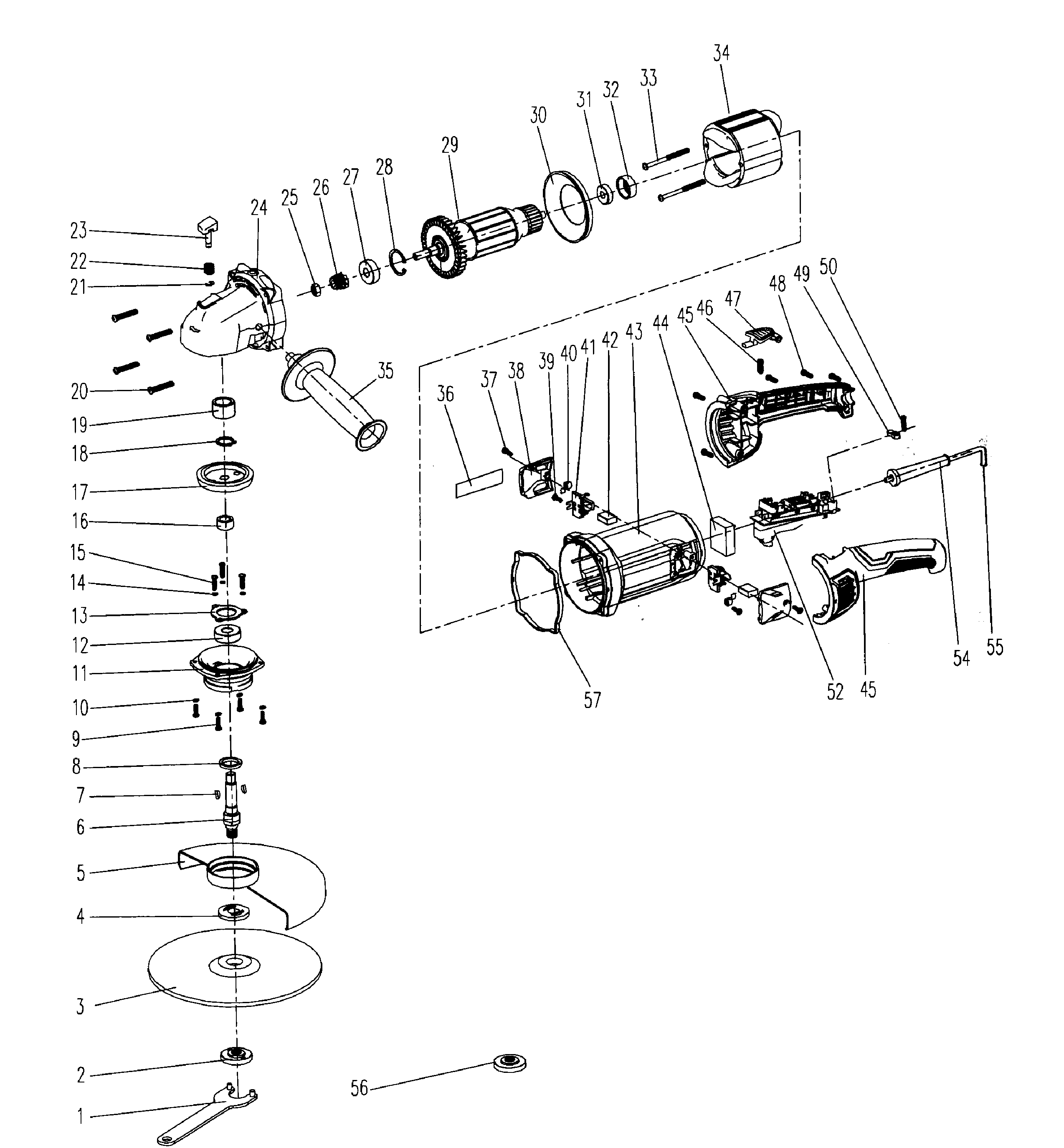

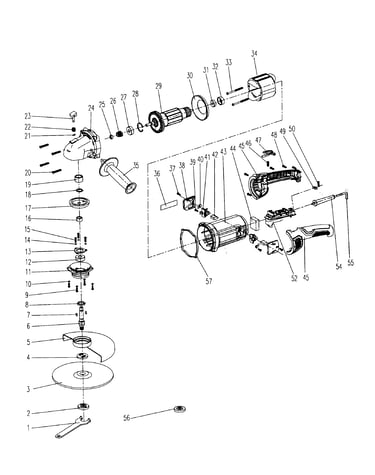

Main asy diagram

Craftsman angle grinder power cord clamp

Part #PGA230SU-49

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Motor Brush Spring PGA230SU-40
#40

Main asy diagram

Craftsman angle grinder motor brush spring

Part #PGA230SU-40

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Bearing Block Screw, 5 X 1-mm PGA230SU-9
#9

Main asy diagram

Craftsman angle grinder bearing block screw, 5 x 1-mm

Part #PGA230SU-9

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Main Spind PGA230SU-6
#6

Main asy diagram

Craftsman main spind

Part #PGA230SU-6

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Motor Stator PGA230SU-34
#34

Main asy diagram

Craftsman angle grinder motor stator

Part #PGA230SU-34

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Spring Washer PGA230SU-10
#10

Main asy diagram

Craftsman angle grinder spring washer

Part #PGA230SU-10

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Disc Flange, Outer PGA230SU-2
#2

Main asy diagram

Craftsman angle grinder disc flange, outer

Part #PGA230SU-2

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Motor Brush Holder PGA230SU-41
#41

Main asy diagram

Craftsman angle grinder motor brush holder

Part #PGA230SU-41

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Screw PGA230SU-50
#50

Main asy diagram

Craftsman angle grinder screw

Part #PGA230SU-50

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Power Cord PGA230SU-55
#55

Main asy diagram

Craftsman angle grinder power cord

Part #PGA230SU-55

The manufacturer no longer makes this part, and there's no substitute part
