Maytag
Garbage Disposal

Model # DFC5000AAX Official Maytag garbage disposal

Here are the diagrams and repair parts for Official Maytag DFC5000AAX garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Mounting Gasket 08300003
Mounting gasket

Part #08300003

The manufacturer no longer makes this part, and there's no substitute part

Maytag Stator Assembly 83001091
#27

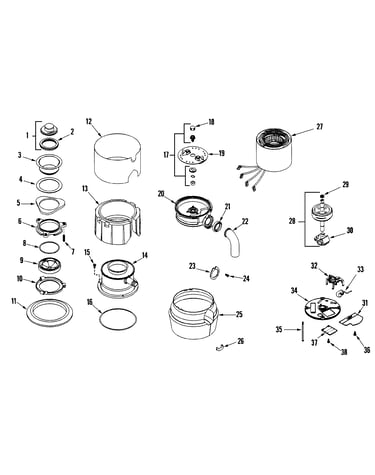

Body (series 11) diagram

Maytag stator assembly

Part #83001091

$132.72
In Stock
Centrifugal 752520
#30

Body (series 11) diagram

Centrifugal

Part #752520

Replaced by #4211322

?
Manufacturer substitution
This part replaces 752520. Substitute parts can look different from the original.
$37.96
In Stock
Gasket 752502
Gasket

Part #752502

Replaced by #4211606

?
Manufacturer substitution
This part replaces 752502. Substitute parts can look different from the original.
This item is not returnable
$14.00
In Stock
Star Switch 08300061
#37

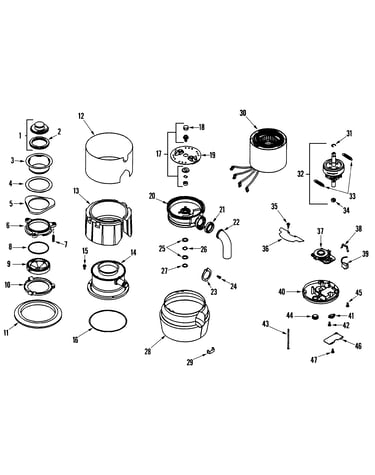

Body (series 10) diagram

Star switch

Part #08300061

Replaced by #Y08300061

?
Manufacturer substitution
This part replaces 08300061. Substitute parts can look different from the original.
$57.83
In Stock
Stator Assembly 08300055
#30

Body (series 10) diagram

Stator assembly

Part #08300055

Replaced by #Y08300055

?
Manufacturer substitution
This part replaces 08300055. Substitute parts can look different from the original.
$171.15
In Stock
Stopper Assembly 08300001
Stopper assembly

Part #08300001

Replaced by #4211577

?
Manufacturer substitution
This part replaces 08300001. Substitute parts can look different from the original.
$25.99 |
19% OFF Phone Price : $31.99
In Stock
Sleeve & Sea 08300042
Sleeve & sea

Part #08300042

The manufacturer no longer makes this part, and there's no substitute part

Ground Screw 20200045
#36

Body (series 11) diagram

Ground screw

Part #20200045

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces 20200045. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
O-ring 08300008
O-ring

Part #08300008

The manufacturer no longer makes this part, and there's no substitute part
