GE
Chest Freezer

Model # FCM22DHBWW Official GE freezer

Here are the diagrams and repair parts for Official GE FCM22DHBWW freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Mounting Clip WR01X23660
#45

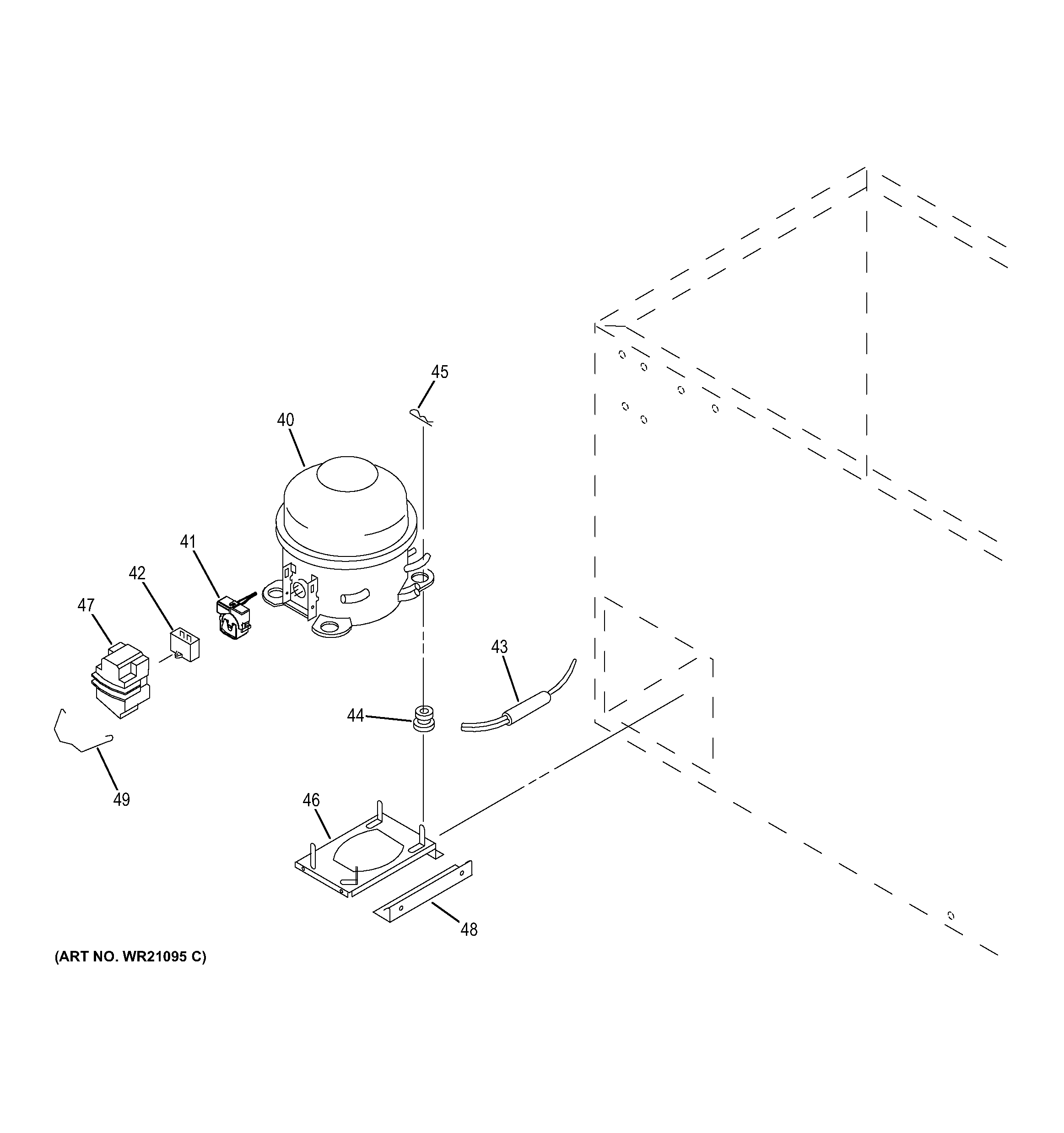

Machine compartment diagram

Mounting clip

Part #WR01X23660

Replaced by #WR01X10815

?
Manufacturer substitution
This part replaces WR01X23660. Substitute parts can look different from the original.
This item is not returnable
$6.54
In Stock
Handle WR12X23672
#30

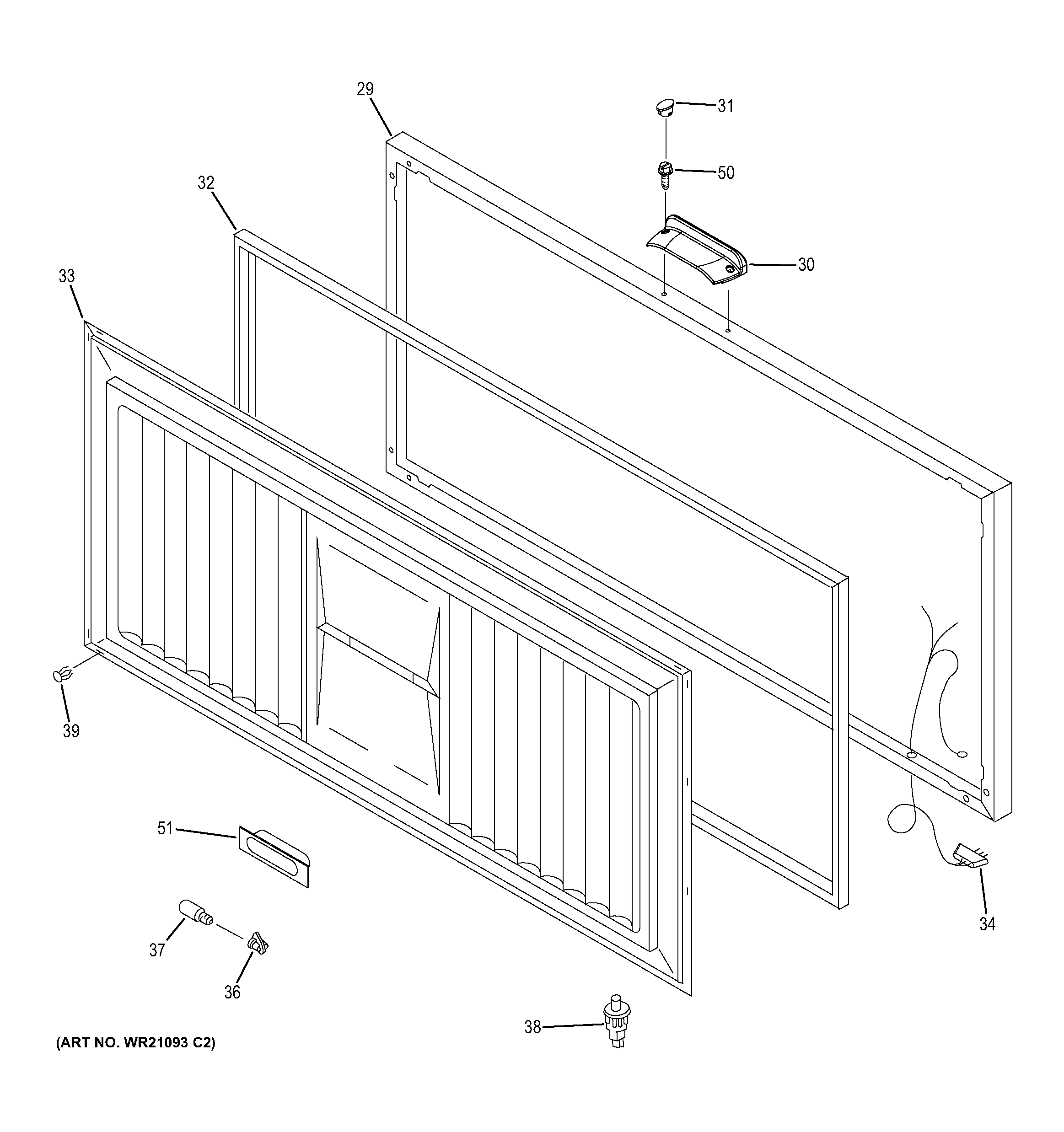

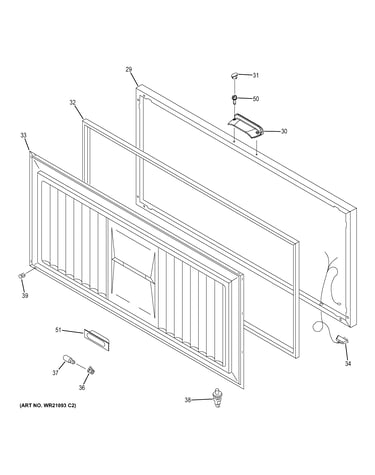

Door diagram

Handle

Part #WR12X23672

Replaced by #WR12X26906

?
Manufacturer substitution
This part replaces WR12X23672. Substitute parts can look different from the original.
$66.51
In Stock
Alarm Switch WR23X23655
#28

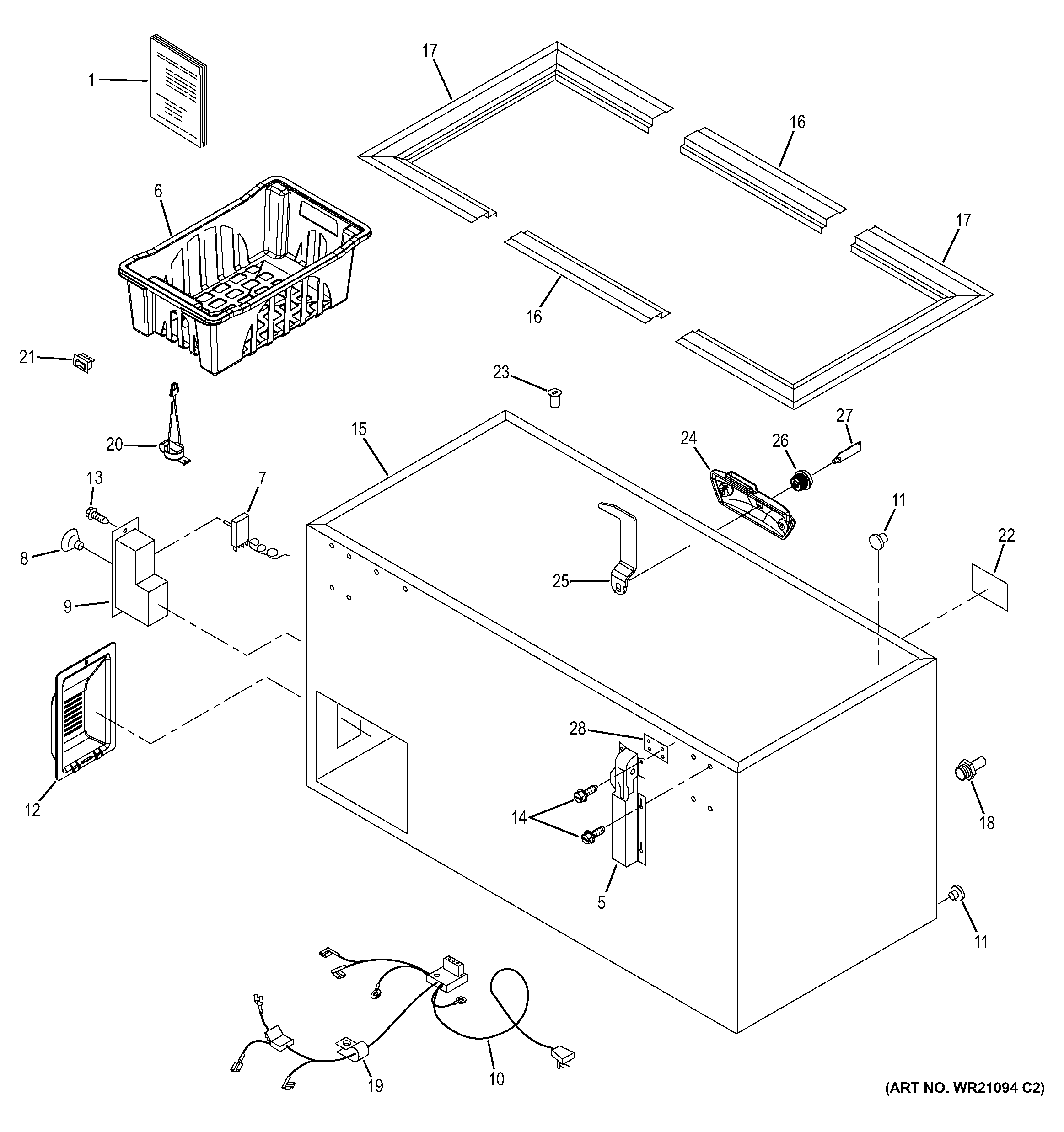

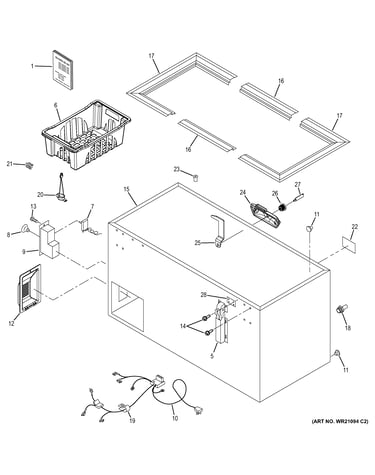

Cabinet diagram

Alarm switch

Part #WR23X23655

The manufacturer no longer makes this part, and there's no substitute part

Barrel Lock WR05X23683
#22

Cabinet diagram

Barrel lock

Part #WR05X23683

The manufacturer no longer makes this part, and there's no substitute part

Foamed Lid WR78X23695
#29

Door diagram

Foamed lid

Part #WR78X23695

The manufacturer no longer makes this part, and there's no substitute part

Basket WR21X23657
#6

Cabinet diagram

Basket

Part #WR21X23657

The manufacturer no longer makes this part, and there's no substitute part

Gasket WR24X23696
#32

Door diagram

Gasket

Part #WR24X23696

The manufacturer no longer makes this part, and there's no substitute part

Lid Liner WR77X23698
#33

Door diagram

Lid liner

Part #WR77X23698

The manufacturer no longer makes this part, and there's no substitute part

Compressor Mounting Grom WR01X23664
#44

Machine compartment diagram

Compressor mounting grom

Part #WR01X23664

The manufacturer no longer makes this part, and there's no substitute part

End Breakerstrip WR40X23668
#17

Cabinet diagram

End breakerstrip

Part #WR40X23668

The manufacturer no longer makes this part, and there's no substitute part
