Thermador
Upright Freezer

Model # T18ID80NRP/15 Official Thermador freezer

Here are the diagrams and repair parts for Official Thermador T18ID80NRP-15 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

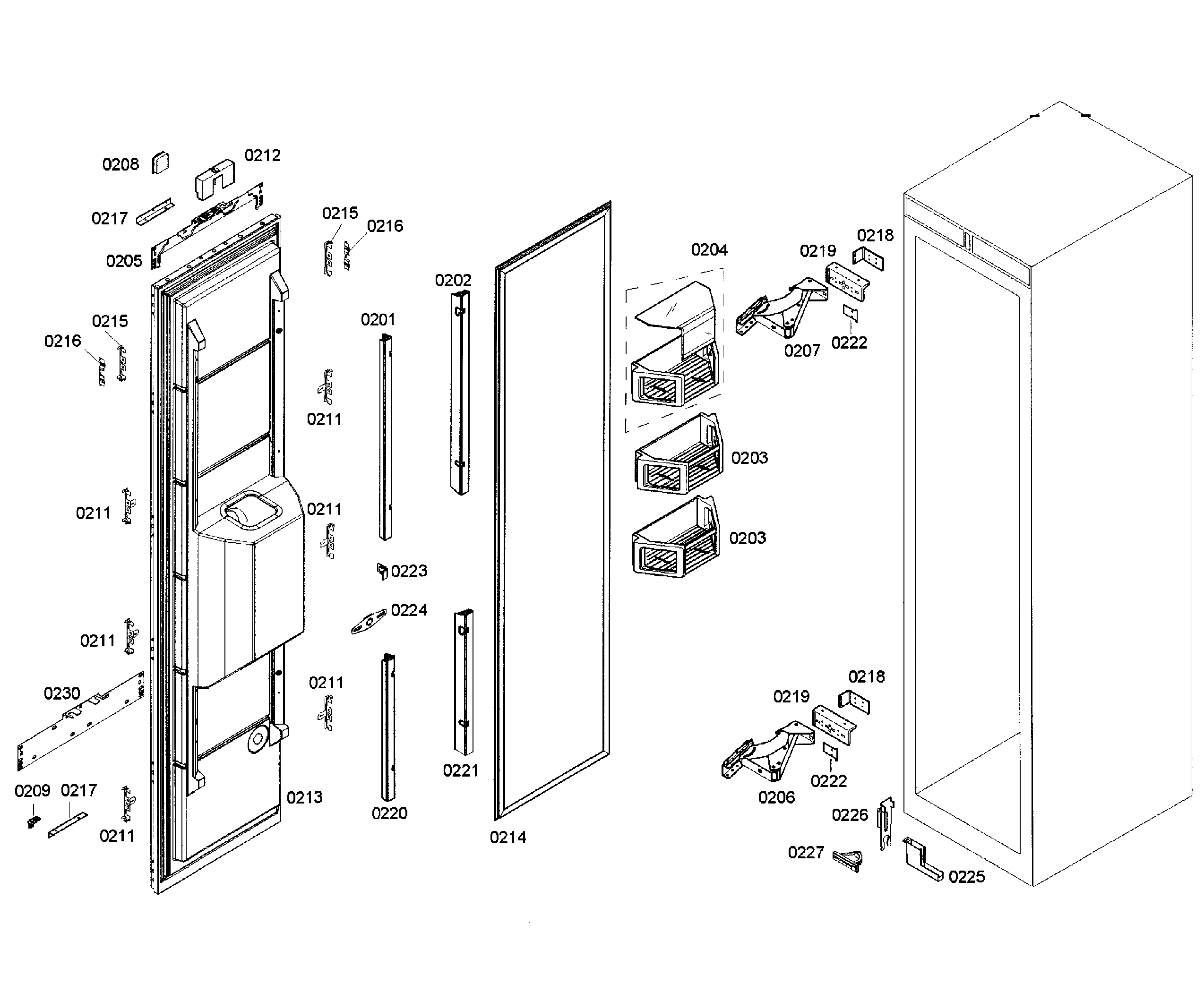

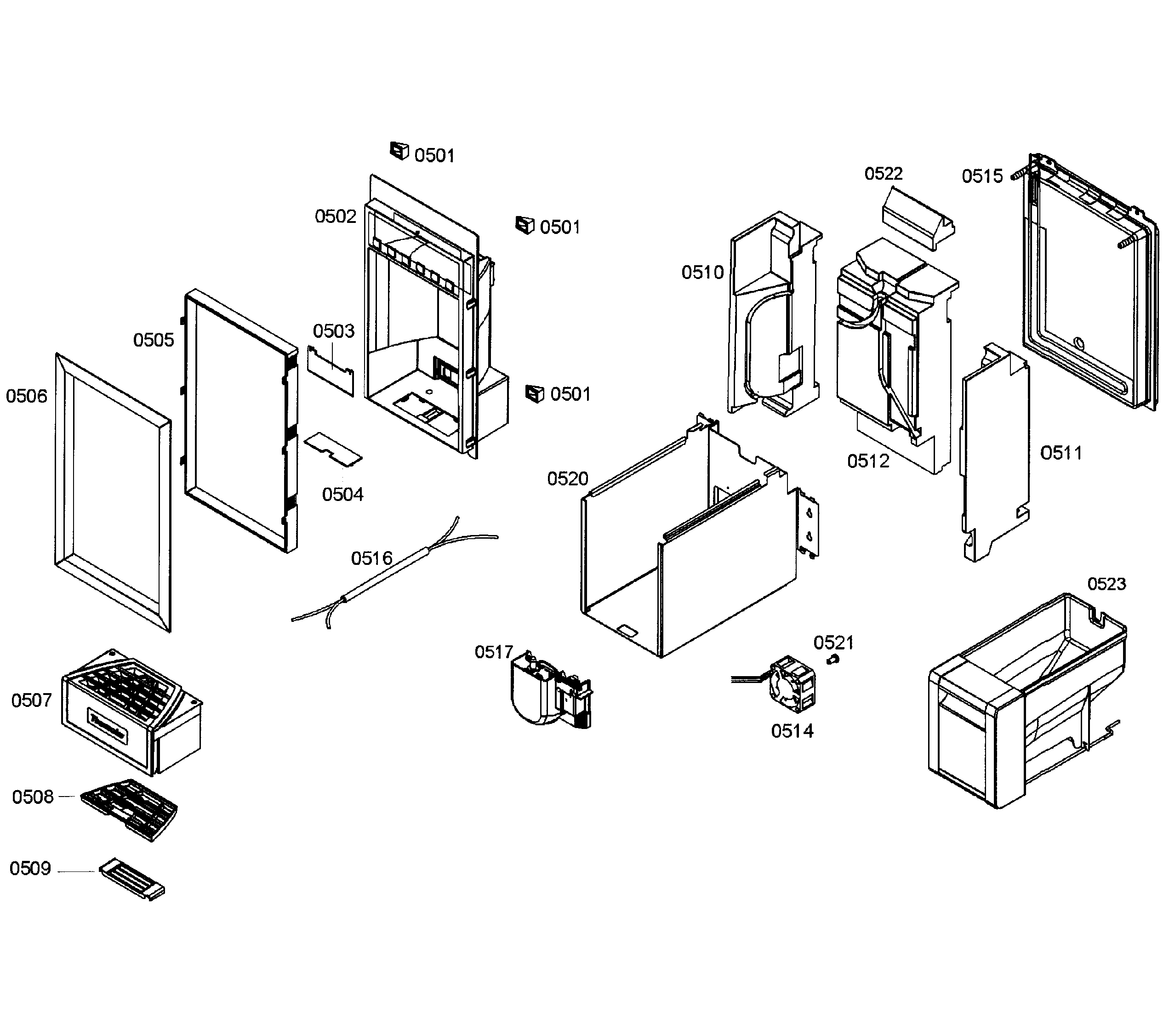

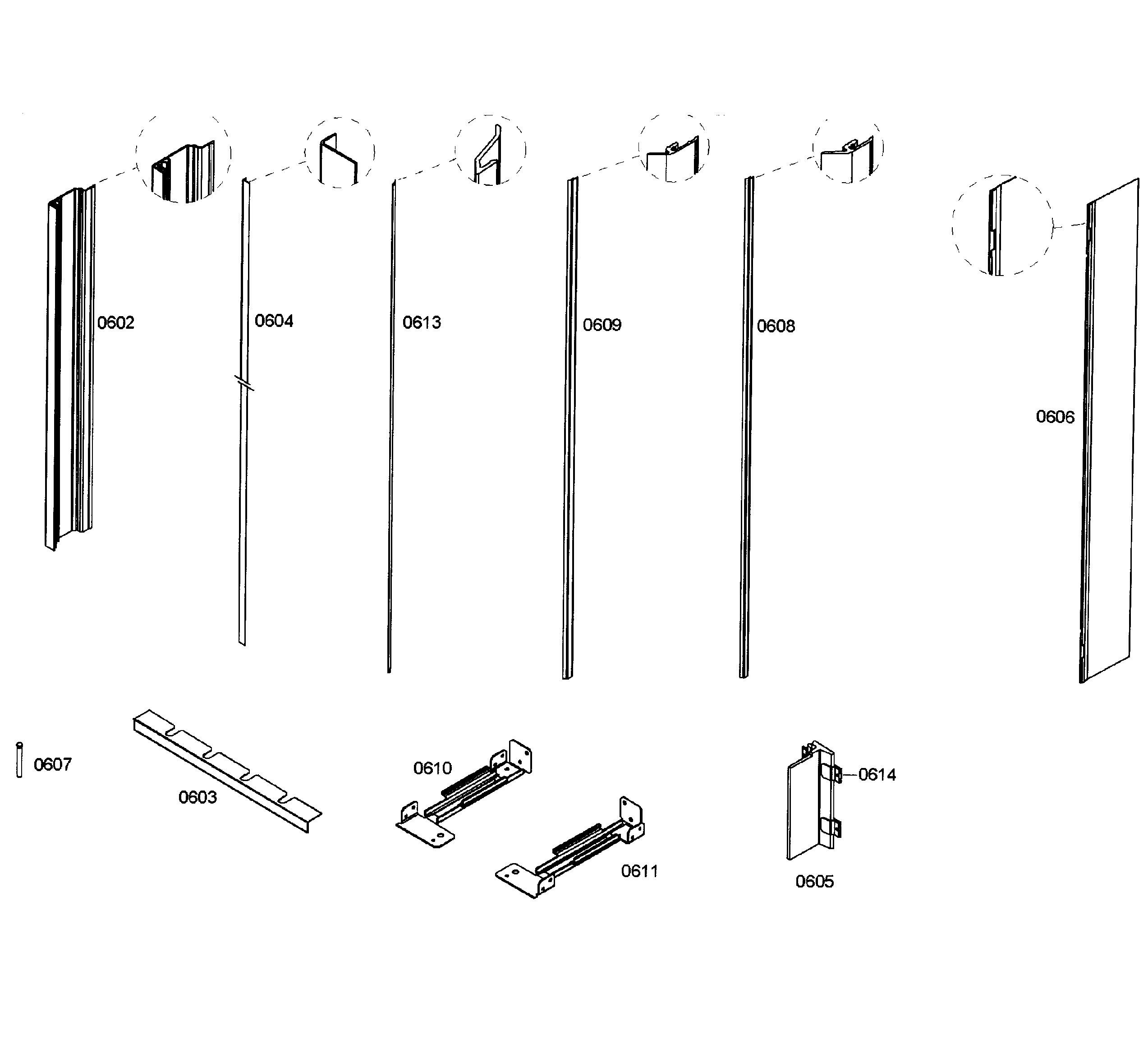

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |
Freezer Water Filter Cap 604684
#429

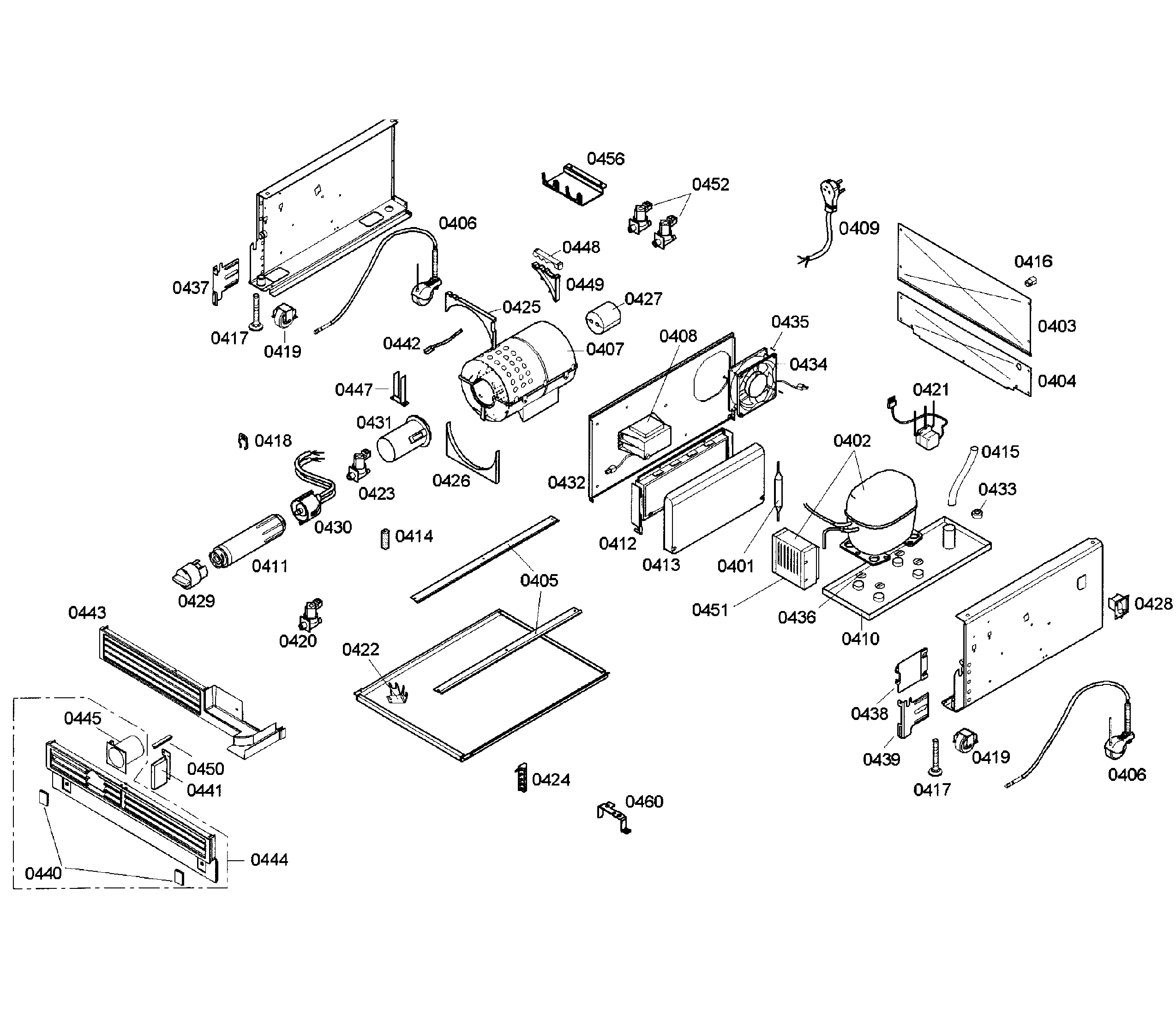

Compressor diagram

Freezer water filter cap

Part #604684

Replaced by #00604684

?
Manufacturer substitution
This part replaces 604684. Substitute parts can look different from the original.
$11.49 |
15% OFF Phone Price : $13.49
In Stock
Clip 603971
#313

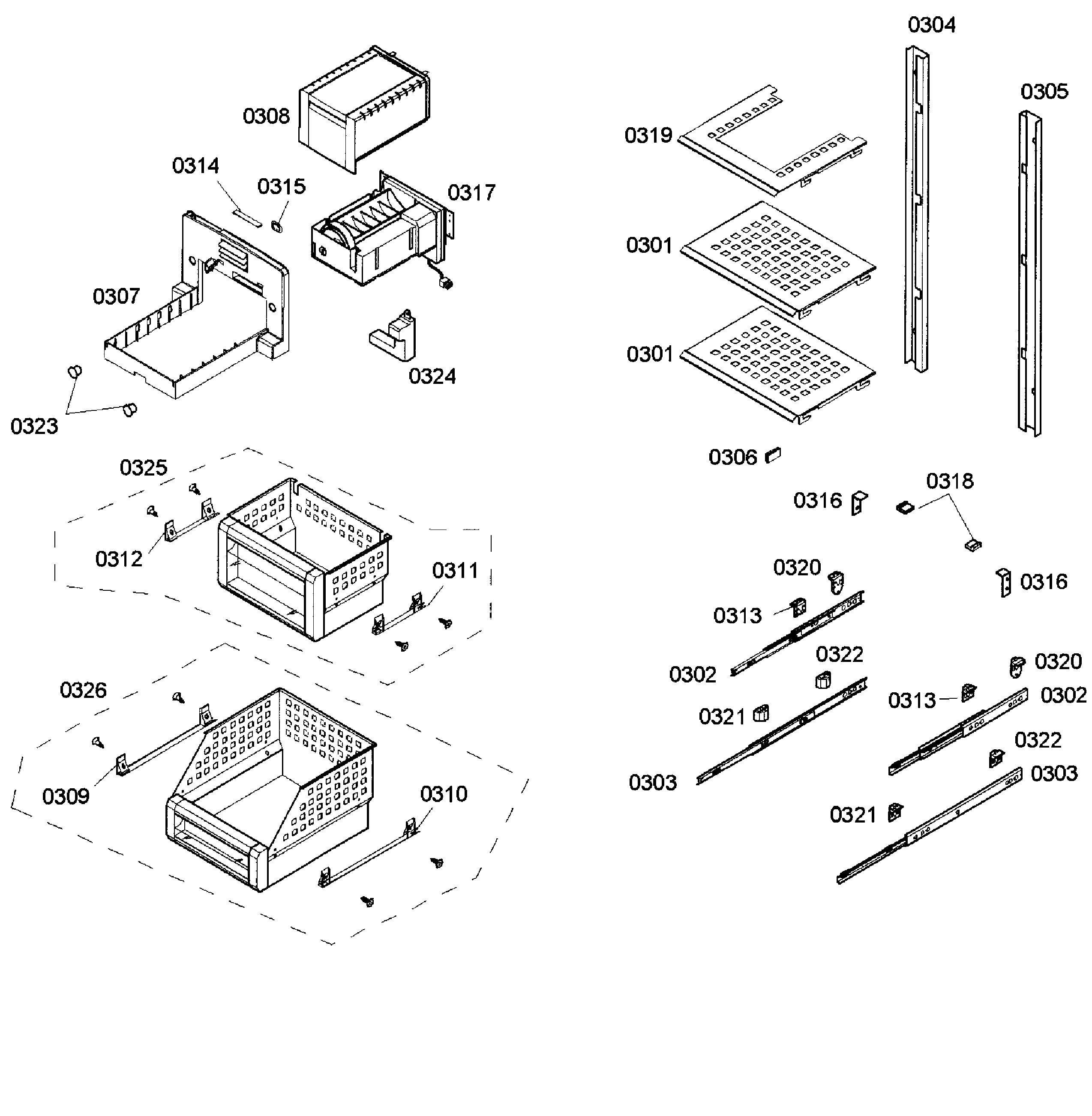

Shelfs diagram

Clip

Part #603971

Replaced by #00623319

?
Manufacturer substitution
This part replaces 603971. Substitute parts can look different from the original.
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Relay 609254
#451

Compressor diagram

Relay

Part #609254

Replaced by #00654622

?
Manufacturer substitution
This part replaces 609254. Substitute parts can look different from the original.
$185.05
In Stock
Fan 605322
#434

Compressor diagram

Fan

Part #605322

Replaced by #00652338

?
Manufacturer substitution
This part replaces 605322. Substitute parts can look different from the original.
$97.79 |
11% OFF Phone Price : $109.79
In Stock
Base Panel 244552
#444

Compressor diagram

Base panel

Part #244552

Replaced by #00676694

?
Manufacturer substitution
This part replaces 244552. Substitute parts can look different from the original.
$91.78
In Stock
Rail 660867
#302

Shelfs diagram

Rail

Part #660867

Replaced by #00660867

?
Manufacturer substitution
This part replaces 660867. Substitute parts can look different from the original.
$85.16
In Stock
Basket 640320
#325

Shelfs diagram

Basket

Part #640320

Replaced by #00640320

?
Manufacturer substitution
This part replaces 640320. Substitute parts can look different from the original.
$160.44
In Stock
Foot 603961
#417

Compressor diagram

Foot

Part #603961

Replaced by #00603961

?
Manufacturer substitution
This part replaces 603961. Substitute parts can look different from the original.
$19.37
In Stock
Dryer 093110
#401

Compressor diagram

Dryer

Part #093110

The manufacturer no longer makes this part, and there's no substitute part

Operating 667838
#104

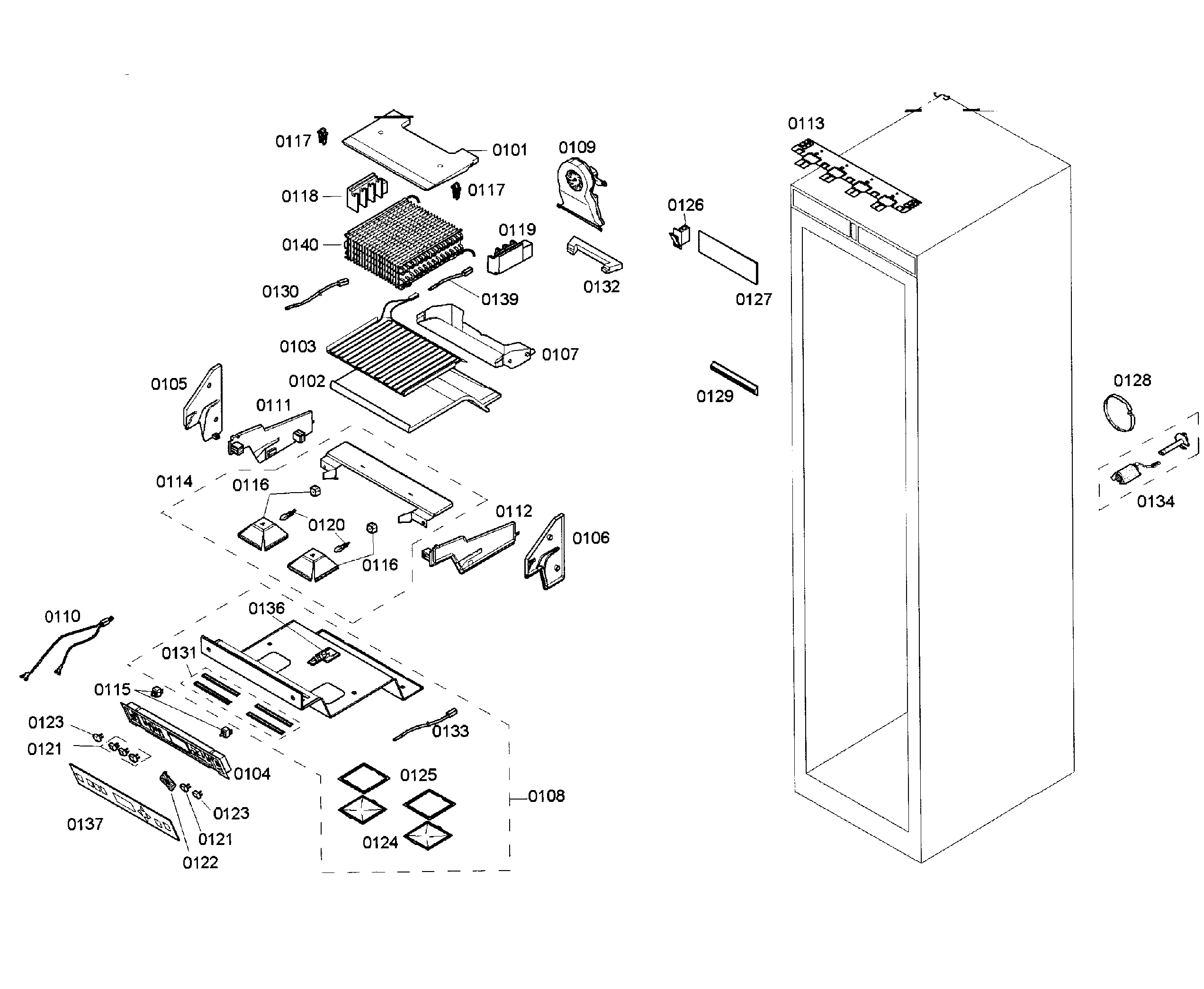

Cabinet parts diagram

Operating

Part #667838

Replaced by #11041652

?
Manufacturer substitution
This part replaces 667838. Substitute parts can look different from the original.
$239.70 |
5% OFF Phone Price : $251.70
In Stock
