Model # DLE9577WM Official LG dryer

Here are the diagrams and repair parts for Official LG DLE9577WM dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

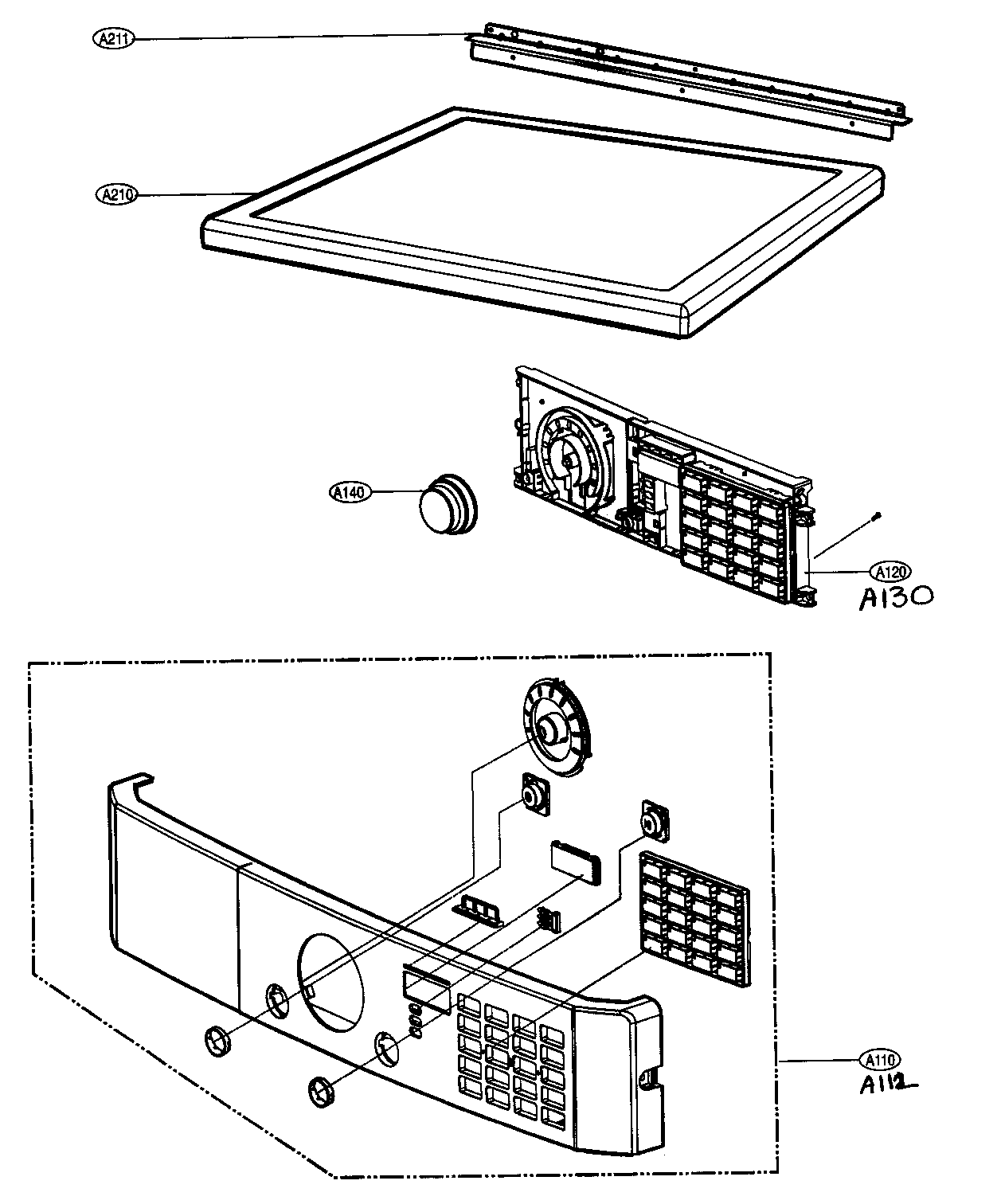

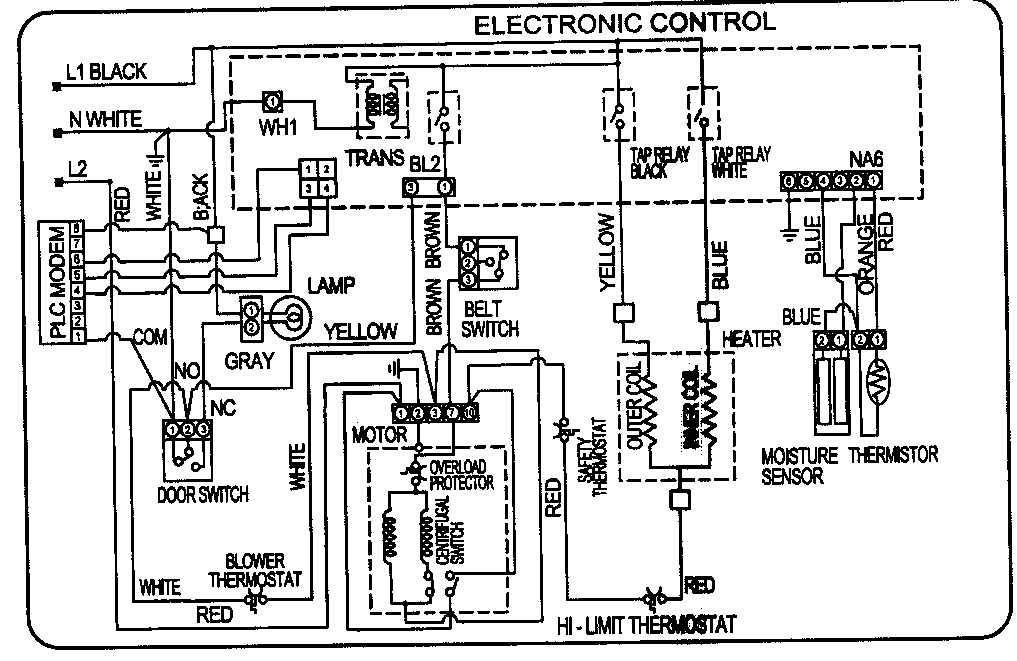

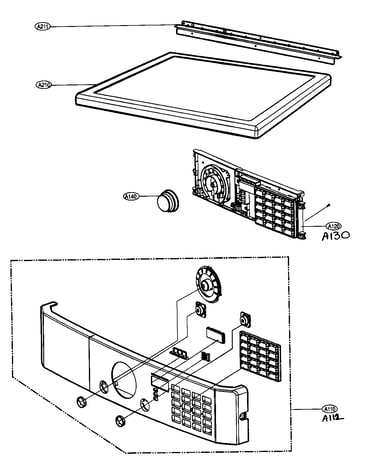

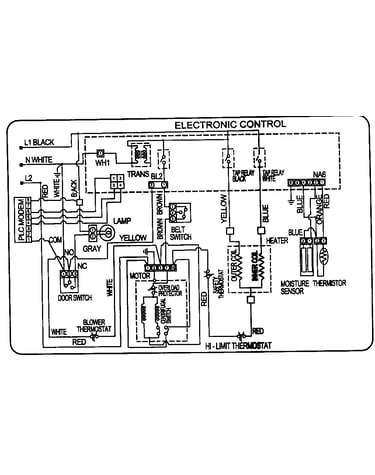

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Dryer Idler Pulley (replaces 4561el3002b) 4561EL3002A
#K650

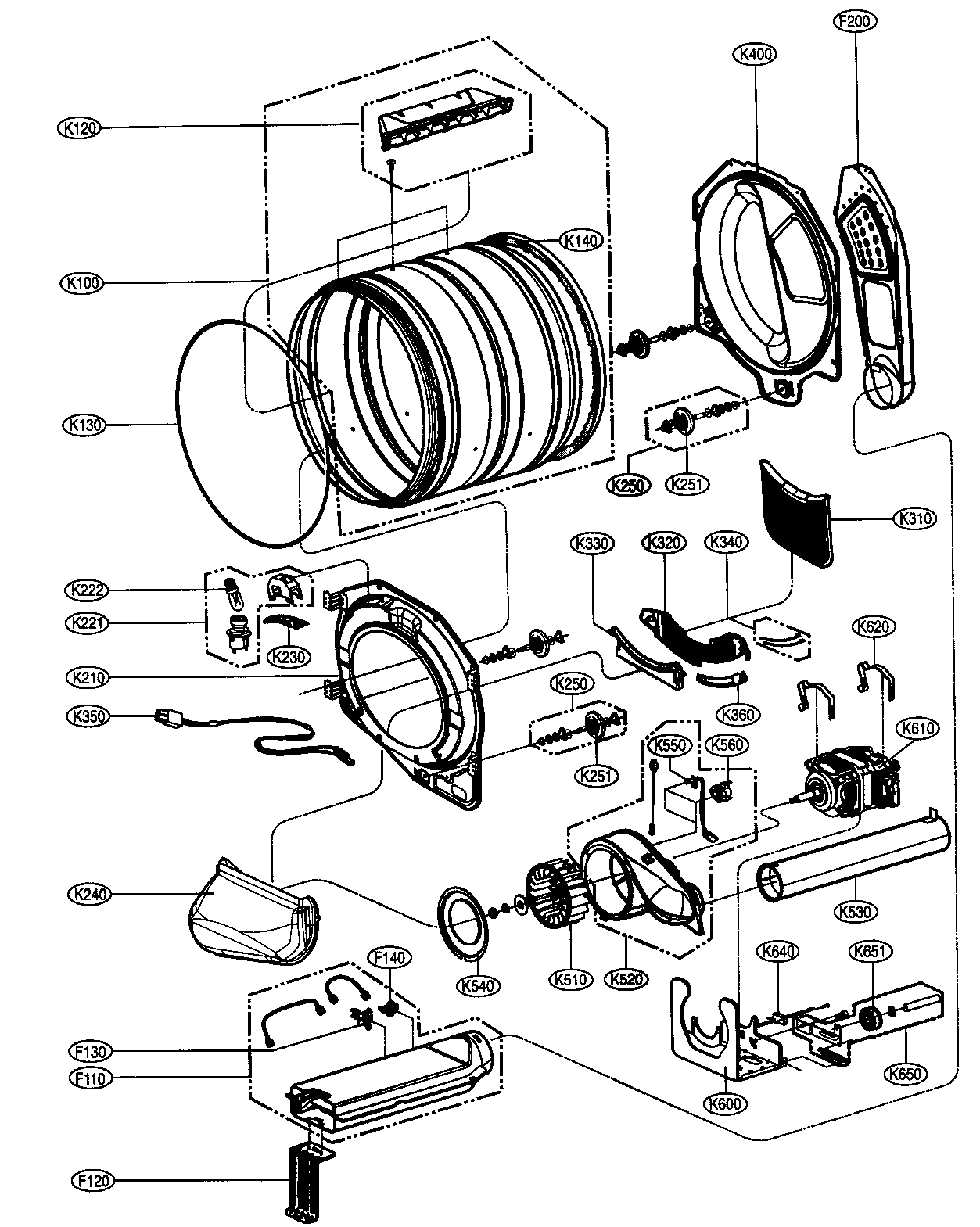

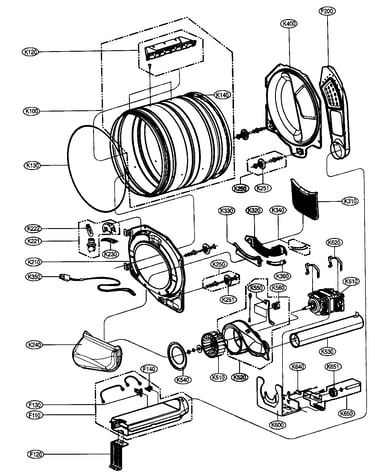

Drum/motor assy diagram

Dryer idler pulley (replaces 4561el3002b)

Part #4561EL3002A

BEST SELLER
$40.92 |
13% OFF Phone Price : $46.92
In Stock
Dryer Drum Belt 4400EL2001A
#K130

Drum/motor assy diagram

Dryer drum belt

Part #4400EL2001A

Replaced by #4400EL2001F

?
Manufacturer substitution
This part replaces 4400EL2001A. Substitute parts can look different from the original.
BEST SELLER
$25.42 |
19% OFF Phone Price : $31.42
In Stock
Dryer Thermistor 6323EL2001B
#K550

Drum/motor assy diagram

Dryer thermistor

Part #6323EL2001B

Replaced by #AGM30045804

?
Manufacturer substitution
This part replaces 6323EL2001B. Substitute parts can look different from the original.
BEST SELLER
$82.41 |
7% OFF Phone Price : $88.41
In Stock
Dryer Blower Thermostat 6931EL3002A
#K560

Drum/motor assy diagram

Dryer blower thermostat

Part #6931EL3002A

Replaced by #6931EL3002M

?
Manufacturer substitution
This part replaces 6931EL3002A. Substitute parts can look different from the original.
BEST SELLER
$43.18 |
12% OFF Phone Price : $49.18
In Stock
Dryer High-limit Thermostat (replaces F1306931el3003d) 6931EL3003D
#F130

Drum/motor assy diagram

Dryer high-limit thermostat (replaces f1306931el3003d)

Part #6931EL3003D

BEST SELLER
$15.67 |
11% OFF Phone Price : $17.67
In Stock
Motor Assembly 4681EL1002A
#K610

Drum/motor assy diagram

Motor assembly

Part #4681EL1002A

Replaced by #4681EL1008A

?
Manufacturer substitution
This part replaces 4681EL1002A. Substitute parts can look different from the original.
BEST SELLER
$228.36 |
5% OFF Phone Price : $240.36
In Stock
Dryer Blower Wheel (replaces 5835el1001a) 5835EL1002A
#K510

Drum/motor assy diagram

Dryer blower wheel (replaces 5835el1001a)

Part #5835EL1002A

BEST SELLER
$62.80 |
9% OFF Phone Price : $68.80
In Stock
Lg Dryer Lint Screen (replaces 5231el1002e, 5231el1003a, 5231el1003e) 5231EL1003B
#K310

Drum/motor assy diagram

Lg dryer lint screen (replaces 5231el1002e, 5231el1003a, 5231el1003e)

Part #5231EL1003B

BEST SELLER
$51.44 |
10% OFF Phone Price : $57.44
In Stock
Dryer Door Switch (replaces Ebf61496101) 6601EL3001A
#A330

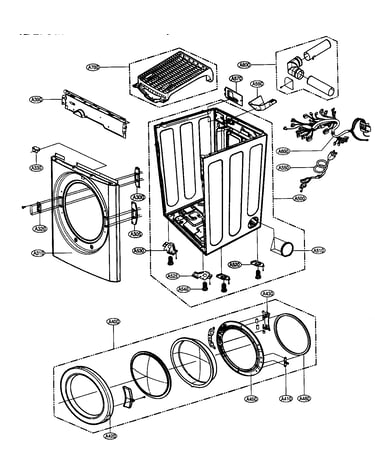

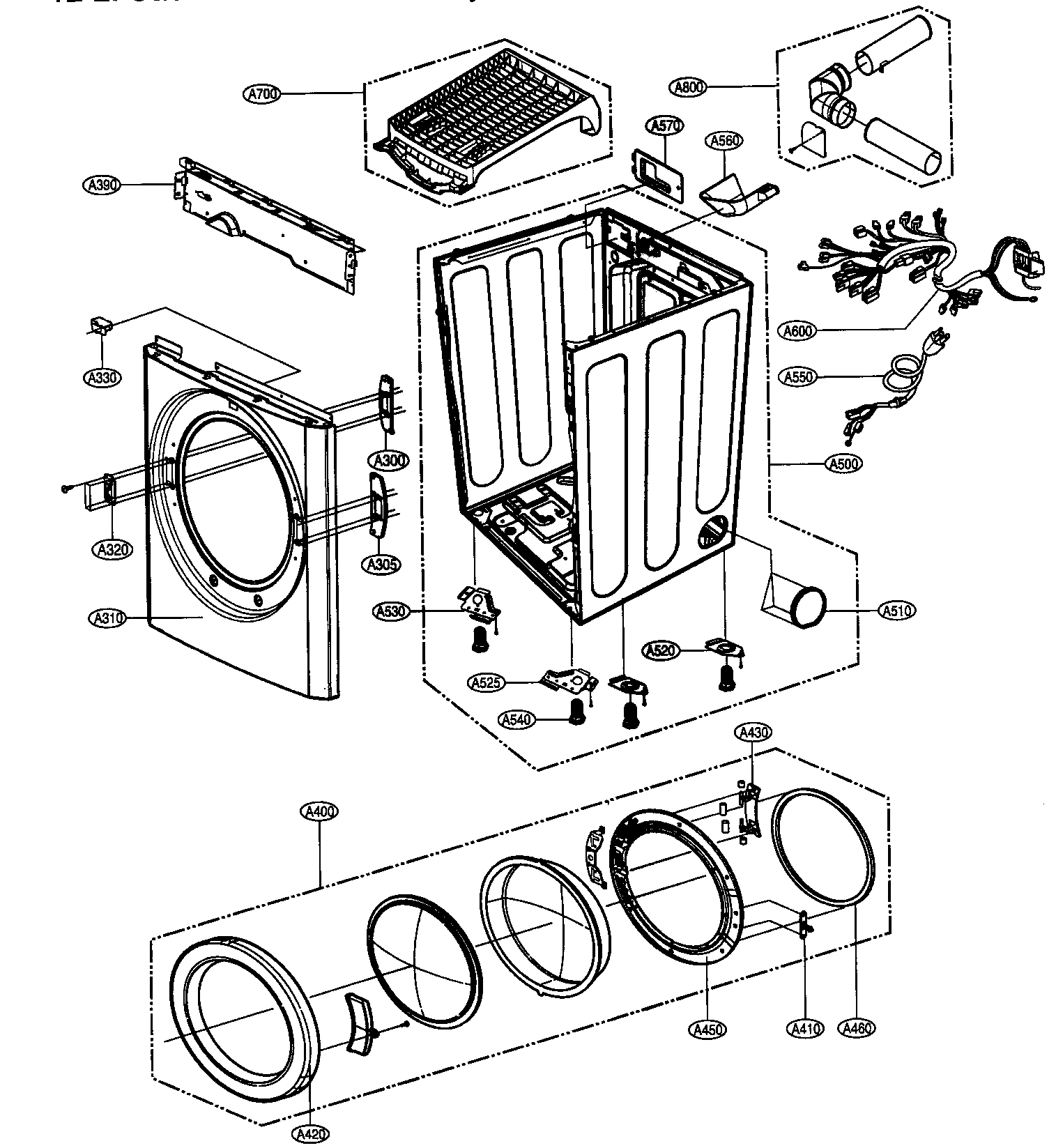

Cabinet/door assy diagram

Dryer door switch (replaces ebf61496101)

Part #6601EL3001A

Replaced by #EBF61496102

?
Manufacturer substitution
This part replaces 6601EL3001A. Substitute parts can look different from the original.
BEST SELLER
$28.54 |
17% OFF Phone Price : $34.54
In Stock
Dryer Moisture Sensor Wire Harness 6631EL3003B
#K350

Drum/motor assy diagram

Dryer moisture sensor wire harness

Part #6631EL3003B

BEST SELLER
$25.68 |
19% OFF Phone Price : $31.68
In Stock
