GE
Top-Mount Refrigerator

Model # GTH18EBELRWW Official GE refrigerator

Here are the diagrams and repair parts for Official GE GTH18EBELRWW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Appliance Light Bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, Std398091, Wr02x12328, Wx12x1510) 40A15
#435

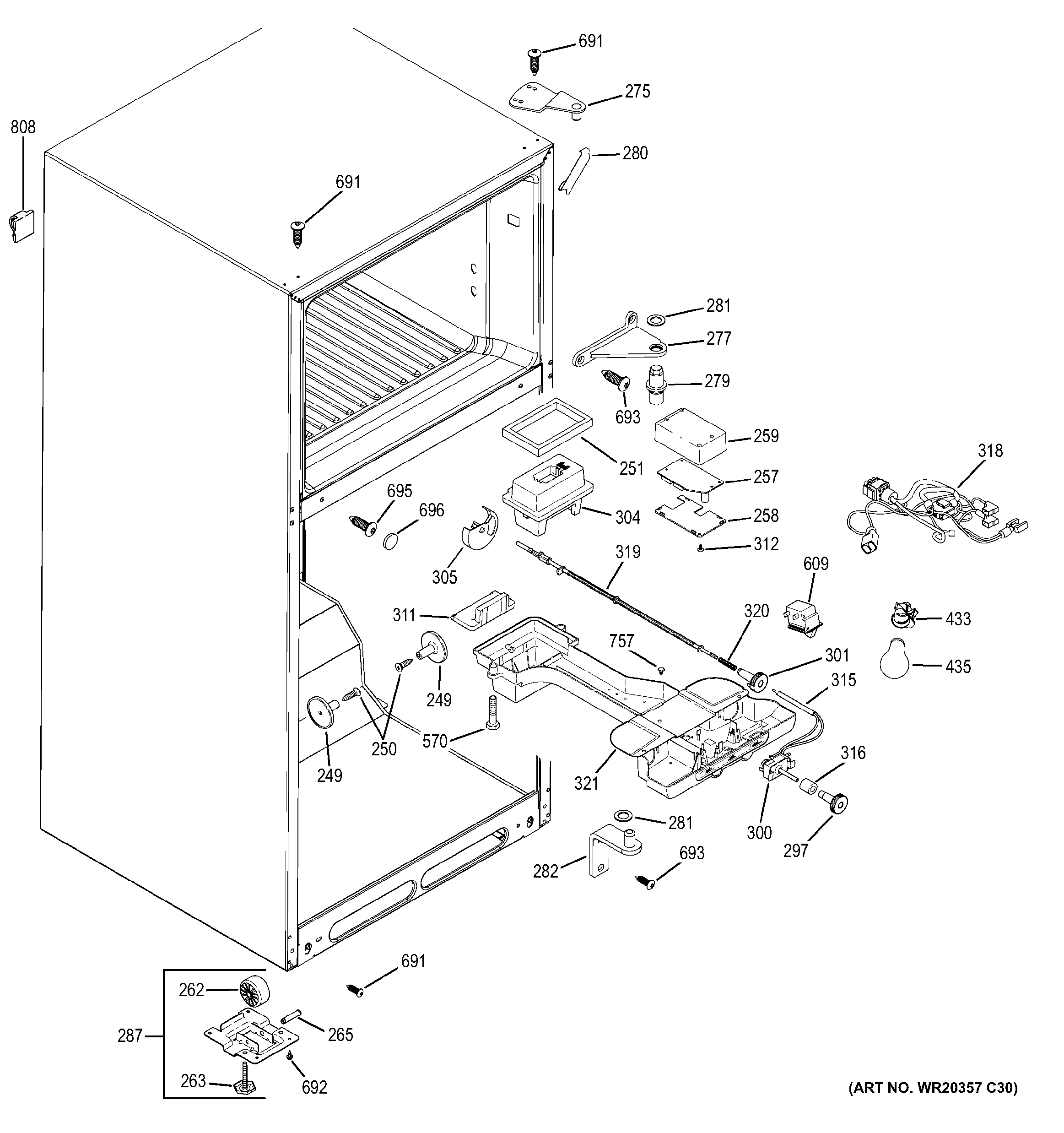

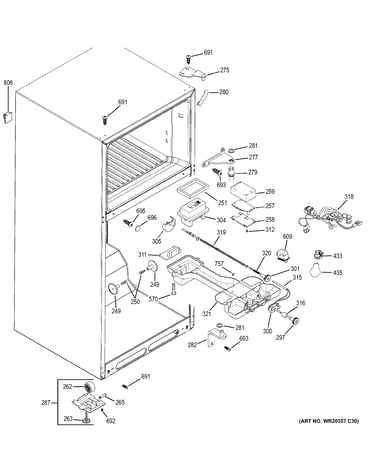

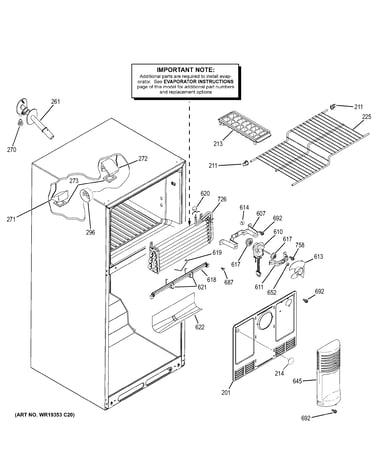

Fresh food section diagram

Appliance light bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, std398091, wr02x12328, wx12x1510)

Part #40A15

BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Compressor Replacement WR87X10240
#725

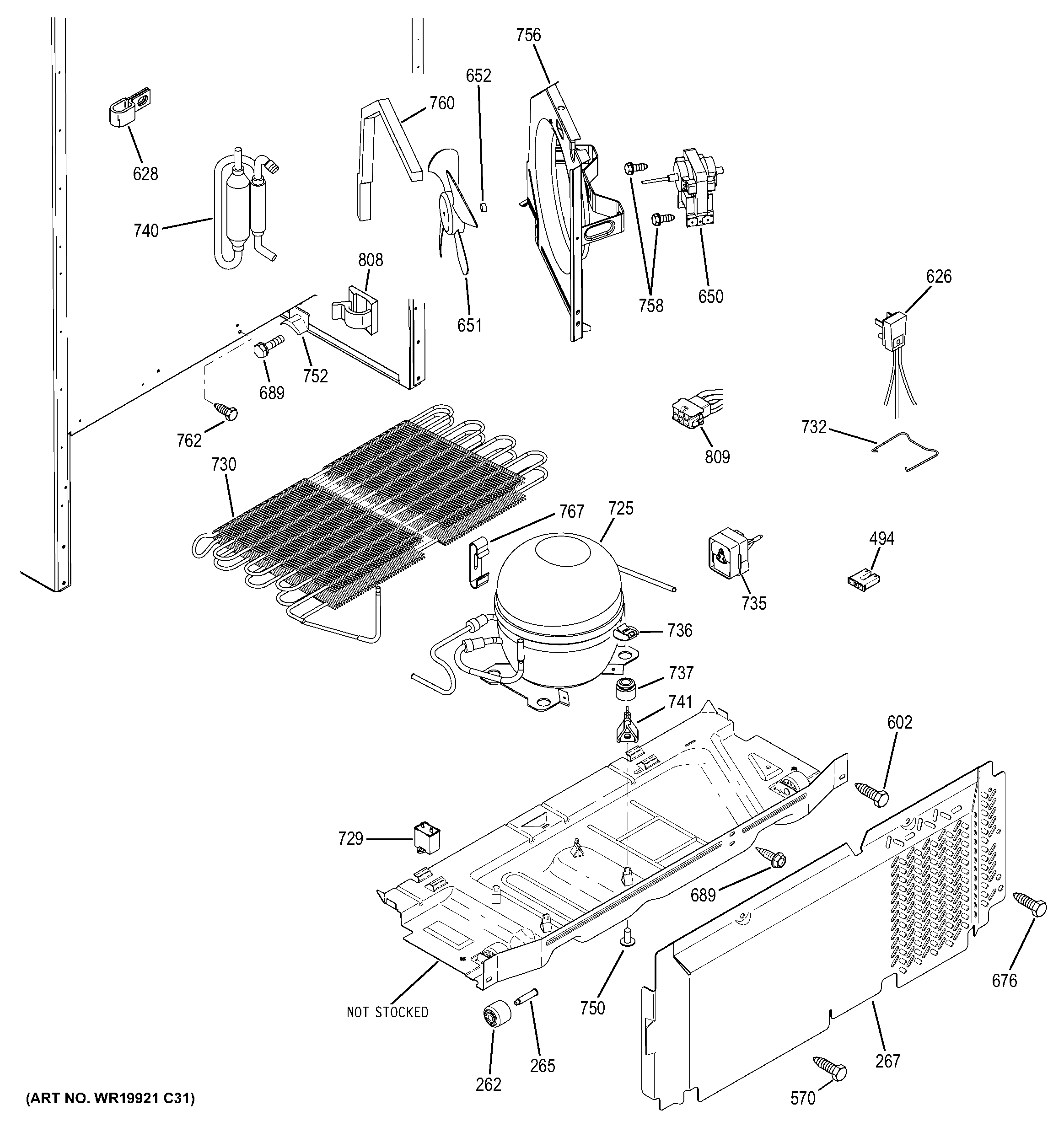

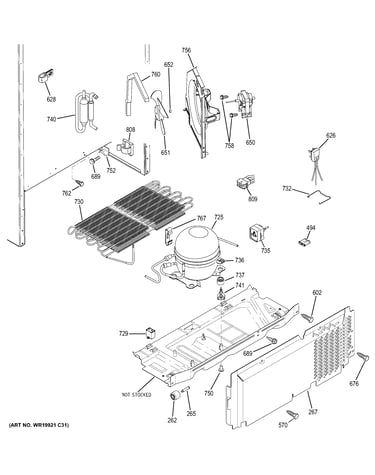

Machine compartment diagram

Compressor replacement

Part #WR87X10240

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X10240. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Condenser Fan Blade (replaces Wr60x10088) WR60X10207
#651

Machine compartment diagram

Refrigerator condenser fan blade (replaces wr60x10088)

Part #WR60X10207

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Evaporator Fan Motor Grommet WR02X12008
#617

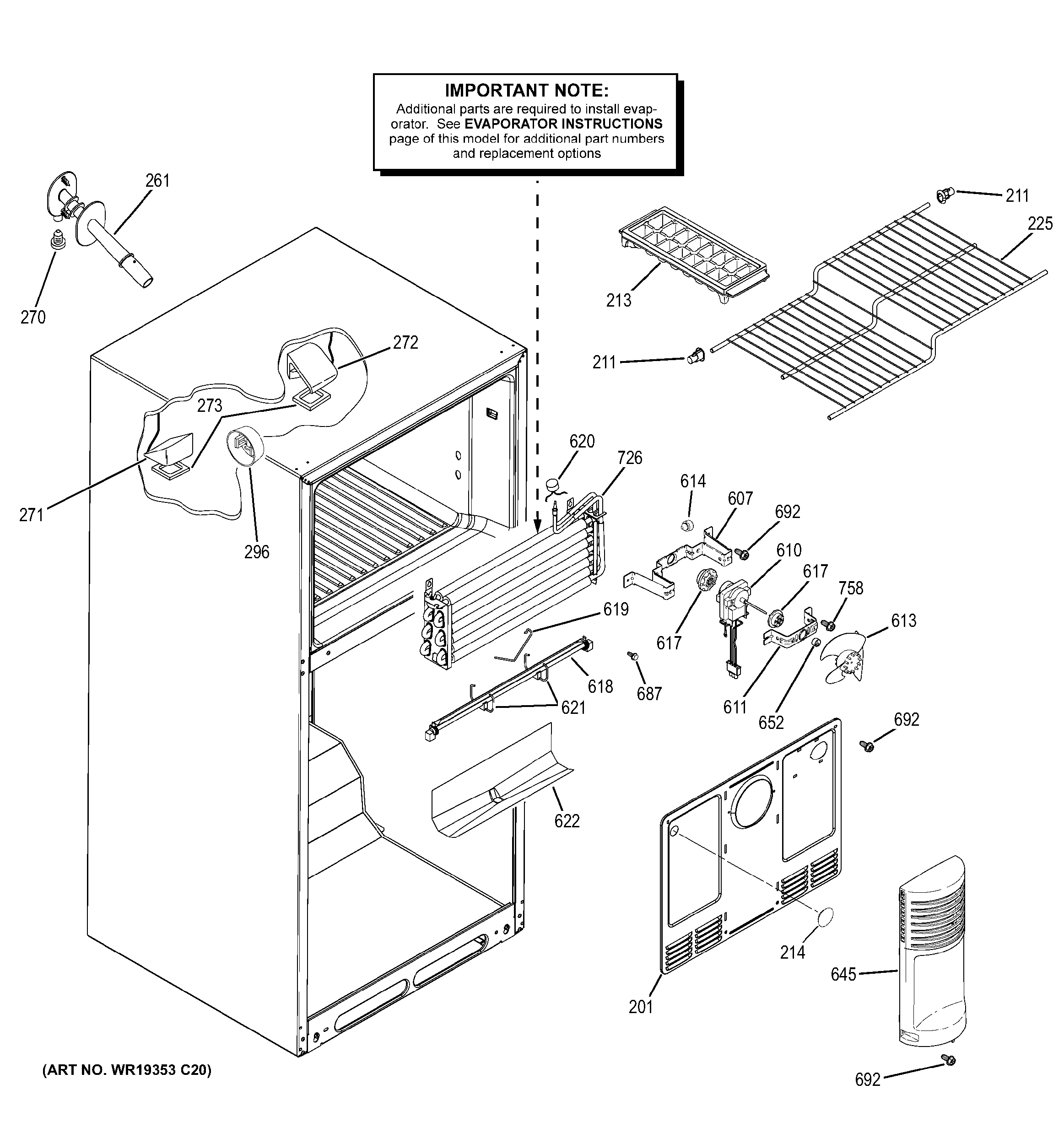

Freezer section diagram

Refrigerator evaporator fan motor grommet

Part #WR02X12008

BEST SELLER
$19.32
In Stock
Refrigerator Door Hinge Nylon Washer WR01X10146
#281

Fresh food section diagram

Refrigerator door hinge nylon washer

Part #WR01X10146

Replaced by #WR01X27364

?
Manufacturer substitution
This part replaces WR01X10146. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Refrigerator Shelf WR71X10683
#107

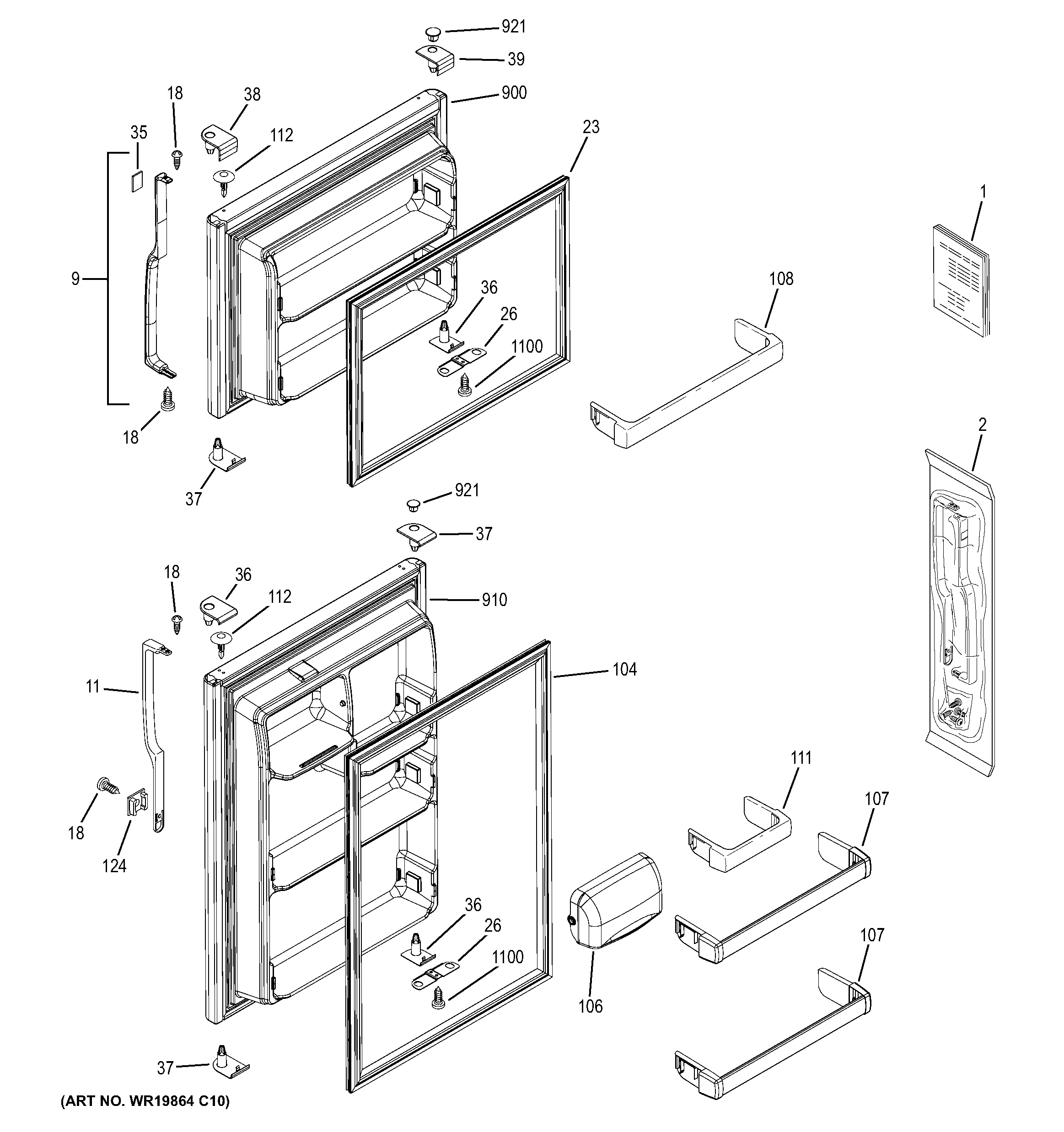

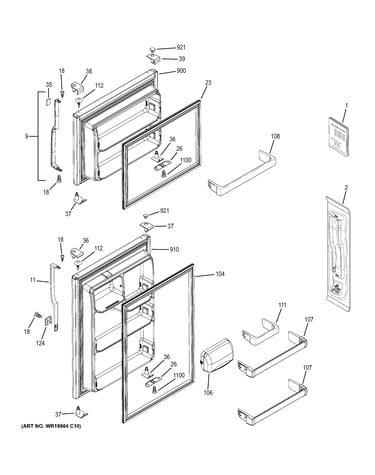

Doors diagram

Refrigerator shelf

Part #WR71X10683

$28.69 |
17% OFF Phone Price : $34.69
In Stock
Refrigerator Fan Blade Retainer Ring (replaces Wr02x10509, Wr02x10581) WR02X12149
Refrigerator fan blade retainer ring (replaces wr02x10509, wr02x10581)

Part #WR02X12149

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Evaporator Fan Blade WR60X10205
#613

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10205

$13.92 |
13% OFF Phone Price : $15.92
In Stock
Refrigerator Door Shelf Rail (replaces Wr71x10664, Wr71x30001) WR71X10681
#108

Doors diagram

Refrigerator door shelf rail (replaces wr71x10664, wr71x30001)

Part #WR71X10681

$24.04 |
20% OFF Phone Price : $30.04
In Stock
Refrigerator Crisper Drawer Cover Frame (replaces Wr32x10539, Wr32x10548, Wr32x30010) WR32X10537
#242

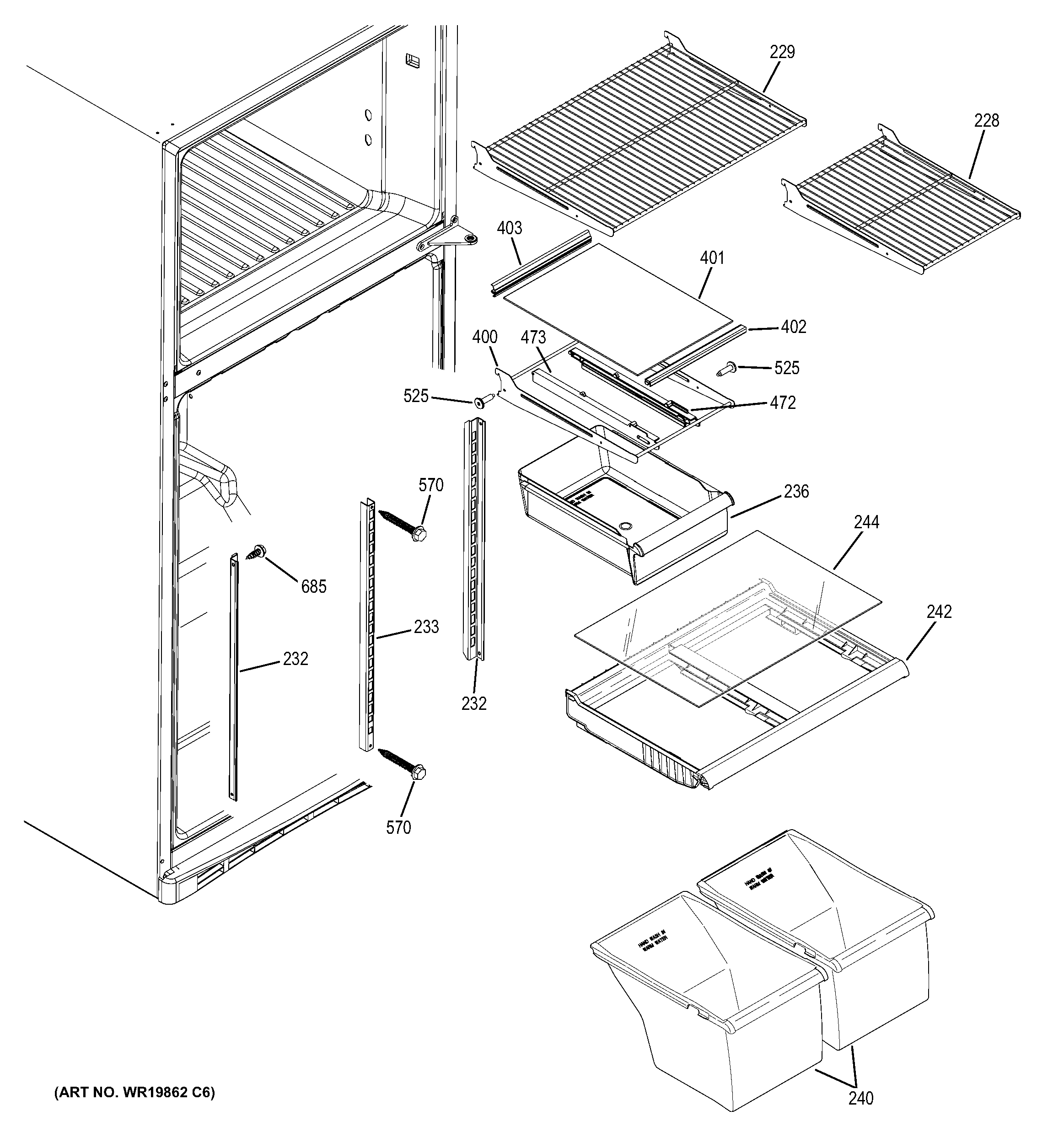

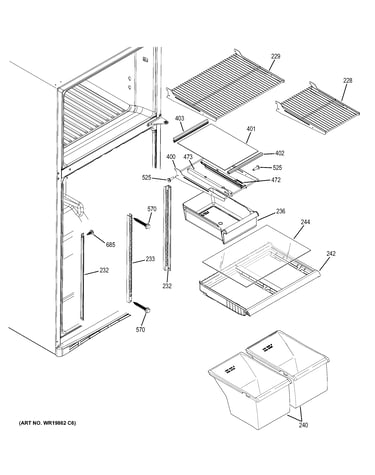

Fresh food shelves diagram

Refrigerator crisper drawer cover frame (replaces wr32x10539, wr32x10548, wr32x30010)

Part #WR32X10537

$73.79 |
8% OFF Phone Price : $79.79
In Stock
