Model # CRG3480IQQB Official Crosley gas range

Here are the diagrams and repair parts for Official Crosley CRG3480IQQB gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

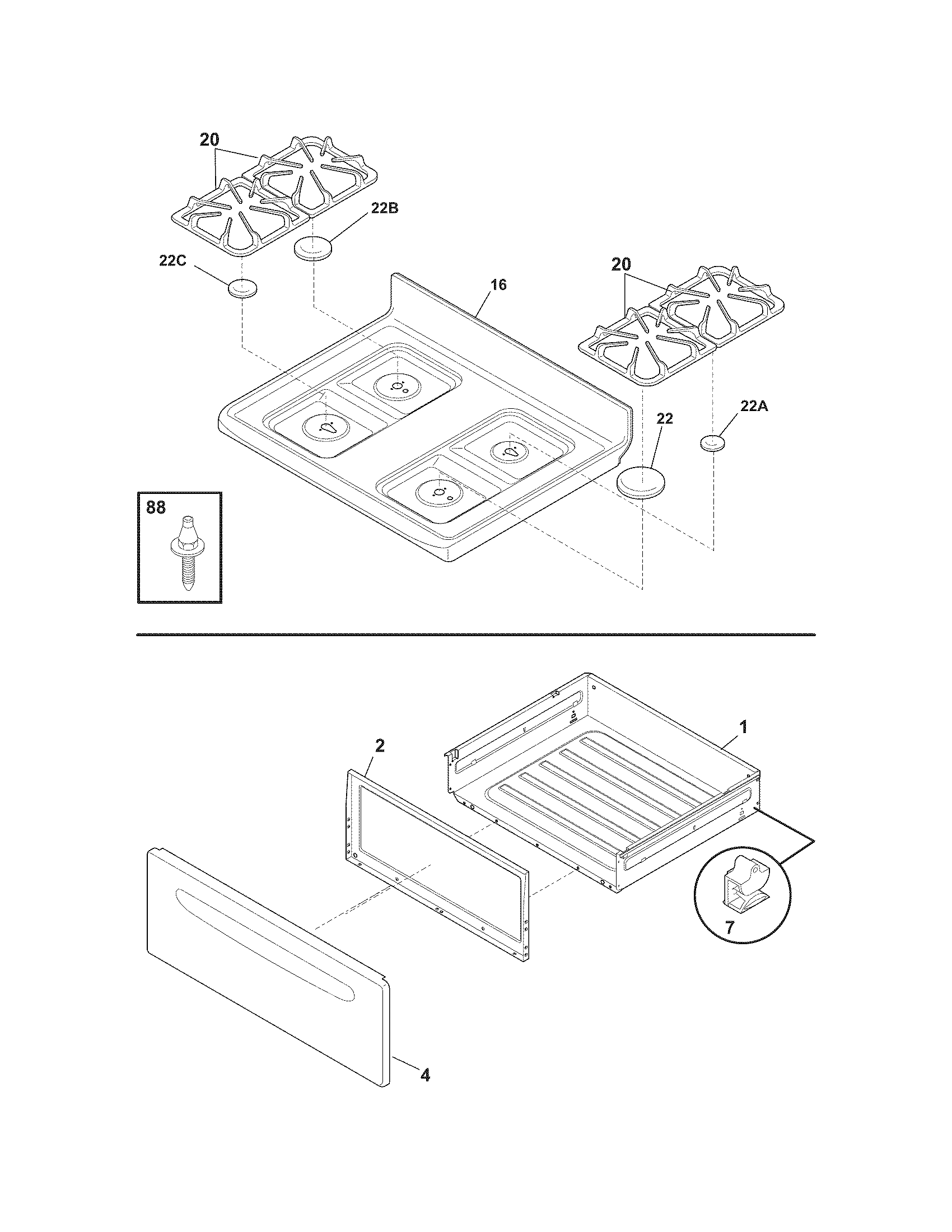

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Universal/multiflex (frigidaire) Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

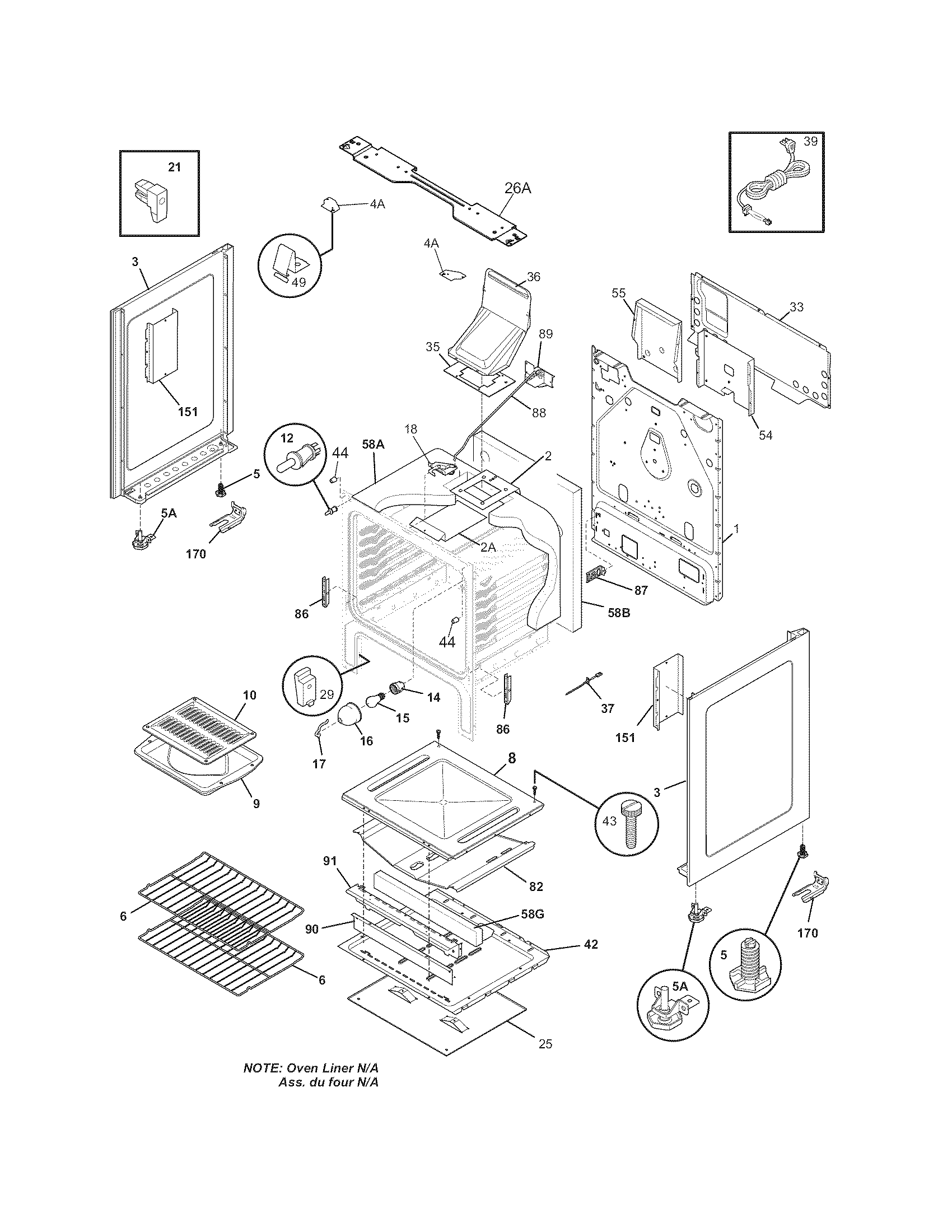

Body diagram

Universal/multiflex (frigidaire) range oven temperature sensor (replaces 316490003)

Part #316490000

BEST SELLER
$33.05 |
15% OFF Phone Price : $39.05
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Screw (replaces 5304472956, 7316240600) 316240600
#37

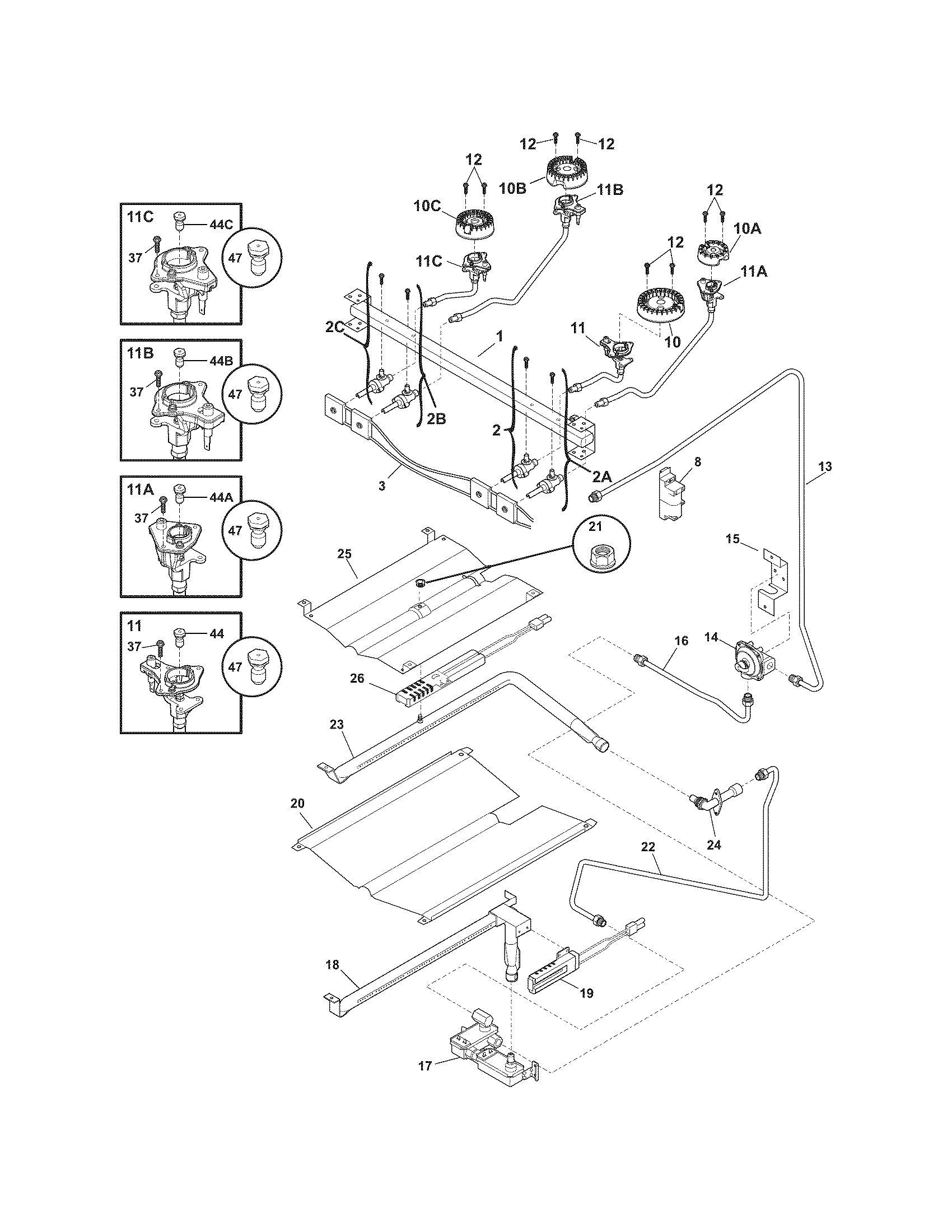

Burner diagram

Range screw (replaces 5304472956, 7316240600)

Part #316240600

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Range Oven Door Inner Glass 316117500
#8

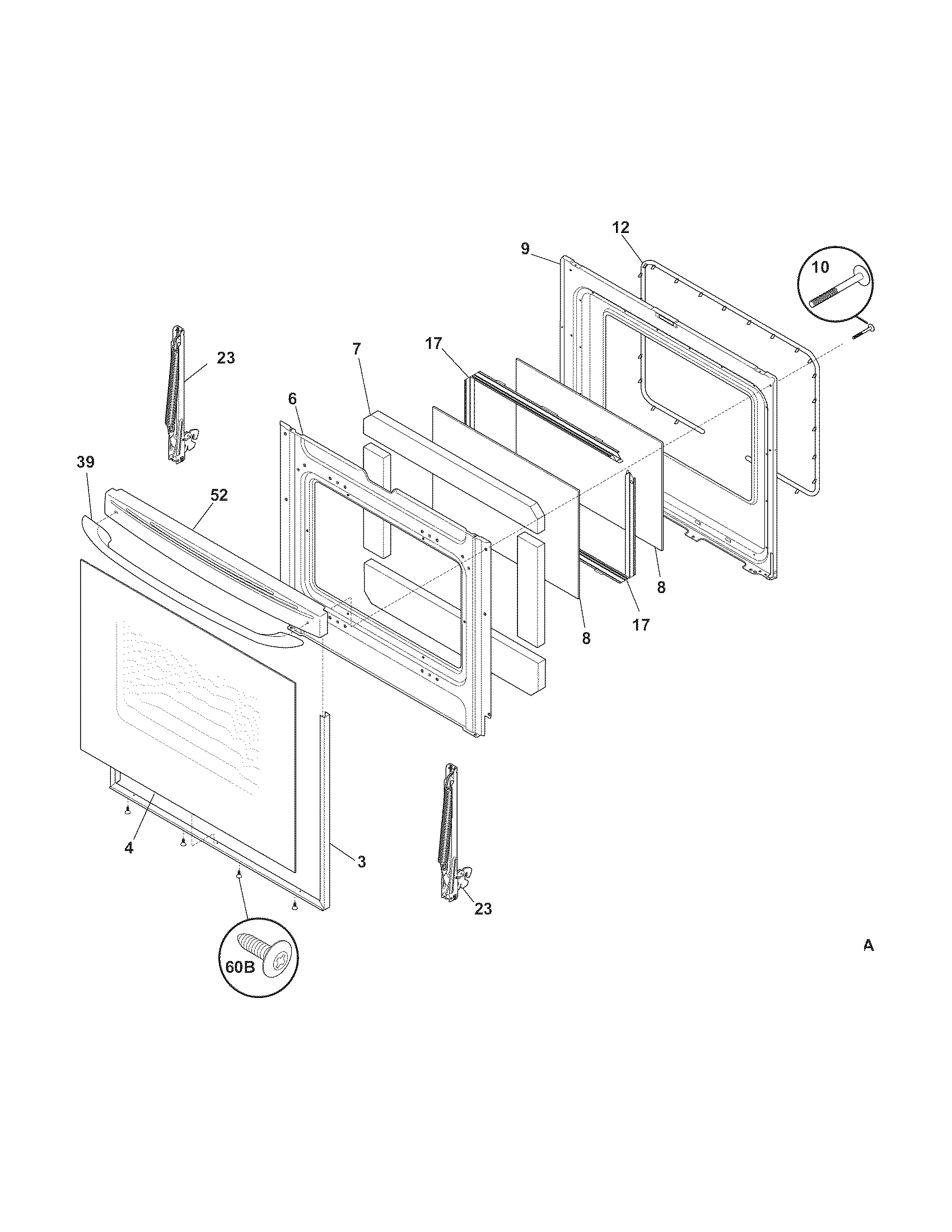

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Range Surface Burner Igniter And Orifice Holder (replaces 316449302) 316536602
#11C

Burner diagram

Range surface burner igniter and orifice holder (replaces 316449302)

Part #316536602

BEST SELLER
$79.89 |
7% OFF Phone Price : $85.89
In Stock
Burner 316527400
#10C

Burner diagram

Burner

Part #316527400

Replaced by #316558300

?
Manufacturer substitution
This part replaces 316527400. Substitute parts can look different from the original.
BEST SELLER
$38.70 |
13% OFF Phone Price : $44.70
In Stock
Tappan Range Surface Burner Head (replaces 7316438600) 316438600
#10

Burner diagram

Tappan range surface burner head (replaces 7316438600)

Part #316438600

BEST SELLER
$66.51 |
8% OFF Phone Price : $72.51
In Stock
Tappan Range Surface Burner Head (replaces 7316438200) 316438200
#10A

Burner diagram

Tappan range surface burner head (replaces 7316438200)

Part #316438200

BEST SELLER
$48.17 |
11% OFF Phone Price : $54.17
In Stock
Range Oven Door Lock Motor And Switch Assembly 316464300
#89

Body diagram

Range oven door lock motor and switch assembly

Part #316464300

Replaced by #5304528973

?
Manufacturer substitution
This part replaces 316464300. Substitute parts can look different from the original.
BEST SELLER
$41.22 |
13% OFF Phone Price : $47.22
In Stock
Range Control Overlay 316419104
#20A

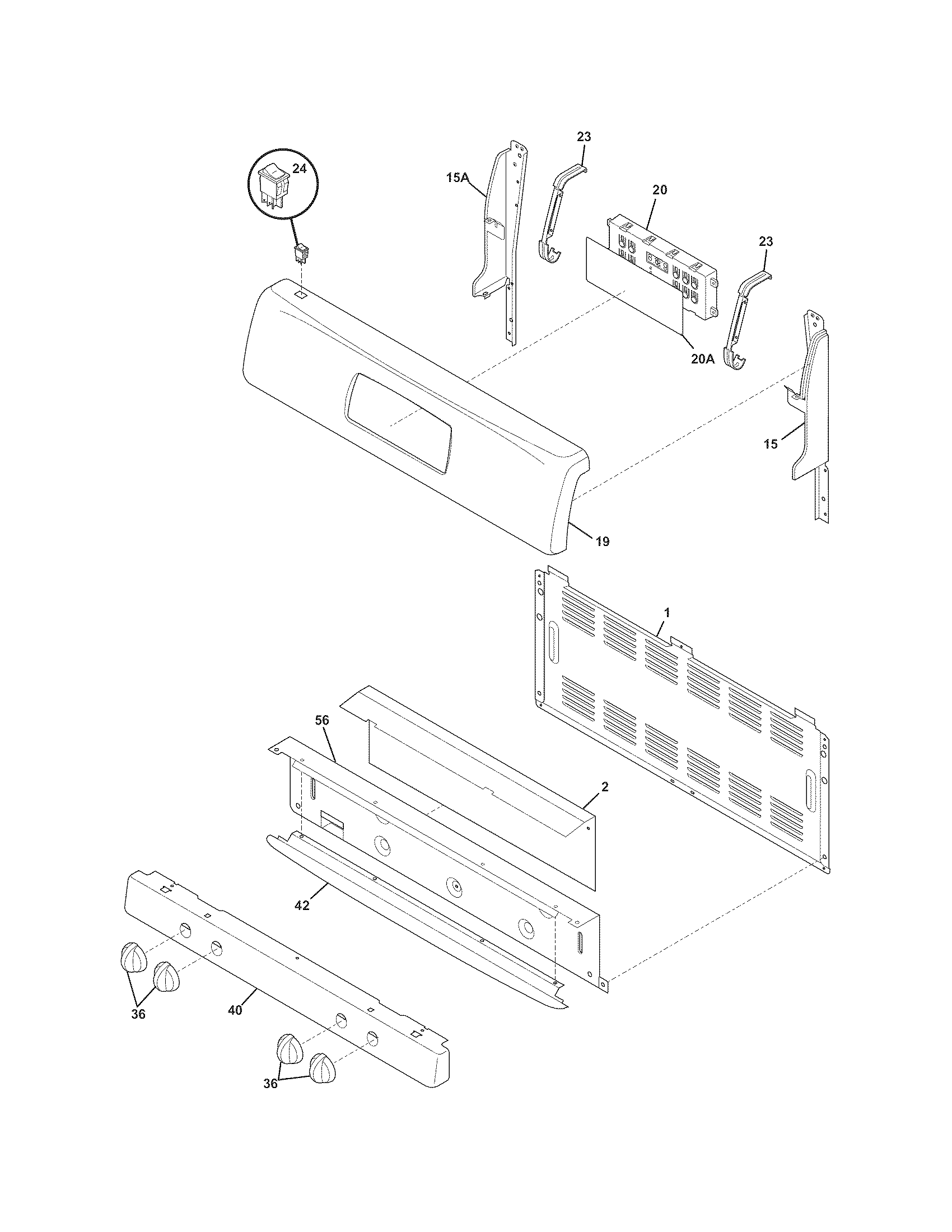

Backguard diagram

Range control overlay

Part #316419104

Replaced by #316419137

?
Manufacturer substitution
This part replaces 316419104. Substitute parts can look different from the original.
BEST SELLER
$30.22 |
17% OFF Phone Price : $36.22
In Stock
