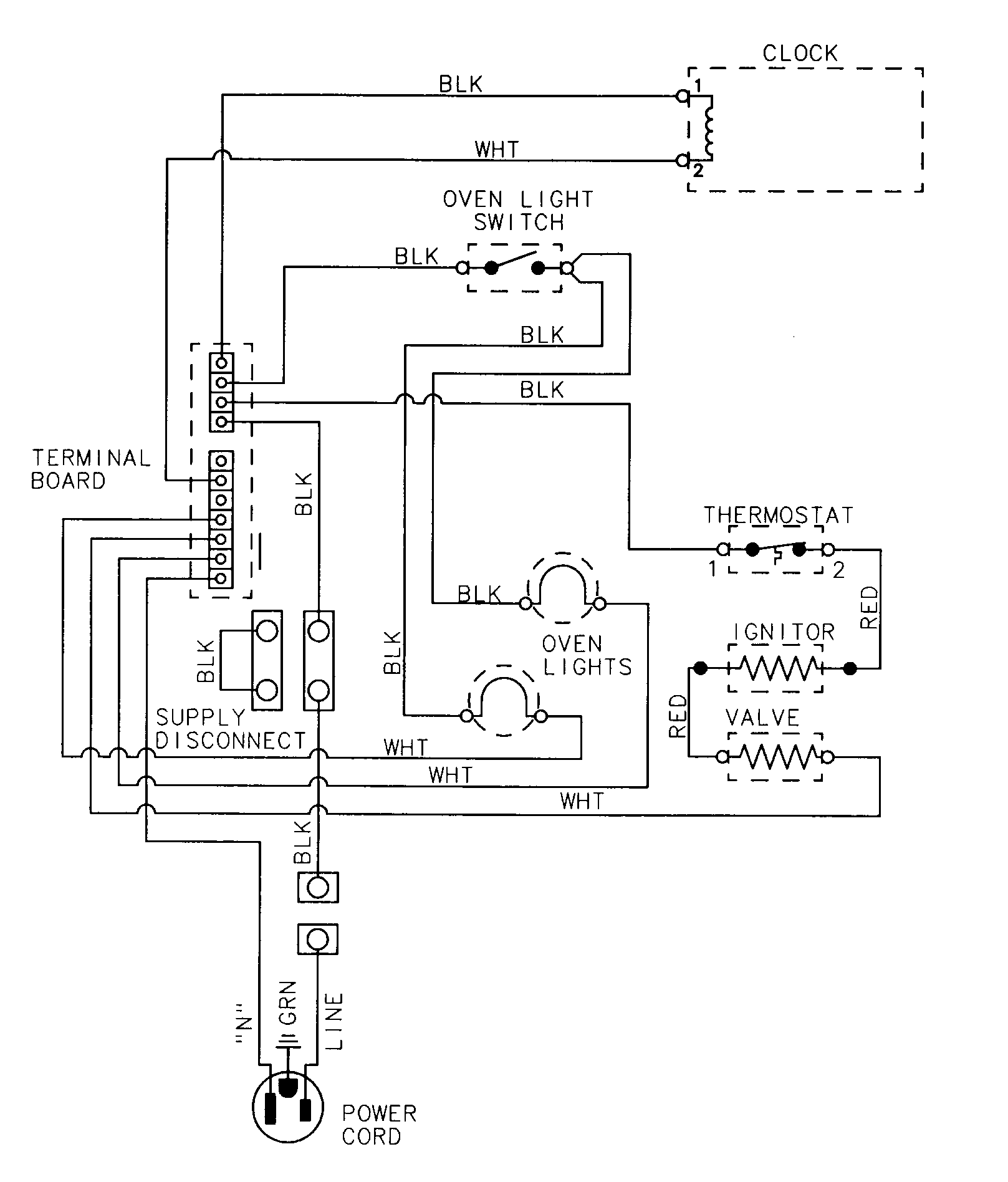

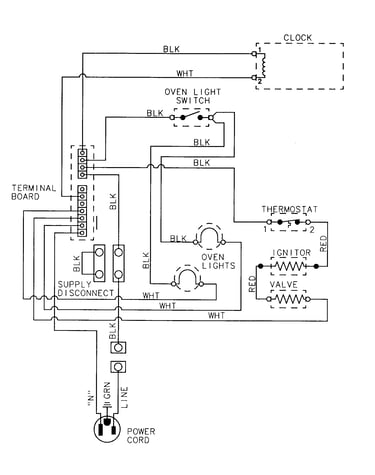

Here are the diagrams and repair parts for Official Magic Chef 9112WUA gas wall oven, as well as links to manuals and error code tables, if available.

Error Codes

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for9112WUA Wall Ovens

#5

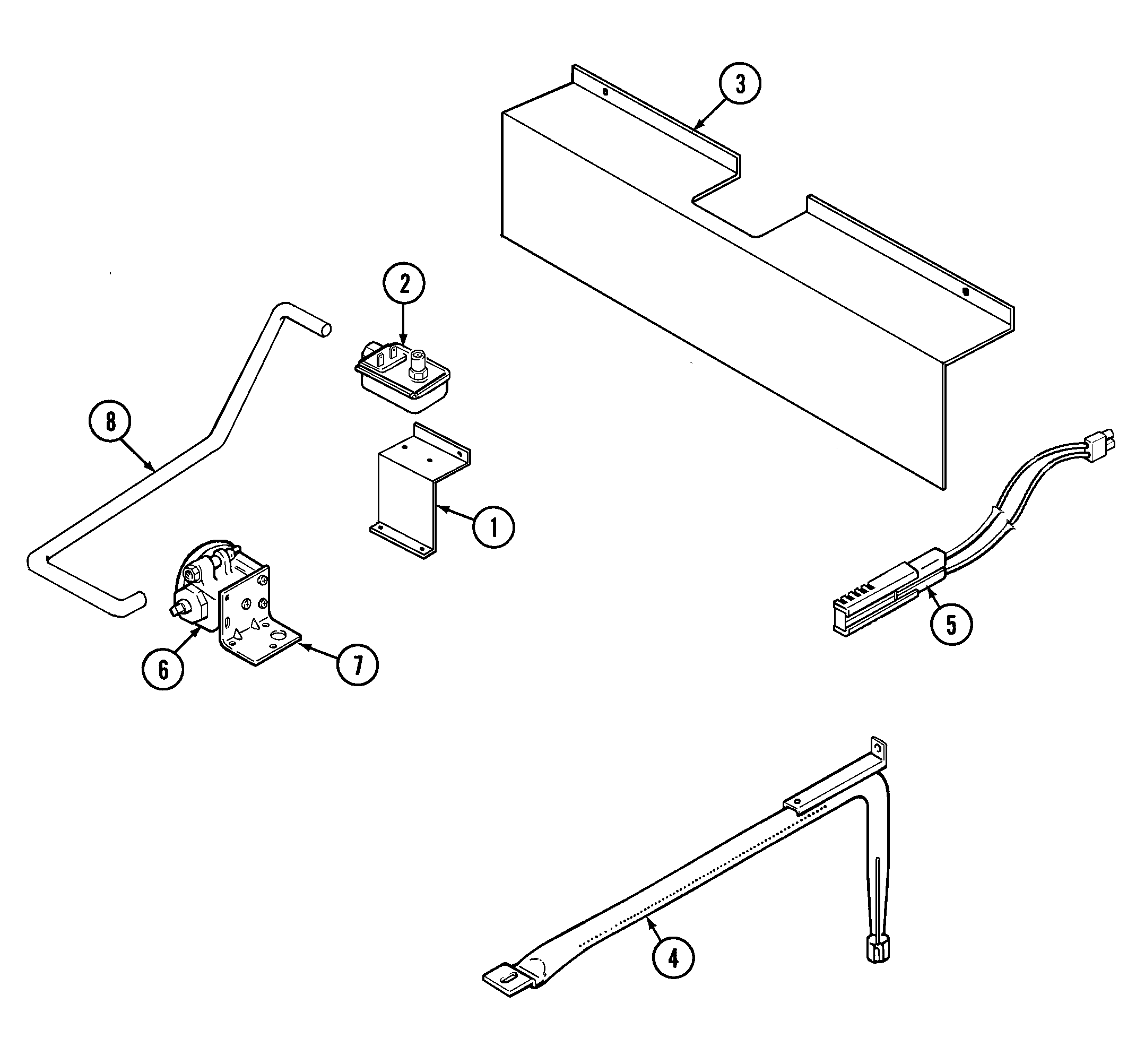

Gas controls diagram
Igniter
Part #7432P075-60
Replaced by #74007498
?
Manufacturer substitution
This part replaces 7432P075-60. Substitute parts can look different from the original.
$58.91 |
9% OFF Phone Price : $64.91
In Stock
Qty
Screw
Part #74001530
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.43 |
11% OFF Phone Price : $18.43
In Stock
Qty
#20

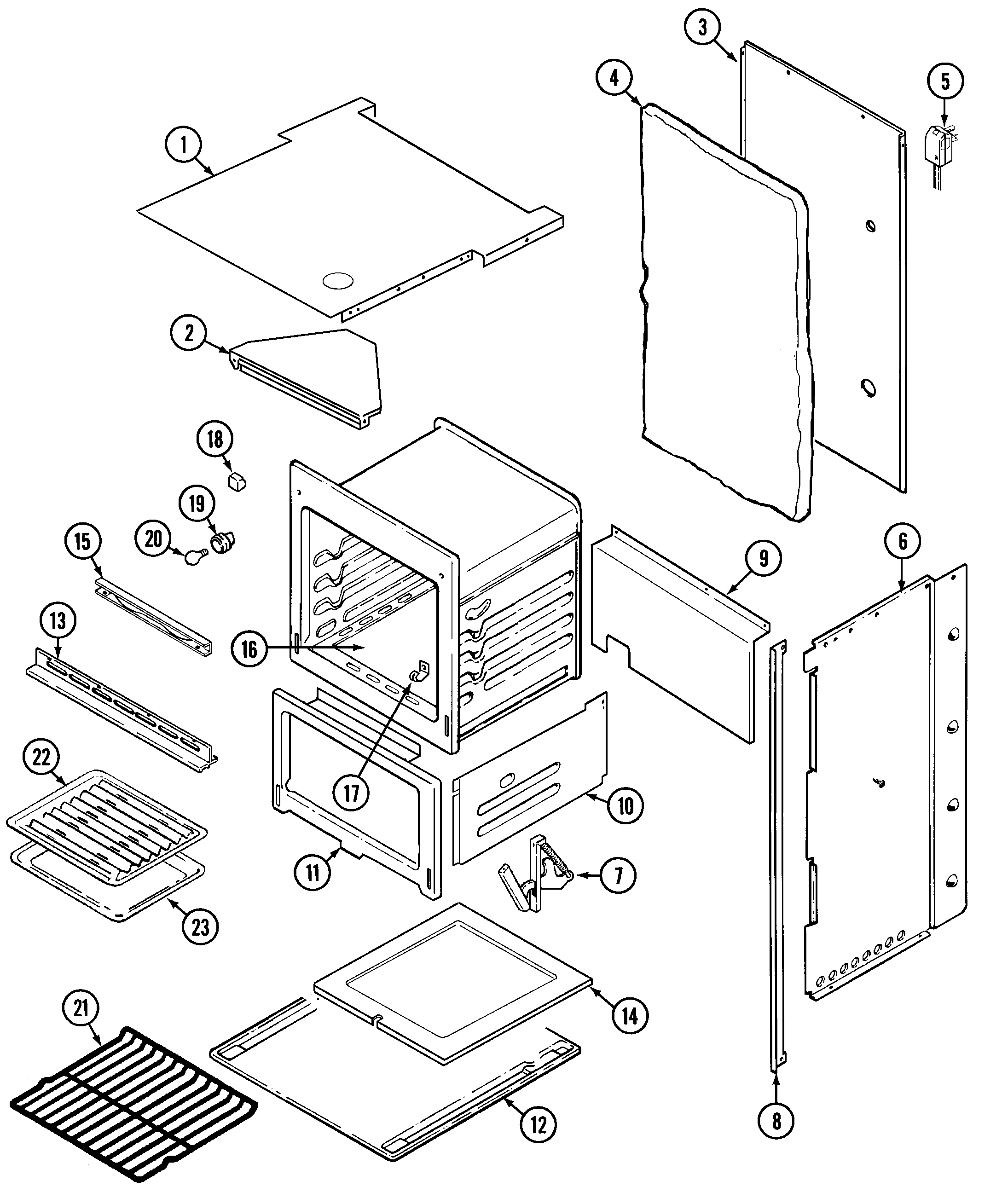

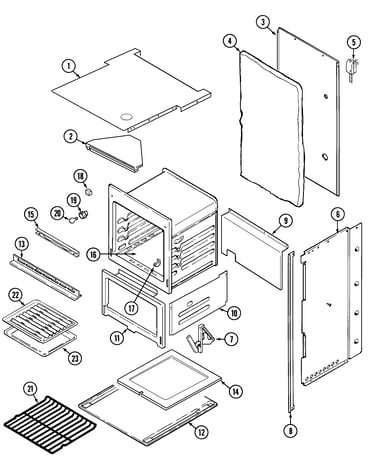

Oven/body diagram
Oven bulb
Part #7407P103-60
Replaced by #8009
?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
This item is not returnable
$12.57 |
14% OFF Phone Price : $14.57
In Stock
Qty
Wall oven gas valve assembly
Part #74005550
Replaced by #WP74005550
?
Manufacturer substitution
This part replaces 74005550. Substitute parts can look different from the original.
$180.72 |
6% OFF Phone Price : $192.72
In Stock
Qty
#7D
Oven/body diagram
Wall oven door hinge
Part #74004059
$112.22 |
10% OFF Phone Price : $124.22
In Stock
Qty
Use and care manual
Part #74004961
The manufacturer no longer makes this part, and there's no substitute part
#1G

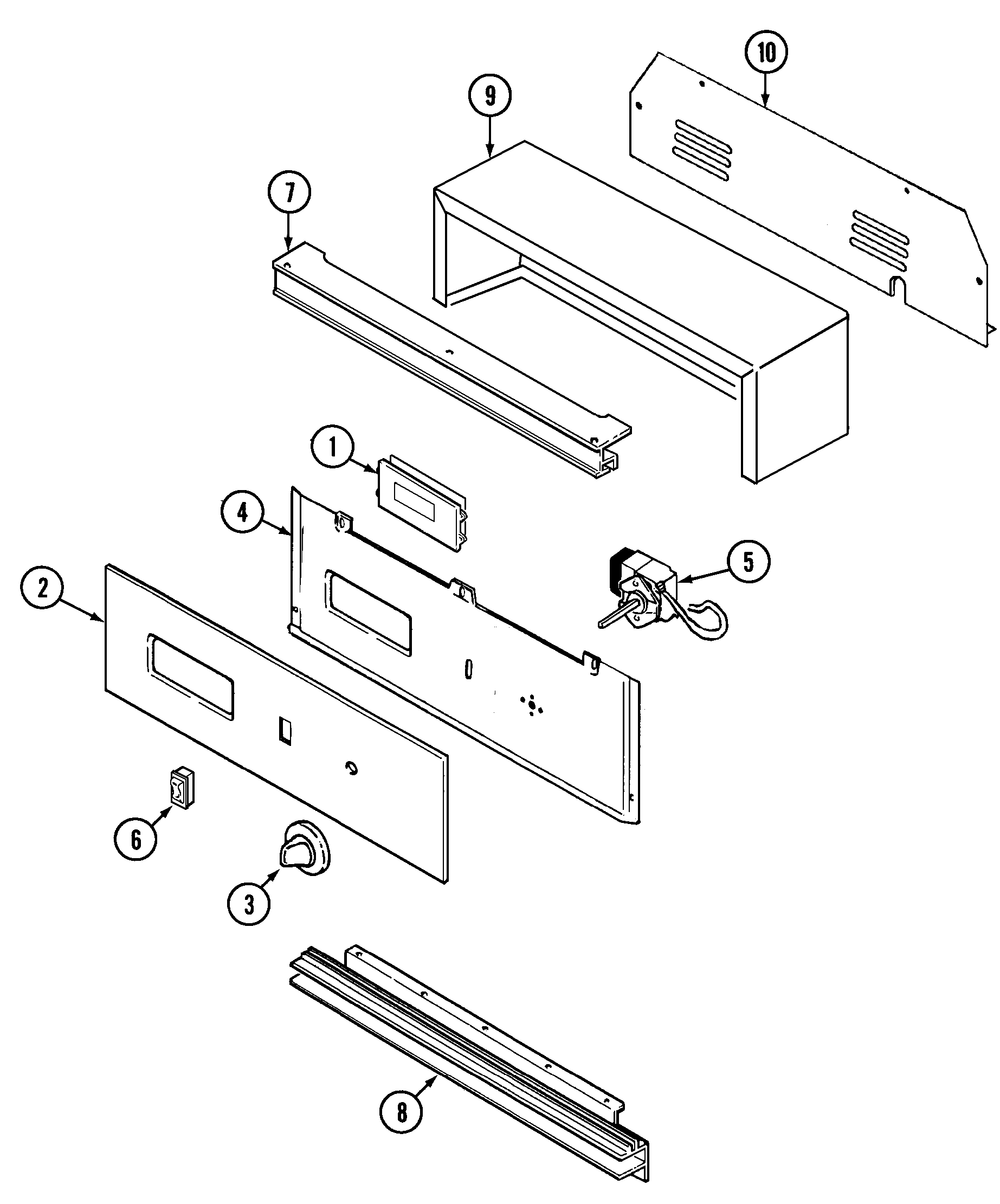

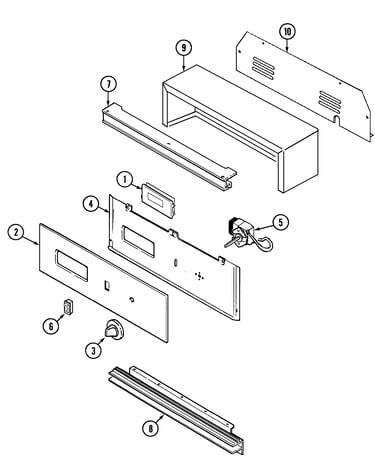

Control panel diagram
Screw
Part #74004288
Replaced by #WP59002061
?
Manufacturer substitution
This part replaces 74004288. Substitute parts can look different from the original.
This item is not returnable
$4.33 |
19% OFF Phone Price : $5.33
In Stock
Qty
#1F
Control panel diagram
Screw
Part #7101P077-60
Replaced by #WP59002061
?
Manufacturer substitution
This part replaces 7101P077-60. Substitute parts can look different from the original.
This item is not returnable
$4.33 |
19% OFF Phone Price : $5.33
In Stock
Qty
#5A
Control panel diagram
Screw (black)
Part #7101P309-60
Replaced by #WP7101P309-60
?
Manufacturer substitution
This part replaces 7101P309-60. Substitute parts can look different from the original.
This item is not returnable
$33.48
In Stock
Qty
#15F

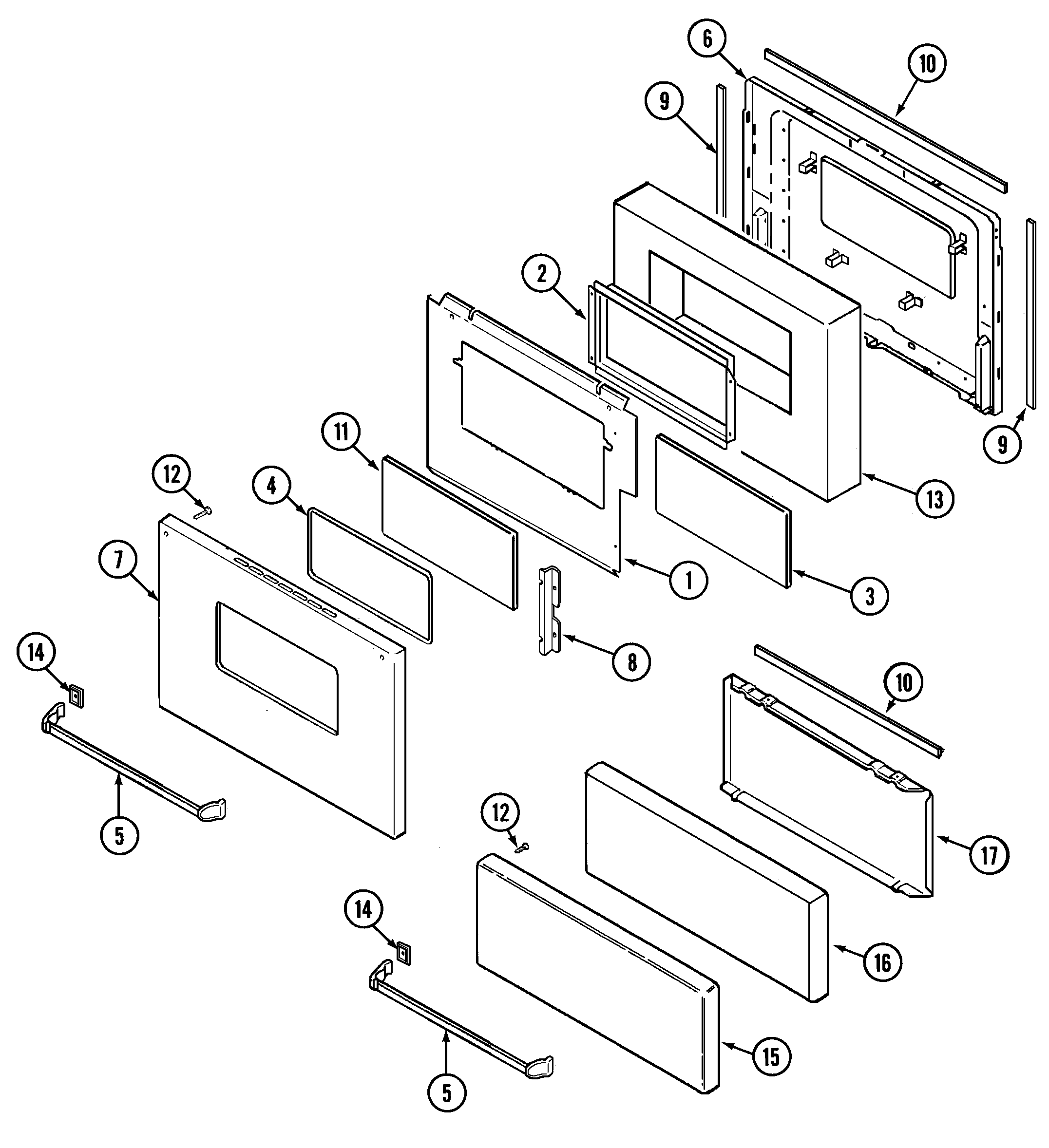

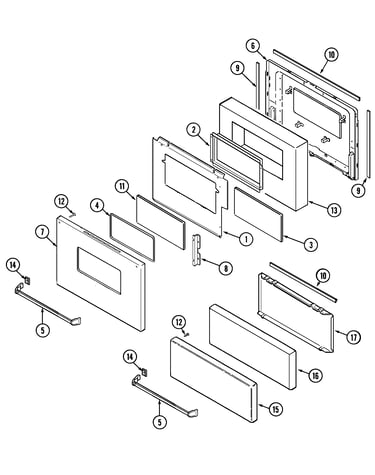

Door (upper & lower) diagram
Panel screw
Part #74004976
Replaced by #WP74009541
?
Manufacturer substitution
This part replaces 74004976. Substitute parts can look different from the original.
$28.42
In Stock
Qty
