White-Westinghouse
Gas Range

Model # GF620HXW3 Official White-Westinghouse gas range - lw32488230

Here are the diagrams and repair parts for Official White-Westinghouse GF620HXW3 gas range - lw32488230, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Oven Igniter AP00205013
#14

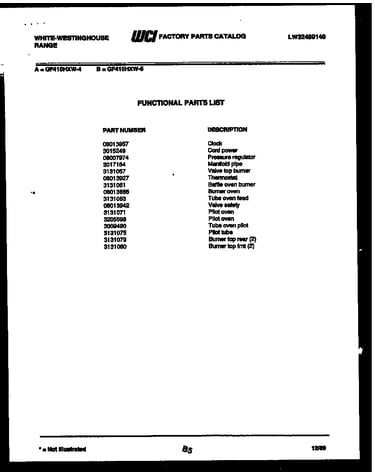

Burner, manifold and gas control diagram

Oven igniter

Part #AP00205013

Replaced by #5303935066

?
Manufacturer substitution
This part replaces AP00205013. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Light Socket Q000310061
#3

Door parts diagram

Light socket

Part #Q000310061

Replaced by #316116400

?
Manufacturer substitution
This part replaces Q000310061. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock

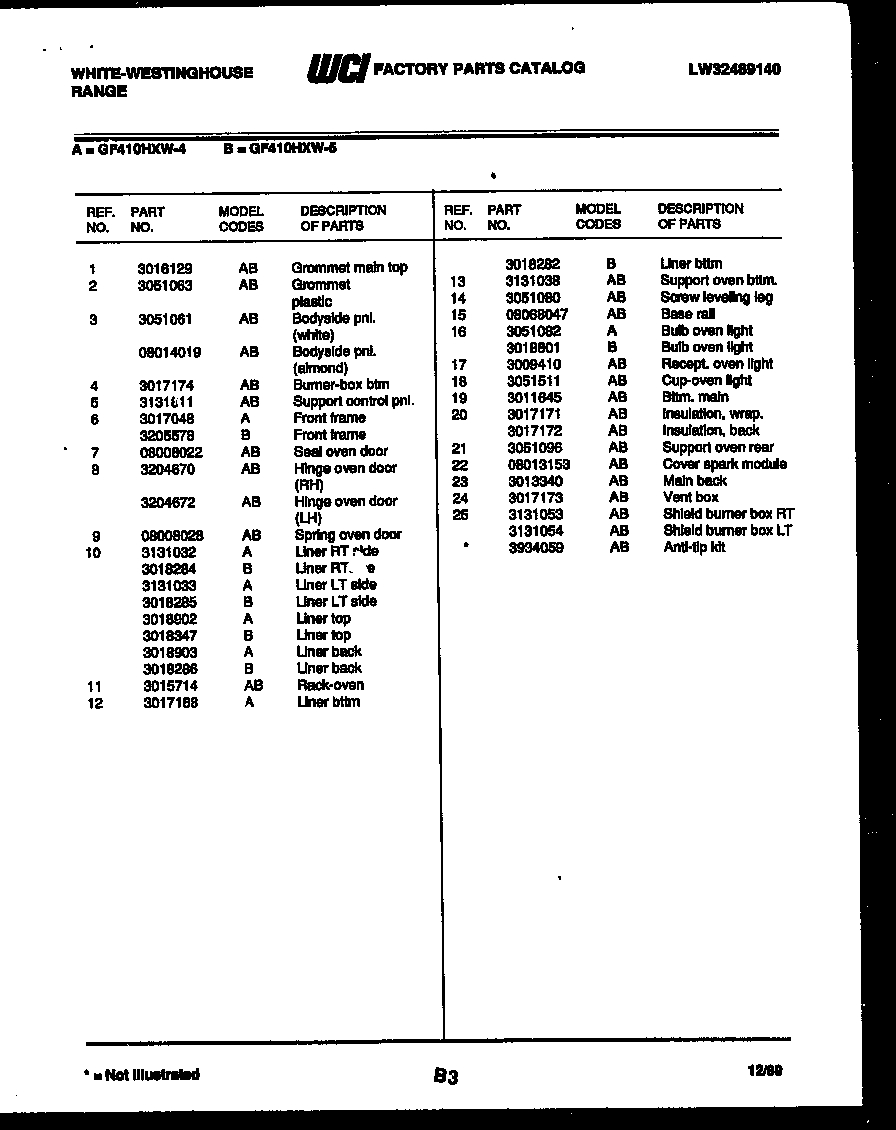

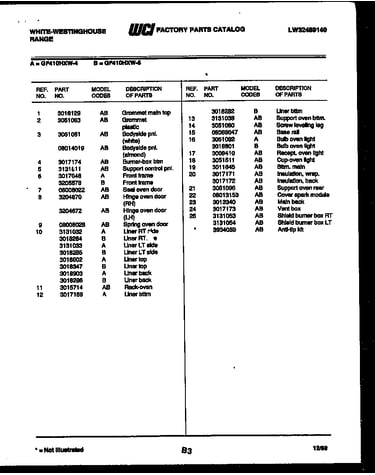

Hinge A096067000
#7

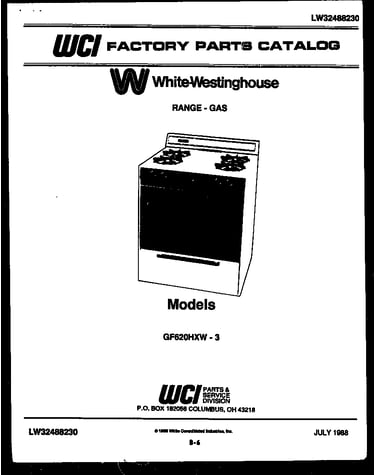

Cover page diagram

Hinge

Part #A096067000

Replaced by #318348801

?
Manufacturer substitution
This part replaces A096067000. Substitute parts can look different from the original.
$97.04 |
11% OFF Phone Price : $109.04
In Stock
Insert 3131021
#1

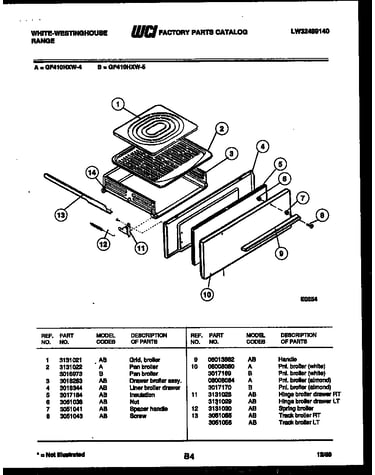

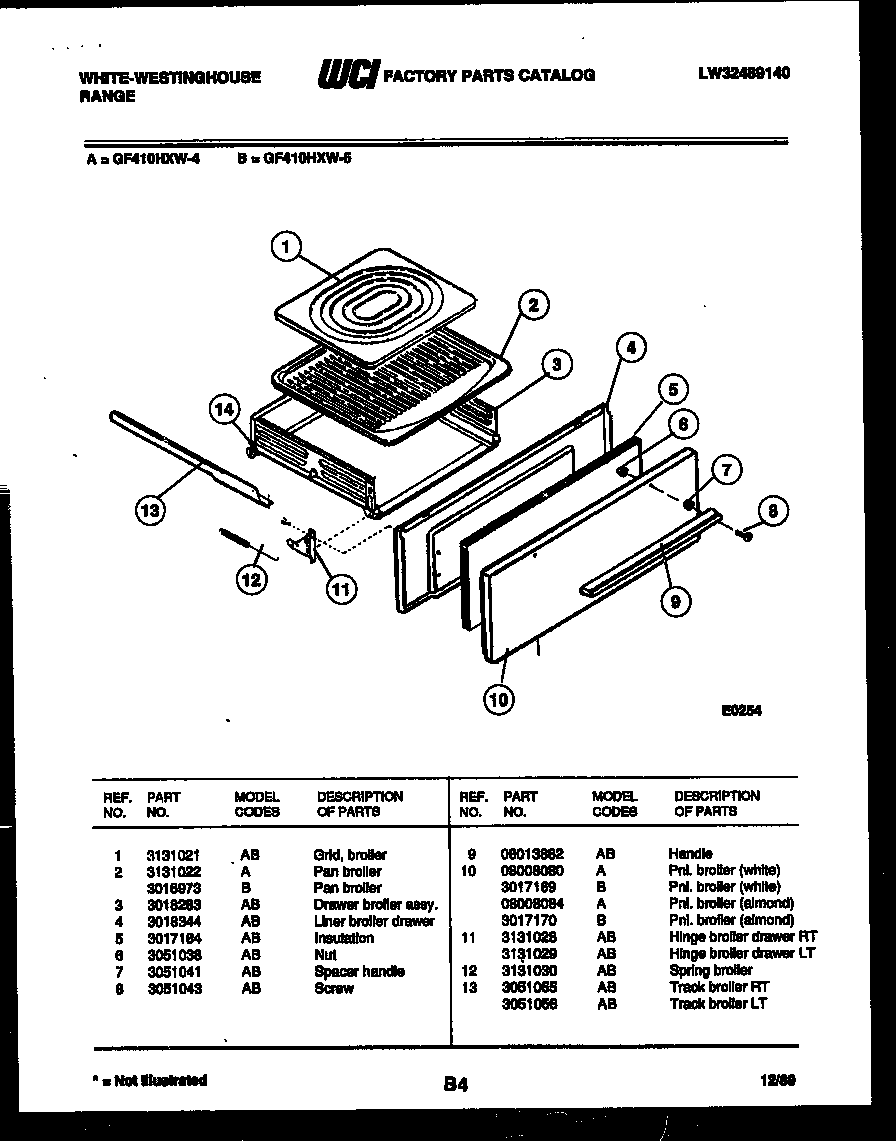

Broiler drawer parts diagram

Insert

Part #3131021

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 3131021. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Module 3015197
#26

Cover page diagram

Module

Part #3015197

Replaced by #5303912606

?
Manufacturer substitution
This part replaces 3015197. Substitute parts can look different from the original.
$101.91 |
11% OFF Phone Price : $113.91
In Stock
Screw 3131767
#6

Door parts diagram

Screw

Part #3131767

Replaced by #5303282557

?
Manufacturer substitution
This part replaces 3131767. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Knob Q000280097
#5

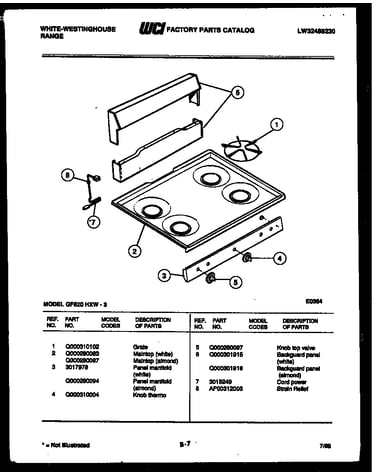

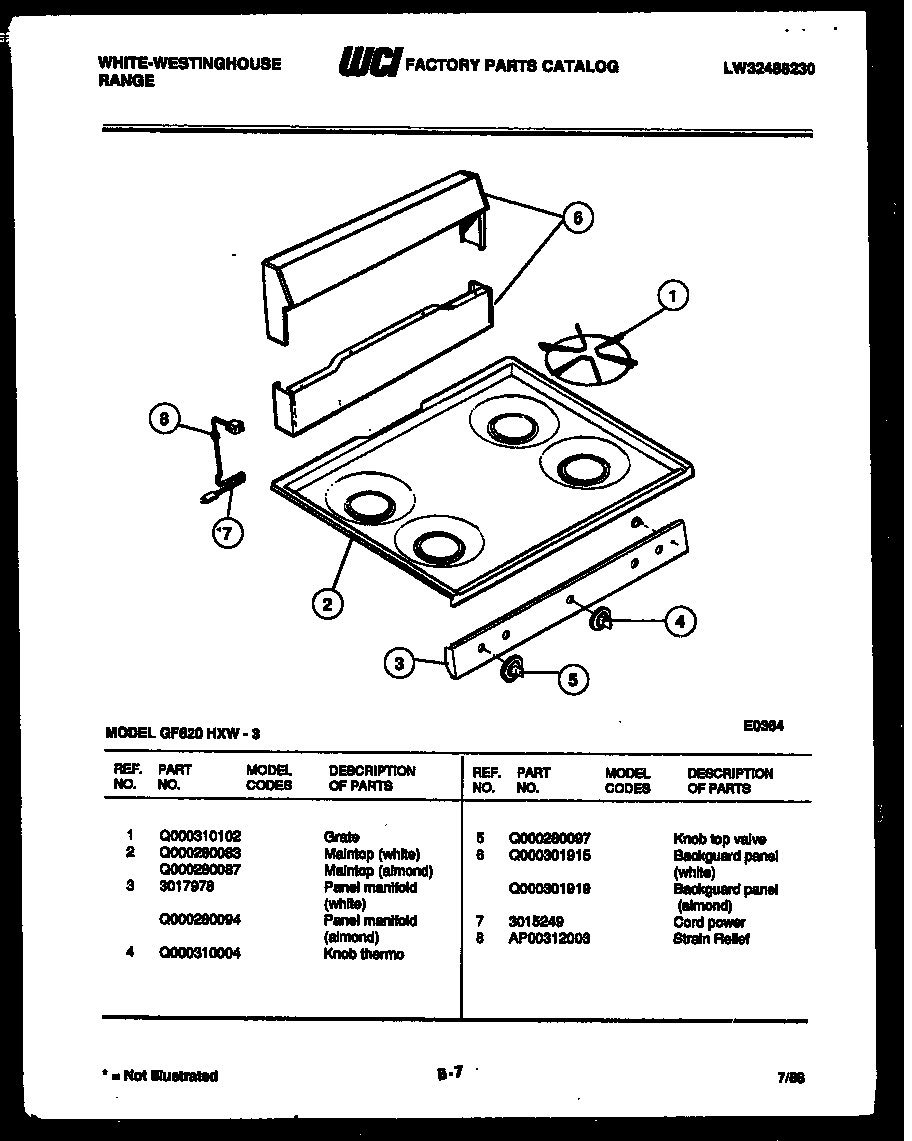

Cooktop parts and backguard diagram

Knob

Part #Q000280097

Replaced by #5308013898

?
Manufacturer substitution
This part replaces Q000280097. Substitute parts can look different from the original.
$26.73
In Stock
Broiler Pan 3131022
#2

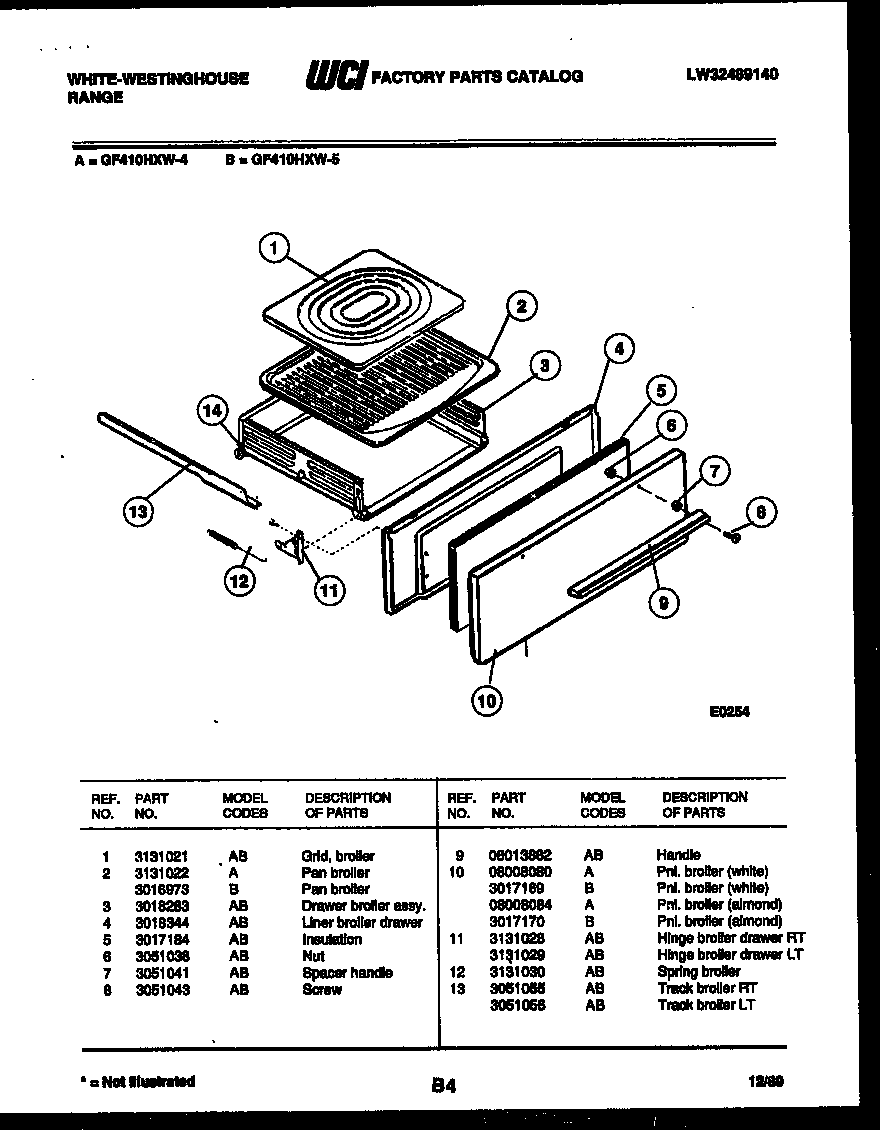

Broiler drawer parts diagram

Broiler pan

Part #3131022

Replaced by #5304442087

?
Manufacturer substitution
This part replaces 3131022. Substitute parts can look different from the original.
$77.99 |
7% OFF Phone Price : $83.99
In Stock
Pressure Regulator AP00310007
#1

Burner, manifold and gas control diagram

Pressure regulator

Part #AP00310007

Replaced by #5308007974

?
Manufacturer substitution
This part replaces AP00310007. Substitute parts can look different from the original.
$186.45 |
6% OFF Phone Price : $198.45
In Stock
Screw AP00051060
#10

Broiler drawer parts diagram

Screw

Part #AP00051060

Replaced by #5303292012

?
Manufacturer substitution
This part replaces AP00051060. Substitute parts can look different from the original.
$13.29
In Stock
