Model # 31517551 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 31517551 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Screw 614658-012
#22

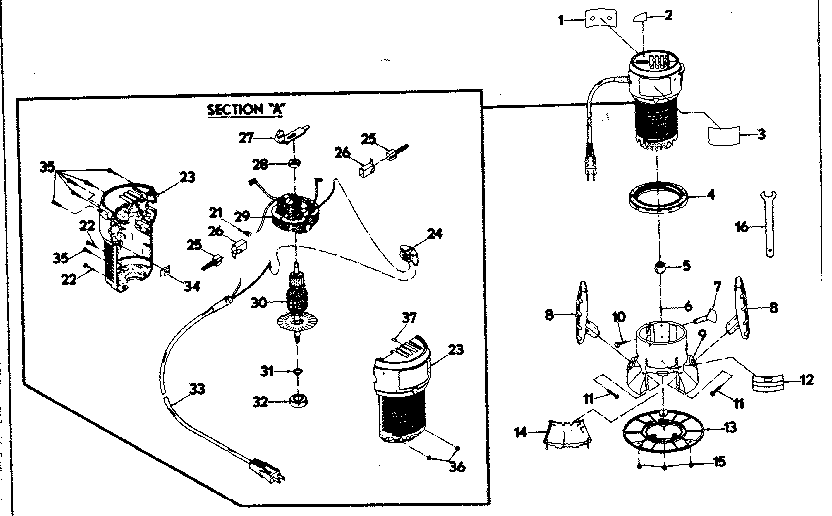

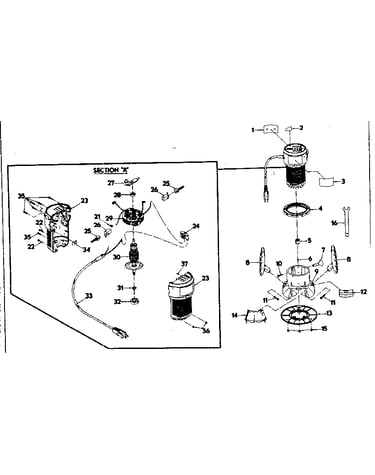

Unit parts diagram

Screw

Part #614658-012

The manufacturer no longer makes this part, and there's no substitute part

Wrench 989935-003
#16

Unit parts diagram

Wrench

Part #989935-003

The manufacturer no longer makes this part, and there's no substitute part

Indicator 989652-001
#4

Unit parts diagram

Indicator

Part #989652-001

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing 998427-001
#23

Unit parts diagram

Motor housing

Part #998427-001

The manufacturer no longer makes this part, and there's no substitute part

Brush Tube 611686-002
#26

Unit parts diagram

Brush tube

Part #611686-002

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 612702-001
#12

Unit parts diagram

Logo plate

Part #612702-001

The manufacturer no longer makes this part, and there's no substitute part

Sub-base 612191-004
#13

Unit parts diagram

Sub-base

Part #612191-004

The manufacturer no longer makes this part, and there's no substitute part

Screw 617966-011
#35

Unit parts diagram

Screw

Part #617966-011

The manufacturer no longer makes this part, and there's no substitute part

Ball Brg 621221-002
#28

Unit parts diagram

Ball brg

Part #621221-002

The manufacturer no longer makes this part, and there's no substitute part

Retain Ring 622167-012
#31

Unit parts diagram

Retain ring

Part #622167-012

The manufacturer no longer makes this part, and there's no substitute part
