Model # A2B749DAASEA Official GE air conditioner
Here are the diagrams and repair parts for Official GE A2B749DAASEA air conditioner, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts forA2B749DAASEA Air Conditioner
#NI
All parts diagram
ClipPart #WJ3X87
This item is not returnable$2.16In Stock- #983

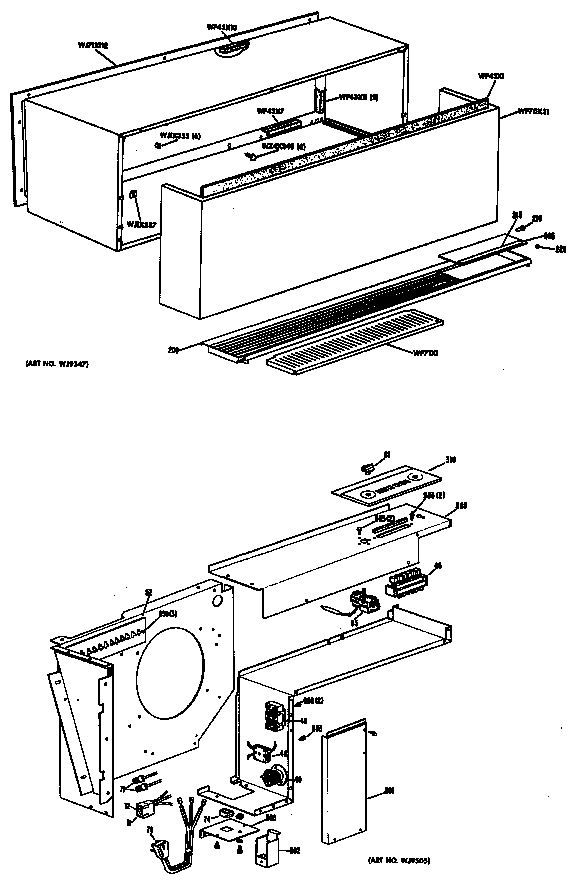

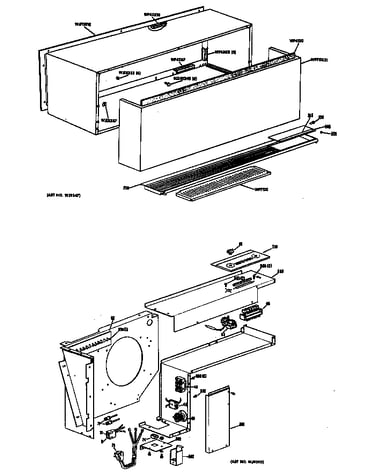

Cabinet diagram
ScrewPart #WZ5X153
This item is not returnable$2.49In Stock #NI
All parts diagram
CapillaryPart #WJ53X130
$47.18In Stock#NI
All parts diagram
Zoneline h&Part #49-7067
Replaced by #49-7140-1
?Manufacturer substitutionThis part replaces 49-7067. Substitute parts can look different from the original.$8.49In Stock#NI
All parts diagram
Zoneline h&Part #49-7066
Replaced by #49-7140-1
?Manufacturer substitutionThis part replaces 49-7066. Substitute parts can look different from the original.$8.49In Stock- #605

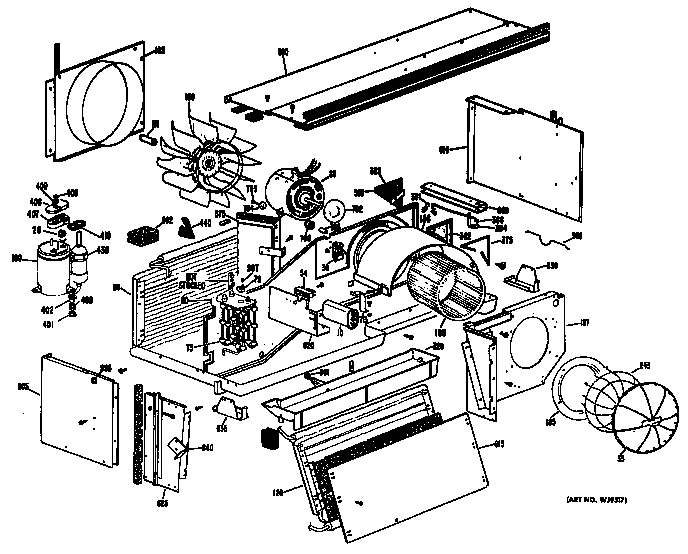

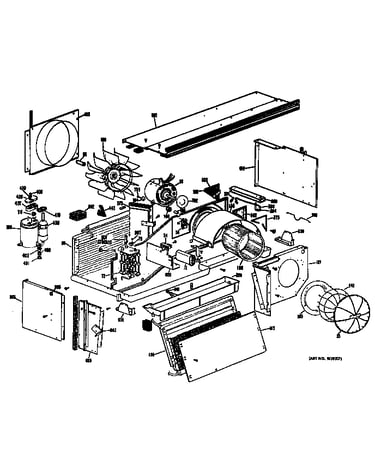

Chassis diagram
Left rear side panelPart #WP81X01
The manufacturer no longer makes this part, and there's no substitute part
- #210
Cabinet diagram
Rivet control doorPart #WP1X02
The manufacturer no longer makes this part, and there's no substitute part
- #630
Chassis diagram
Basepan bracket r sPart #WP66X07
The manufacturer no longer makes this part, and there's no substitute part
- #75
Chassis diagram
Heater kitPart #WP70X43
The manufacturer no longer makes this part, and there's no substitute part
- #615
Chassis diagram
Fpont plate & gasketPart #WP81X03
The manufacturer no longer makes this part, and there's no substitute part
