Model # 72121195000 Official Kenmore canister vacuum

Here are the diagrams and repair parts for Official Kenmore 72121195000 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Vacuum Bag 5231FI2390J
#18

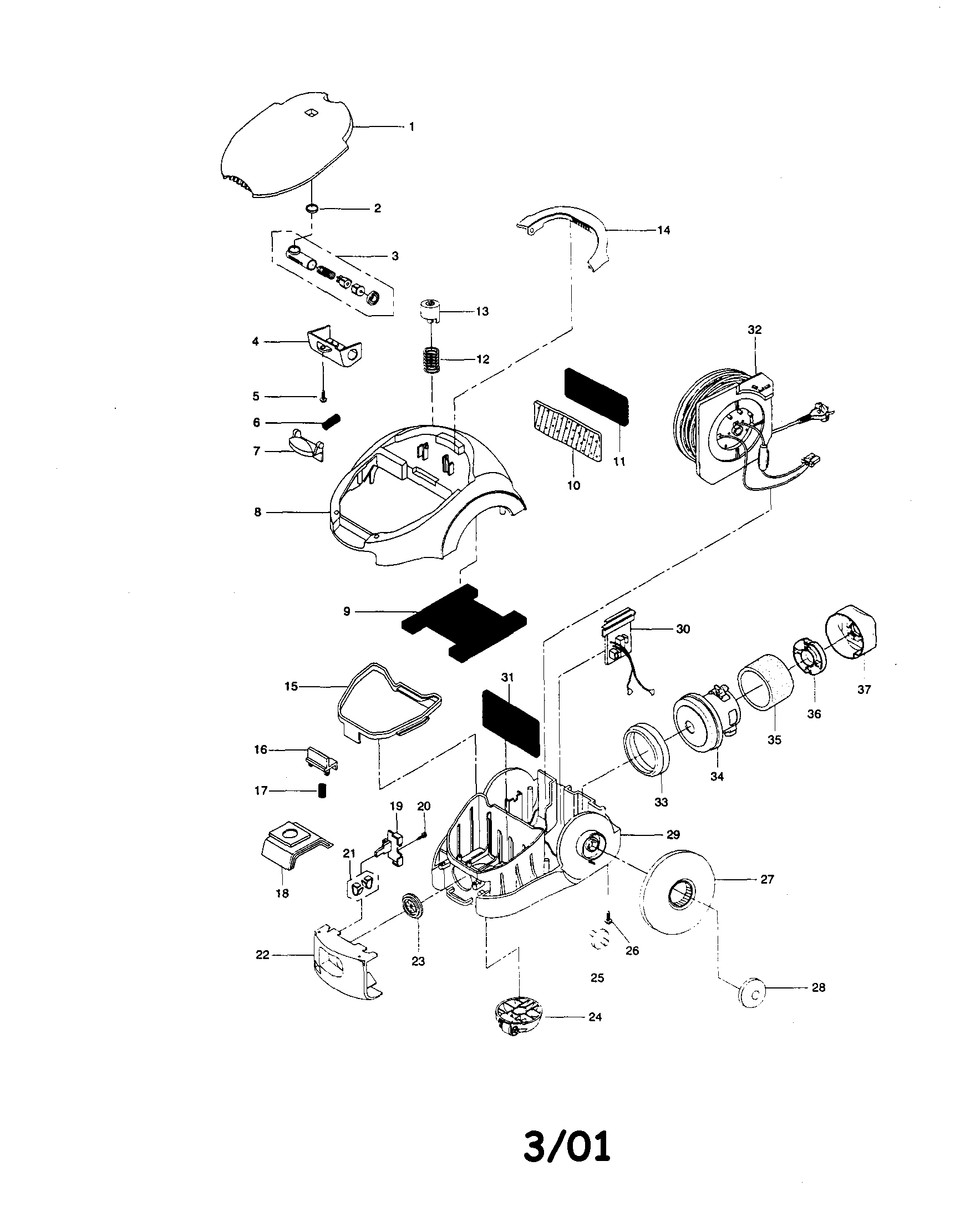

Vacuum cleaner diagram

Vacuum bag

Part #5231FI2390J

Replaced by #5231FI3779A

?
Manufacturer substitution
This part replaces 5231FI2390J. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$9.86 |
9% OFF Phone Price : $10.86
In Stock
Us Pressed Steel Screw 1TPL0402818
#20

Vacuum cleaner diagram

Us pressed steel screw

Part #1TPL0402818

This item is not returnable
$2.27
In Stock
Vacuum Screw 1TPL0302416
#4

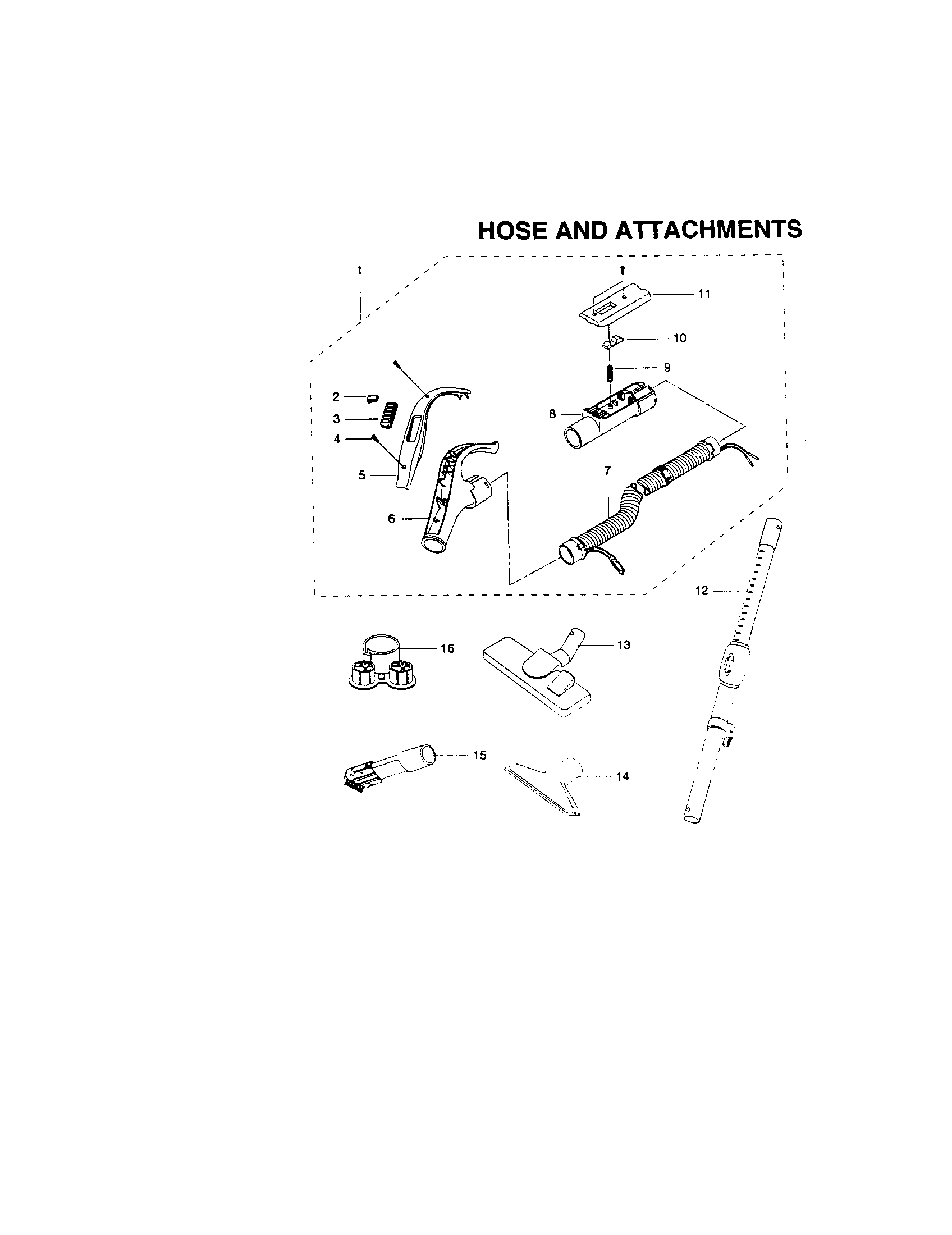

Hose and attachments diagram

Vacuum screw

Part #1TPL0302416

Replaced by #1TPL0302418

?
Manufacturer substitution
This part replaces 1TPL0302416. Substitute parts can look different from the original.
$8.29
In Stock
Hook Spring 4I23028A
#9

Hose and attachments diagram

Hook spring

Part #4I23028A

This item is not returnable
$2.16
In Stock
Vacuum Screw 1TPL0302818
#5

Vacuum cleaner diagram

Vacuum screw

Part #1TPL0302818

This item is not returnable
$2.16
In Stock
Felt 4766FI3251A
#9

Vacuum cleaner diagram

Felt

Part #4766FI3251A

The manufacturer no longer makes this part, and there's no substitute part

Reel 6411FI1071W
#32

Vacuum cleaner diagram

Reel

Part #6411FI1071W

The manufacturer no longer makes this part, and there's no substitute part

Body Base 3040FI111D
#29

Vacuum cleaner diagram

Body base

Part #3040FI111D

The manufacturer no longer makes this part, and there's no substitute part

Handle 3650FI1430C
#6

Hose and attachments diagram

Handle

Part #3650FI1430C

The manufacturer no longer makes this part, and there's no substitute part

Packing 4036FI3036A
#23

Vacuum cleaner diagram

Packing

Part #4036FI3036A

The manufacturer no longer makes this part, and there's no substitute part
