Model # HGIP054UC/07 Official Bosch gas slide-in range

Here are the diagrams and repair parts for Official Bosch HGIP054UC-07 gas slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

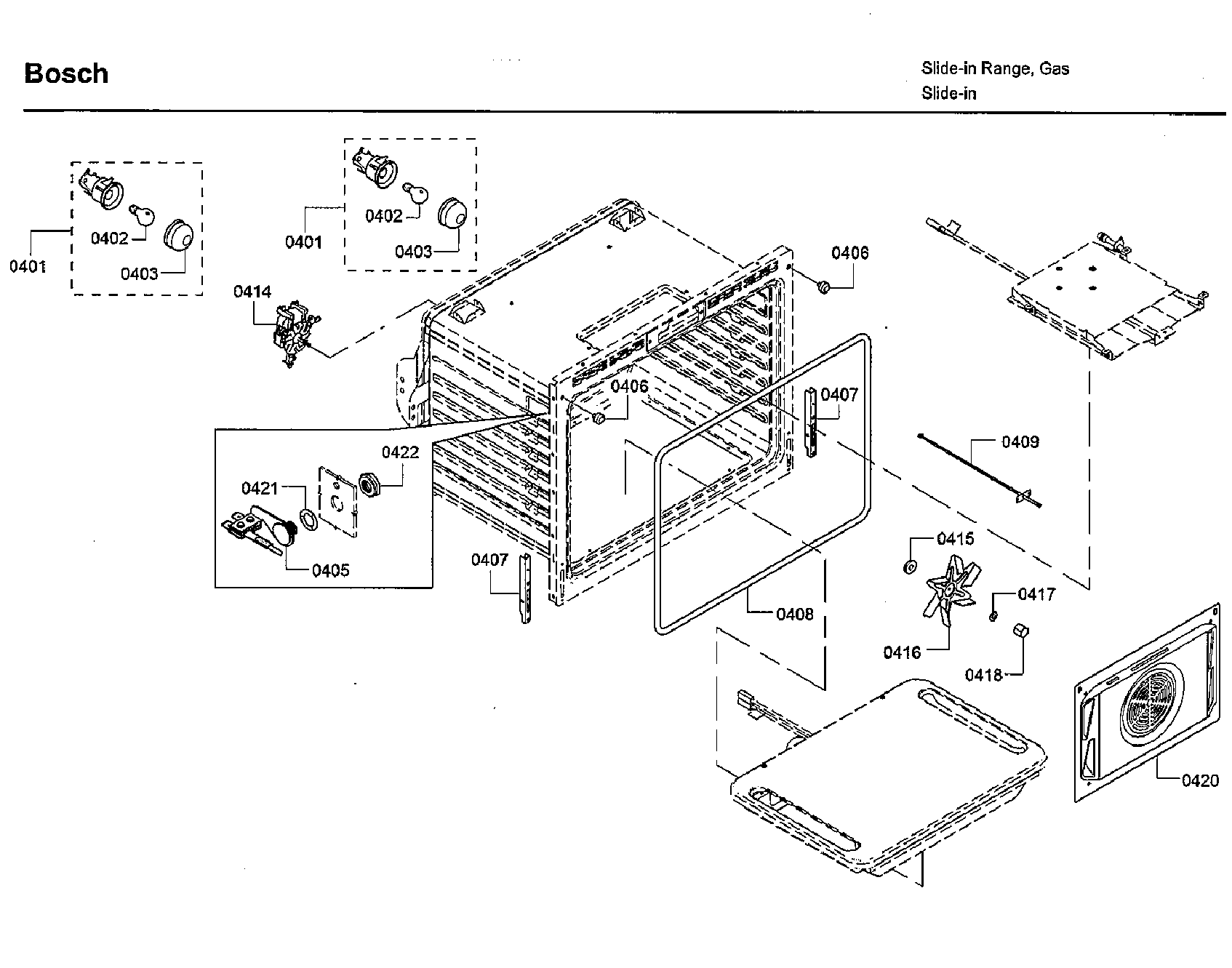

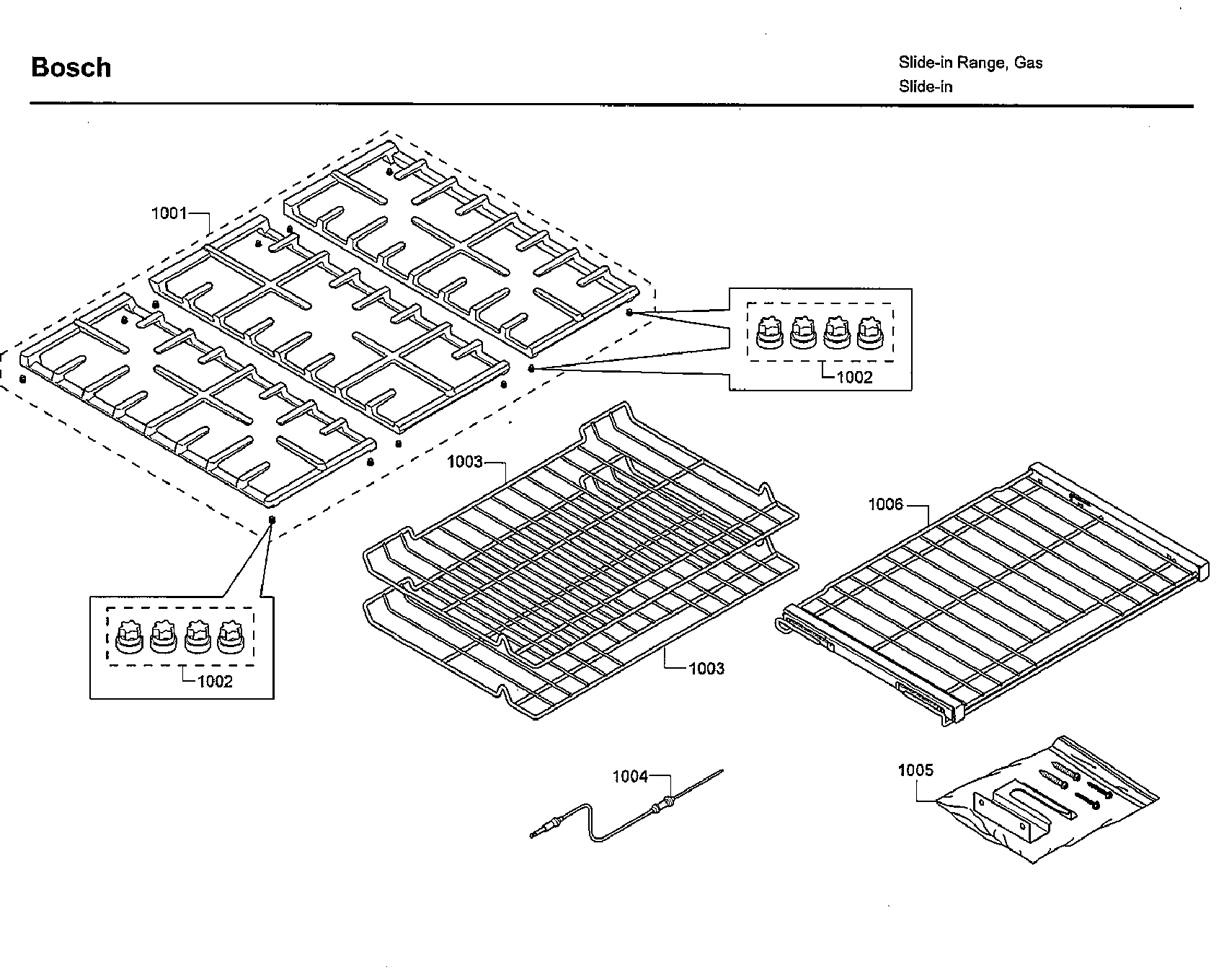

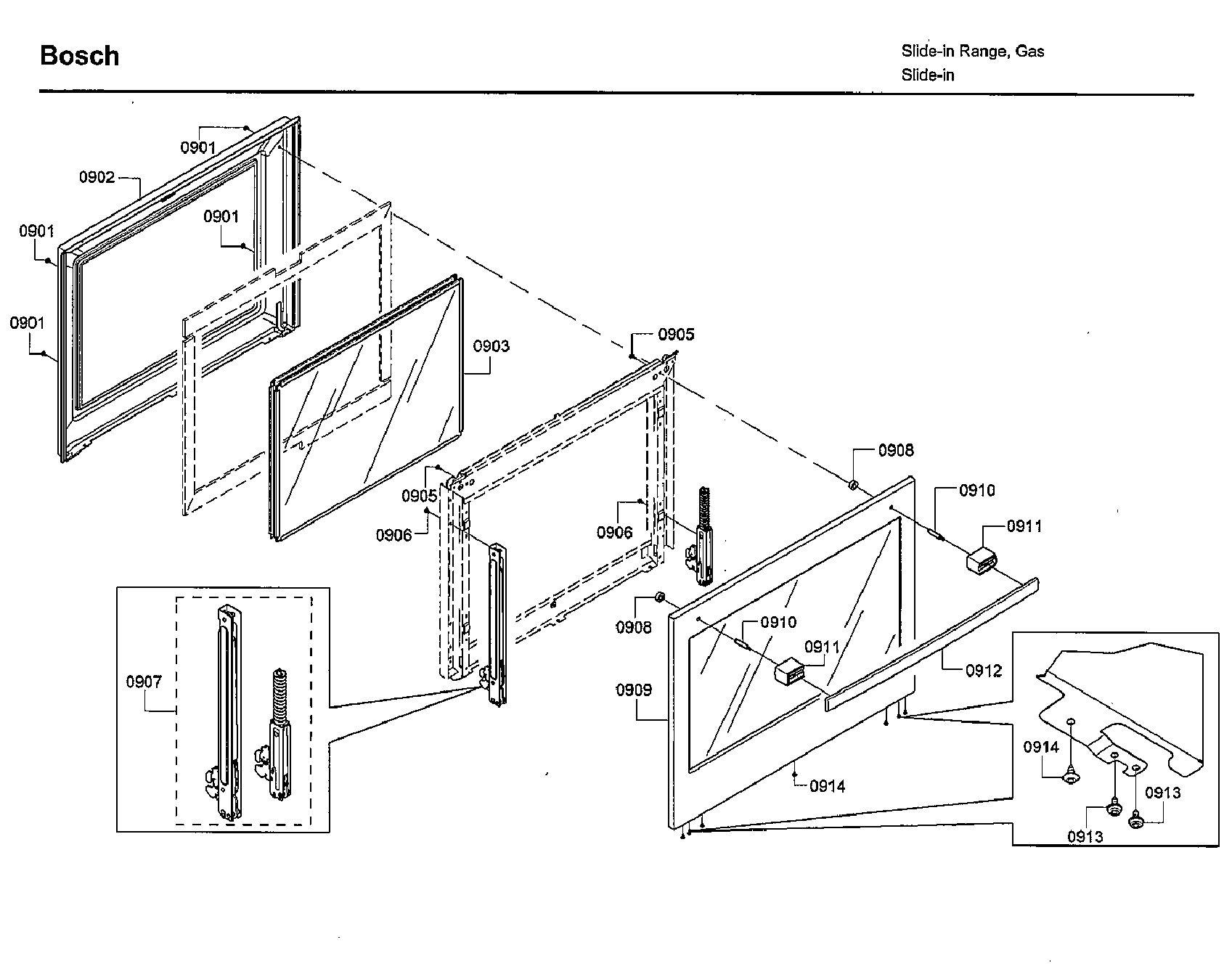

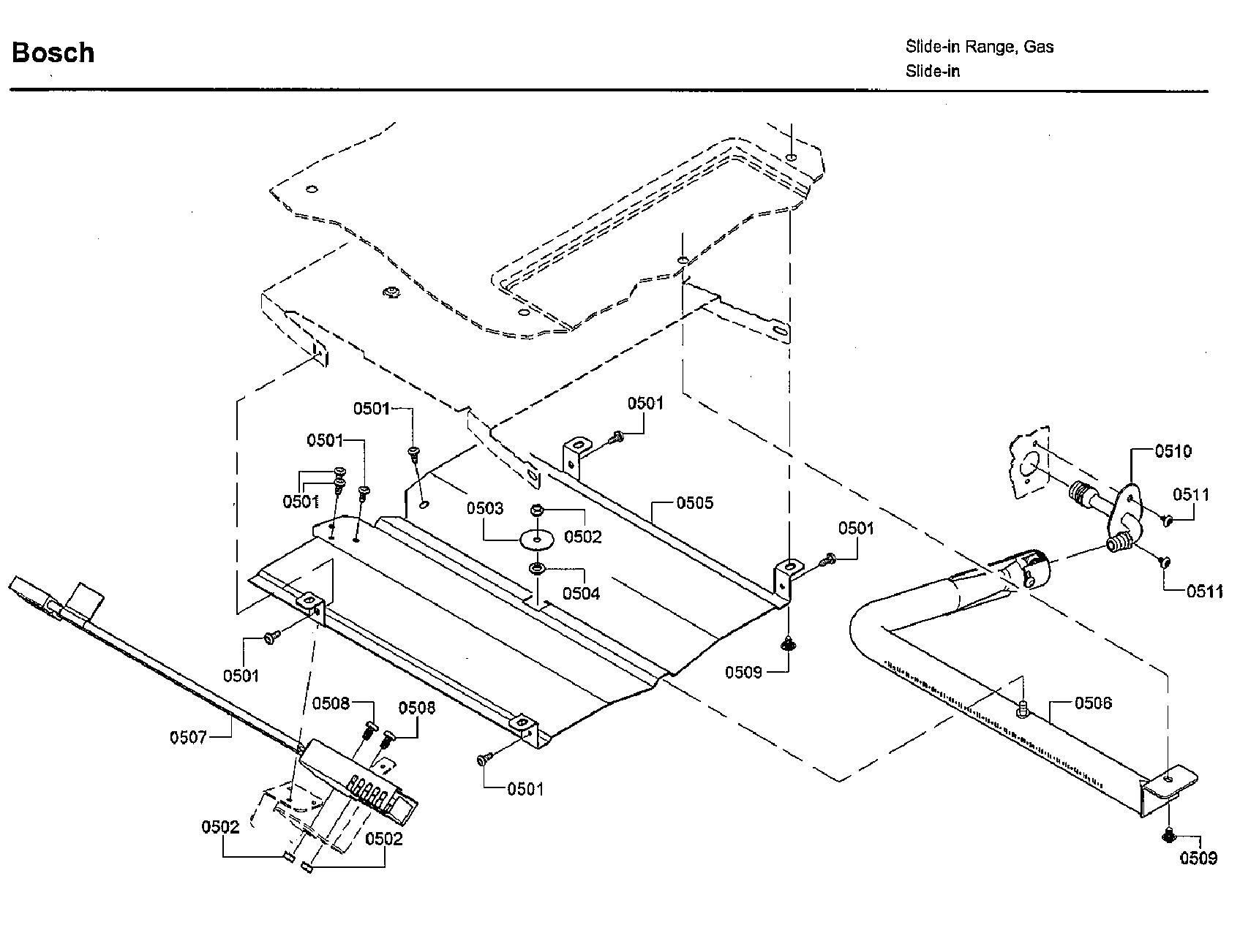

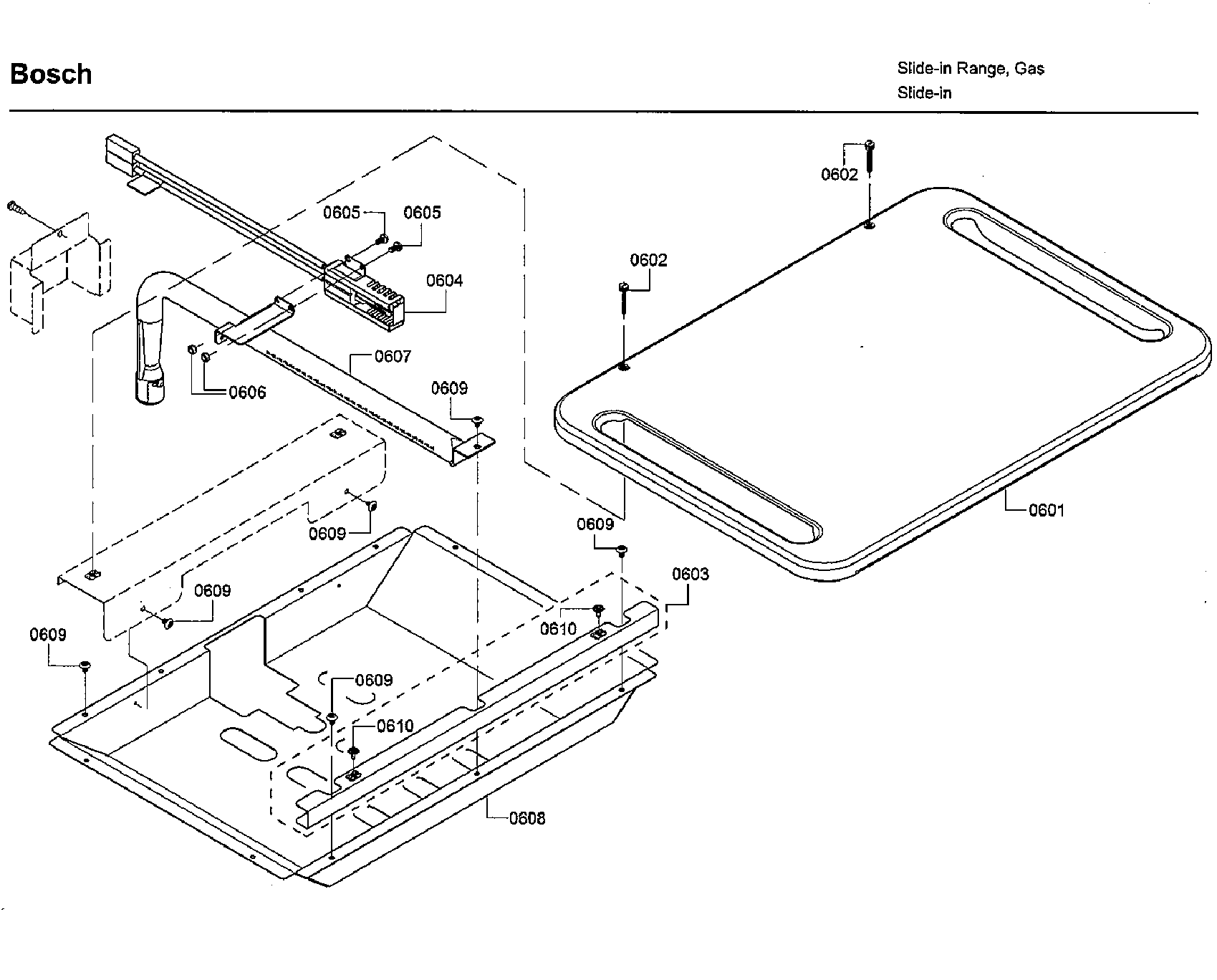

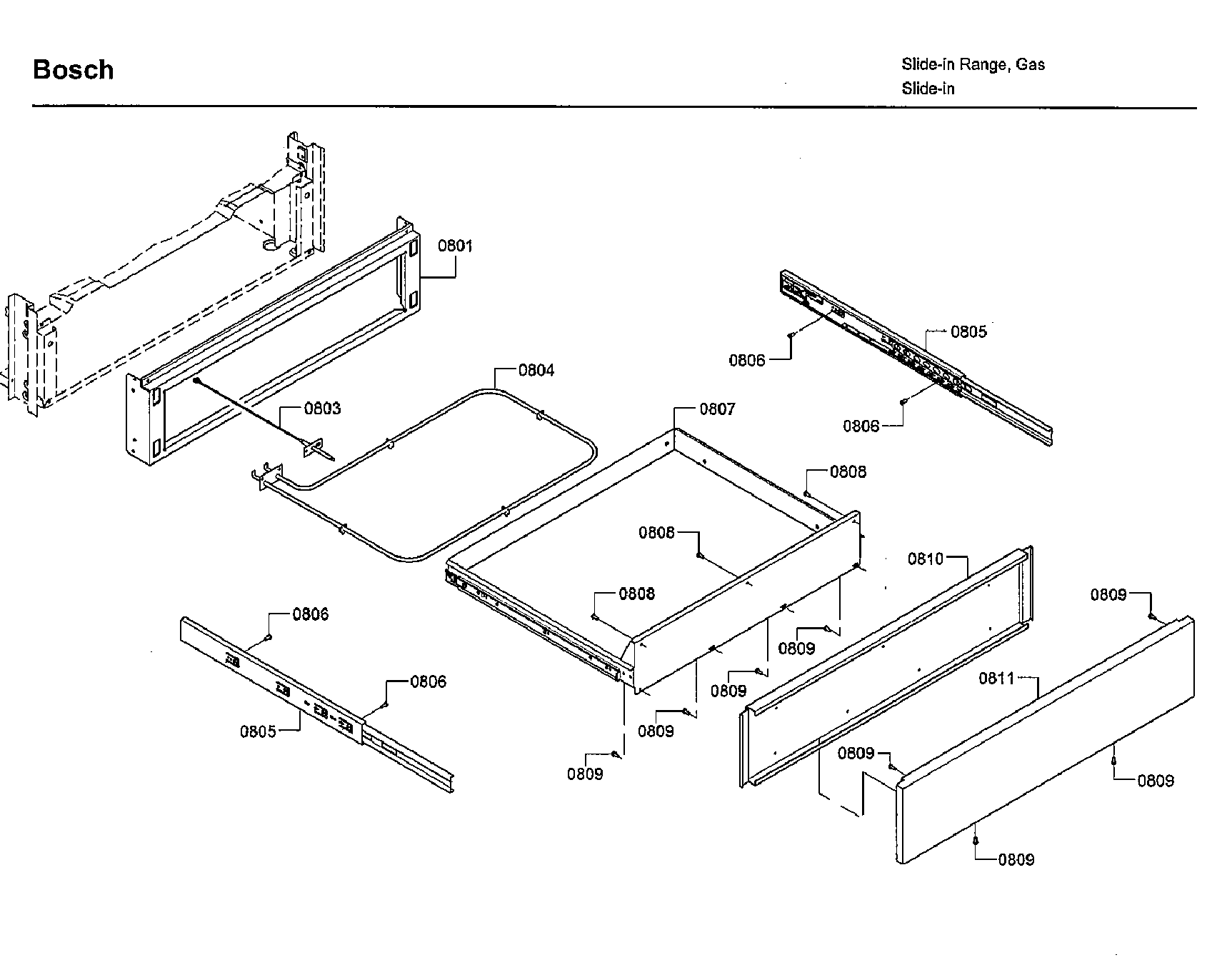

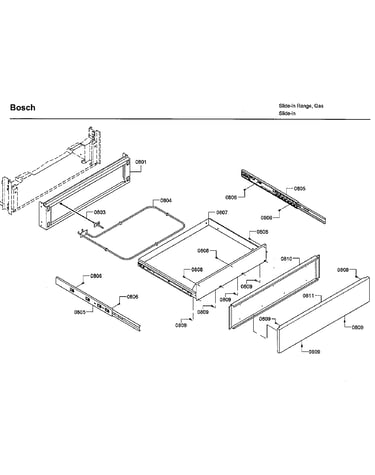

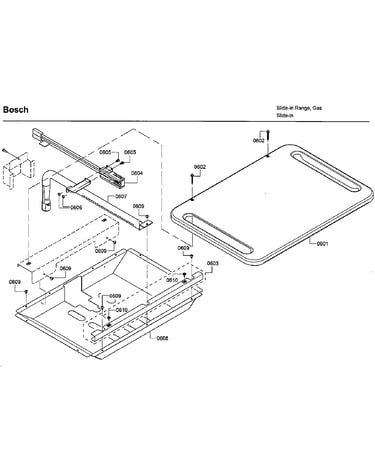

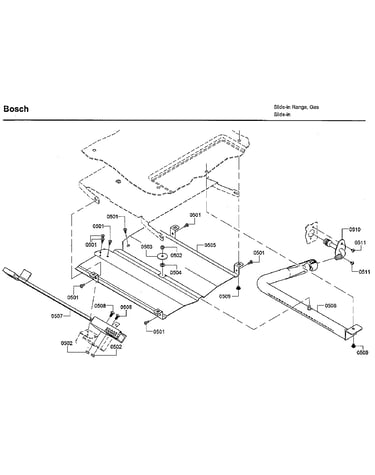

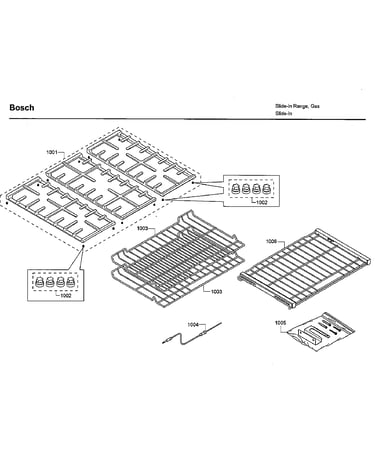

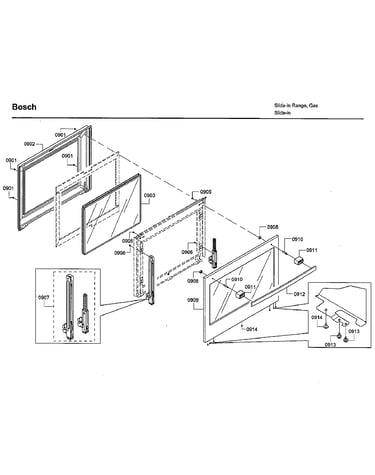

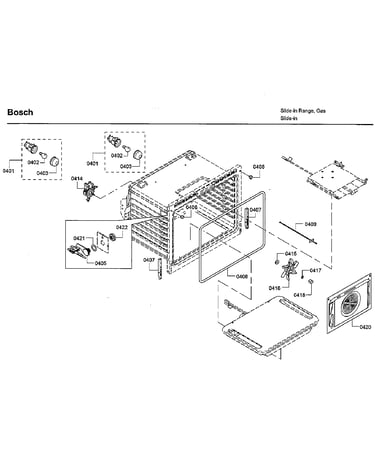

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Range Oven Burner Igniter (replaces 755058) 00755058
Range oven burner igniter (replaces 755058)

Part #00755058

BEST SELLER
$110.29 |
10% OFF Phone Price : $122.29
In Stock
Wall Oven Temperature Sensor (replaces 630873) 00630873
Wall oven temperature sensor (replaces 630873)

Part #00630873

$50.89 |
11% OFF Phone Price : $56.89
In Stock
Range Spark Module 12004873
#201

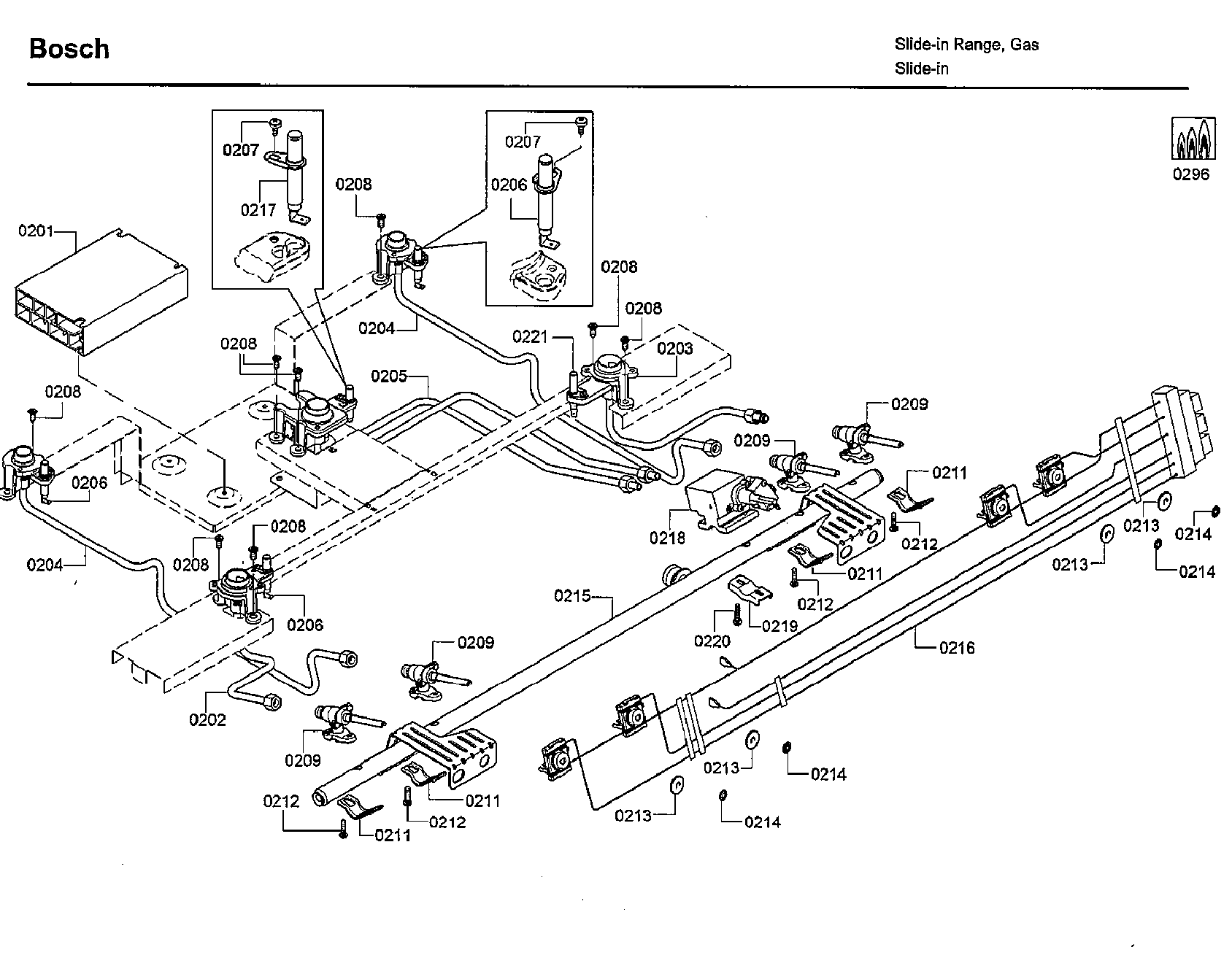

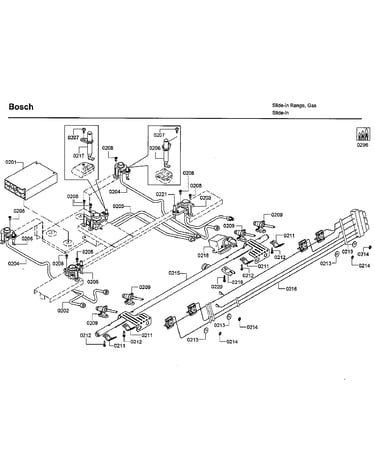

Switches diagram

Range spark module

Part #12004873

$133.37 |
8% OFF Phone Price : $145.37
In Stock
Range Oven Cooling Fan Assembly (replaces 12003340) 12011471
#706

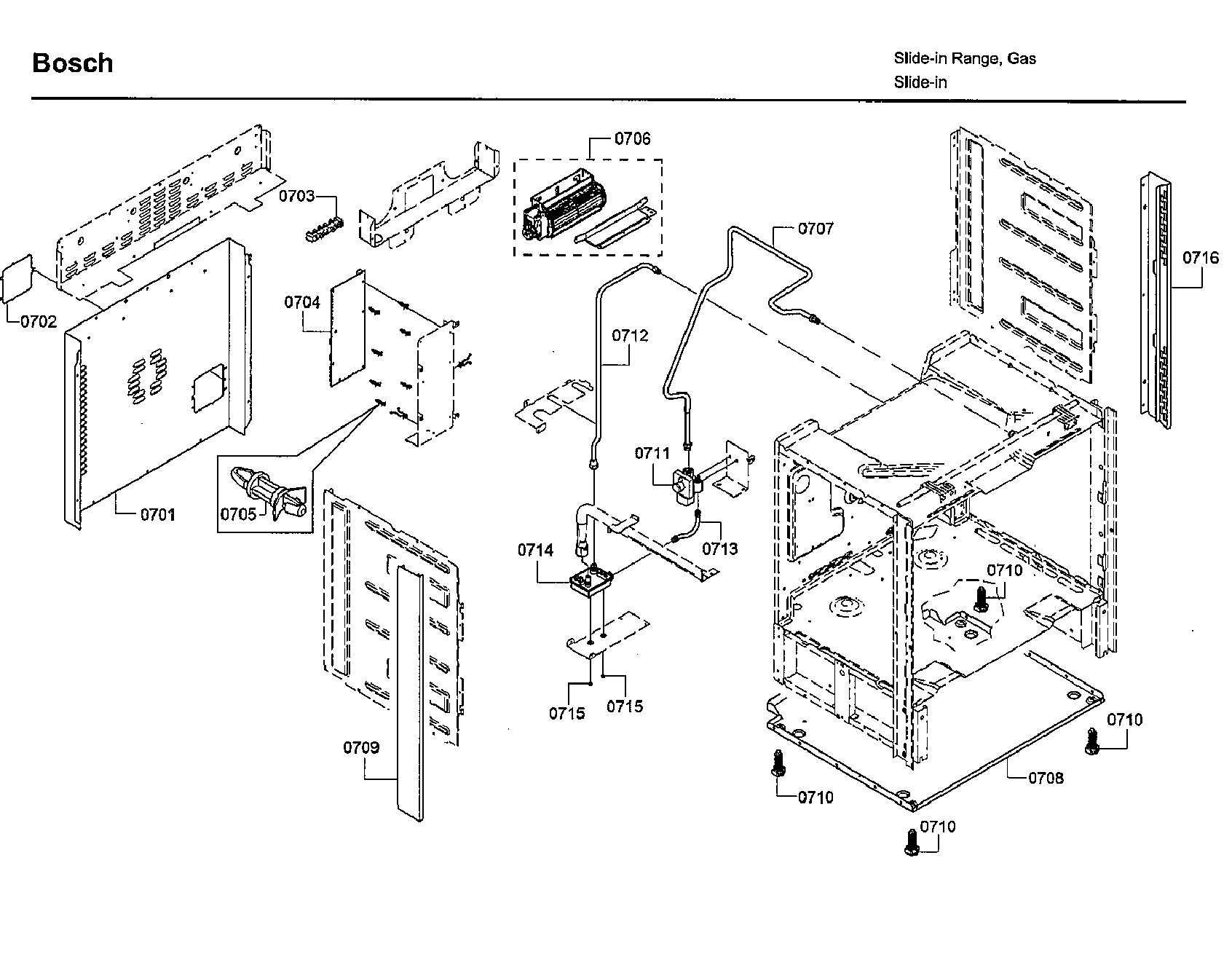

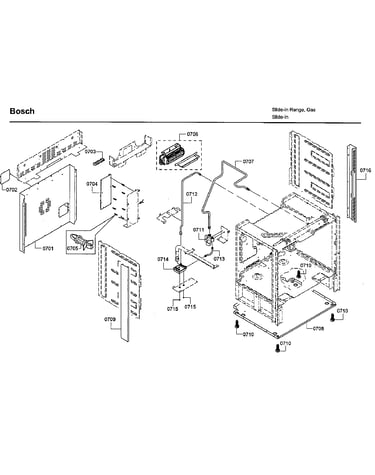

Cabinet diagram

Range oven cooling fan assembly (replaces 12003340)

Part #12011471

$192.24
In Stock
Range Oven Control Board (replaces 12006849) 12012946
#704

Cabinet diagram

Range oven control board (replaces 12006849)

Part #12012946

$245.75 |
5% OFF Phone Price : $257.75
In Stock
Range Surface Burner Head (replaces 631630) 00631630
#107

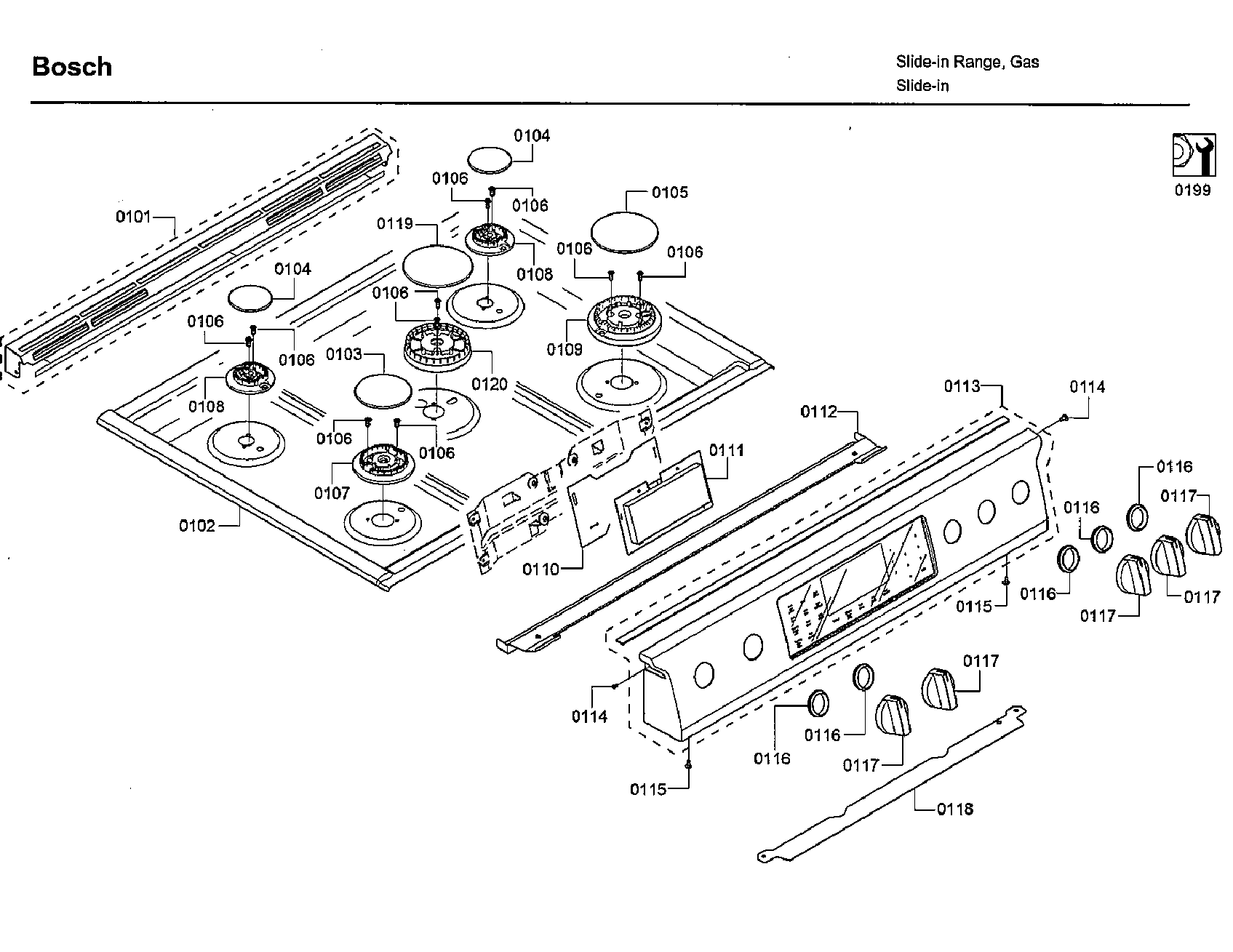

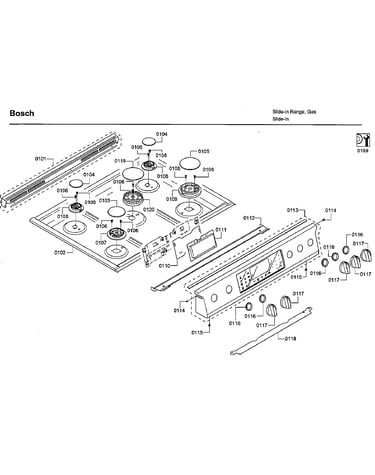

Top assy diagram

Range surface burner head (replaces 631630)

Part #00631630

This item is not returnable
$25.49 |
19% OFF Phone Price : $31.49
In Stock
Tube Assembly 12003348
#202

Switches diagram

Tube assembly

Part #12003348

$51.04
In Stock
Tube Rf 12011385
#203

Switches diagram

Tube rf

Part #12011385

$57.58
In Stock
Screw 00617527
Screw

Part #00617527

$15.20
In Stock
Wall Oven Door Lock Assembly 00631192
#303

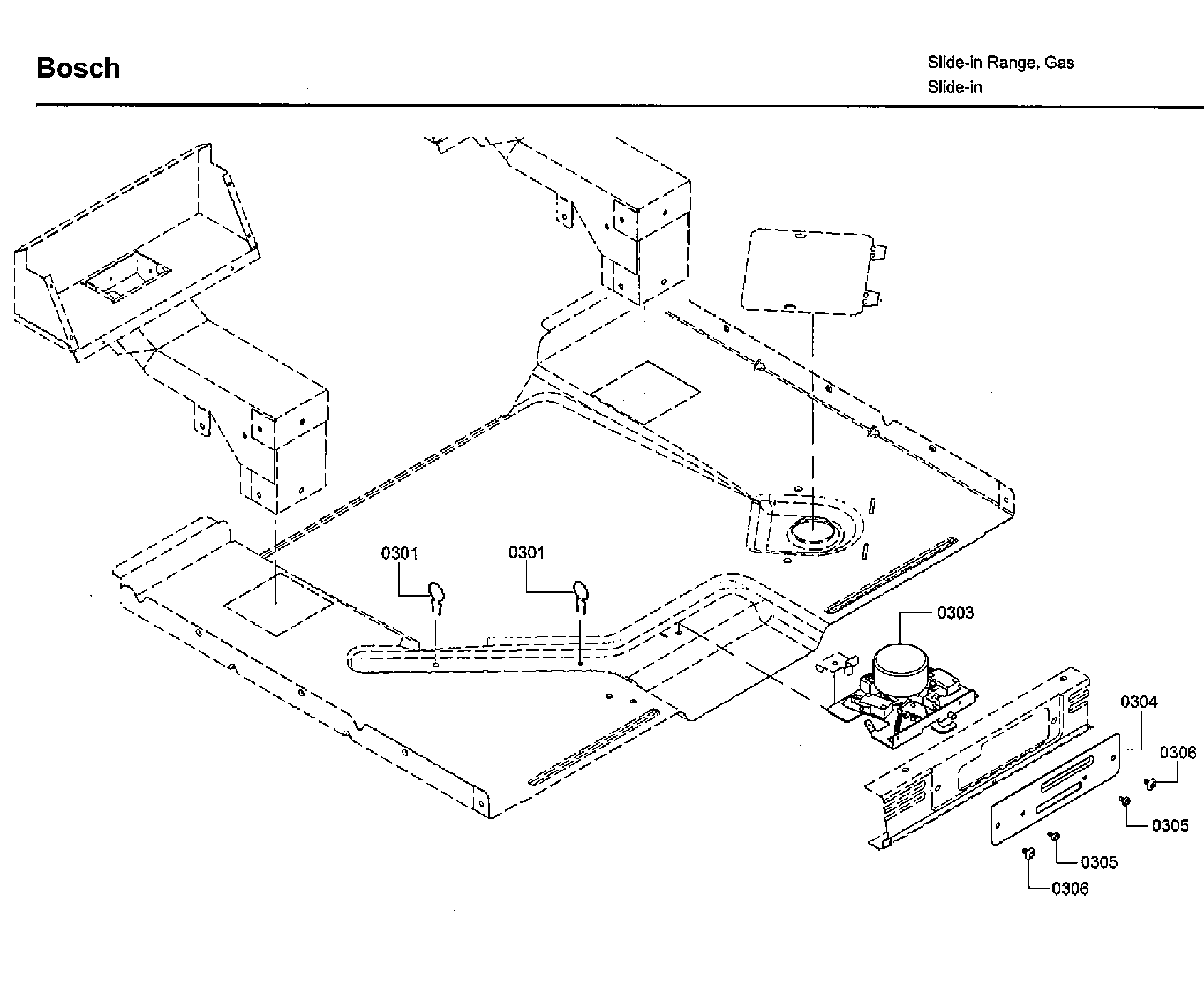

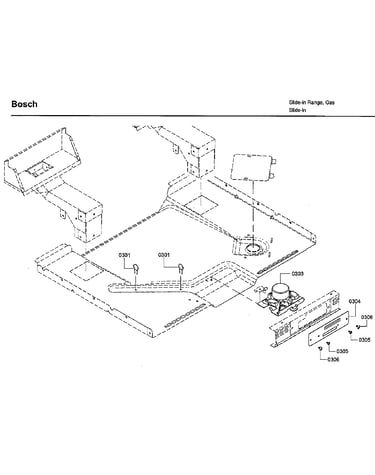

Door latch diagram

Wall oven door lock assembly

Part #00631192

$66.59 |
8% OFF Phone Price : $72.59
In Stock
