Model # JVM1630CH003 Official GE microwave

Here are the diagrams and repair parts for Official GE JVM1630CH003 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

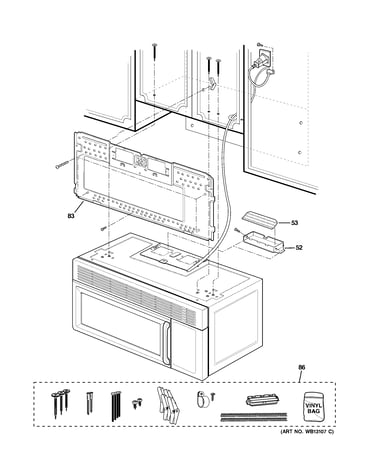

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Microwave Fuse WB27X10388
#47

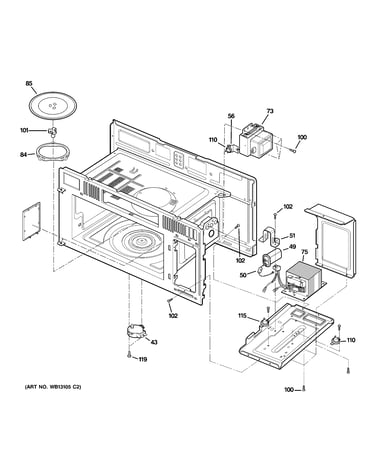

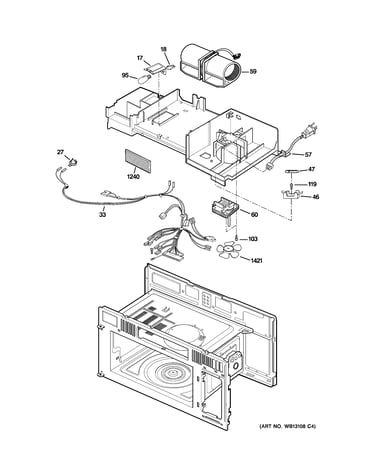

Interior parts (2) diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave Magnetron WB27X10305
#73

Interior parts (1) diagram

Microwave magnetron

Part #WB27X10305

The manufacturer no longer makes this part, and there's no substitute part

Primary Switch WB24X0815
#29

Latch board parts diagram

Primary switch

Part #WB24X0815

Replaced by #WB24X10047

?
Manufacturer substitution
This part replaces WB24X0815. Substitute parts can look different from the original.
BEST SELLER
$24.27 |
20% OFF Phone Price : $30.27
In Stock
Latch Board WB06X10256
#28

Latch board parts diagram

Latch board

Part #WB06X10256

Replaced by #WB02X32720

?
Manufacturer substitution
This part replaces WB06X10256. Substitute parts can look different from the original.
This item is not returnable
$16.59 |
11% OFF Phone Price : $18.59
In Stock
Canopy WB06X10419
#96

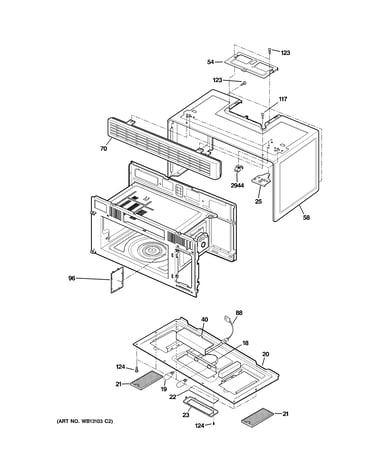

Oven cavity parts diagram

Canopy

Part #WB06X10419

Replaced by #WB06X10764

?
Manufacturer substitution
This part replaces WB06X10419. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Glass WB36X10296
#22

Oven cavity parts diagram

Glass

Part #WB36X10296

Replaced by #WB36X10293

?
Manufacturer substitution
This part replaces WB36X10296. Substitute parts can look different from the original.
$27.25 |
18% OFF Phone Price : $33.25
In Stock
Vent Grille WB07X10697
#70

Oven cavity parts diagram

Vent grille

Part #WB07X10697

Replaced by #WB07X10967

?
Manufacturer substitution
This part replaces WB07X10697. Substitute parts can look different from the original.
$77.75 |
7% OFF Phone Price : $83.75
In Stock
Microwave Door Assembly WB56X10430
#1800

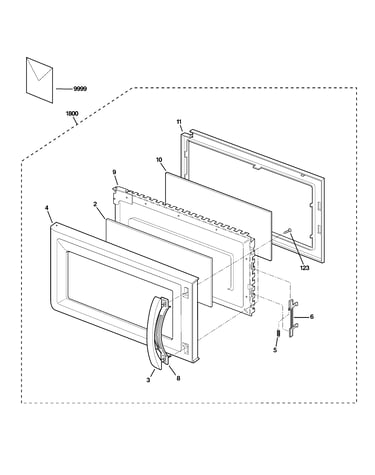

Door parts diagram

Microwave door assembly

Part #WB56X10430

$212.69 |
5% OFF Phone Price : $224.69
In Stock
Screw Bind WB02X10777
#100

Interior parts (1) diagram

Screw bind

Part #WB02X10777

Replaced by #WB02X10745

?
Manufacturer substitution
This part replaces WB02X10777. Substitute parts can look different from the original.
$8.11
In Stock
Mag Bracket WB02X10721
#56

Interior parts (1) diagram

Mag bracket

Part #WB02X10721

Replaced by #WB06X10570

?
Manufacturer substitution
This part replaces WB02X10721. Substitute parts can look different from the original.
$8.11
In Stock
