Frigidaire
Range Hood

Model # F36WC19EB Official Frigidaire range hood

Here are the diagrams and repair parts for Official Frigidaire F36WC19EB range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

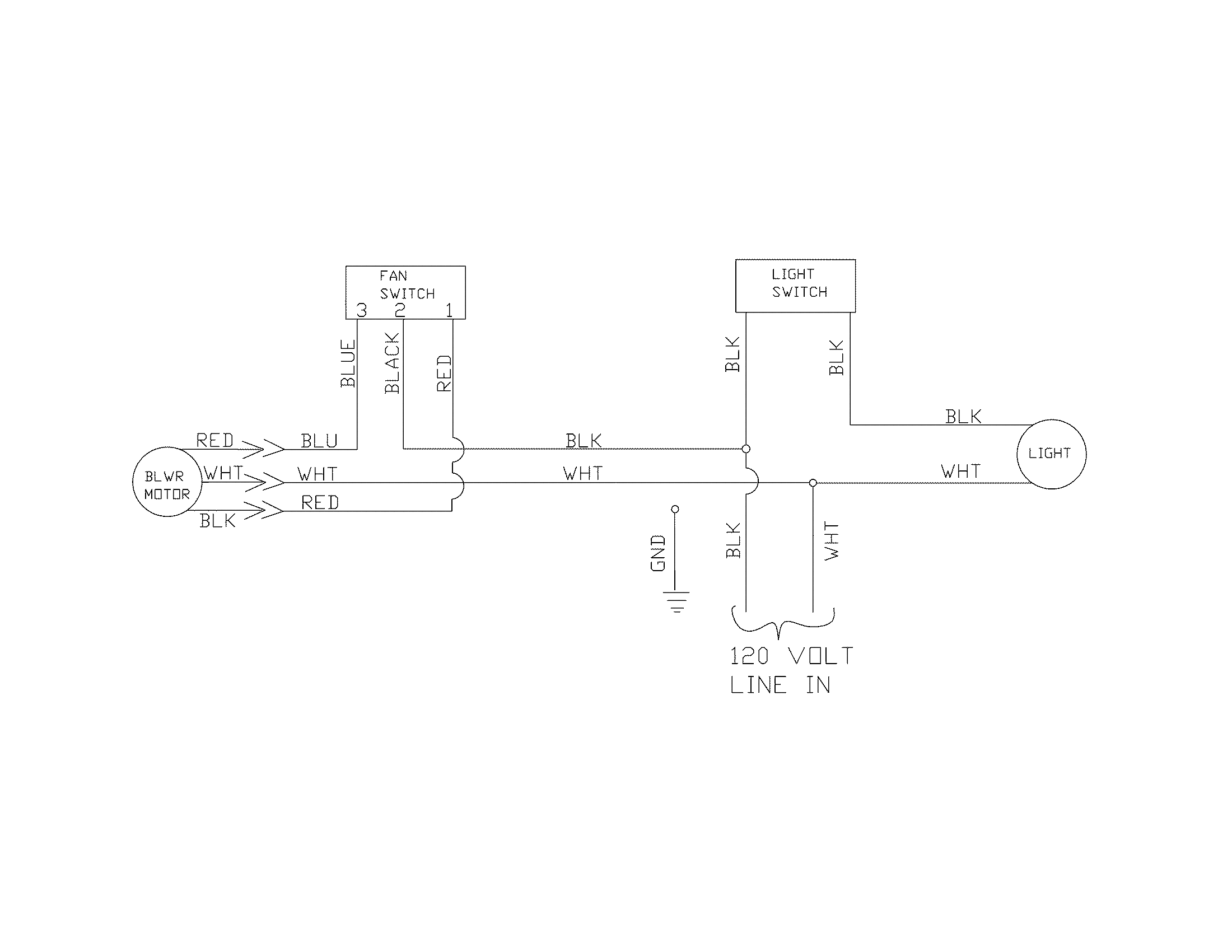

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Range Hood Nameplate 5304452681
#16

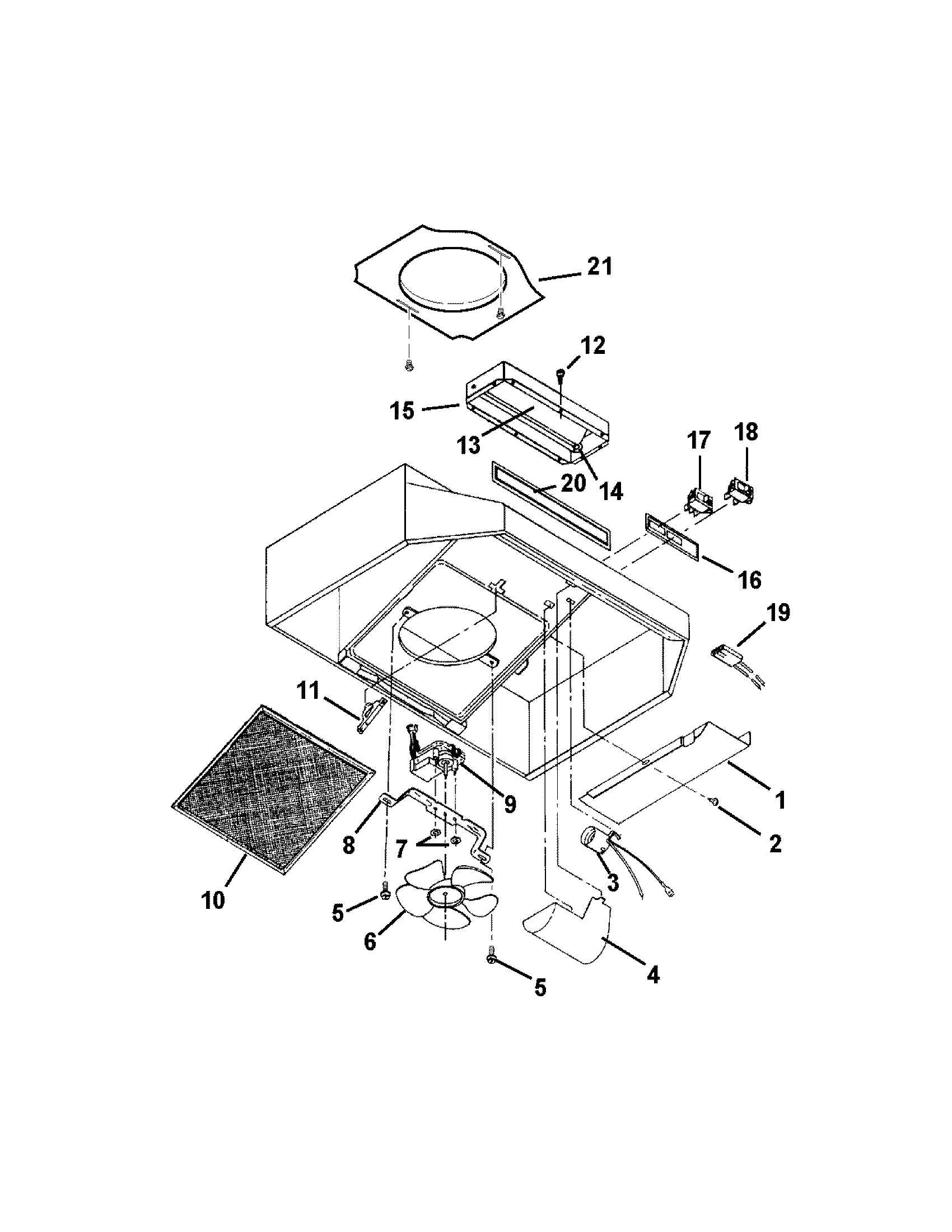

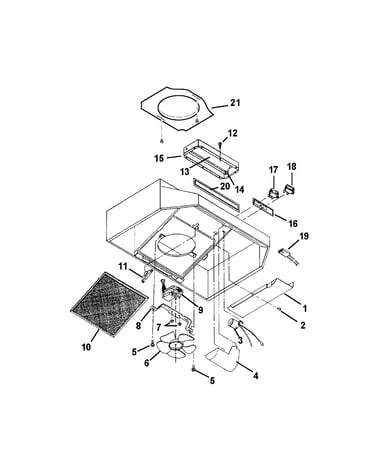

Replacement parts diagram

Range hood nameplate

Part #5304452681

$10.91
In Stock
Range Hood Nameplate 5304452371
#16

Replacement parts diagram

Range hood nameplate

Part #5304452371

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 5304452366
#19

Replacement parts diagram

Receptacle

Part #5304452366

The manufacturer no longer makes this part, and there's no substitute part

Switch 5304452397
#18

Replacement parts diagram

Switch

Part #5304452397

The manufacturer no longer makes this part, and there's no substitute part

Switch 5304452393
#17

Replacement parts diagram

Switch

Part #5304452393

The manufacturer no longer makes this part, and there's no substitute part

Nut 5304452359
#7

Replacement parts diagram

Nut

Part #5304452359

The manufacturer no longer makes this part, and there's no substitute part

Plate 5304452401
#21

Replacement parts diagram

Plate

Part #5304452401

The manufacturer no longer makes this part, and there's no substitute part

Motor Mount Bracket 3051766
#8

Replacement parts diagram

Motor mount bracket

Part #3051766

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Cover 5304452355
#1

Replacement parts diagram

Range hood cover

Part #5304452355

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 5304452390
#6

Replacement parts diagram

Fan blade

Part #5304452390

The manufacturer no longer makes this part, and there's no substitute part
