Wall Oven/Microwave Combo

Model # JMW2430IL02 Official Jenn-Air electric oven/microwave combo

Here are the diagrams and repair parts for Official Jenn-Air JMW2430IL02 electric oven/microwave combo, as well as links to manuals and error code tables, if available.

By Schematic
By Part

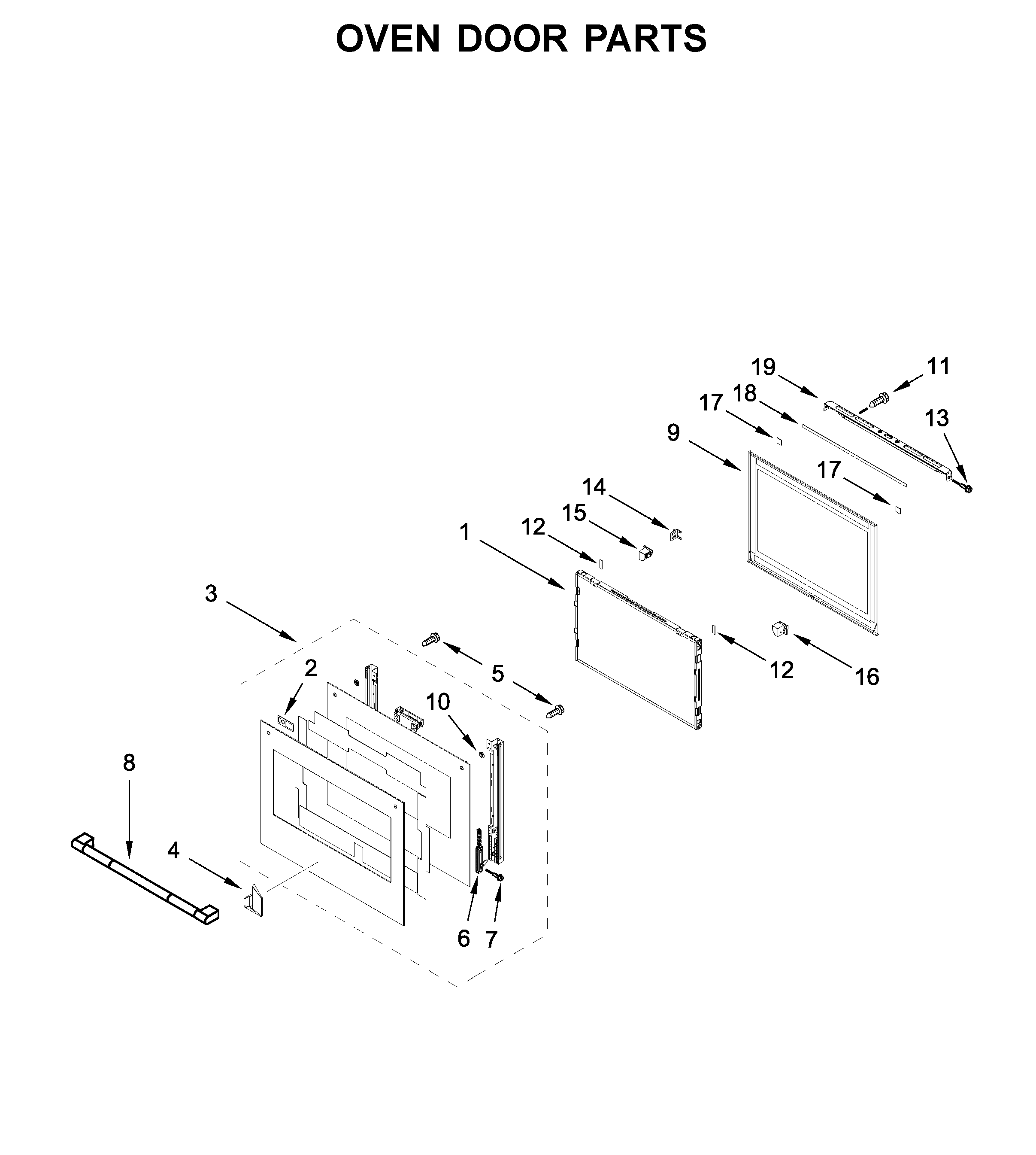

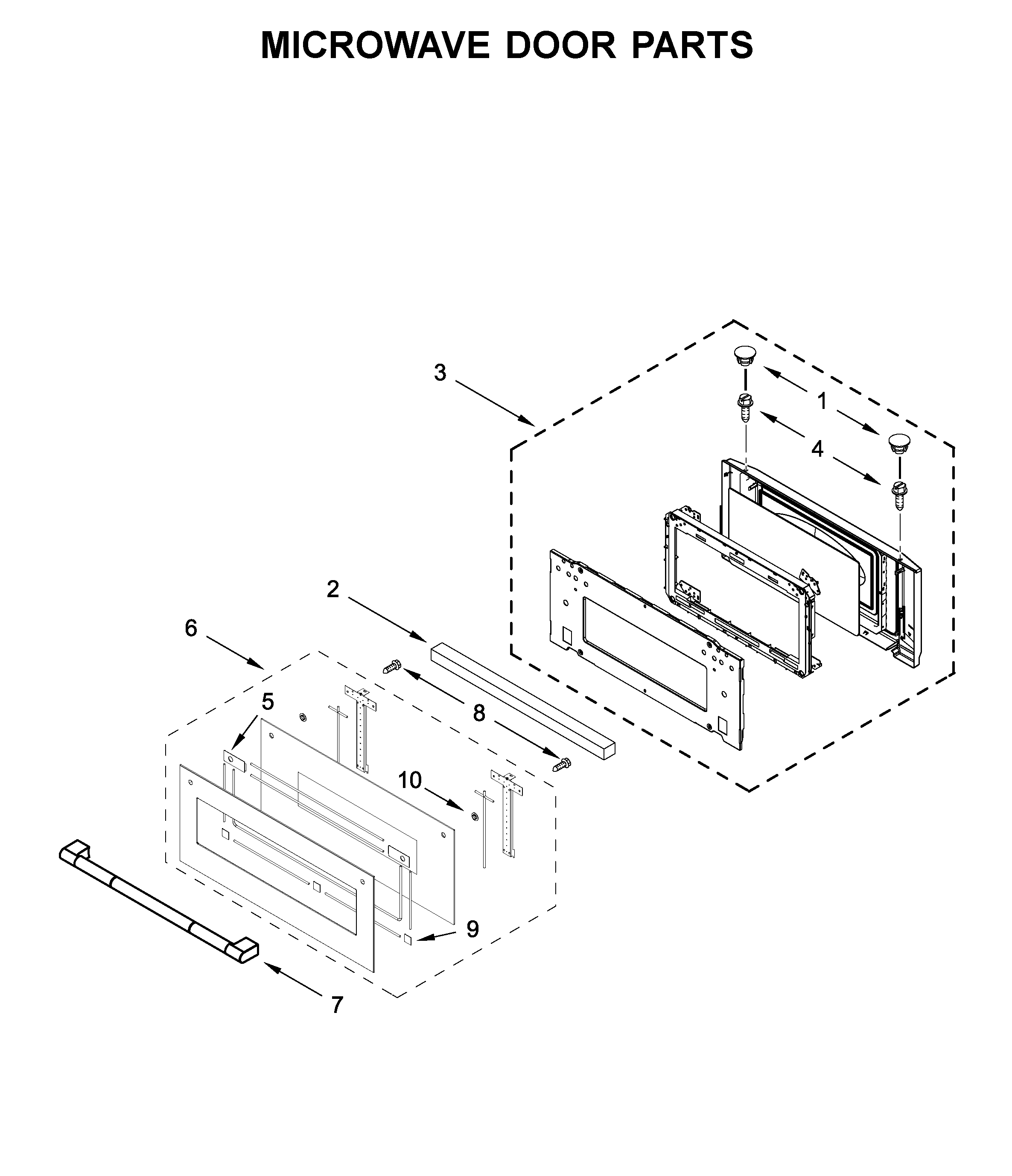

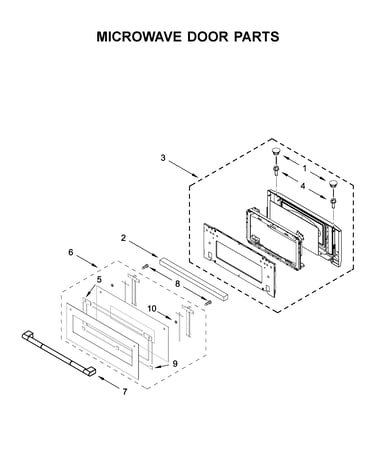

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
JMW2430IL02 Electric Oven/Microwave Combo
Whirlpool Wall Oven Microwave Element Clip 461967753871
#12

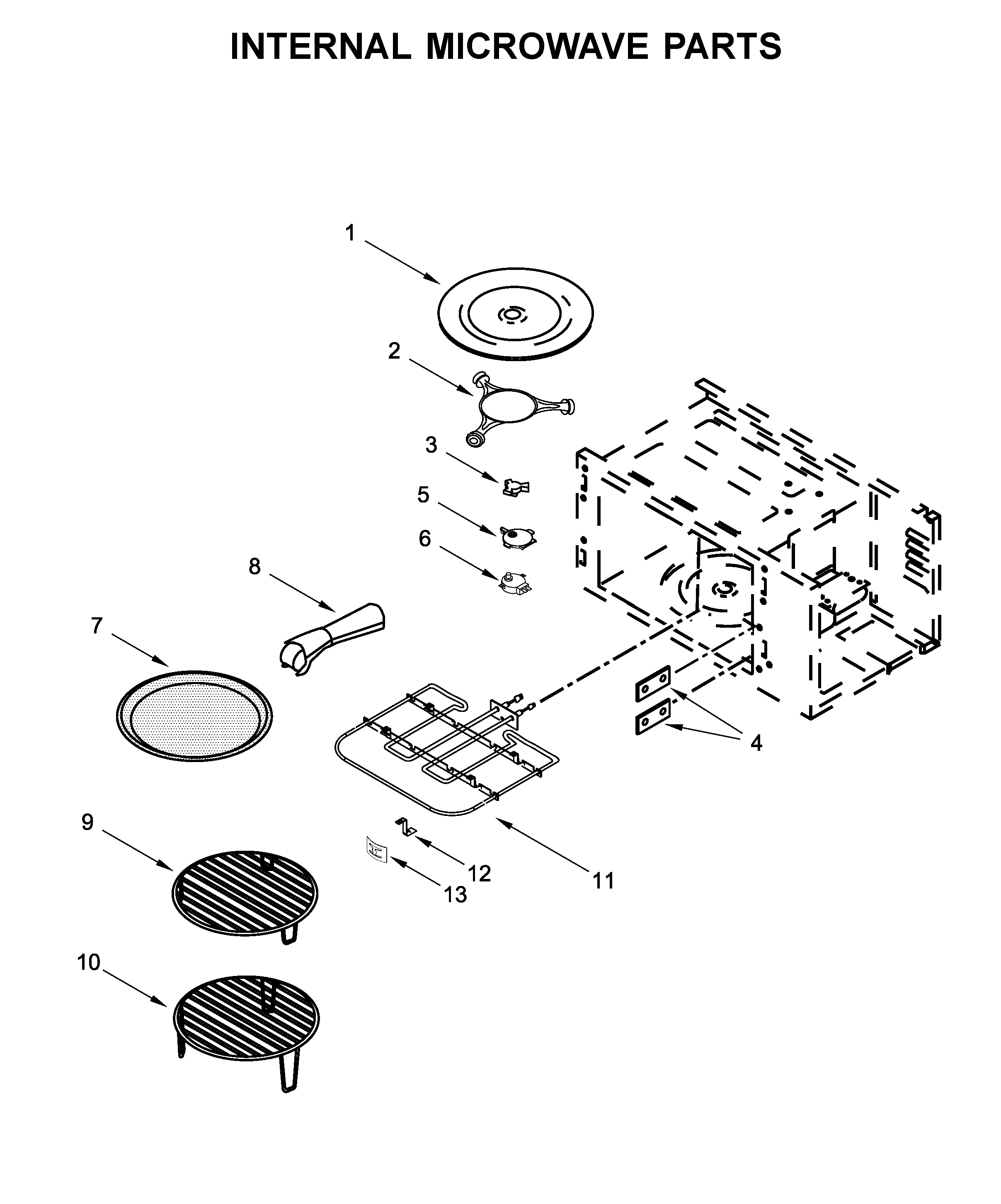

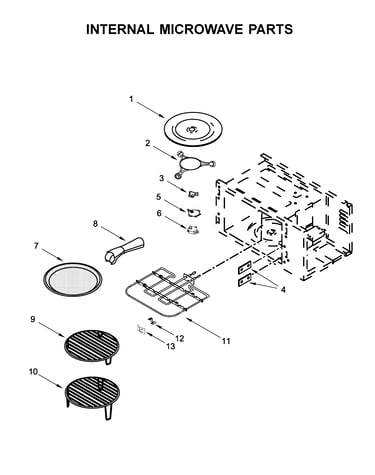

Internal microwave parts diagram

Whirlpool wall oven microwave element clip

Part #461967753871

BEST SELLER
$11.64
In Stock
Switch 461967848881
#15

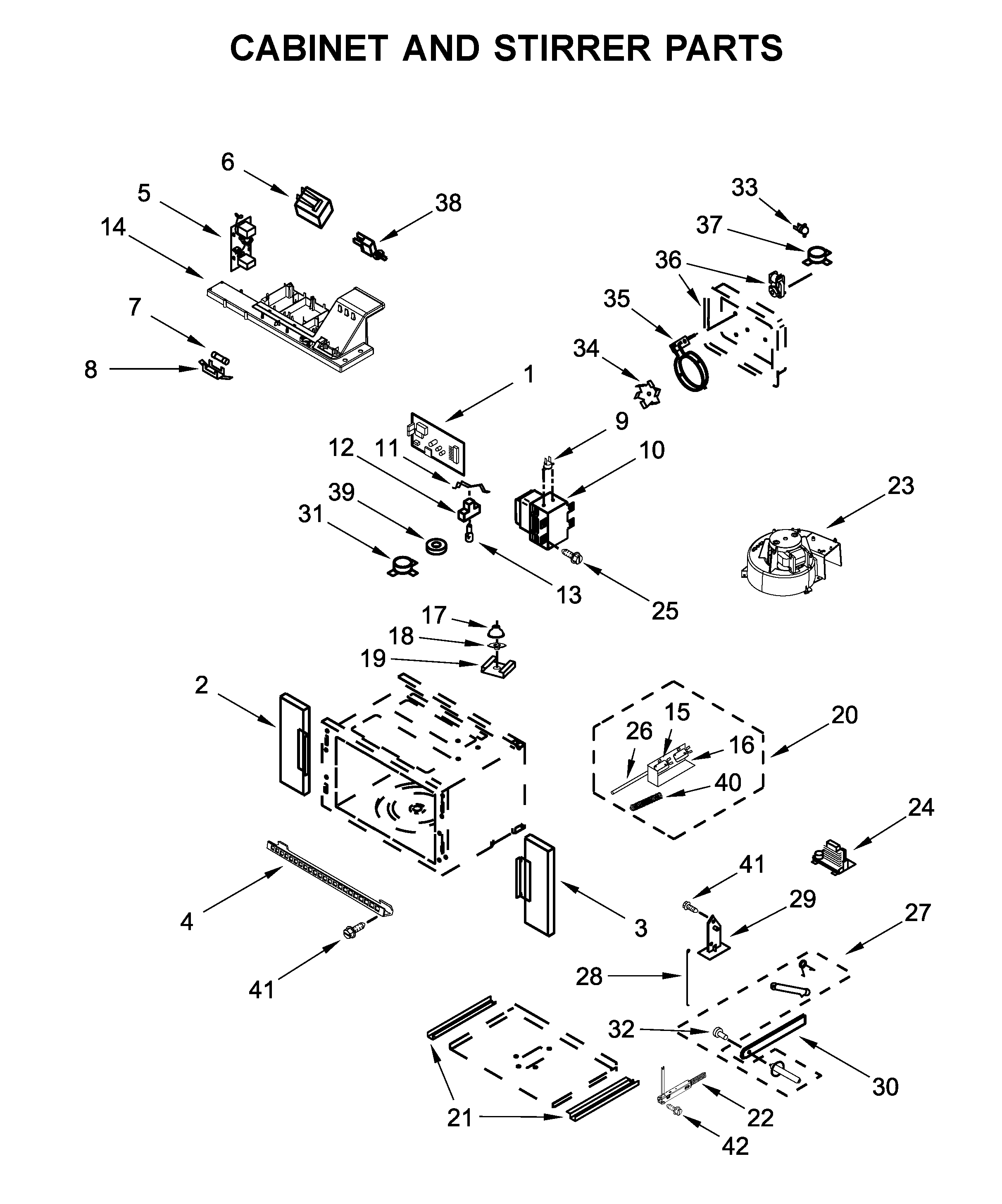

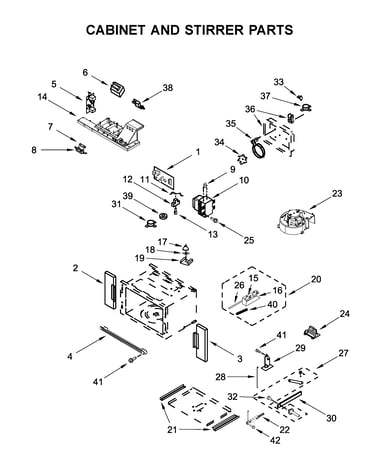

Cabinet and stirrer parts diagram

Switch

Part #461967848881

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 461967848881. Substitute parts can look different from the original.
BEST SELLER
$28.80 |
17% OFF Phone Price : $34.80
In Stock
Range High-limit Thermostat 4449751
#18

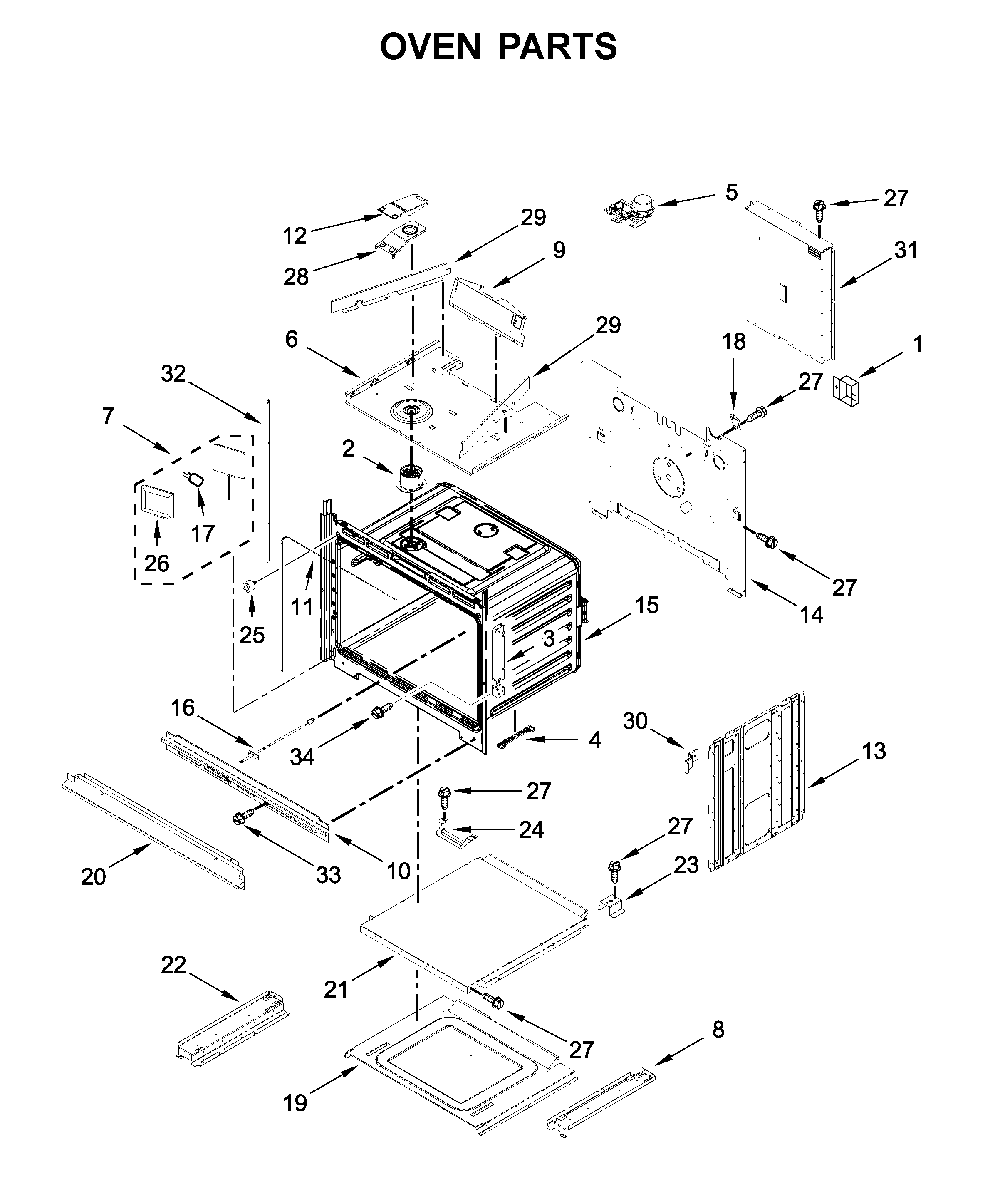

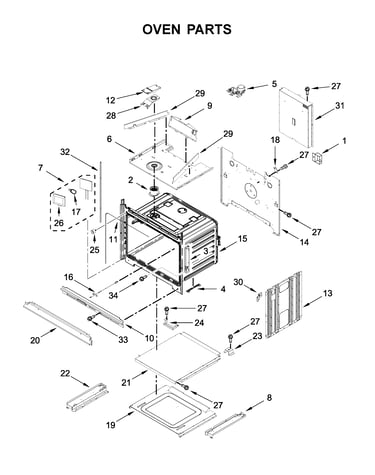

Oven parts diagram

Range high-limit thermostat

Part #4449751

Replaced by #WP4449751

?
Manufacturer substitution
This part replaces 4449751. Substitute parts can look different from the original.
BEST SELLER
$101.25 |
11% OFF Phone Price : $113.25
In Stock
Spray W 350930
#NI

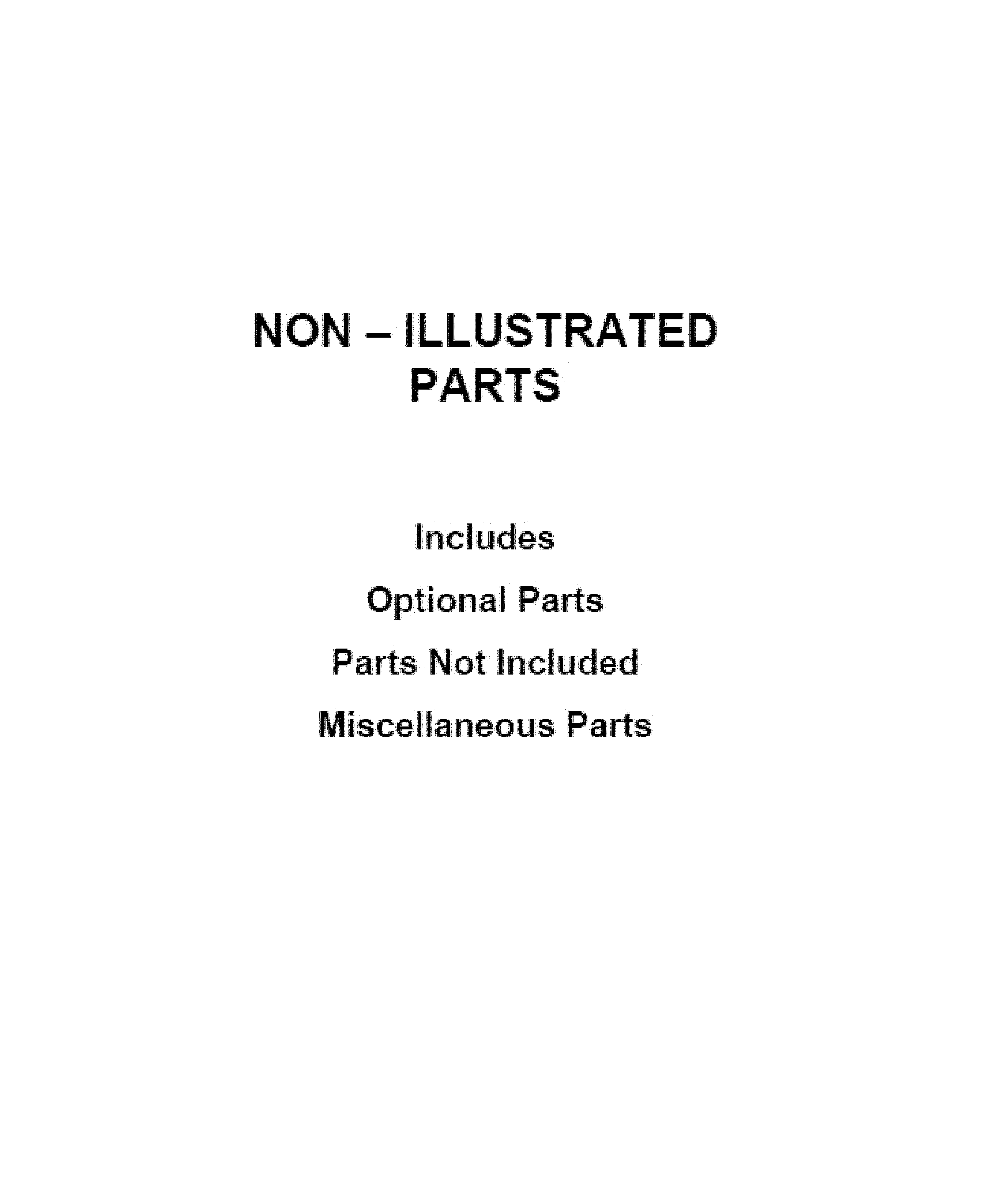

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Inverter W11237240
#24

Cabinet and stirrer parts diagram

Inverter

Part #W11237240

Replaced by #W11325604

?
Manufacturer substitution
This part replaces W11237240. Substitute parts can look different from the original.
BEST SELLER
$151.29 |
7% OFF Phone Price : $163.29
In Stock
Lamp G4 Halo W10795595
#13

Cabinet and stirrer parts diagram

Lamp g4 halo

Part #W10795595

Replaced by #W10886919

?
Manufacturer substitution
This part replaces W10795595. Substitute parts can look different from the original.
This item is not returnable
$22.89 |
21% OFF Phone Price : $28.89
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts (not included) diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Appliance Manager, Copernicus W11281214
#3

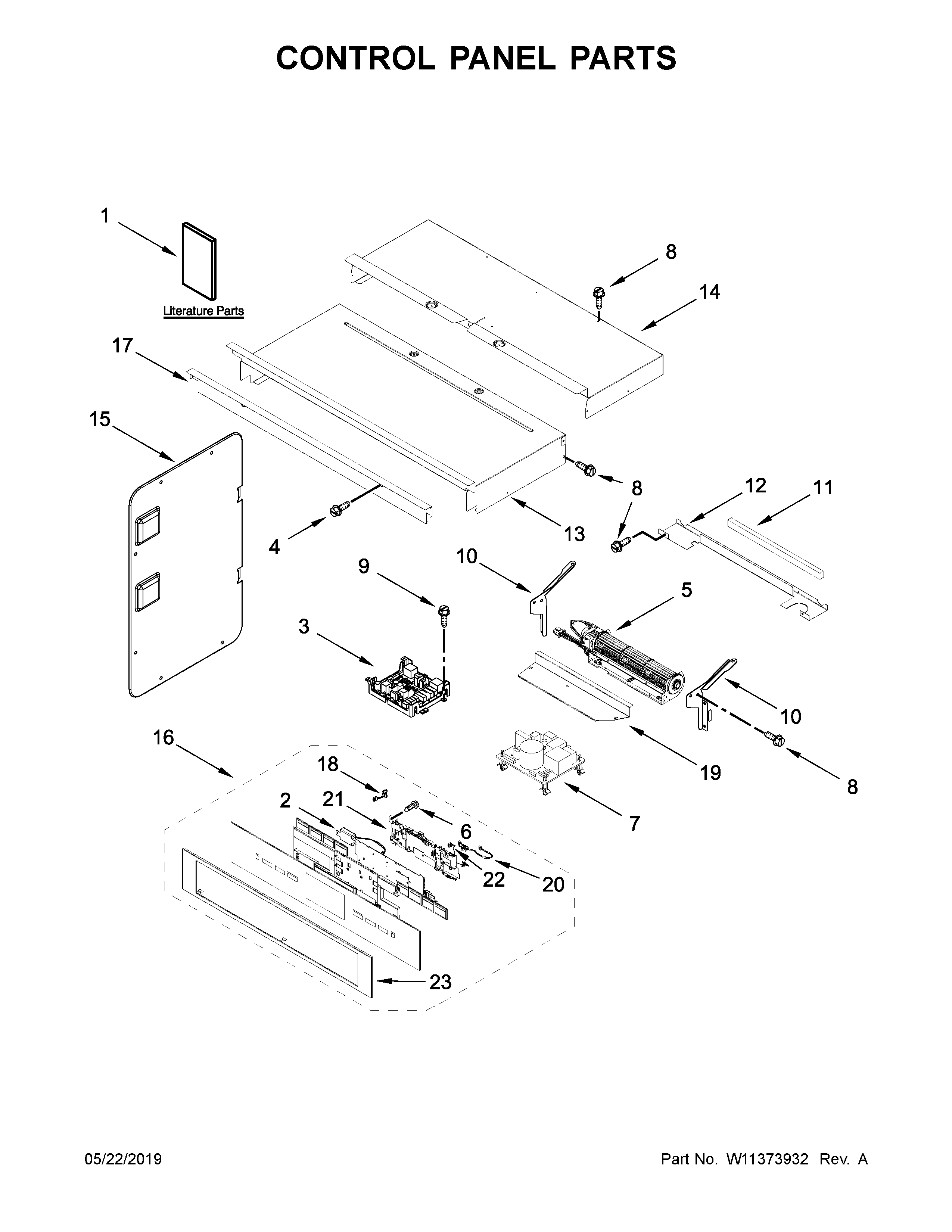

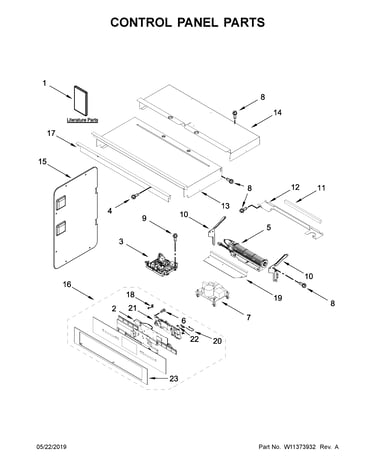

Control panel parts diagram

Appliance manager, copernicus

Part #W11281214

Replaced by #W11448962

?
Manufacturer substitution
This part replaces W11281214. Substitute parts can look different from the original.
$188.81 |
6% OFF Phone Price : $200.81
In Stock
Convection F W10722667
#9

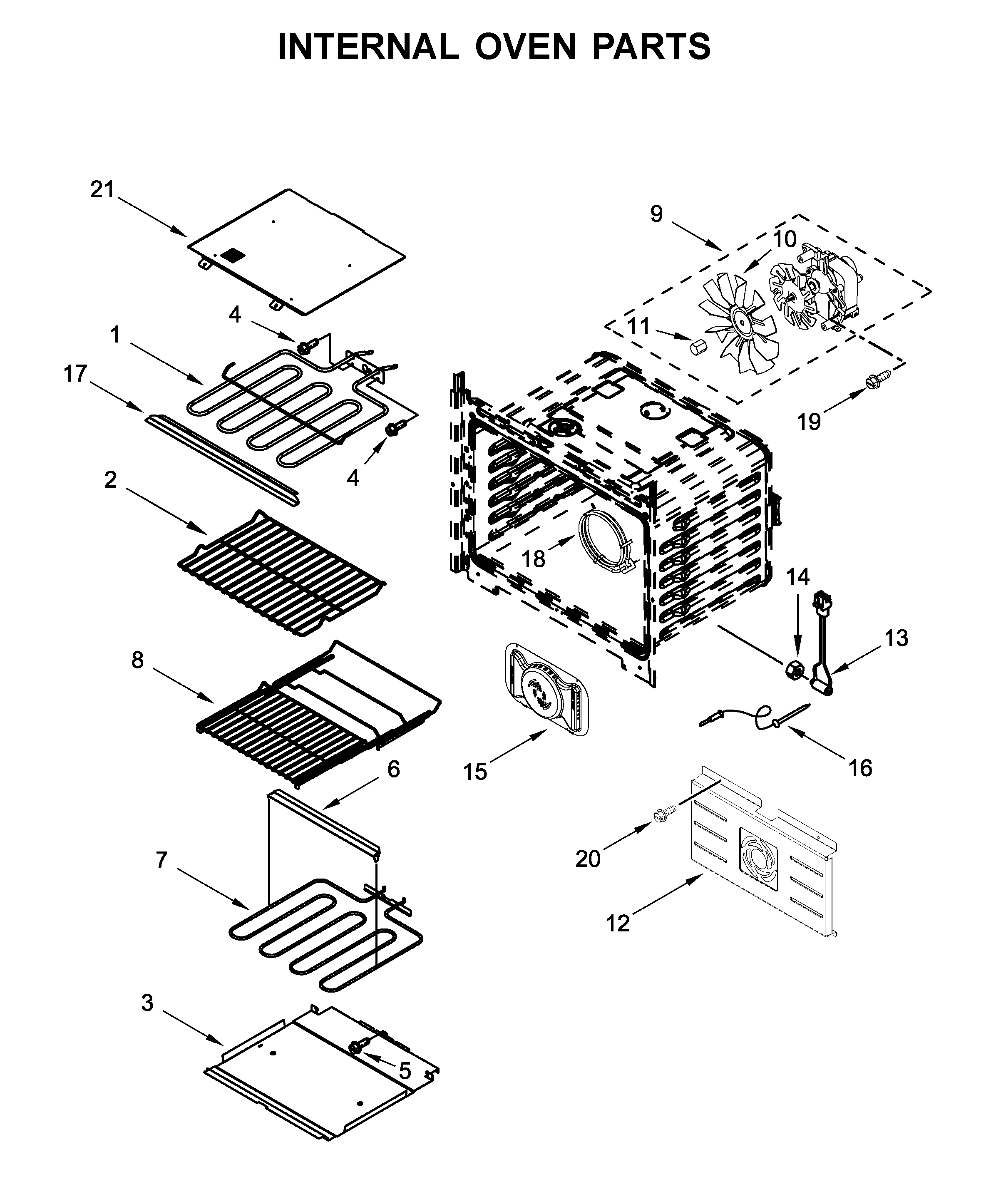

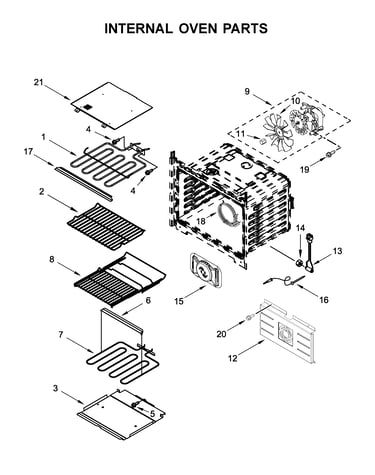

Internal oven parts diagram

Convection f

Part #W10722667

Replaced by #W10860984

?
Manufacturer substitution
This part replaces W10722667. Substitute parts can look different from the original.
$89.31 |
6% OFF Phone Price : $95.31
In Stock
Fuse W10017410
#6

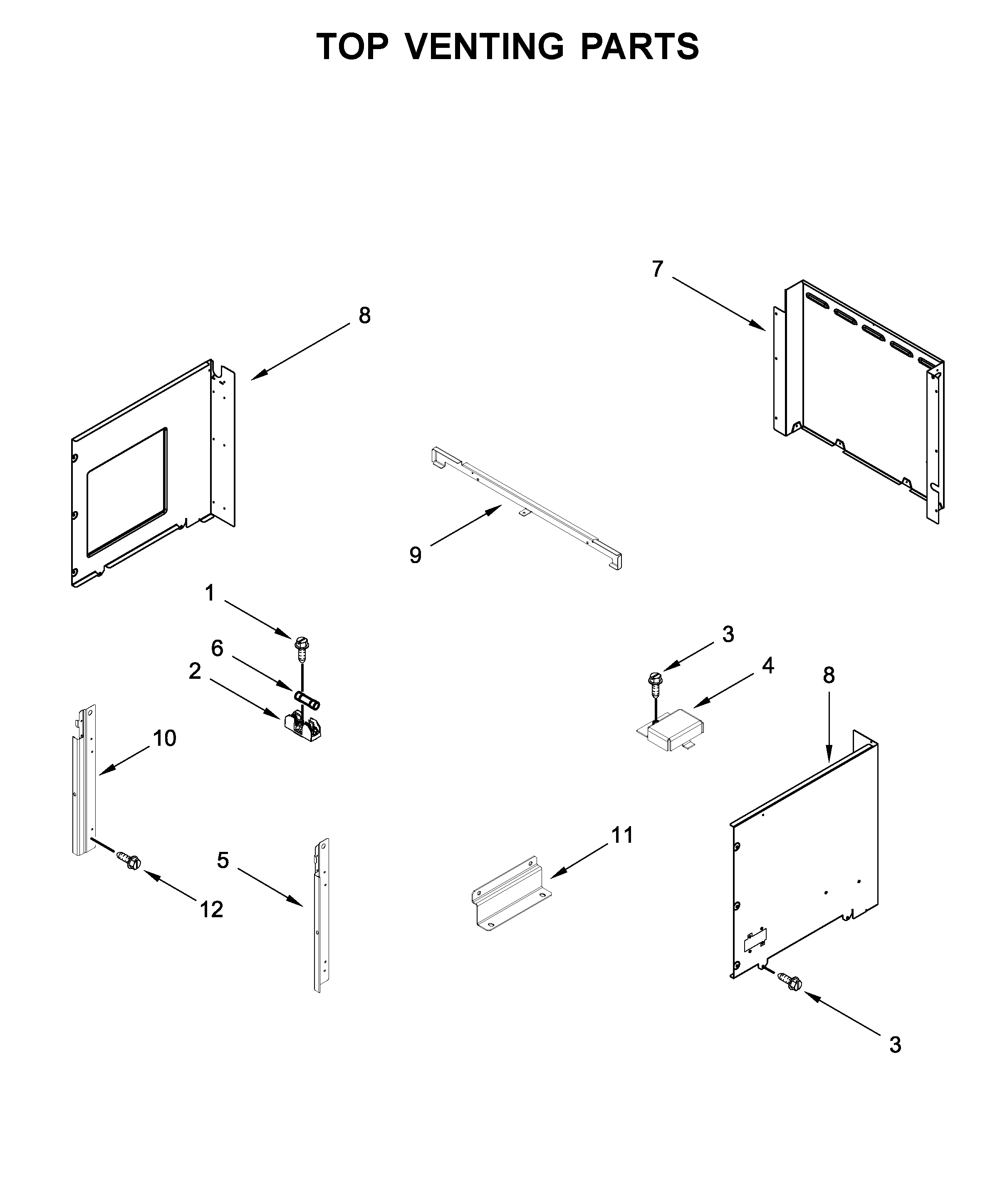

Top venting parts diagram

Fuse

Part #W10017410

Replaced by #WPW10017410

?
Manufacturer substitution
This part replaces W10017410. Substitute parts can look different from the original.
This item is not returnable
$11.89 |
14% OFF Phone Price : $13.89
In Stock
