Craftsman
Air Compressor

Model # 106174840 Official Craftsman twin-cylinder tank-type air compressor

Here are the diagrams and repair parts for Official Craftsman 106174840 twin-cylinder tank-type air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Valve AV-2000
#42

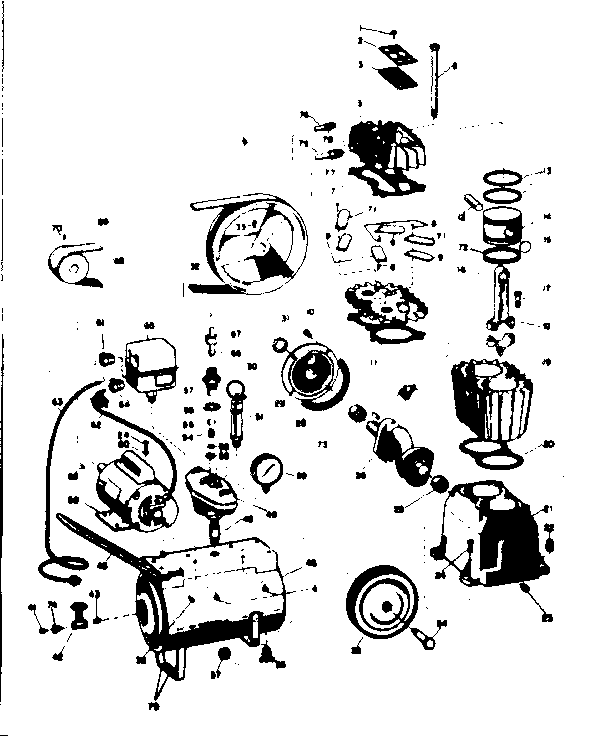

Replacement parts diagram

Valve

Part #AV-2000

The manufacturer no longer makes this part, and there's no substitute part

Comp Ring PX-16
#13

Replacement parts diagram

Comp ring

Part #PX-16

The manufacturer no longer makes this part, and there's no substitute part

Handle VS-10
#45

Replacement parts diagram

Handle

Part #VS-10

The manufacturer no longer makes this part, and there's no substitute part

Gasket XA-58
#11

Replacement parts diagram

Gasket

Part #XA-58

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw STD-203
#8

Replacement parts diagram

Machine screw

Part #STD-203

The manufacturer no longer makes this part, and there's no substitute part

Pres Gauge GA-301
#39

Replacement parts diagram

Pres gauge

Part #GA-301

The manufacturer no longer makes this part, and there's no substitute part

Overhaul Kit VT-5008

#NI

All parts diagram

Overhaul kit

Part #VT-5008

The manufacturer no longer makes this part, and there's no substitute part

Comp Conn STD-183
#77

Replacement parts diagram

Comp conn

Part #STD-183

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal STD-216
#30

Replacement parts diagram

Oil seal

Part #STD-216

The manufacturer no longer makes this part, and there's no substitute part

Gasket XA-35
#7

Replacement parts diagram

Gasket

Part #XA-35

The manufacturer no longer makes this part, and there's no substitute part
