Electric Wall Oven

Model # MEW6530BCB Official Maytag electric wall oven

Here are the diagrams and repair parts for Official Maytag MEW6530BCB electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

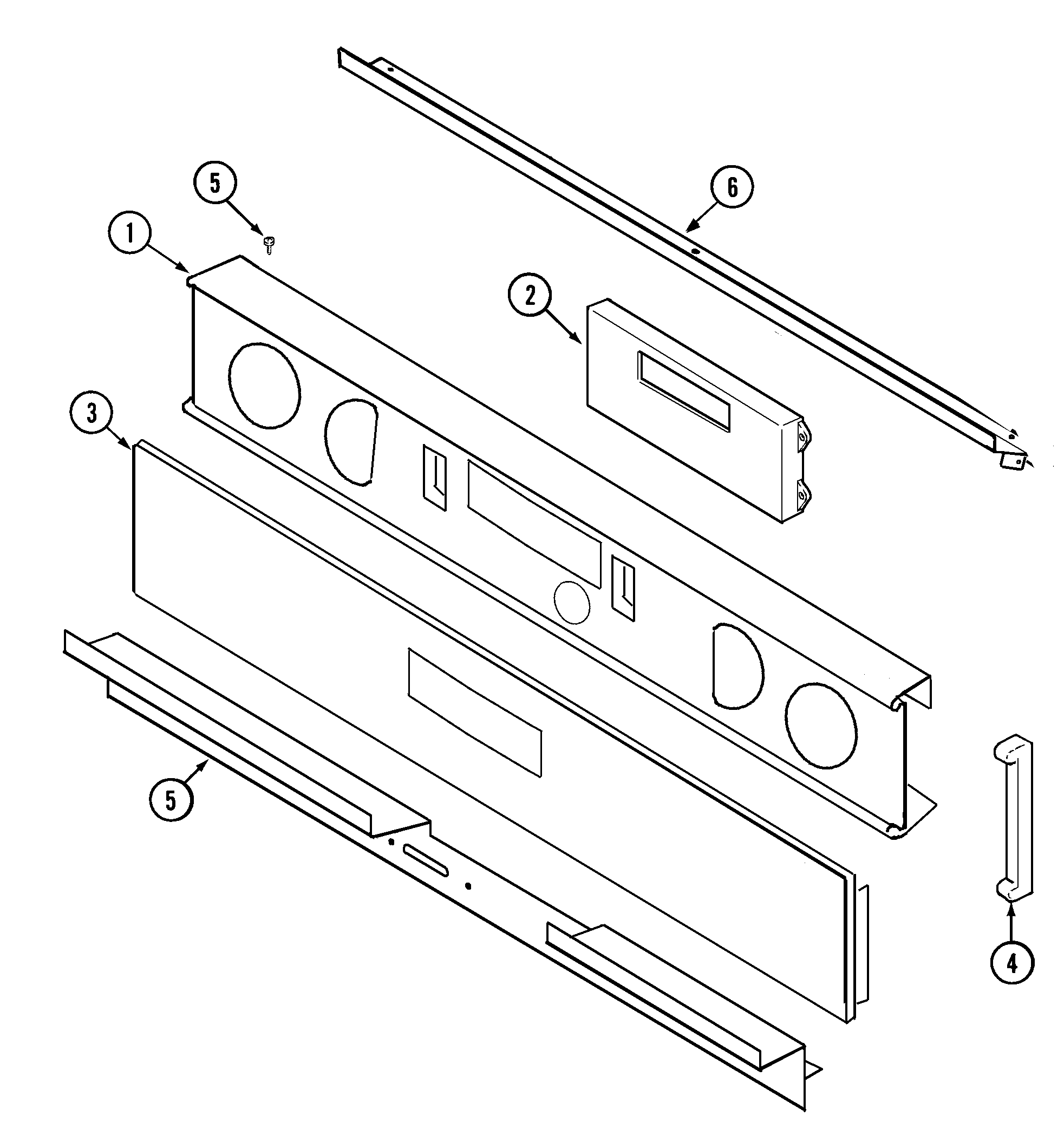

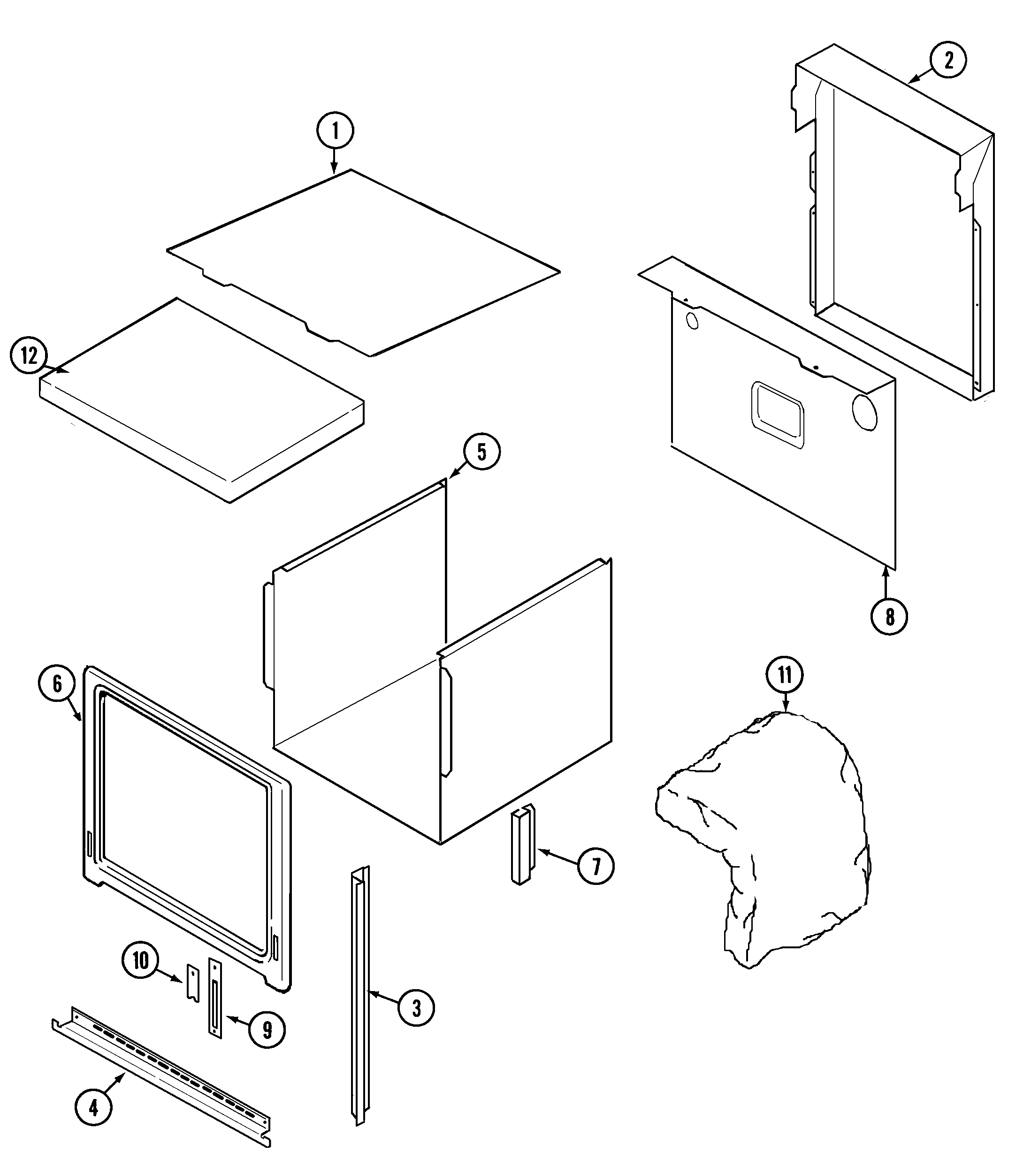

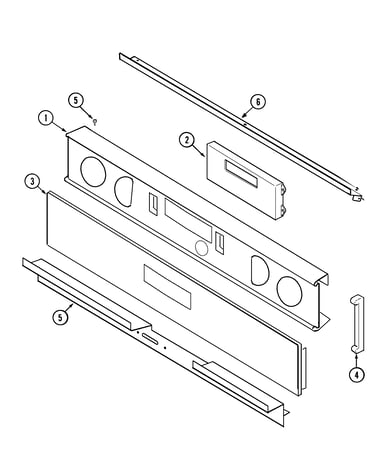

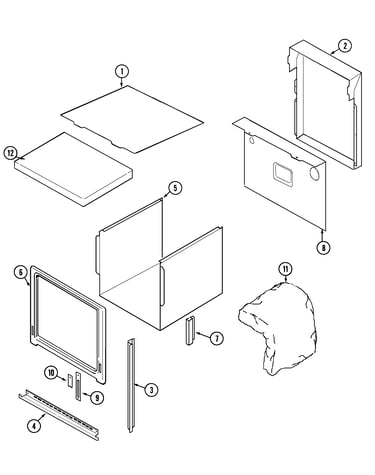

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Oven Sensor 71003083
#12

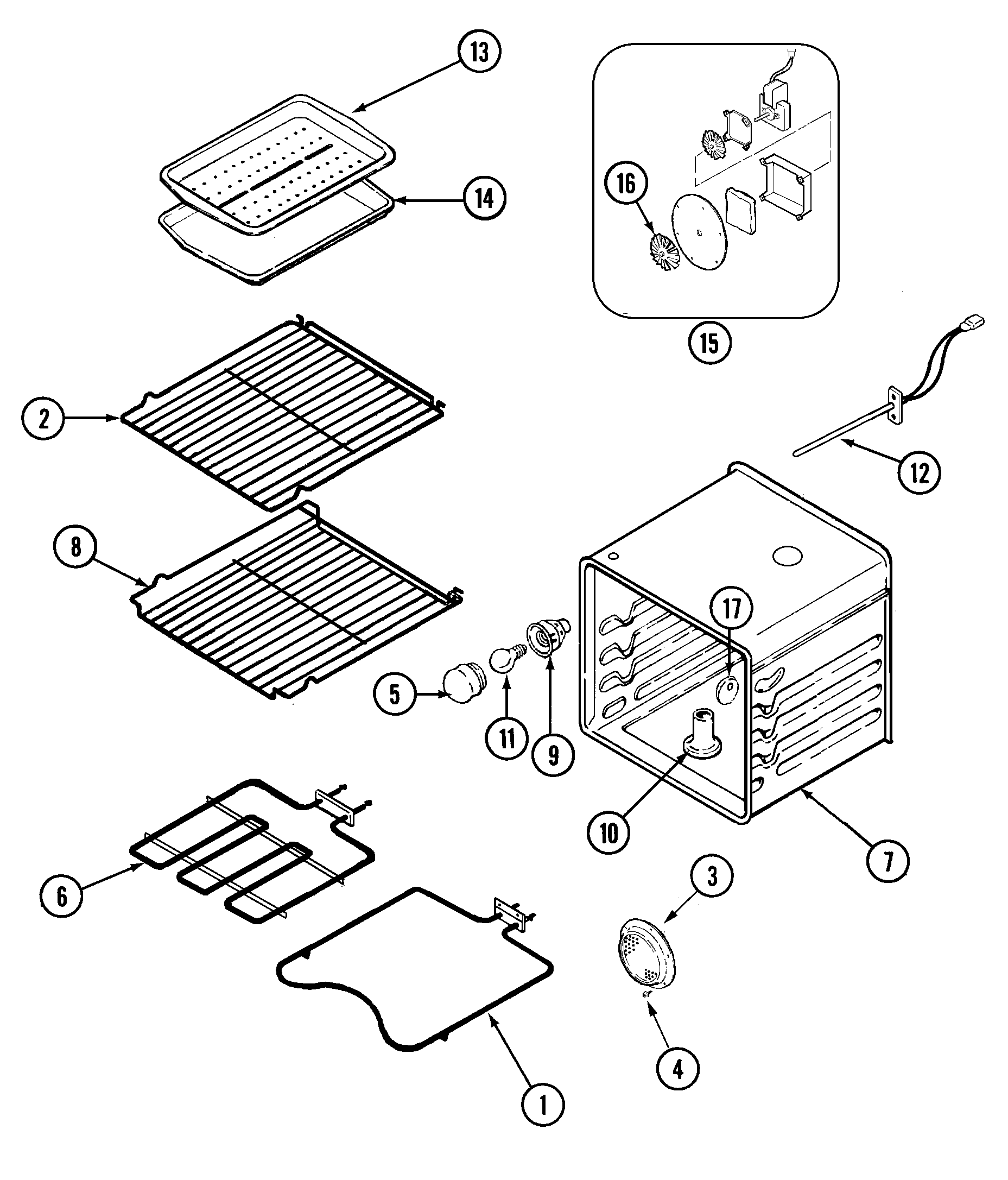

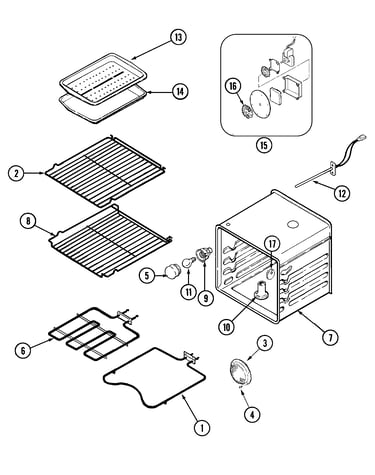

Oven (bcb/bcw) diagram

Oven sensor

Part #71003083

Replaced by #12001656

?
Manufacturer substitution
This part replaces 71003083. Substitute parts can look different from the original.
BEST SELLER
$36.94 |
14% OFF Phone Price : $42.94
In Stock
Door Switch 71001129
#3

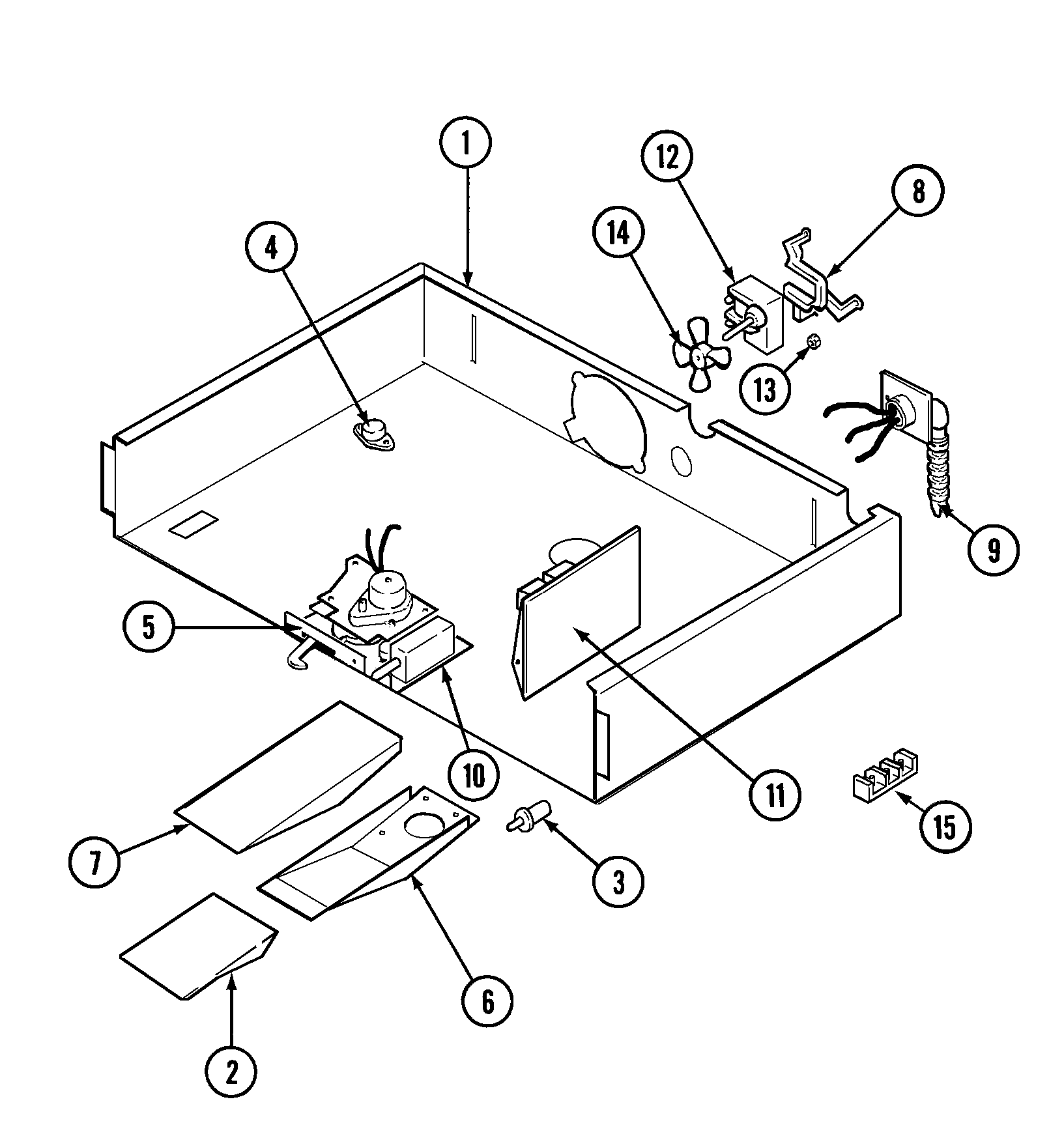

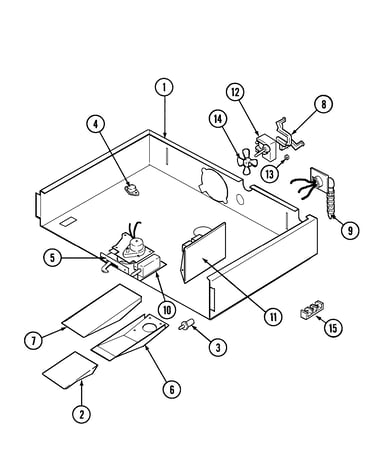

Internal controls (bcb/bcw) diagram

Door switch

Part #71001129

Replaced by #WB24T10147

?
Manufacturer substitution
This part replaces 71001129. Substitute parts can look different from the original.
This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Bake Element 71001638
#1

Oven (bcb/bcw) diagram

Bake element

Part #71001638

Replaced by #WPW10310258

?
Manufacturer substitution
This part replaces 71001638. Substitute parts can look different from the original.
$82.70 |
7% OFF Phone Price : $88.70
In Stock
Screw 700725
#14

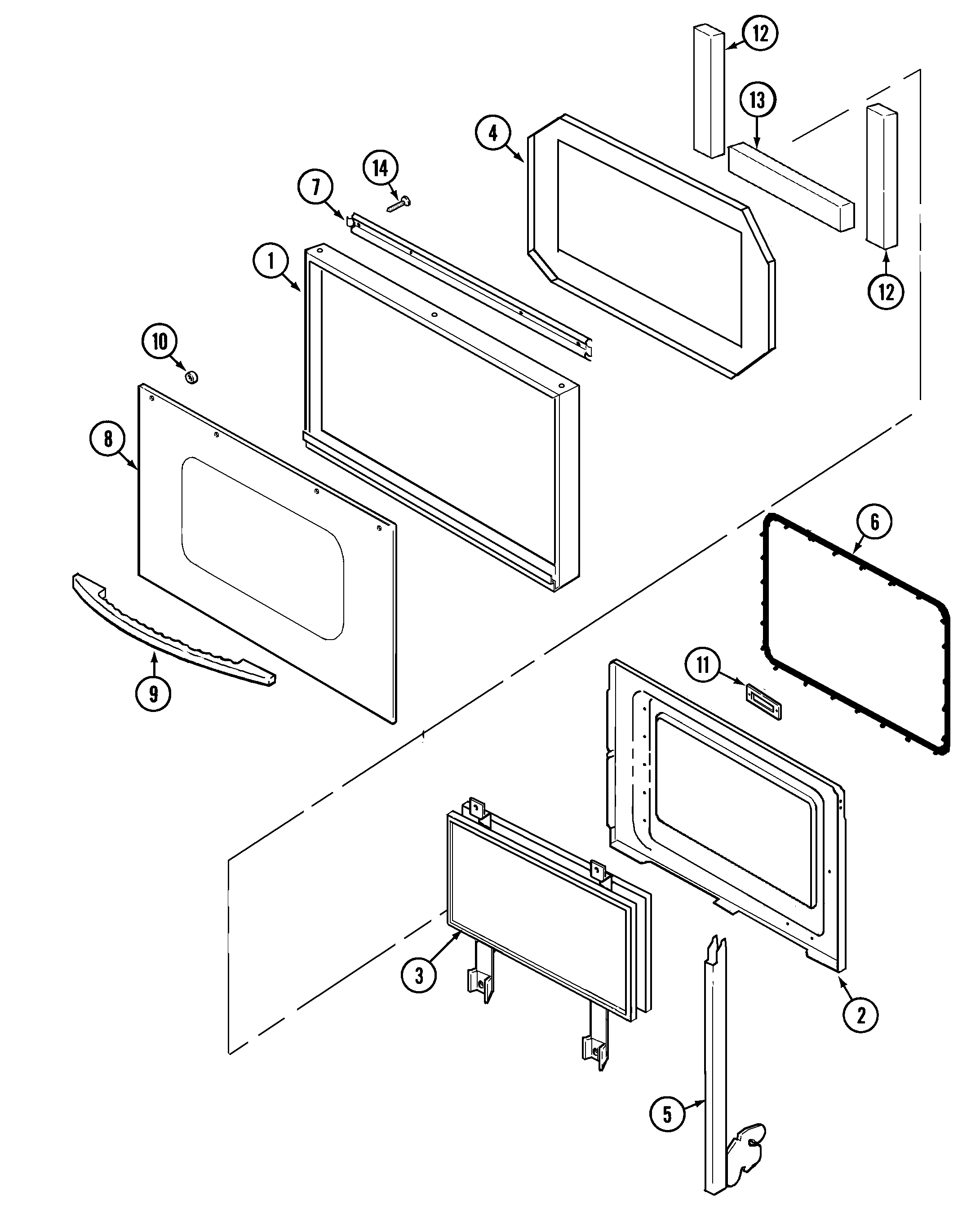

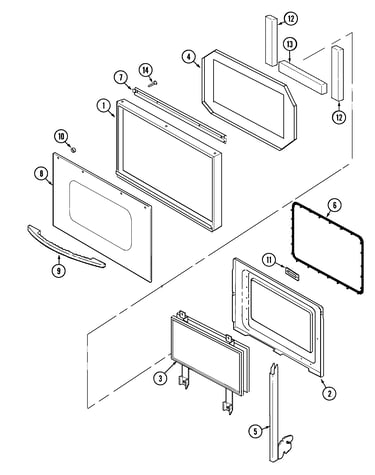

Door (bcb/bcw) diagram

Screw

Part #700725

Replaced by #WP355214

?
Manufacturer substitution
This part replaces 700725. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 706189
Screw

Part #706189

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 706189. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
"switch, Hi-l" 702548
#4

Internal controls (bcb/bcw) diagram

"switch, hi-l"

Part #702548

Replaced by #WP7403P899-60

?
Manufacturer substitution
This part replaces 702548. Substitute parts can look different from the original.
$88.32 |
6% OFF Phone Price : $94.32
In Stock
Oven Rack 71001865
#8

Oven (bcb/bcw) diagram

Oven rack

Part #71001865

Replaced by #WPW10282527

?
Manufacturer substitution
This part replaces 71001865. Substitute parts can look different from the original.
$74.41 |
7% OFF Phone Price : $80.41
In Stock
Auxiliary Relay 74003482
#11

Internal controls (bcb/bcw) diagram

Auxiliary relay

Part #74003482

Replaced by #WP74003482

?
Manufacturer substitution
This part replaces 74003482. Substitute parts can look different from the original.
$69.52 |
8% OFF Phone Price : $75.52
In Stock
Oven Rack 71001862
#2

Oven (bcb/bcw) diagram

Oven rack

Part #71001862

Replaced by #WPW10282527

?
Manufacturer substitution
This part replaces 71001862. Substitute parts can look different from the original.
$74.41 |
7% OFF Phone Price : $80.41
In Stock
Screw 708310
#4A

Internal controls (bcb/bcw) diagram

Screw

Part #708310

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 708310. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
