Model # 36361542 Official Kenmore washer/dryer

Here are the diagrams and repair parts for Official Kenmore 36361542 washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |
Dryer High-limit Thermostat (replaces We03m0026, We3m20, We4m457) WE4M137
#506

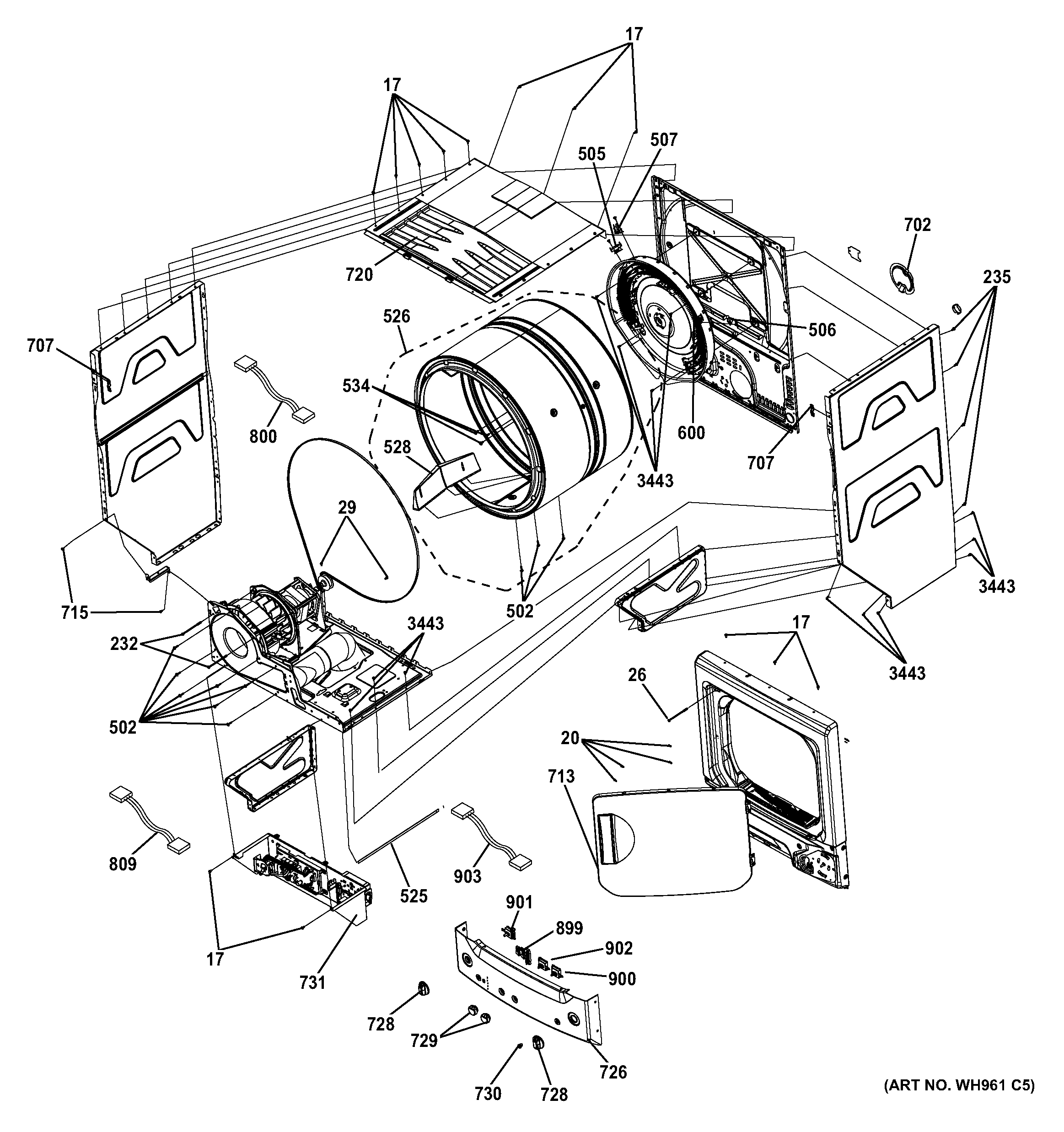

Cabinet (1) diagram

Dryer high-limit thermostat (replaces we03m0026, we3m20, we4m457)

Part #WE4M137

BEST SELLER
$78.01 |
7% OFF Phone Price : $84.01
In Stock
Washer Drain Pump WH23X10040
Washer drain pump

Part #WH23X10040

BEST SELLER
$93.57 |
6% OFF Phone Price : $99.57
In Stock
Laundry Center Control Timer WE4M521
#807

Front panel diagram

Laundry center control timer

Part #WE4M521

The manufacturer no longer makes this part, and there's no substitute part

Laundry Center Dryer Door Handle WE1M1068
#714

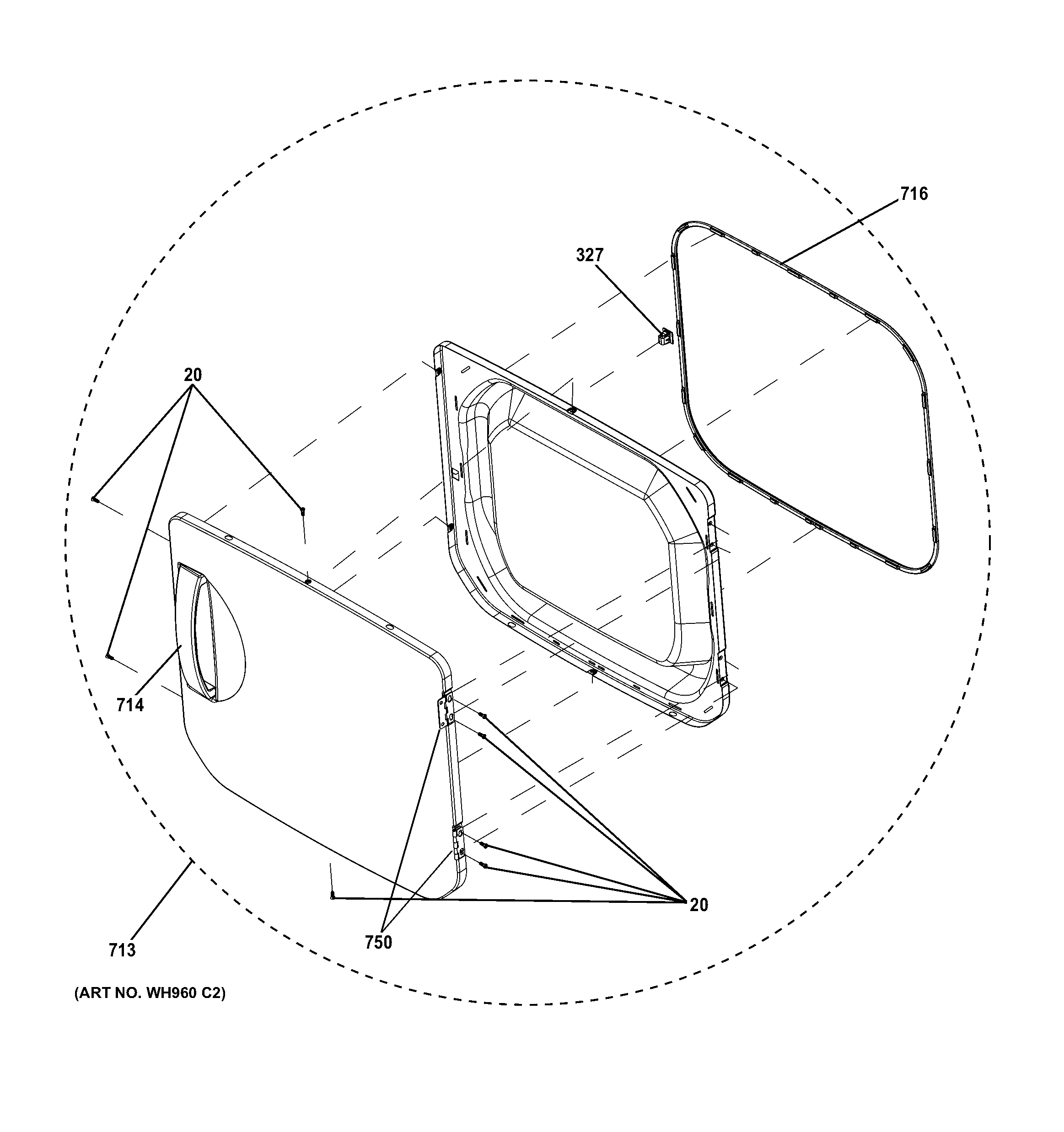

Door assembly diagram

Laundry center dryer door handle

Part #WE1M1068

Replaced by #WE01X30378

?
Manufacturer substitution
This part replaces WE1M1068. Substitute parts can look different from the original.
BEST SELLER
$71.08 |
8% OFF Phone Price : $77.08
In Stock
Laundry Center Dryer Belt Switch WD21X10261
#803

Blower & motor assembly diagram

Laundry center dryer belt switch

Part #WD21X10261

Replaced by #WD21X10261

?
Manufacturer substitution
This part replaces WD21X10261. Substitute parts can look different from the original.
BEST SELLER
$21.69 |
22% OFF Phone Price : $27.69
In Stock
Washer Drive Belt (replaces We04m0408, We4m408, Wh01x10615) WH01X20436
#317

Motor & drive assembly diagram

Washer drive belt (replaces we04m0408, we4m408, wh01x10615)

Part #WH01X20436

BEST SELLER
$20.66 |
23% OFF Phone Price : $26.66
In Stock
Dryer Door Switch (replaces We04m0415, We4m335) WE4M415
#380

Front panel diagram

Dryer door switch (replaces we04m0415, we4m335)

Part #WE4M415

BEST SELLER
$23.58 |
20% OFF Phone Price : $29.58
In Stock
Dryer Drive Motor With Pulley WE17M66
#503

Blower & motor assembly diagram

Dryer drive motor with pulley

Part #WE17M66

Replaced by #WE17X22217

?
Manufacturer substitution
This part replaces WE17M66. Substitute parts can look different from the original.
BEST SELLER
$164.99 |
7% OFF Phone Price : $176.99
In Stock
T'stat Outle WE4M317
#230

Blower & motor assembly diagram

T'stat outle

Part #WE4M317

Replaced by #WE4M216

?
Manufacturer substitution
This part replaces WE4M317. Substitute parts can look different from the original.
BEST SELLER
$85.84 |
7% OFF Phone Price : $91.84
In Stock
Dryer Heating Element (replaces We11m0062) WE11M62
#600

Cabinet (1) diagram

Dryer heating element (replaces we11m0062)

Part #WE11M62

BEST SELLER
$183.14 |
6% OFF Phone Price : $195.14
In Stock
