Model # SHE68R52UC/67 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHE68R52UC-67 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

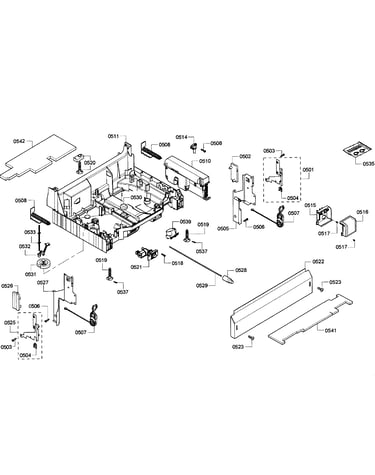

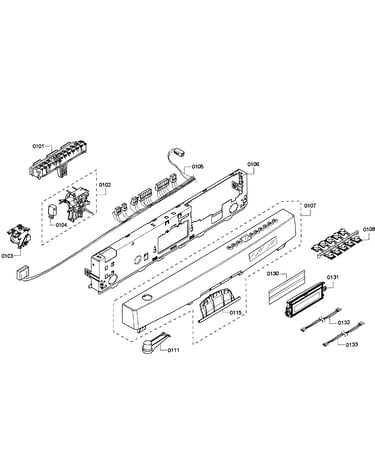

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Drain Pump 642239
#412

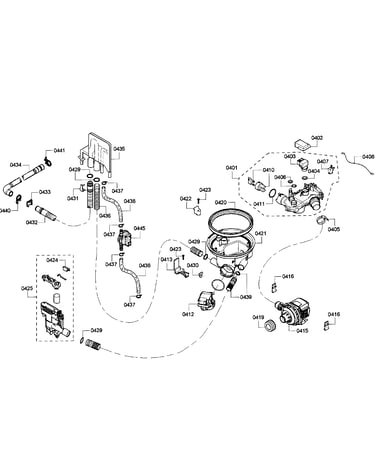

Pump assy diagram

Drain pump

Part #642239

Replaced by #00642239

?
Manufacturer substitution
This part replaces 642239. Substitute parts can look different from the original.
BEST SELLER
$126.36 |
9% OFF Phone Price : $138.36
In Stock
Door Gasket 494772
#307

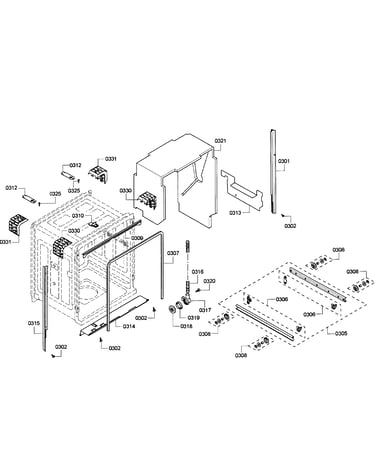

Cabinet diagram

Door gasket

Part #494772

Replaced by #00494772

?
Manufacturer substitution
This part replaces 494772. Substitute parts can look different from the original.
BEST SELLER
$30.61 |
16% OFF Phone Price : $36.61
In Stock
Dishwasher Detergent Dispenser Assembly 490467
#215

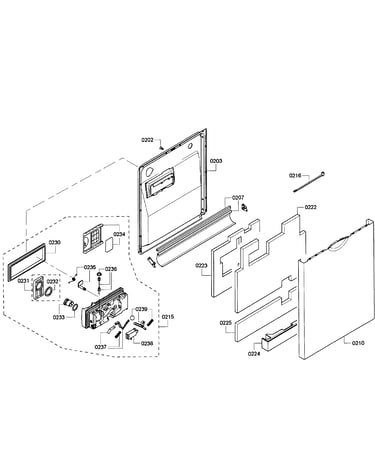

Door assy diagram

Dishwasher detergent dispenser assembly

Part #490467

Replaced by #00490467

?
Manufacturer substitution
This part replaces 490467. Substitute parts can look different from the original.
BEST SELLER
$145.43 |
8% OFF Phone Price : $157.43
In Stock
Dishwasher Wash Pump Gasket 171598
#419

Pump assy diagram

Dishwasher wash pump gasket

Part #171598

Replaced by #00171598

?
Manufacturer substitution
This part replaces 171598. Substitute parts can look different from the original.
BEST SELLER
$28.09 |
18% OFF Phone Price : $34.09
In Stock
Dishwasher Drain Hose 668108
#434

Pump assy diagram

Dishwasher drain hose

Part #668108

Replaced by #00668108

?
Manufacturer substitution
This part replaces 668108. Substitute parts can look different from the original.
$37.99 |
14% OFF Phone Price : $43.99
In Stock
Dishwasher Mounting Set 619985
#312

Cabinet diagram

Dishwasher mounting set

Part #619985

Replaced by #00619985

?
Manufacturer substitution
This part replaces 619985. Substitute parts can look different from the original.
$13.89 |
13% OFF Phone Price : $15.89
In Stock
Dishwasher Water Inlet Valve 263833
#435

Pump assy diagram

Dishwasher water inlet valve

Part #263833

Replaced by #00263833

?
Manufacturer substitution
This part replaces 263833. Substitute parts can look different from the original.
$124.53 |
9% OFF Phone Price : $136.53
In Stock
Insert 651435
#625

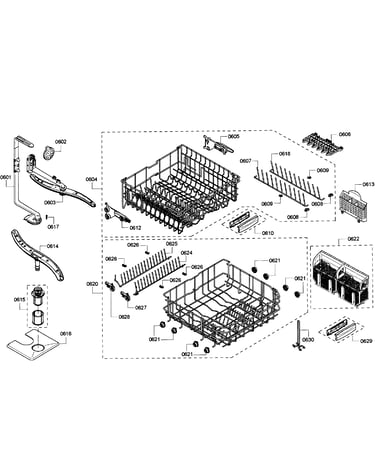

Baskets diagram

Insert

Part #651435

Replaced by #00651435

?
Manufacturer substitution
This part replaces 651435. Substitute parts can look different from the original.
This item is not returnable
$23.29 |
20% OFF Phone Price : $29.29
Back Order
Dishwasher Spray Arm 448806
#614

Baskets diagram

Dishwasher spray arm

Part #448806

Replaced by #00448806

?
Manufacturer substitution
This part replaces 448806. Substitute parts can look different from the original.
This item is not returnable
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Insert 651436
#624

Baskets diagram

Insert

Part #651436

Replaced by #00651436

?
Manufacturer substitution
This part replaces 651436. Substitute parts can look different from the original.
This item is not returnable
$23.29 |
20% OFF Phone Price : $29.29
In Stock
