Whirlpool
Microwave/Hood Combo

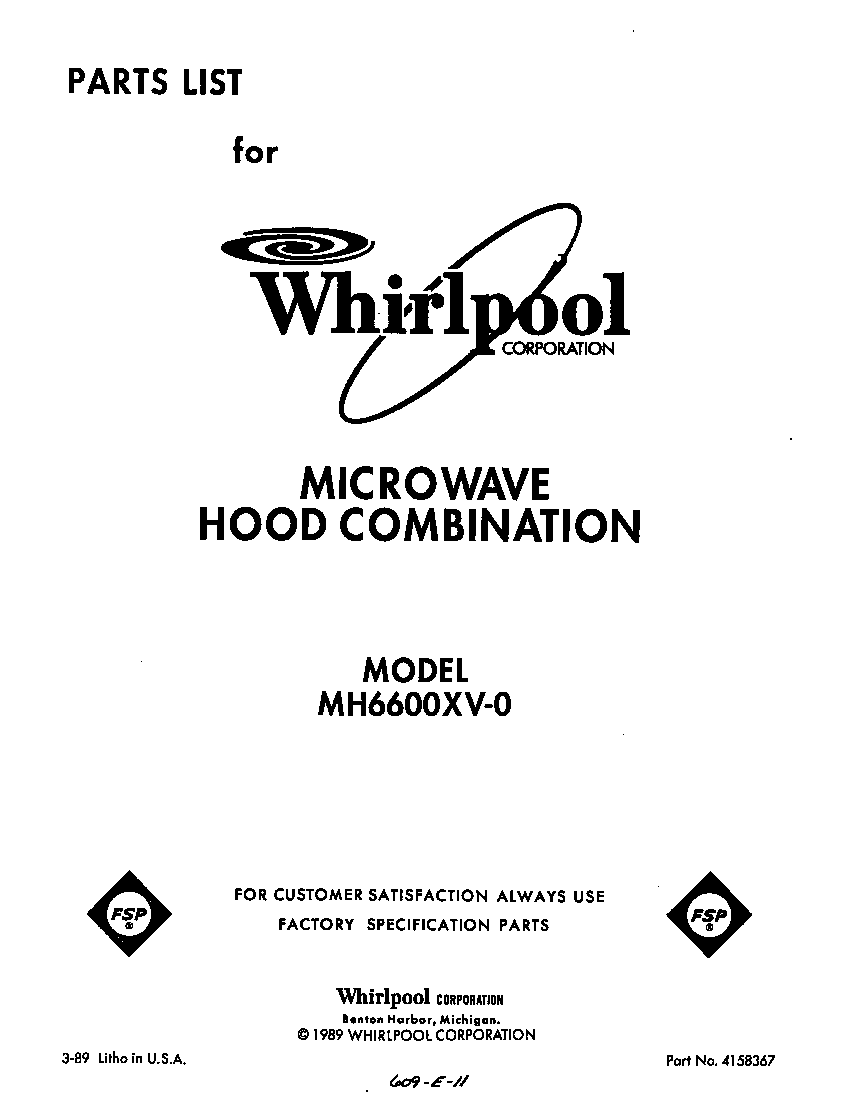

Model # MH6600XV0 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MH6600XV0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

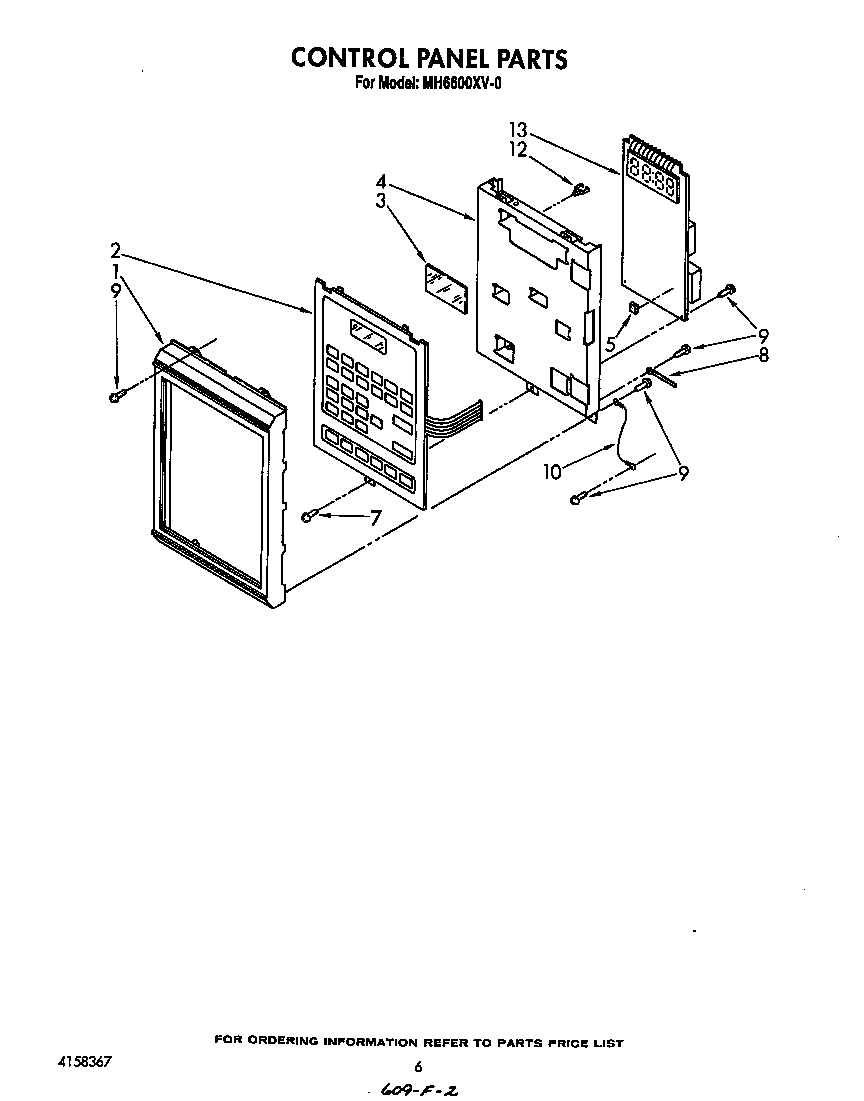

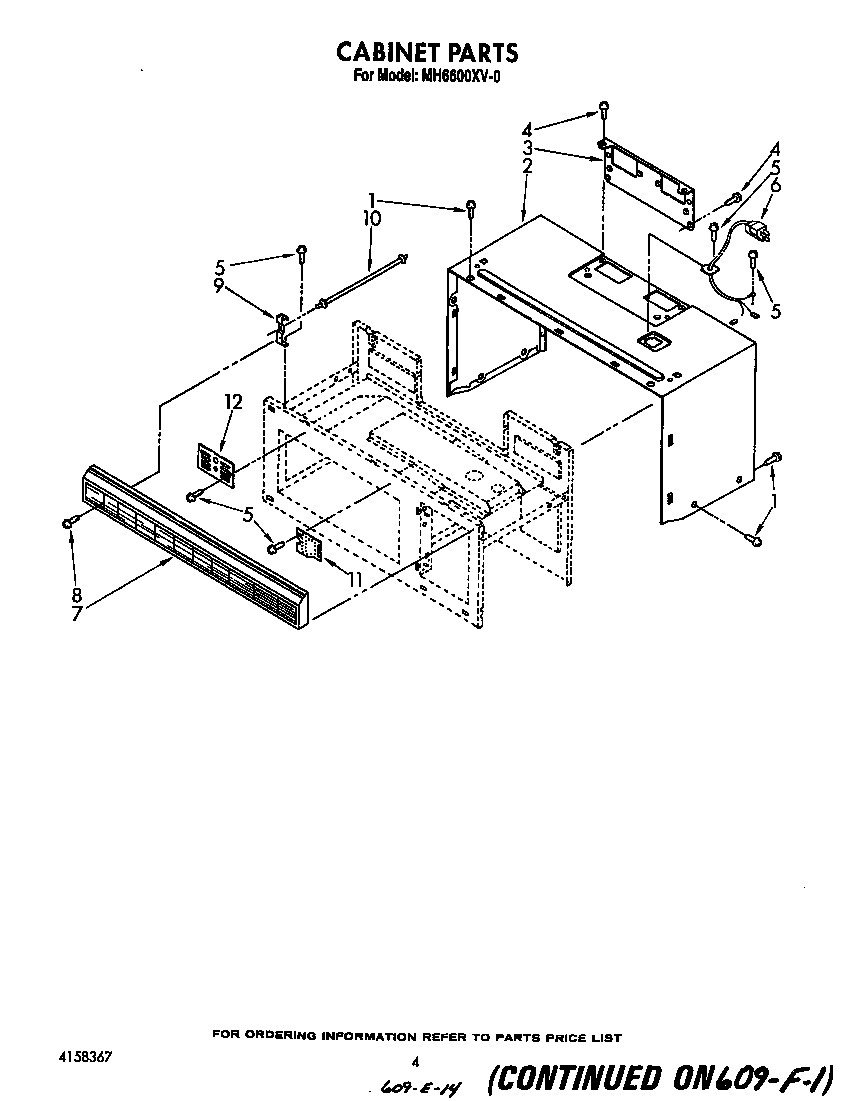

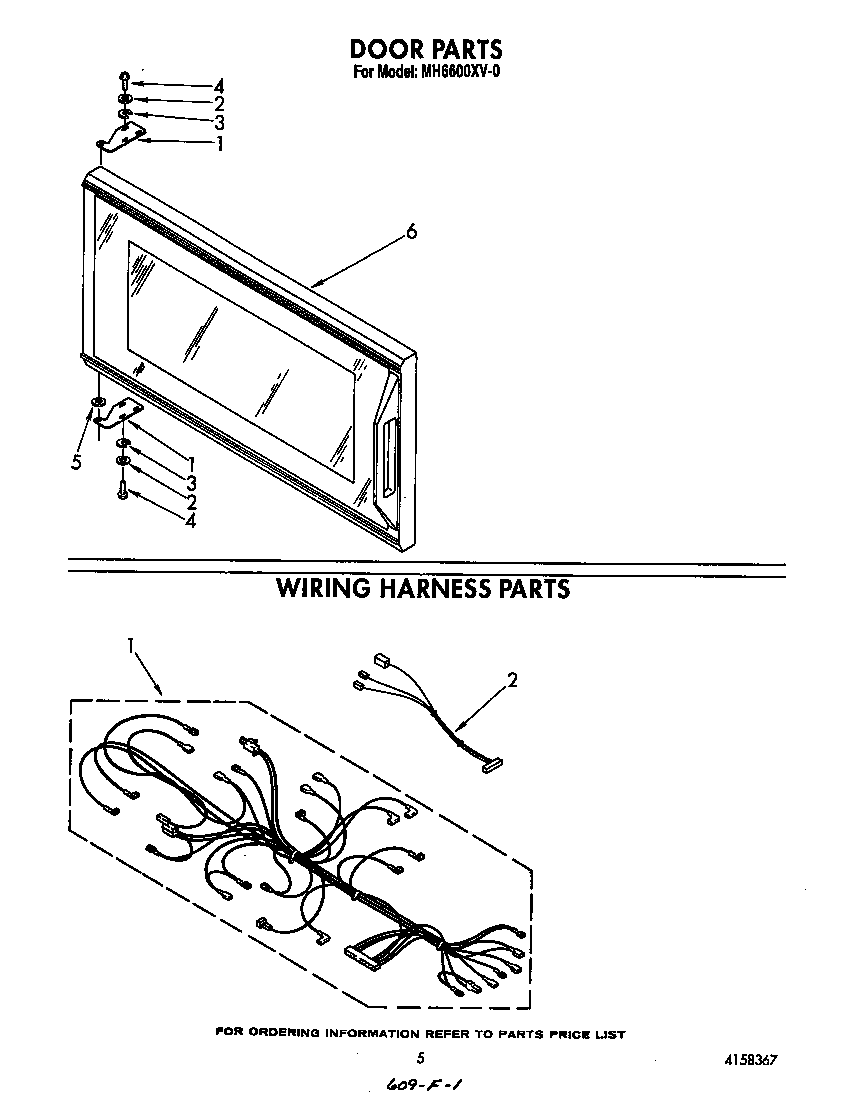

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Adhesive 482338

#NI

All parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Screw 4158321
#10

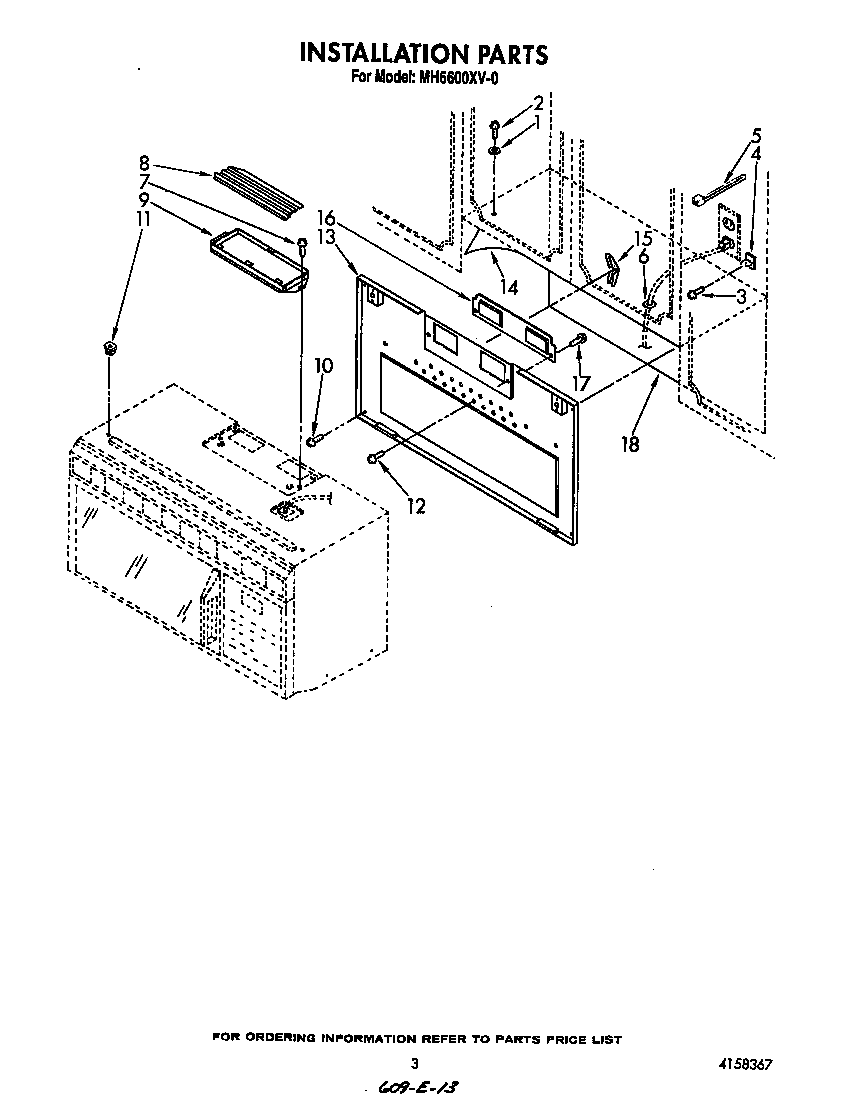

Installation diagram

Screw

Part #4158321

Replaced by #WP8169704

?
Manufacturer substitution
This part replaces 4158321. Substitute parts can look different from the original.
This item is not returnable
$5.07 |
16% OFF Phone Price : $6.07
In Stock
Screw 4158076
Screw

Part #4158076

Replaced by #8169474

?
Manufacturer substitution
This part replaces 4158076. Substitute parts can look different from the original.
This item is not returnable
$5.24
In Stock
Switch 4158195
#29

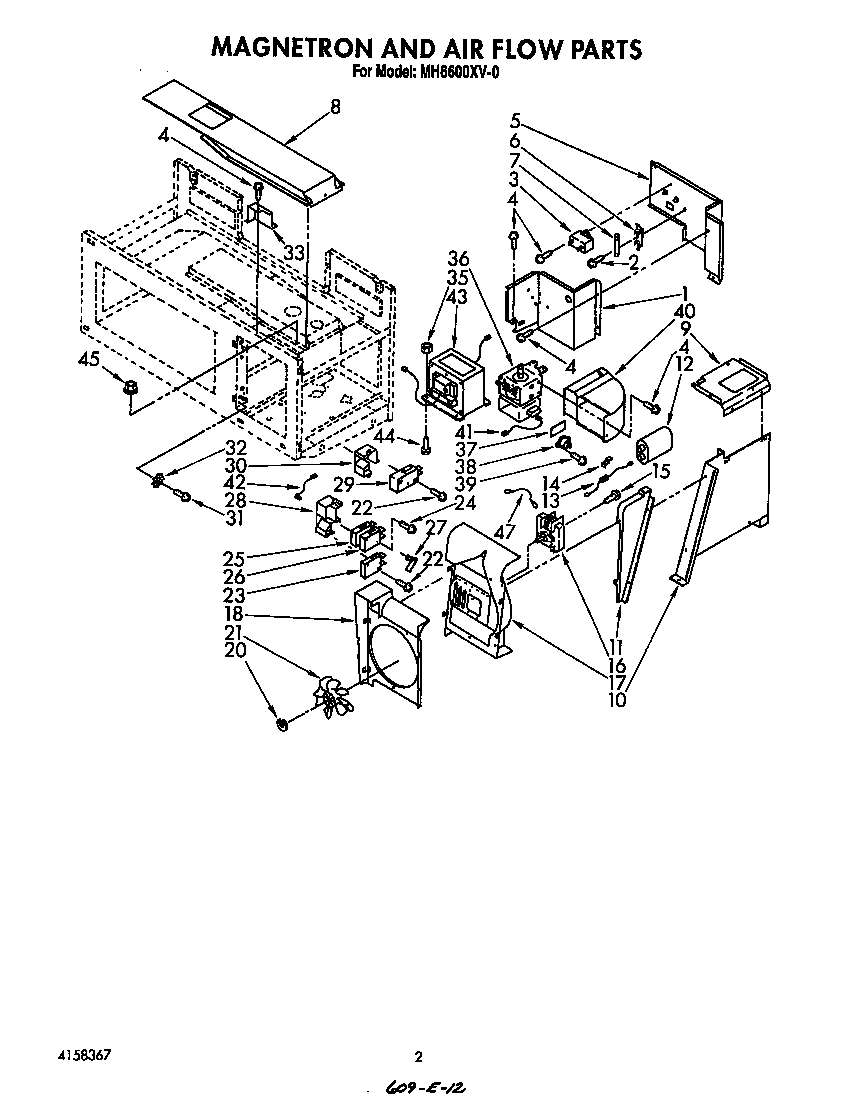

Magnetron and air flow diagram

Switch

Part #4158195

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158195. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Wire Tie 4158317
#5

Installation diagram

Wire tie

Part #4158317

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 4158317. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Light Bulb 4158344
#6

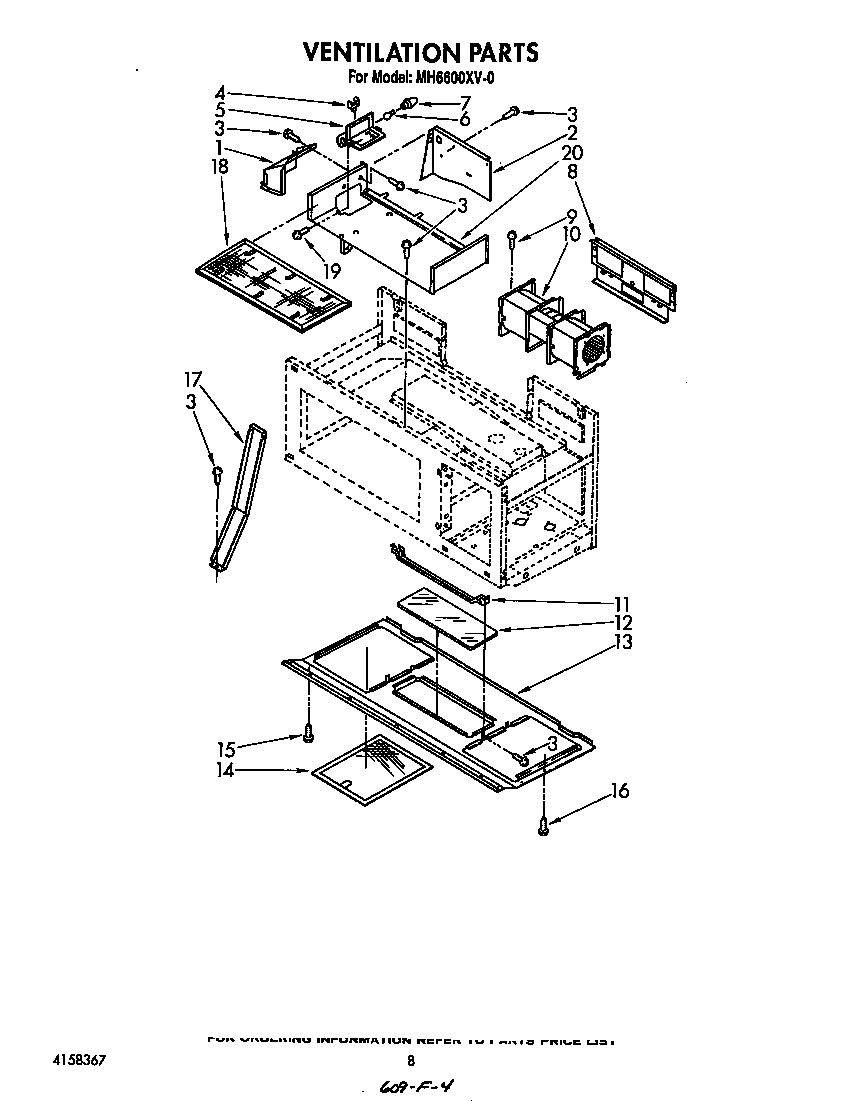

Ventilation diagram

Light bulb

Part #4158344

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4158344. Substitute parts can look different from the original.
$8.91 |
10% OFF Phone Price : $9.91
In Stock
Switch 4158102
#26

Magnetron and air flow diagram

Switch

Part #4158102

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158102. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Light Bulb 4158365
#12

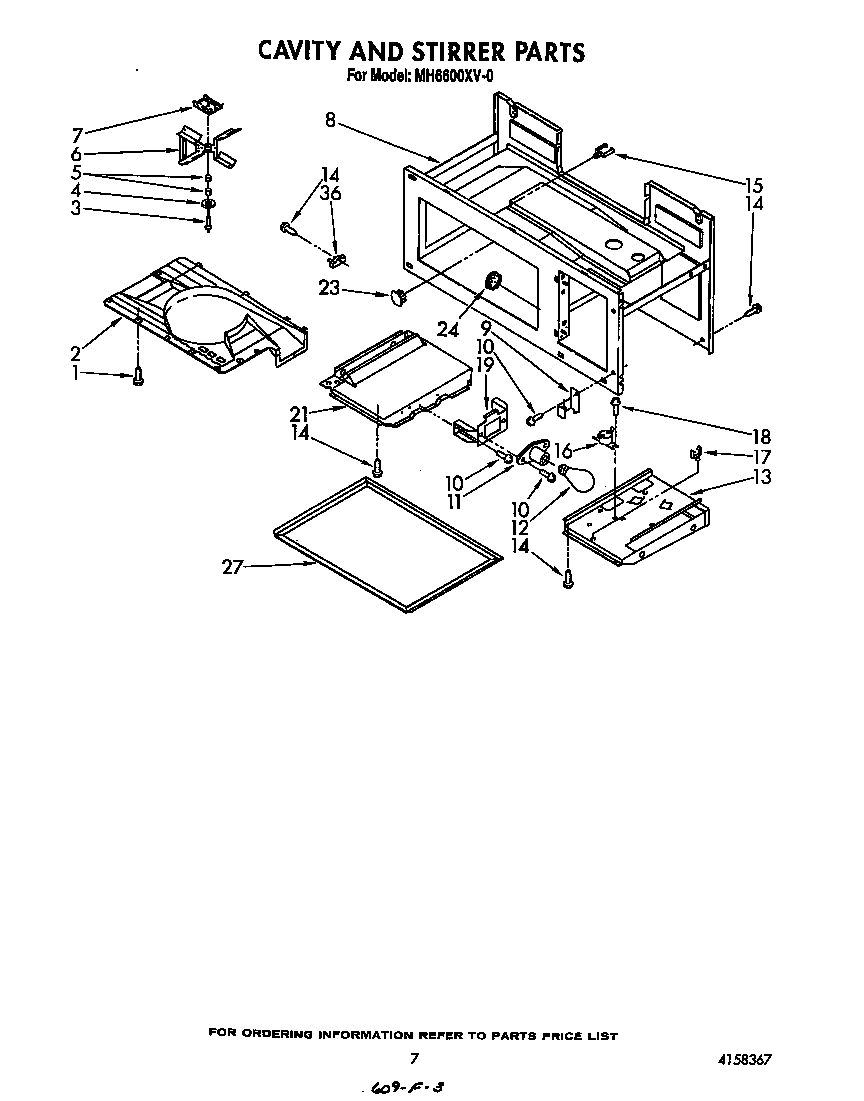

Cavity and stirrer diagram

Light bulb

Part #4158365

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4158365. Substitute parts can look different from the original.
$8.91 |
10% OFF Phone Price : $9.91
In Stock
Screw 4158308
#16

Ventilation diagram

Screw

Part #4158308

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4158308. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Thermal Fuse 4158049
#36

Cavity and stirrer diagram

Thermal fuse

Part #4158049

The manufacturer no longer makes this part, and there's no substitute part
