Model # FFES3025LSA Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FFES3025LSA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

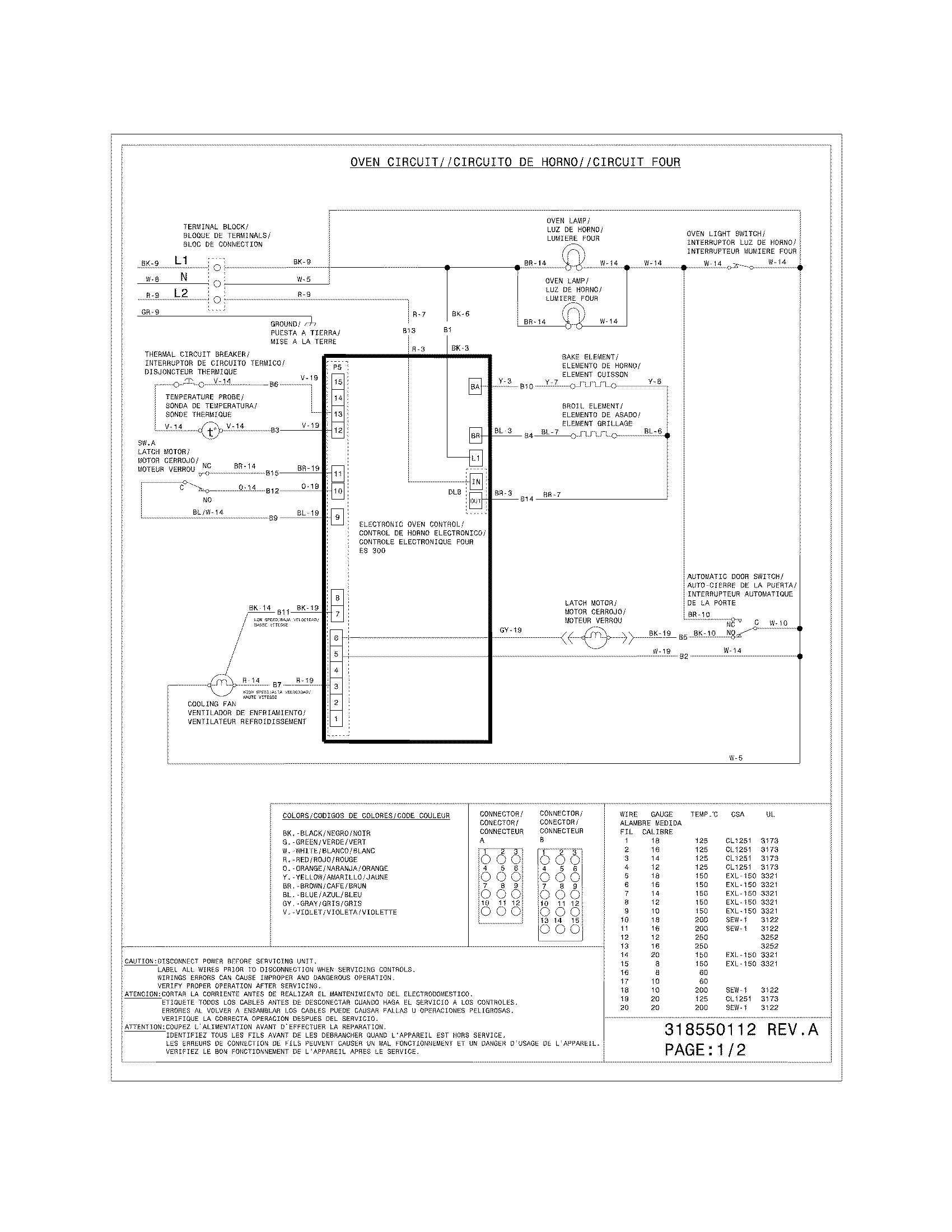

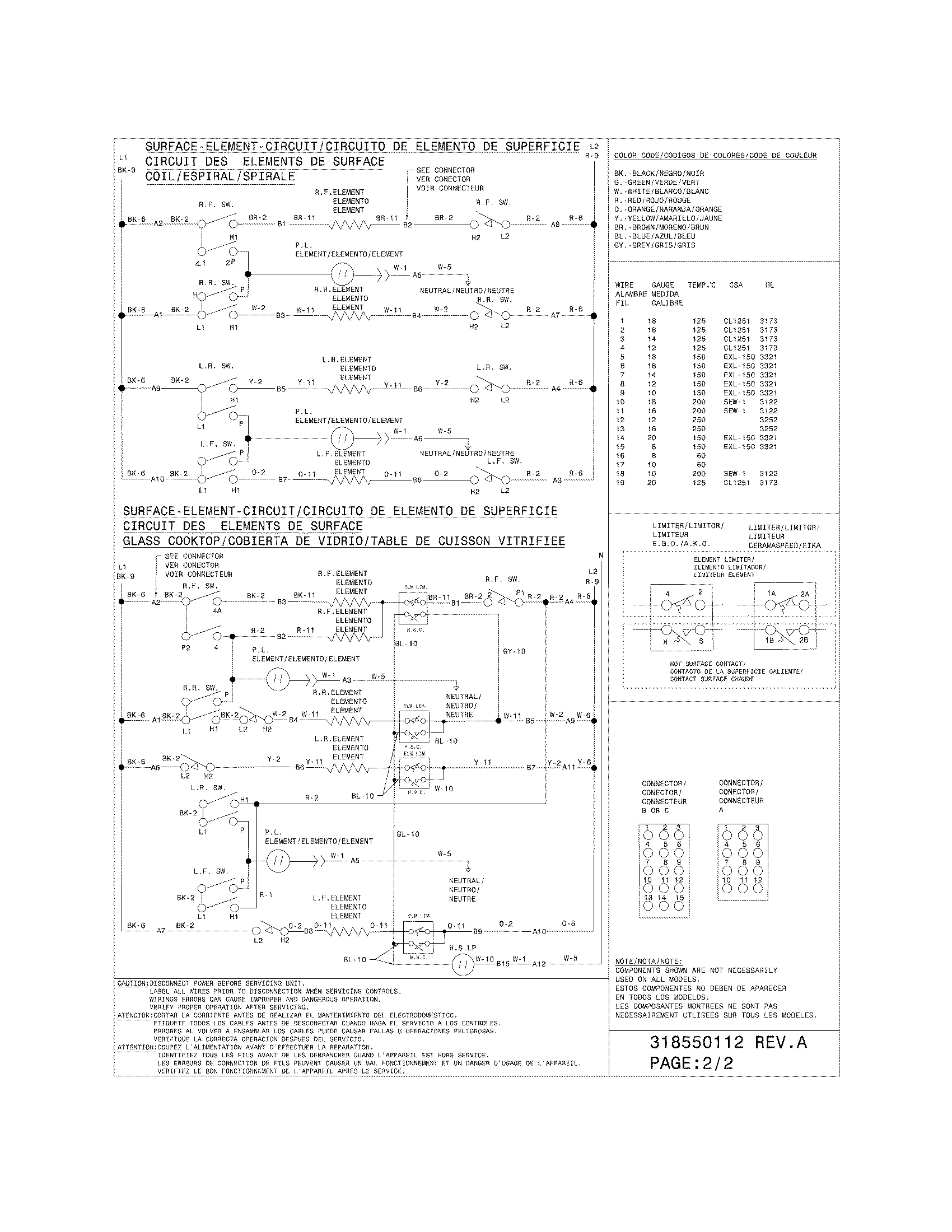

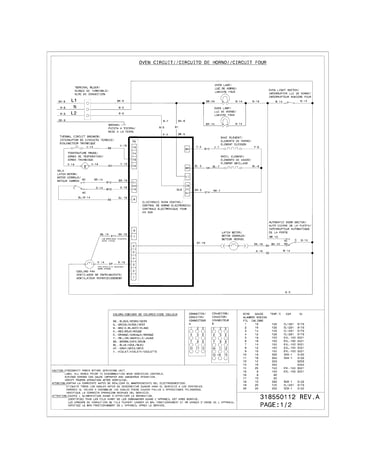

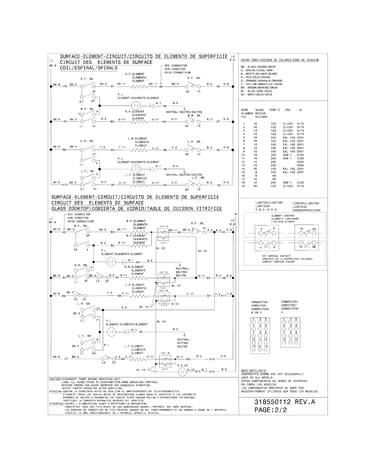

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Range Oven Light Bulb 5303013071
#15

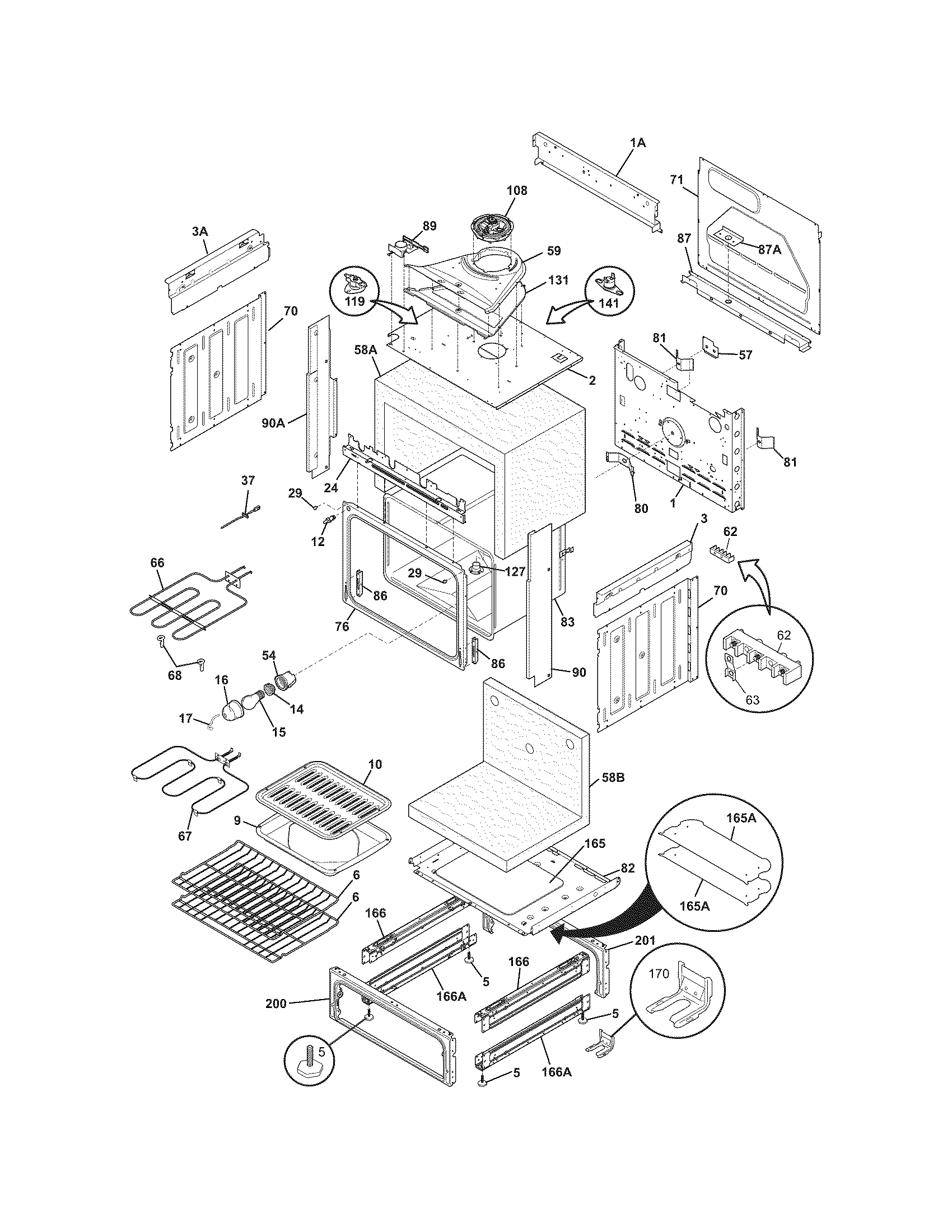

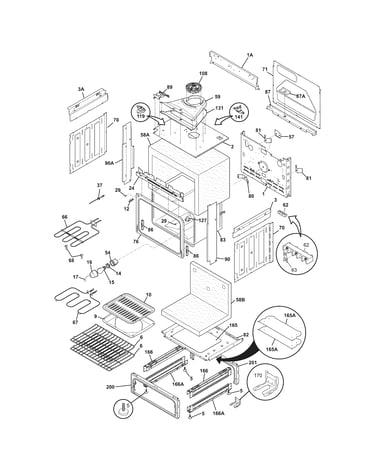

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Oven Door Inner Glass 316117500
#8

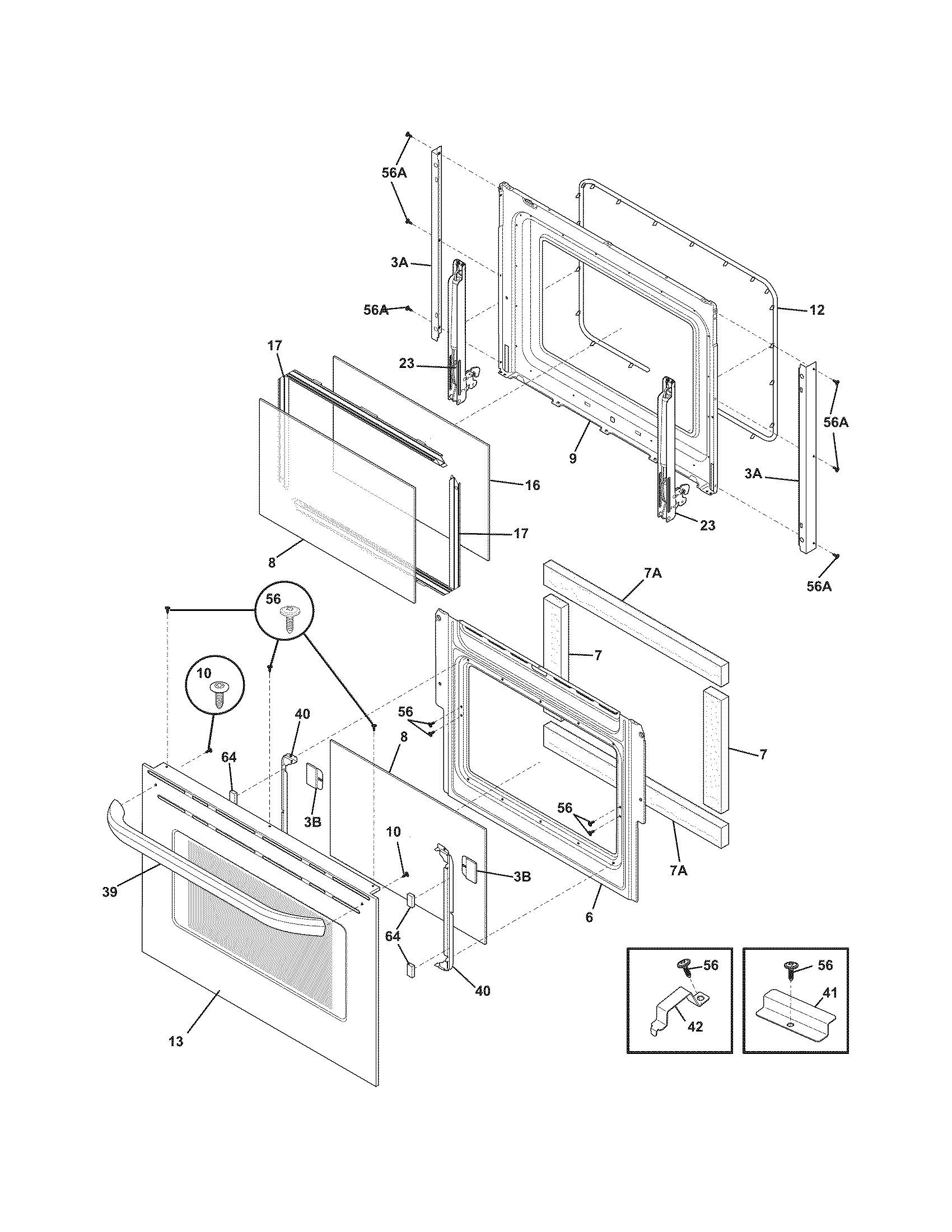

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Thermostat 318578501
#119

Body diagram

Thermostat

Part #318578501

Replaced by #318578506

?
Manufacturer substitution
This part replaces 318578501. Substitute parts can look different from the original.
BEST SELLER
$37.66 |
14% OFF Phone Price : $43.66
In Stock
Kenmore Range Oven Control Overlay (replaces 316352004, 316419103, 316419109, 316419139, 316419142) 316419141
#NI

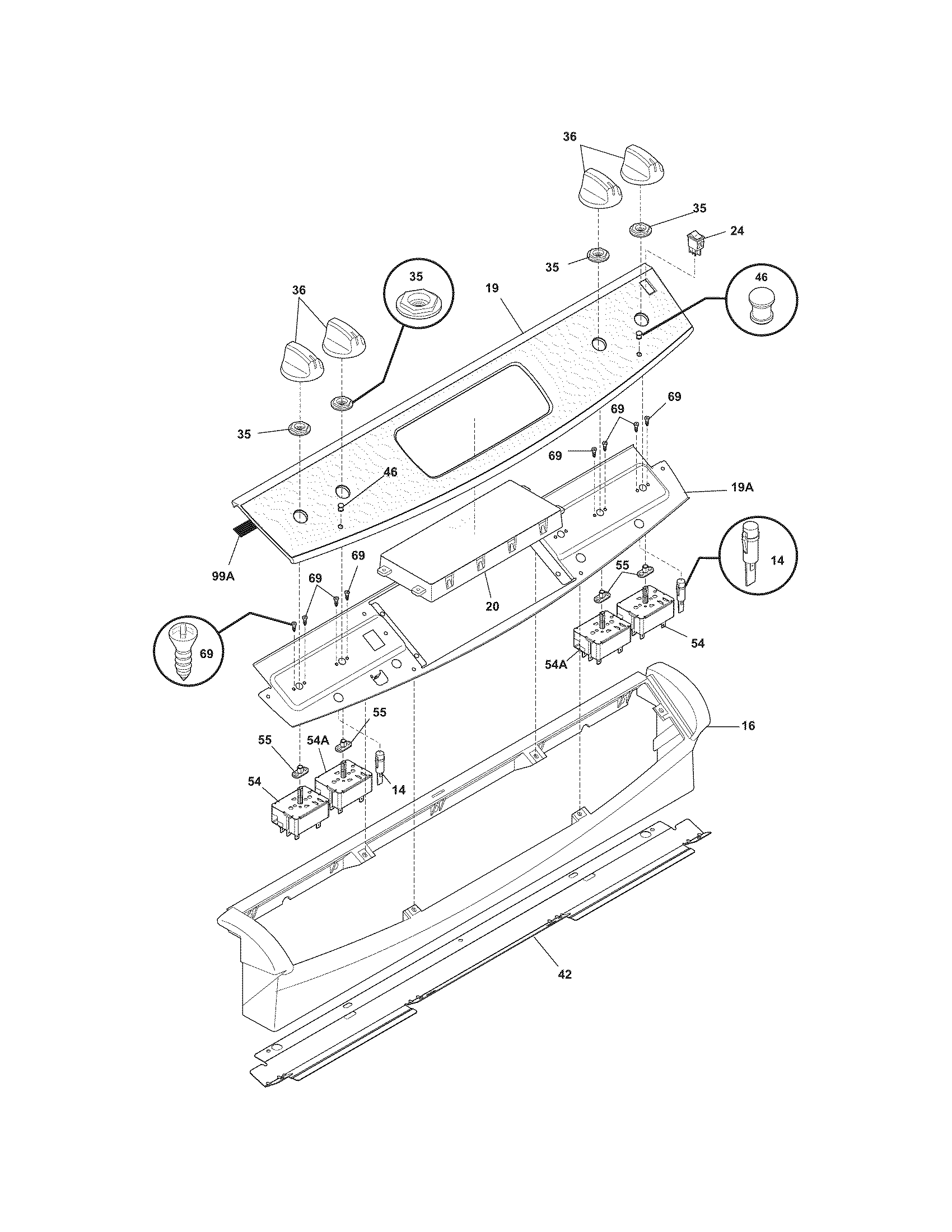

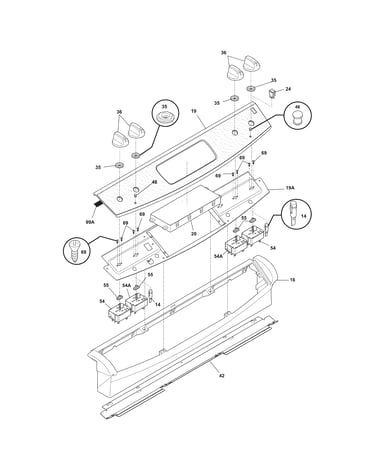

Backguard diagram

Kenmore range oven control overlay (replaces 316352004, 316419103, 316419109, 316419139, 316419142)

Part #316419141

BEST SELLER
$37.99 |
14% OFF Phone Price : $43.99
In Stock
Range Radiant Surface Element, 9-in 316224201
#15B

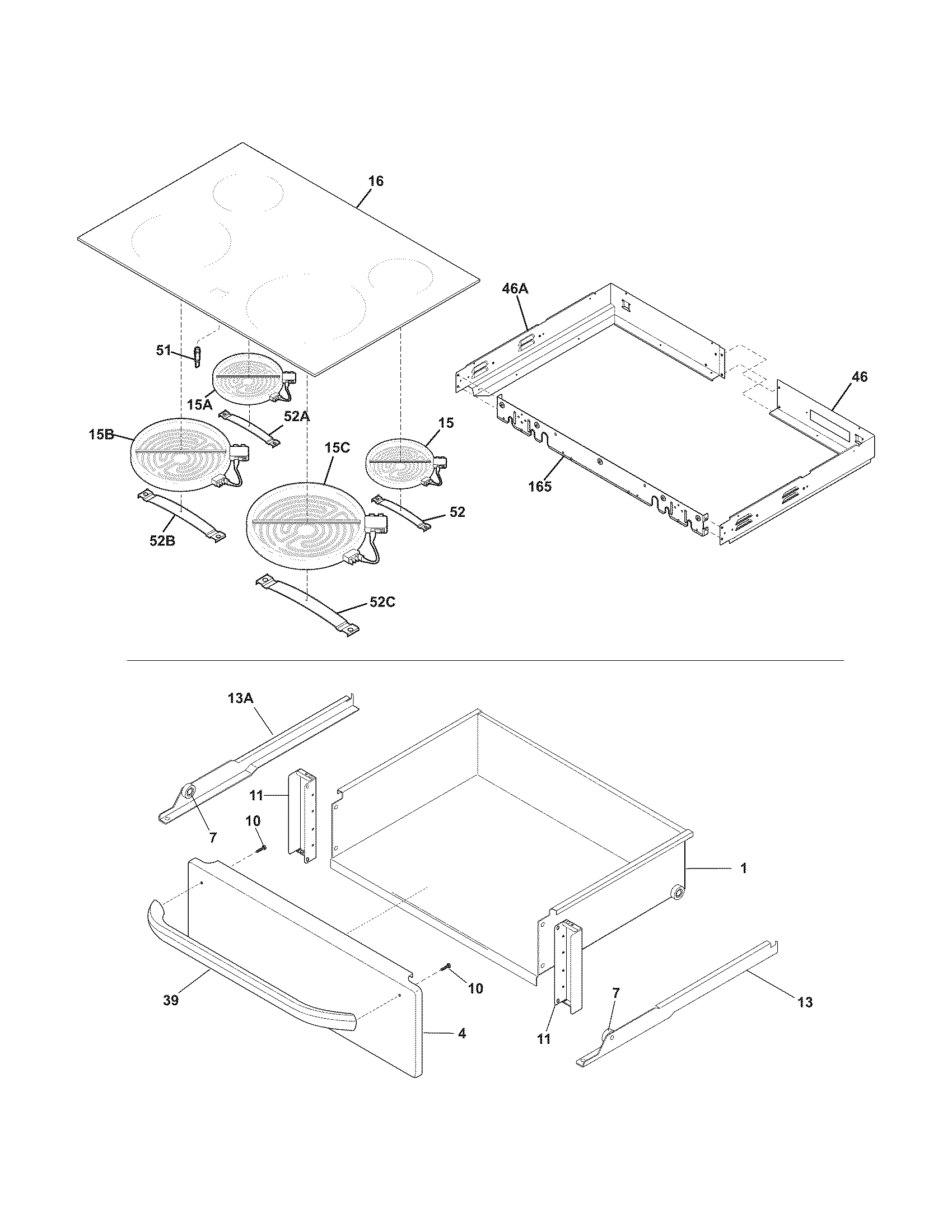

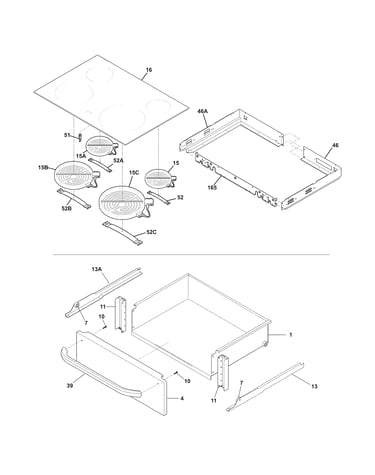

Top/drawer diagram

Range radiant surface element, 9-in

Part #316224201

Replaced by #316135401

?
Manufacturer substitution
This part replaces 316224201. Substitute parts can look different from the original.
BEST SELLER
$166.95 |
7% OFF Phone Price : $178.95
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Element 318198827
#15C

Top/drawer diagram

Element

Part #318198827

Replaced by #316291200

?
Manufacturer substitution
This part replaces 318198827. Substitute parts can look different from the original.
BEST SELLER
$145.18 |
8% OFF Phone Price : $157.18
In Stock
Range Surface Element Control Switch 318293831
#54A

Backguard diagram

Range surface element control switch

Part #318293831

BEST SELLER
$67.71 |
8% OFF Phone Price : $73.71
In Stock
Range Door Lock Switch 318394801
#12

Body diagram

Range door lock switch

Part #318394801

Replaced by #318394803

?
Manufacturer substitution
This part replaces 318394801. Substitute parts can look different from the original.
$35.19 |
15% OFF Phone Price : $41.19
In Stock
Light Switch 316005602
#24

Backguard diagram

Light switch

Part #316005602

Replaced by #5304527841

?
Manufacturer substitution
This part replaces 316005602. Substitute parts can look different from the original.
This item is not returnable
$10.94 |
15% OFF Phone Price : $12.94
In Stock
