Model # 91147466791 Official Kenmore wall oven
Here are the diagrams and repair parts for Official Kenmore 91147466791 wall oven, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
91147466791 Wall Ovens
#257

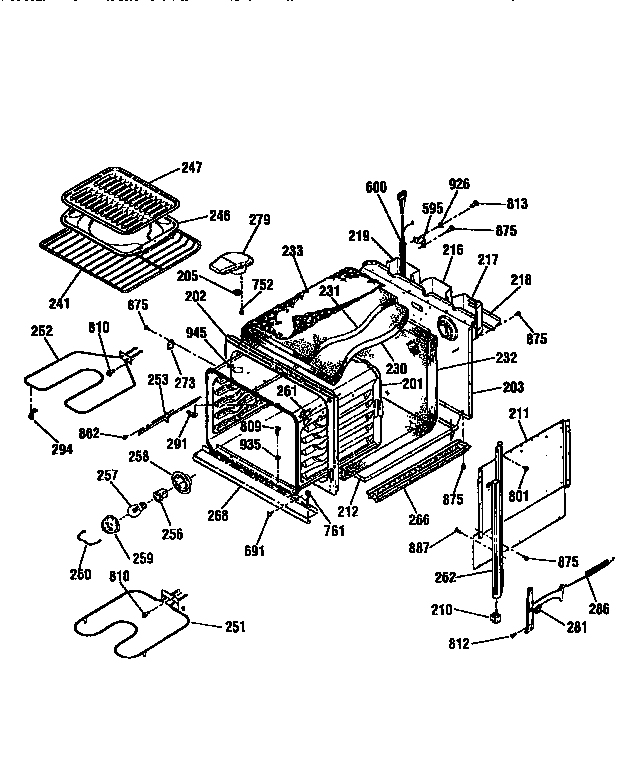

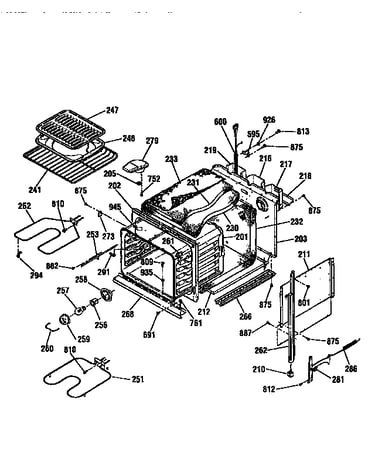

Body diagram
40a15bulb
Part #STD372401
Replaced by #40A15
?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
$15.29 |
12% OFF Phone Price : $17.29
In Stock
#294
Body diagram
Broil support
Part #WB02X9719
Replaced by #WB2X9719
?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
$8.67 |
10% OFF Phone Price : $9.67
In Stock
#152

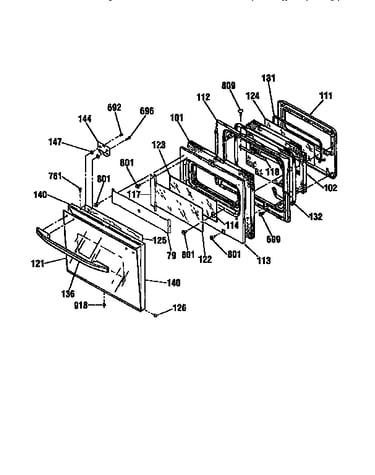

Door lock diagram
Lock motor
Part #WB26K5030
Replaced by #WB49T10020
?
Manufacturer substitution
This part replaces WB26K5030. Substitute parts can look different from the original.
$130.30 |
8% OFF Phone Price : $142.30
In Stock
#158

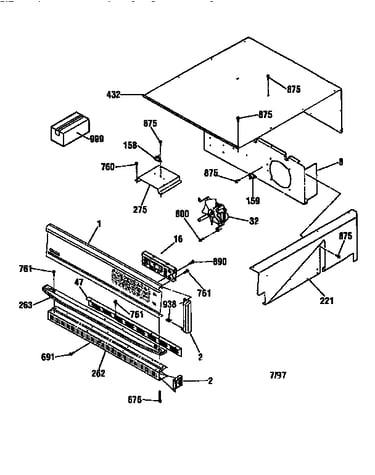

Control diagram
Wall oven cooling fan limit switch
Part #WB24K5033
$23.29 |
20% OFF Phone Price : $29.29
In Stock
#159
Control diagram
Wall oven thermal fuse (replaces wb24k5034)
Part #WB24K5085
$48.47 |
11% OFF Phone Price : $54.47
In Stock
#184
Door lock diagram
Drive lock plate
Part #WB34K5228
$143.54
In Stock
#185
Door lock diagram
Lock lever assembly
Part #WB15K5016
$13.93 |
13% OFF Phone Price : $15.93
In Stock
Screw
Part #WB01X1137
Replaced by #WB1X1137
?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
#247
Body diagram
Br pan grid
Part #WB48T10001
Replaced by #WB48X10056
?
Manufacturer substitution
This part replaces WB48T10001. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
#760
Control diagram
Screw
Part #WB01K5028
Replaced by #WB1X536
?
Manufacturer substitution
This part replaces WB01K5028. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Repair difficulty
Time required
60 minutes or less
How to replace a wall oven control thermostat
Get your oven temperature under your control by replacing a faulty oven control thermostat.…
Repair difficulty
Time required
60 minutes or less
How to replace wall oven door hinges
If your oven door flops open fast, it's time to replace the hinges. Follow these step-by-step instructions to do it your…
Repair difficulty
Time required
15 minutes or less
