Model # 315275061 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 315275061 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Sensor 970724-001
#17

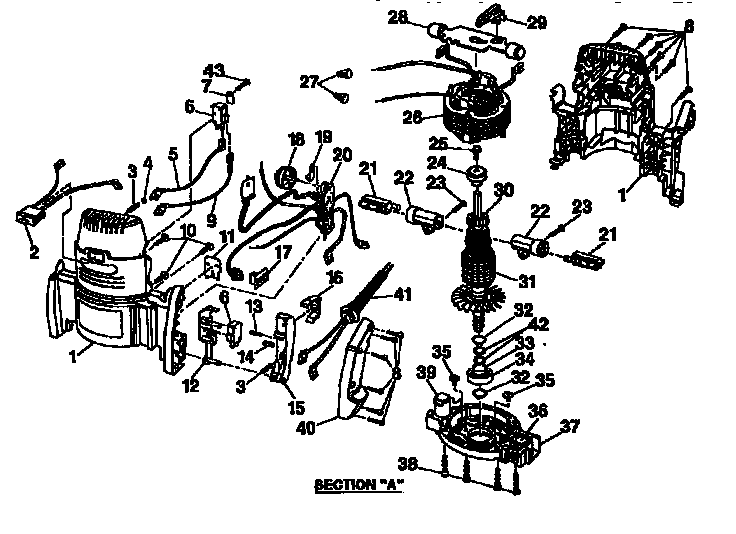

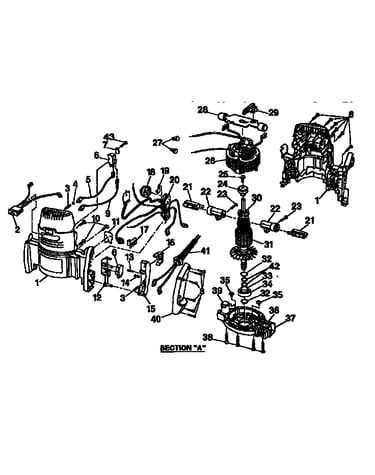

Housing and armature assembly diagram

Sensor

Part #970724-001

The manufacturer no longer makes this part, and there's no substitute part

Gd. Brg. 970730-002
#39

Housing and armature assembly diagram

Gd. brg.

Part #970730-002

The manufacturer no longer makes this part, and there's no substitute part

Label 971094-001
#11

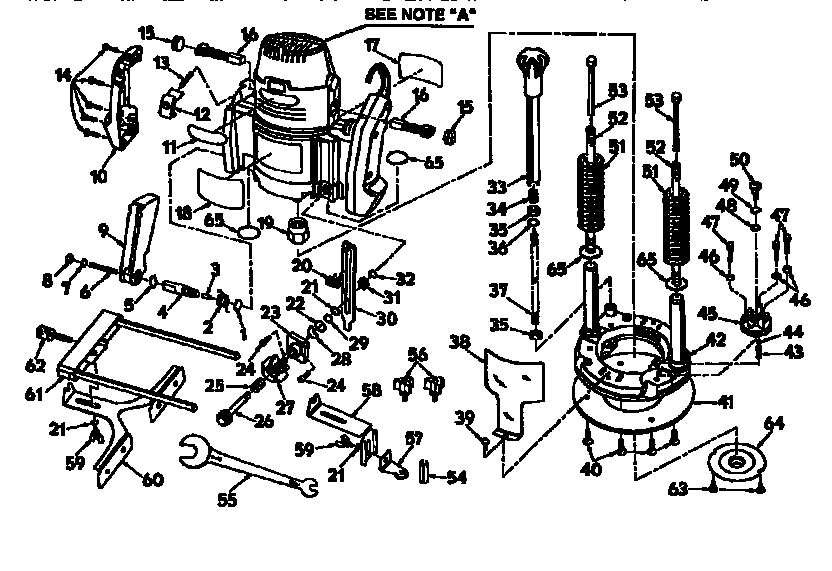

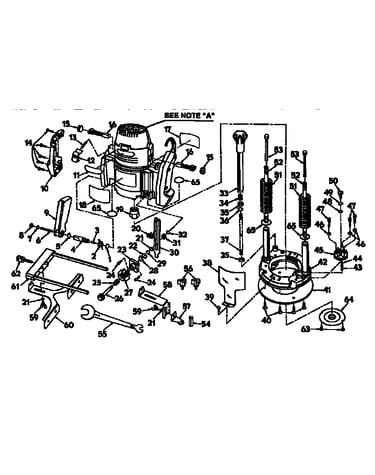

Base assembly diagram

Label

Part #971094-001

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 972000-092

#NI

All parts diagram

Owner's manual

Part #972000-092

The manufacturer no longer makes this part, and there's no substitute part

Guide 060721-530

#NI

All parts diagram

Guide

Part #060721-530

The manufacturer no longer makes this part, and there's no substitute part

Holder 972421-000

#NI

All parts diagram

Holder

Part #972421-000

The manufacturer no longer makes this part, and there's no substitute part

Clamp 617800-002
#7

Housing and armature assembly diagram

Clamp

Part #617800-002

The manufacturer no longer makes this part, and there's no substitute part

Connector 623173-006
#27

Housing and armature assembly diagram

Connector

Part #623173-006

The manufacturer no longer makes this part, and there's no substitute part

Screw 622931-008
#24

Base assembly diagram

Screw

Part #622931-008

The manufacturer no longer makes this part, and there's no substitute part

Trigger 970768-001
#15

Housing and armature assembly diagram

Trigger

Part #970768-001

The manufacturer no longer makes this part, and there's no substitute part
