Model # 31511341 Official Craftsman 3/8" electric drill

Here are the diagrams and repair parts for Official Craftsman 31511341 3/8" electric drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

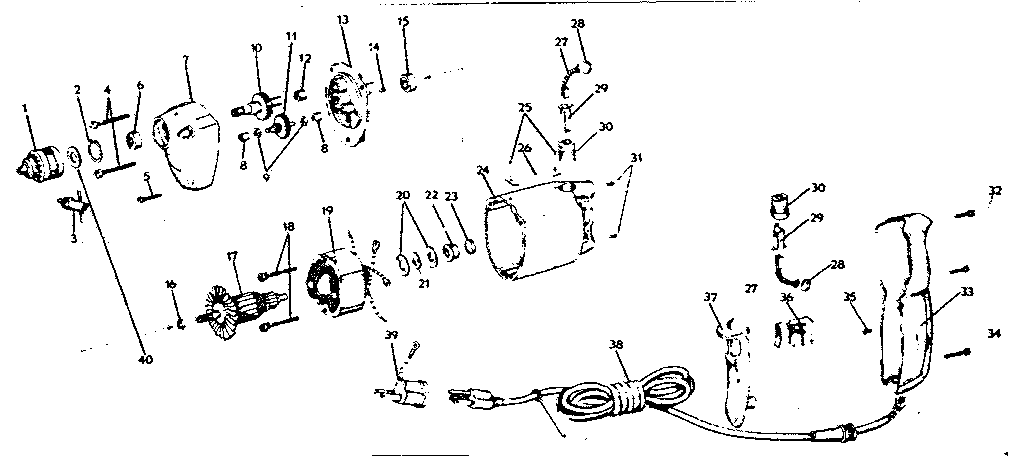

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Screw 1-930993-01
#35

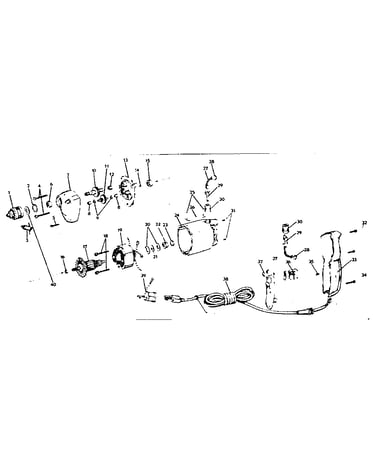

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-623654-00
#4

Unit parts diagram

Screw

Part #1-623654-00

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing 4-614336-03
#24

Unit parts diagram

Motor housing

Part #4-614336-03

The manufacturer no longer makes this part, and there's no substitute part

Chuck 1-623261-00
#1

Unit parts diagram

Chuck

Part #1-623261-00

The manufacturer no longer makes this part, and there's no substitute part

1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Washer 1-703493-804
#20

Unit parts diagram

Washer

Part #1-703493-804

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 1-622347-05
#21

Unit parts diagram

Spring washer

Part #1-622347-05

The manufacturer no longer makes this part, and there's no substitute part

Br Tube 2-623878-01
#29

Unit parts diagram

Br tube

Part #2-623878-01

The manufacturer no longer makes this part, and there's no substitute part

Washer 1-931055-12
#9

Unit parts diagram

Washer

Part #1-931055-12

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 1-885811-02
#6

Unit parts diagram

Ball bearing

Part #1-885811-02

The manufacturer no longer makes this part, and there's no substitute part
