Kenmore
Gas Range

Model # 36271178890 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 36271178890 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

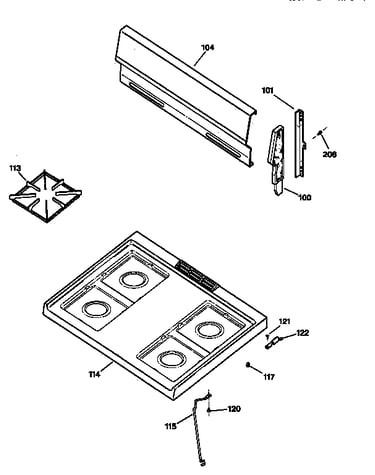

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Bake Burner Ignition WB13K0021
#218

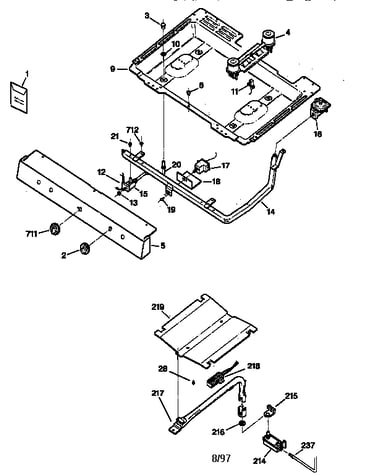

Gas & burner parts diagram

Bake burner ignition

Part #WB13K0021

Replaced by #WB13K21

?
Manufacturer substitution
This part replaces WB13K0021. Substitute parts can look different from the original.
BEST SELLER
$54.97 |
10% OFF Phone Price : $60.97
In Stock
Thermostat WB20K0006
#17

Gas & burner parts diagram

Thermostat

Part #WB20K0006

Replaced by #WB20K8

?
Manufacturer substitution
This part replaces WB20K0006. Substitute parts can look different from the original.
BEST SELLER
$303.21 |
$12.00 OFF Phone Price : $315.21
In Stock
Double Burner WB16K10003
#4

Gas & burner parts diagram

Double burner

Part #WB16K10003

Replaced by #WB16K10026

?
Manufacturer substitution
This part replaces WB16K10003. Substitute parts can look different from the original.
$55.13 |
10% OFF Phone Price : $61.13
Back Order
Hex Washer Head Screw WB01K0050
#28

Gas & burner parts diagram

Hex washer head screw

Part #WB01K0050

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01K0050. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Oven Burner WB16K0027
#217

Gas & burner parts diagram

Oven burner

Part #WB16K0027

Replaced by #WB16K10043

?
Manufacturer substitution
This part replaces WB16K0027. Substitute parts can look different from the original.
$100.83 |
11% OFF Phone Price : $112.83
In Stock
Safety Valve WB19K0031
#214

Gas & burner parts diagram

Safety valve

Part #WB19K0031

Replaced by #WB19K31

?
Manufacturer substitution
This part replaces WB19K0031. Substitute parts can look different from the original.
$88.65 |
6% OFF Phone Price : $94.65
In Stock
Screw (black) WB01K0042
#204B

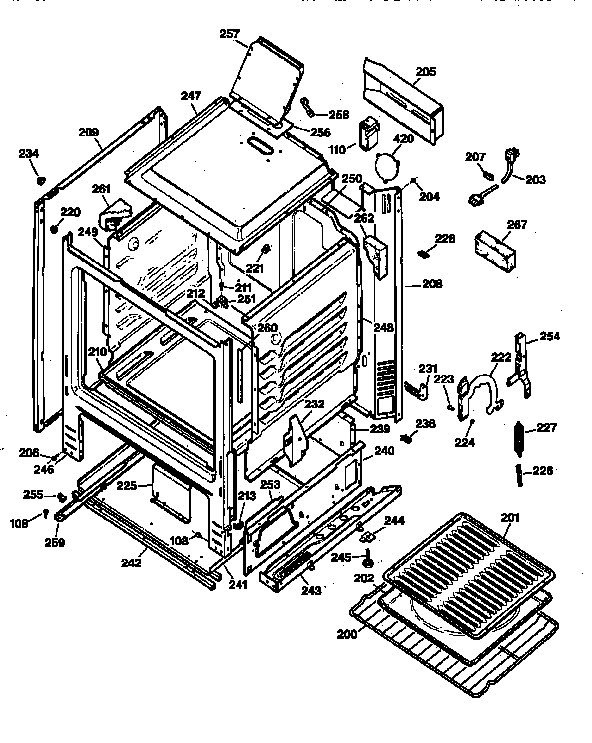

Body parts diagram

Screw (black)

Part #WB01K0042

Replaced by #WB1K5062

?
Manufacturer substitution
This part replaces WB01K0042. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Trim B. Door WB07K0379
#359

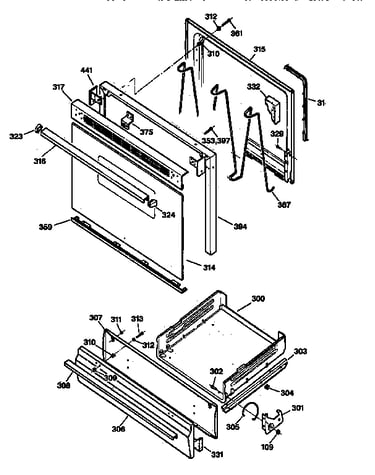

Door & drawer parts diagram

Trim b. door

Part #WB07K0379

Replaced by #WB07K10232

?
Manufacturer substitution
This part replaces WB07K0379. Substitute parts can look different from the original.
This item is not returnable
$22.56 |
21% OFF Phone Price : $28.56
In Stock
Screw WB01K0021
Screw

Part #WB01K0021

Replaced by #WR01X10065

?
Manufacturer substitution
This part replaces WB01K0021. Substitute parts can look different from the original.
This item is not returnable
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Valve Cover WB02K0024
#13

Gas & burner parts diagram

Valve cover

Part #WB02K0024

Replaced by #WB2K24

?
Manufacturer substitution
This part replaces WB02K0024. Substitute parts can look different from the original.
This item is not returnable
$27.25 |
18% OFF Phone Price : $33.25
In Stock
