Model # 999L30XG Official Kenmore commercial dryer

Here are the diagrams and repair parts for Official Kenmore 999L30XG commercial dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

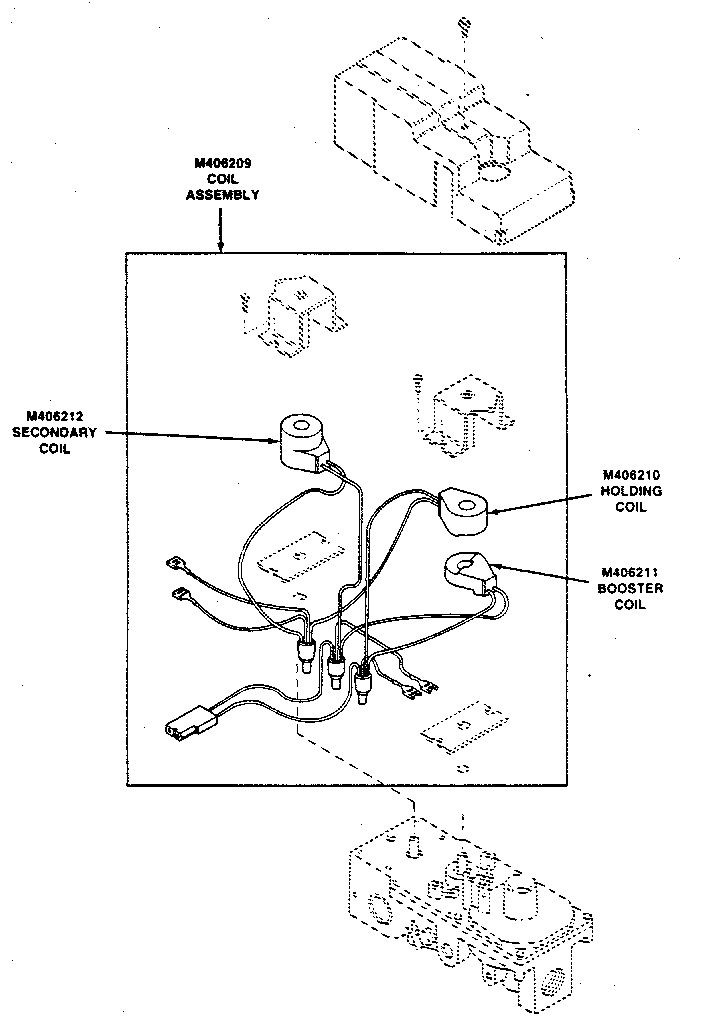

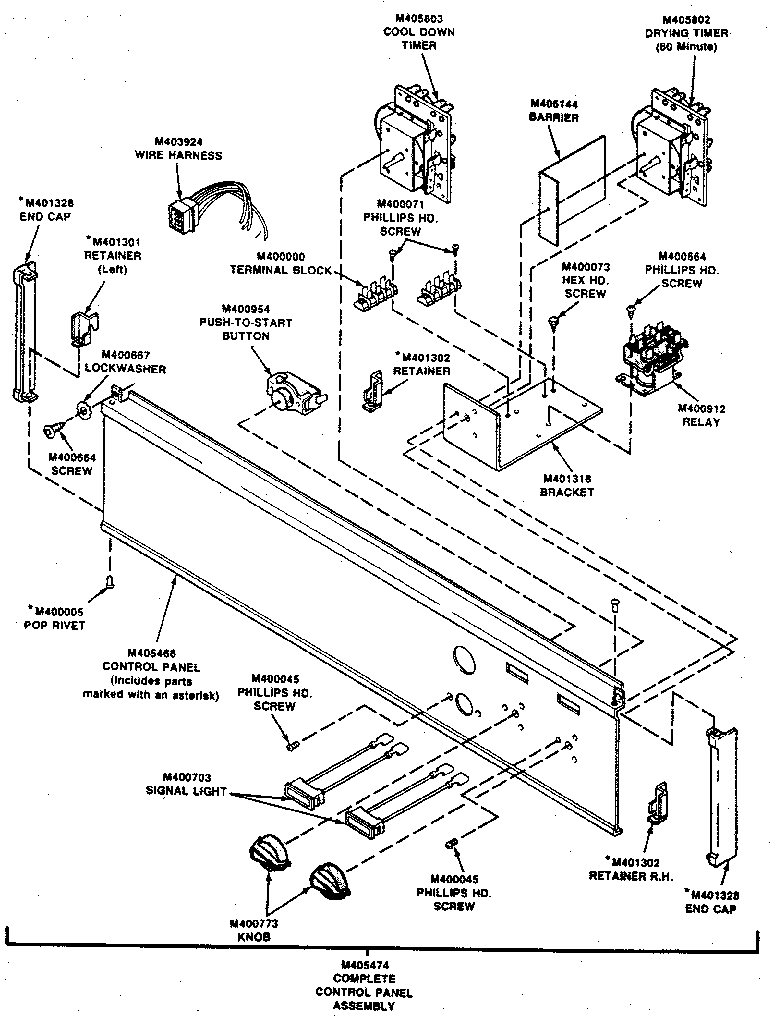

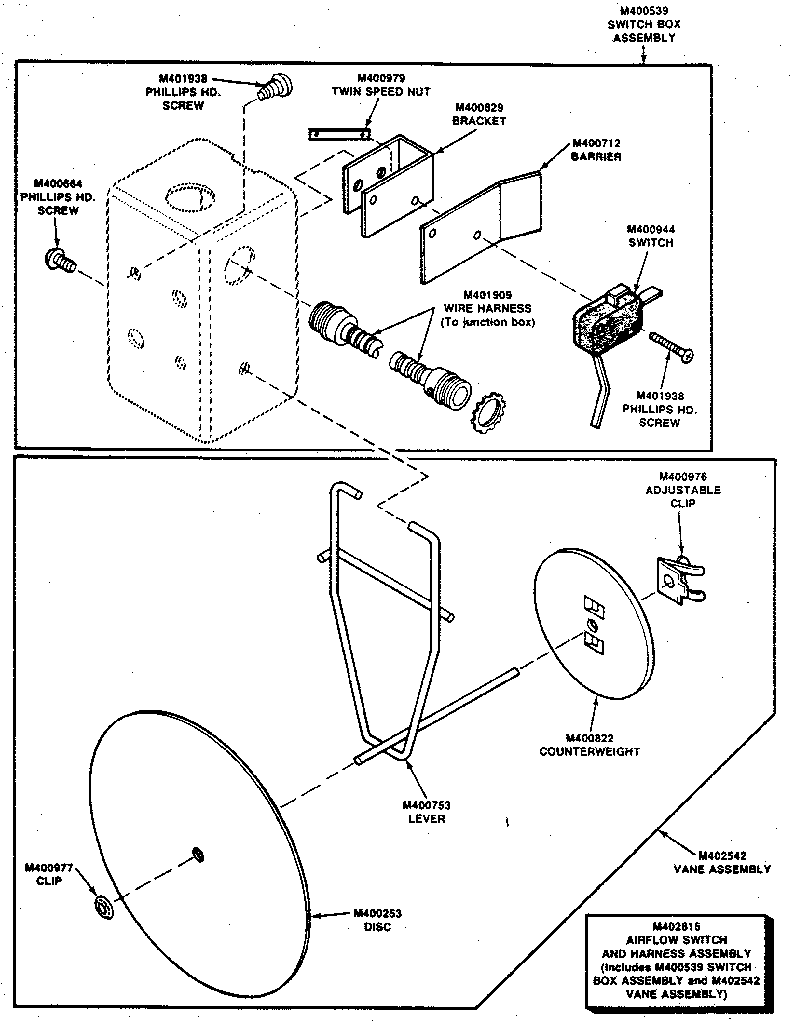

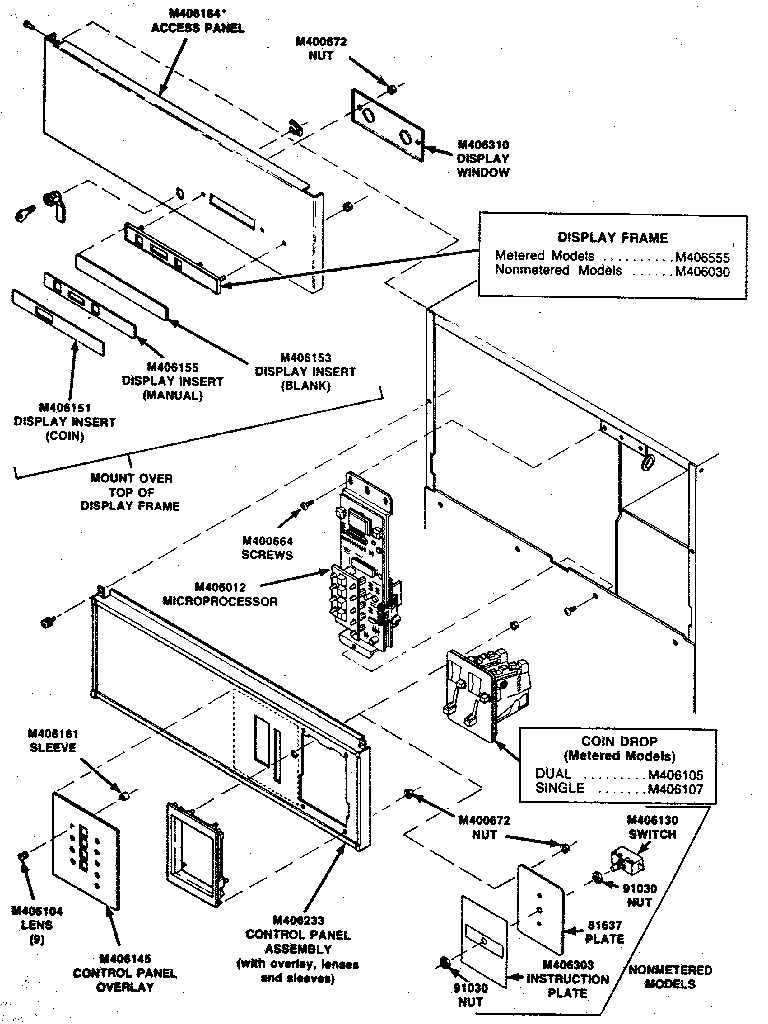

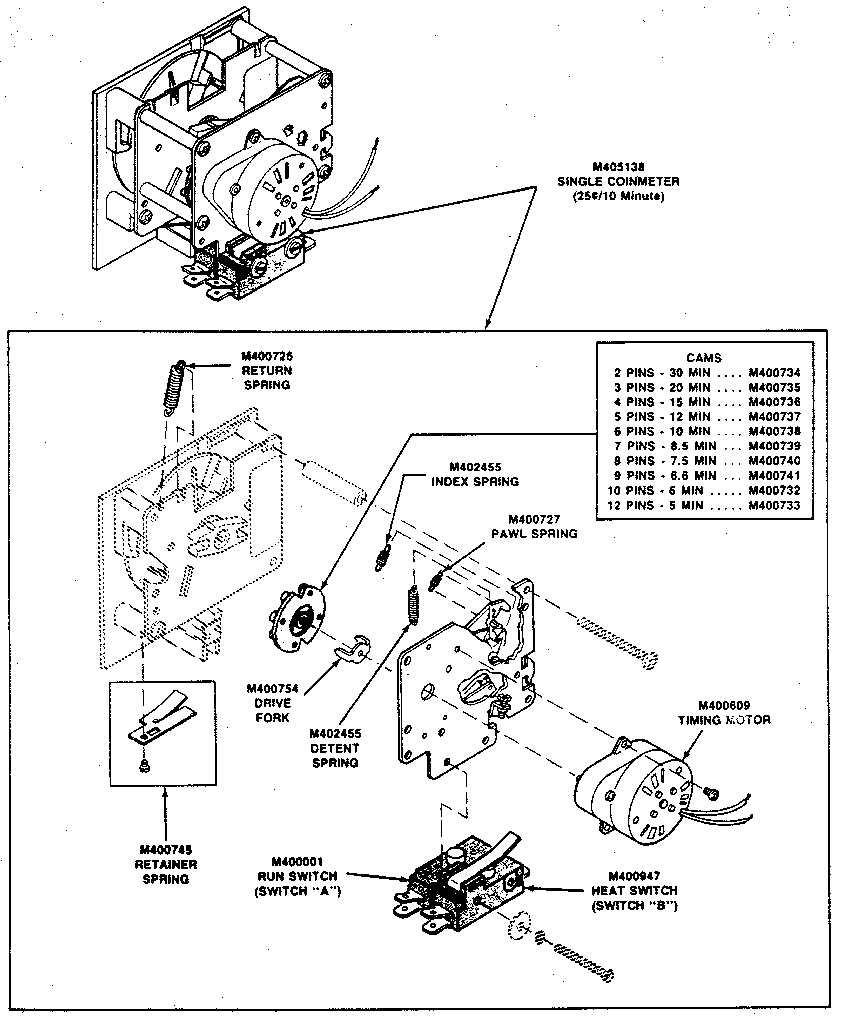

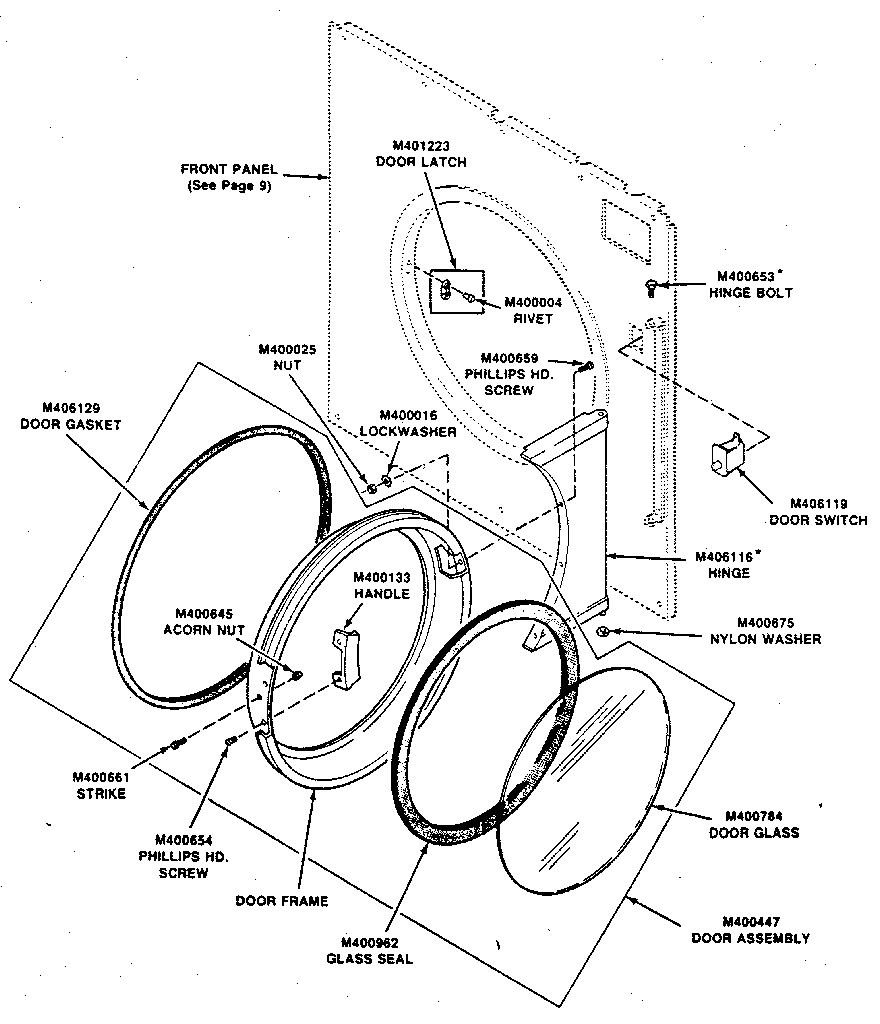

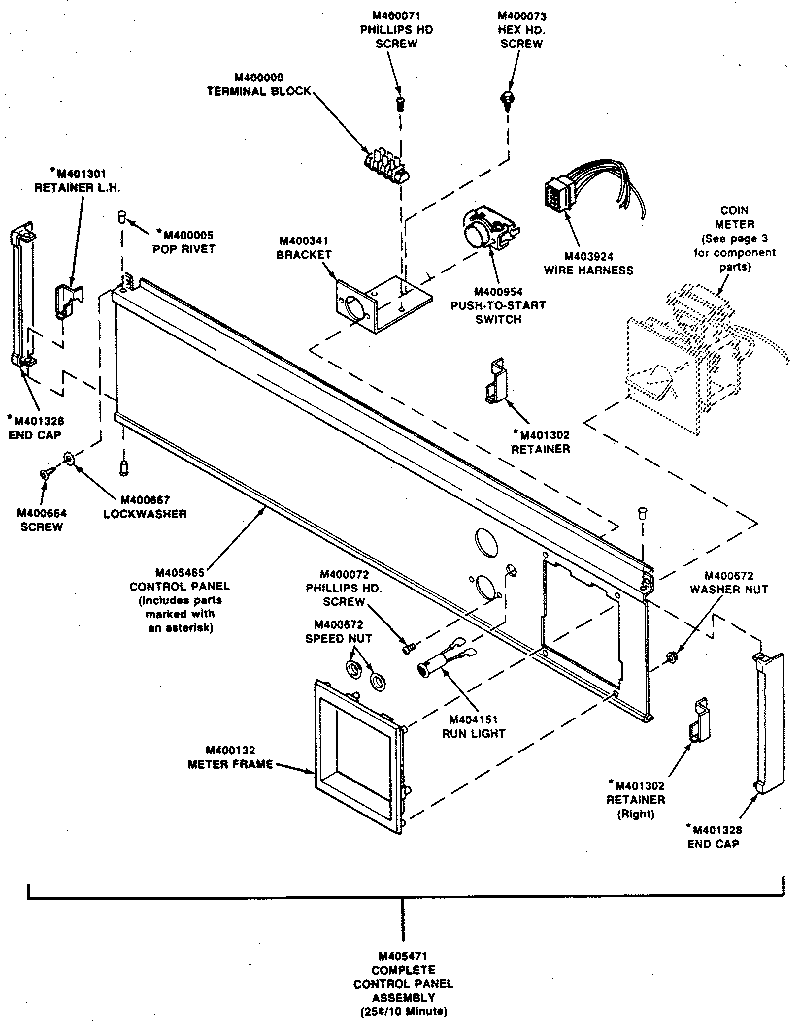

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 256 parts  |
Sensor M402742
#2

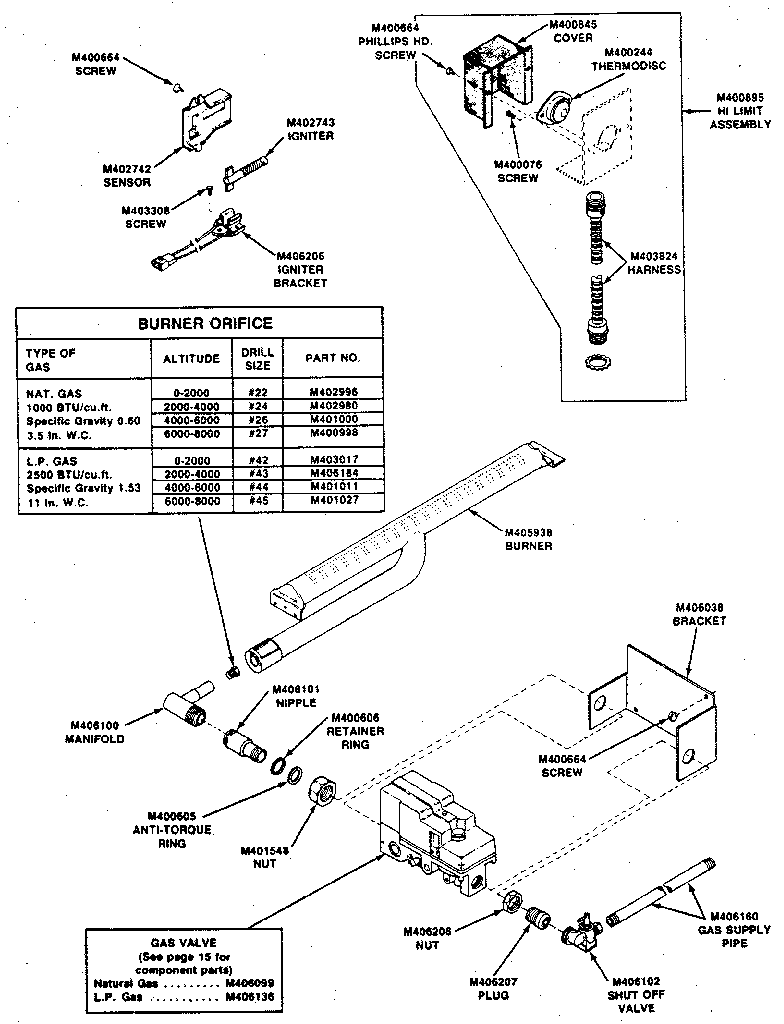

Burner assembly diagram

Sensor

Part #M402742

Replaced by #WP338906

?
Manufacturer substitution
This part replaces M402742. Substitute parts can look different from the original.
BEST SELLER
$37.66 |
14% OFF Phone Price : $43.66
In Stock
Washer M400832
#22

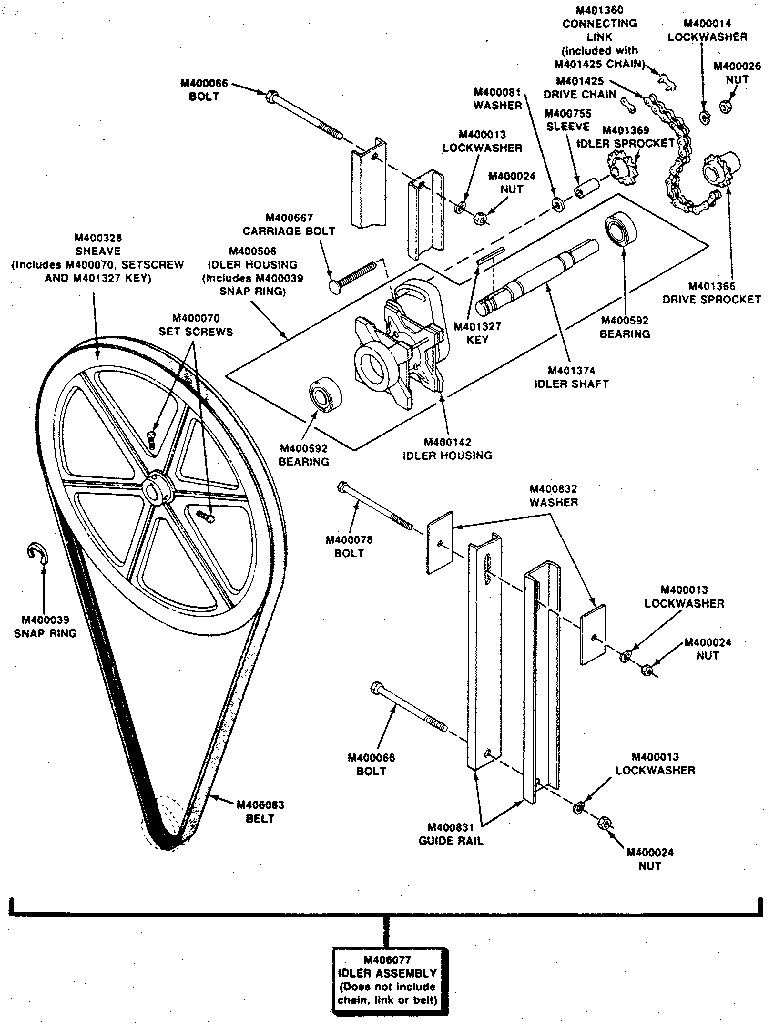

Idler drive components diagram

Washer

Part #M400832

This item is not returnable
$2.16
In Stock
Felt Pad M402144
#16

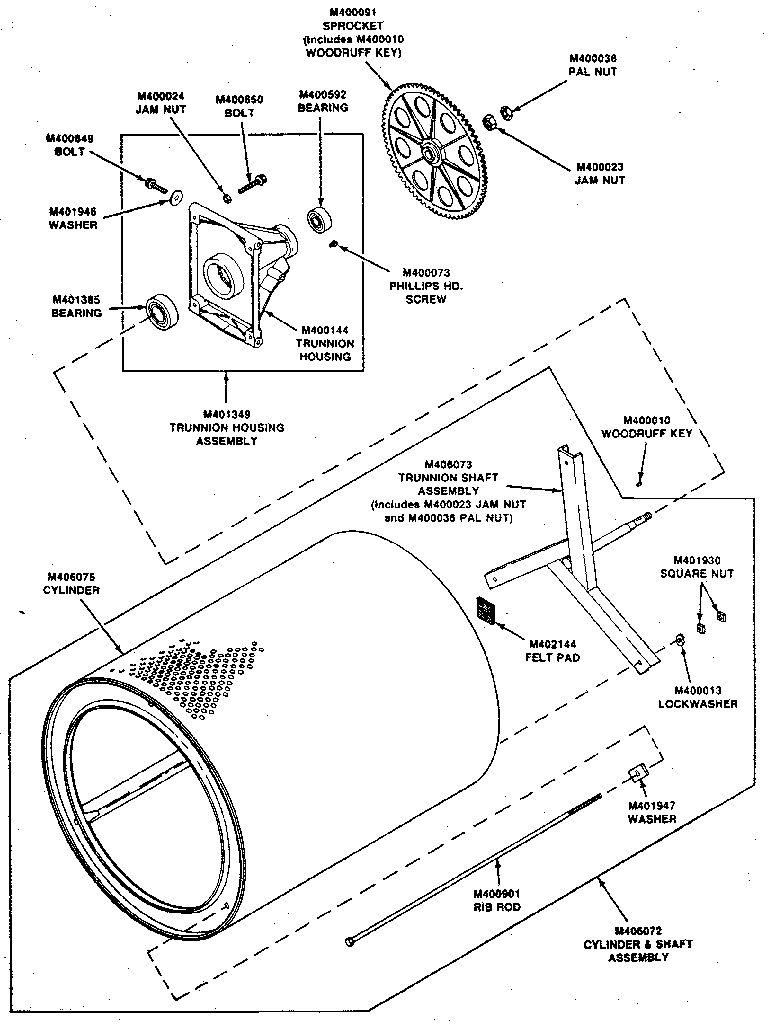

Cylinder and trunnion assemblies diagram

Felt pad

Part #M402144

This item is not returnable
$2.91
In Stock
Kenmore Washer M401947
#20

Cylinder and trunnion assemblies diagram

Kenmore washer

Part #M401947

This item is not returnable
$4.09
In Stock
Nut M401930
#17

Cylinder and trunnion assemblies diagram

Nut

Part #M401930

This item is not returnable
$2.43
In Stock
Kenmore Screw M405824
#8

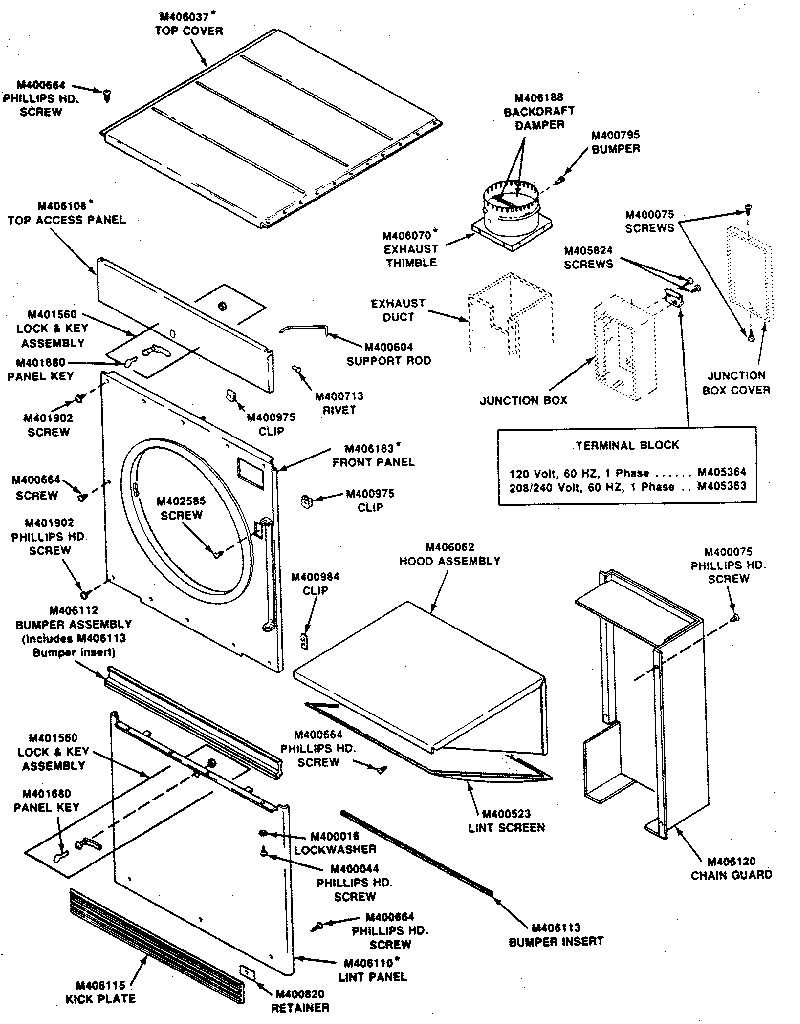

Panels, guards and lint hood assembly diagram

Kenmore screw

Part #M405824

This item is not returnable
$2.16
In Stock
Speed Queen Bolt M400901
#19

Cylinder and trunnion assemblies diagram

Speed queen bolt

Part #M400901

$22.00
In Stock
Clip M400984
#25

Panels, guards and lint hood assembly diagram

Clip

Part #M400984

This item is not returnable
$3.69
In Stock
Nut M400022
#17

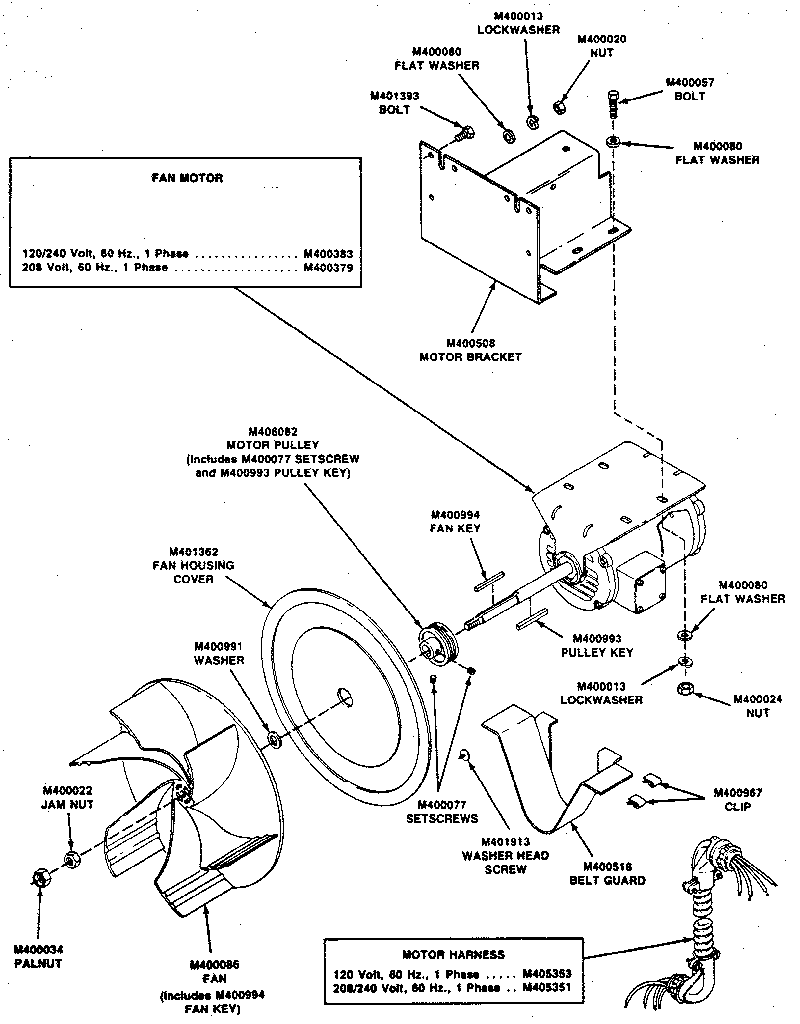

Fan and motor assembly diagram

Nut

Part #M400022

This item is not returnable
$3.14
In Stock

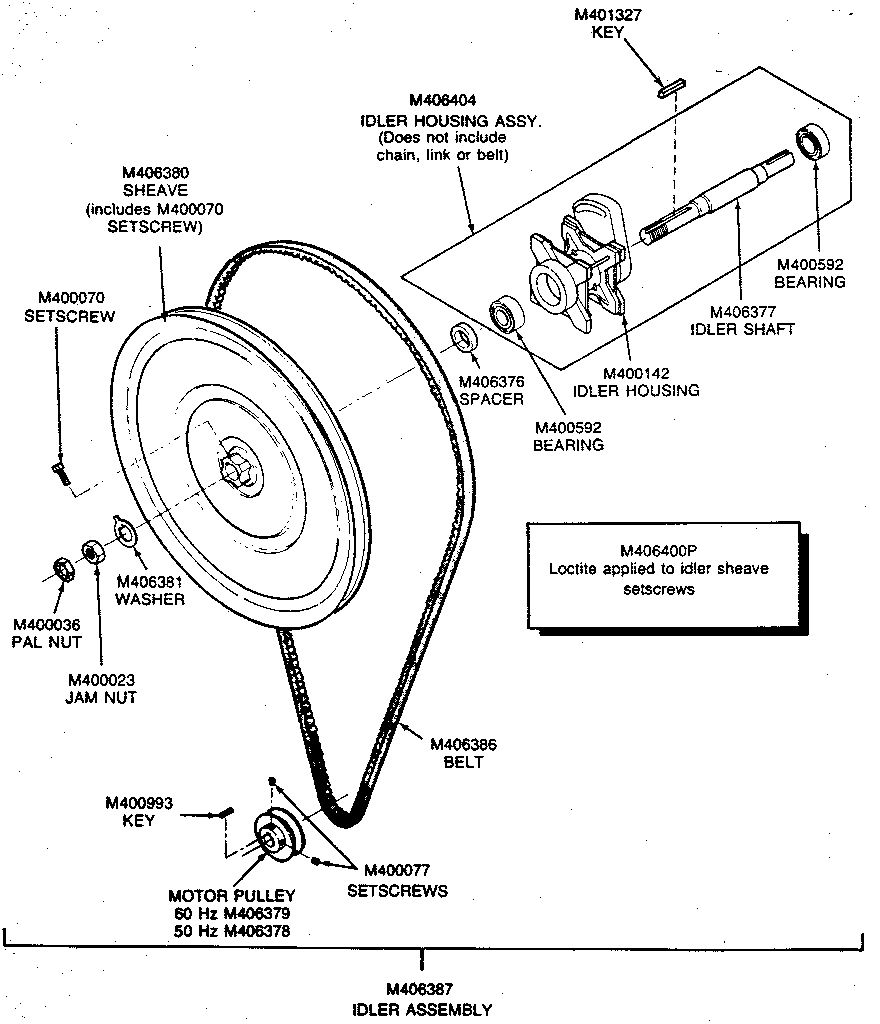

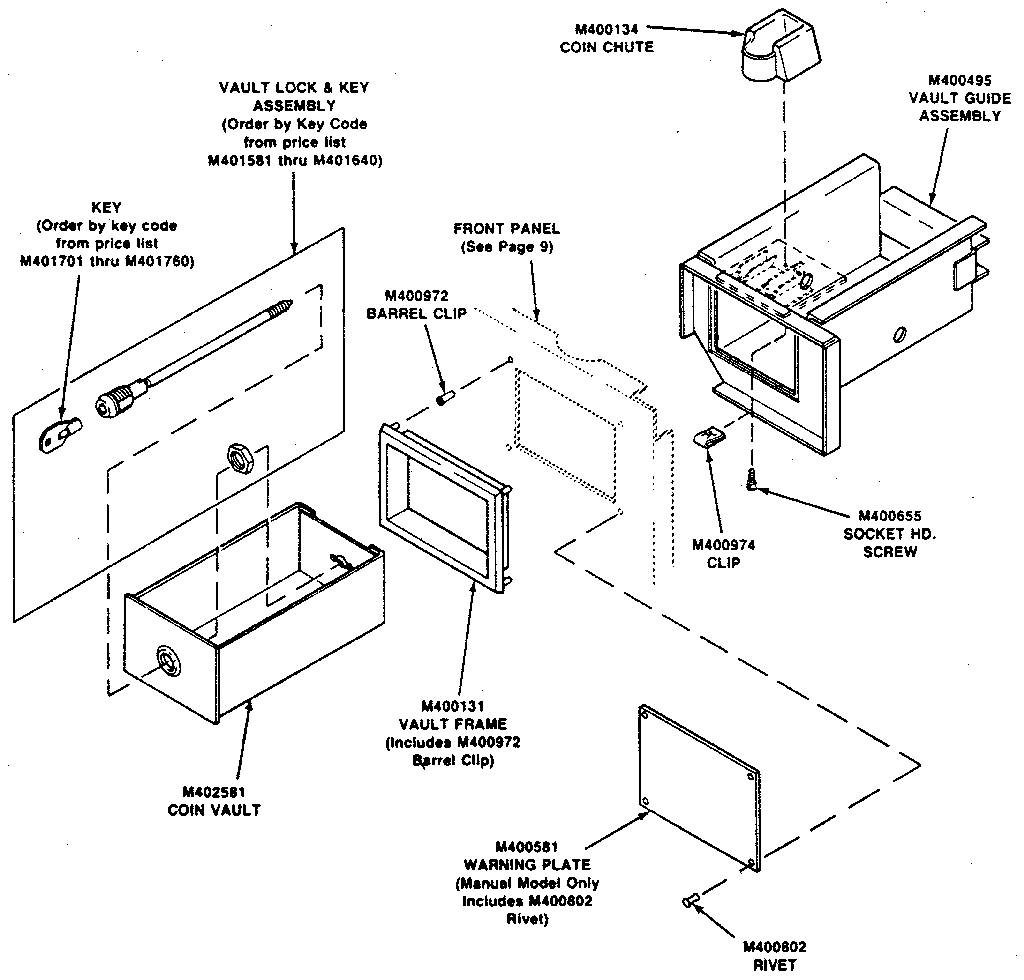

Key M400993
Key

Part #M400993

This item is not returnable
$5.74
In Stock
