Model # PGO151 Official Modern Maid gas wall oven
Here are the diagrams and repair parts for Official Modern Maid PGO151 gas wall oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
PGO151 Wall Ovens
#2

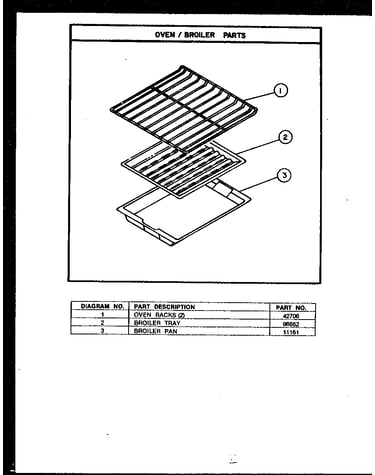

Oven / broiler parts diagram
Grid
Part #98682
Replaced by #4396923
?
Manufacturer substitution
This part replaces 98682. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
#6

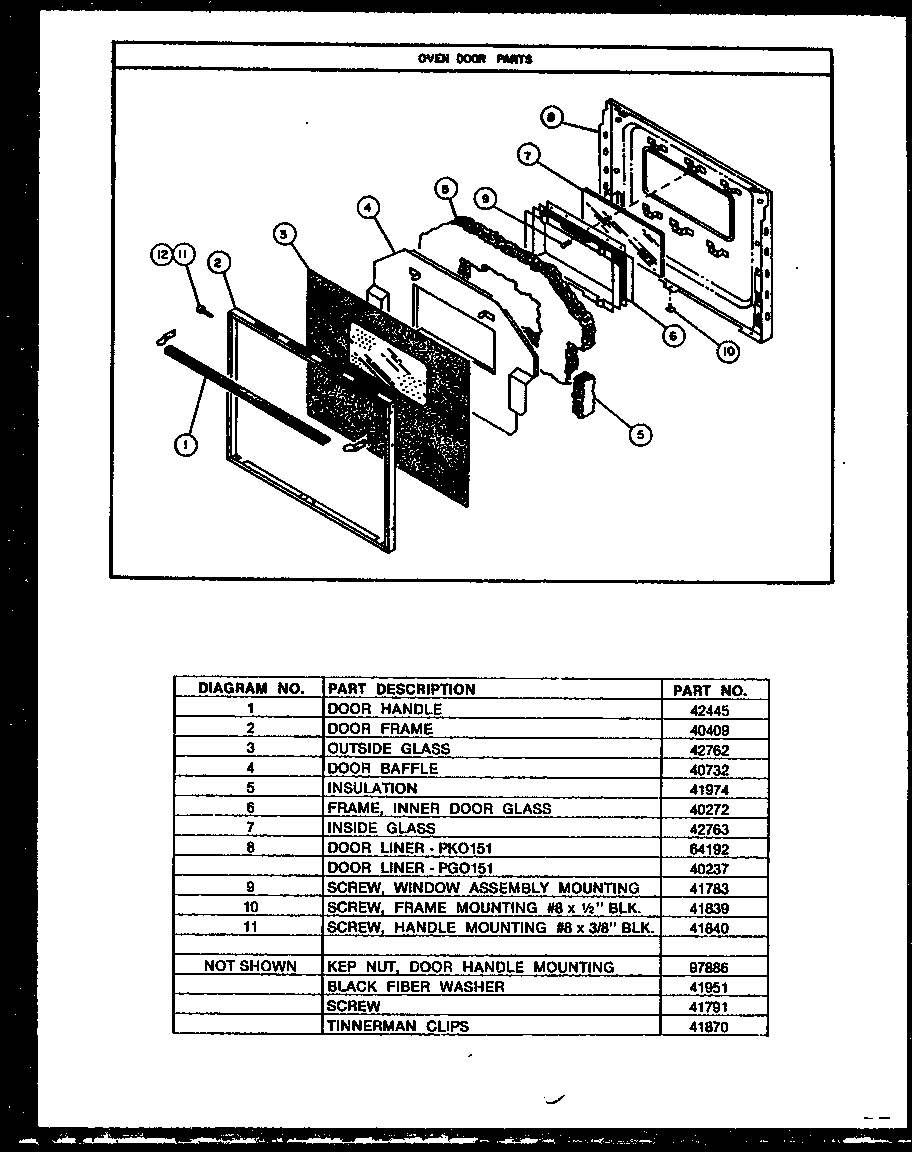

Oven door parts diagram
Frame, inner door glass
Part #40272
The manufacturer no longer makes this part, and there's no substitute part
#1

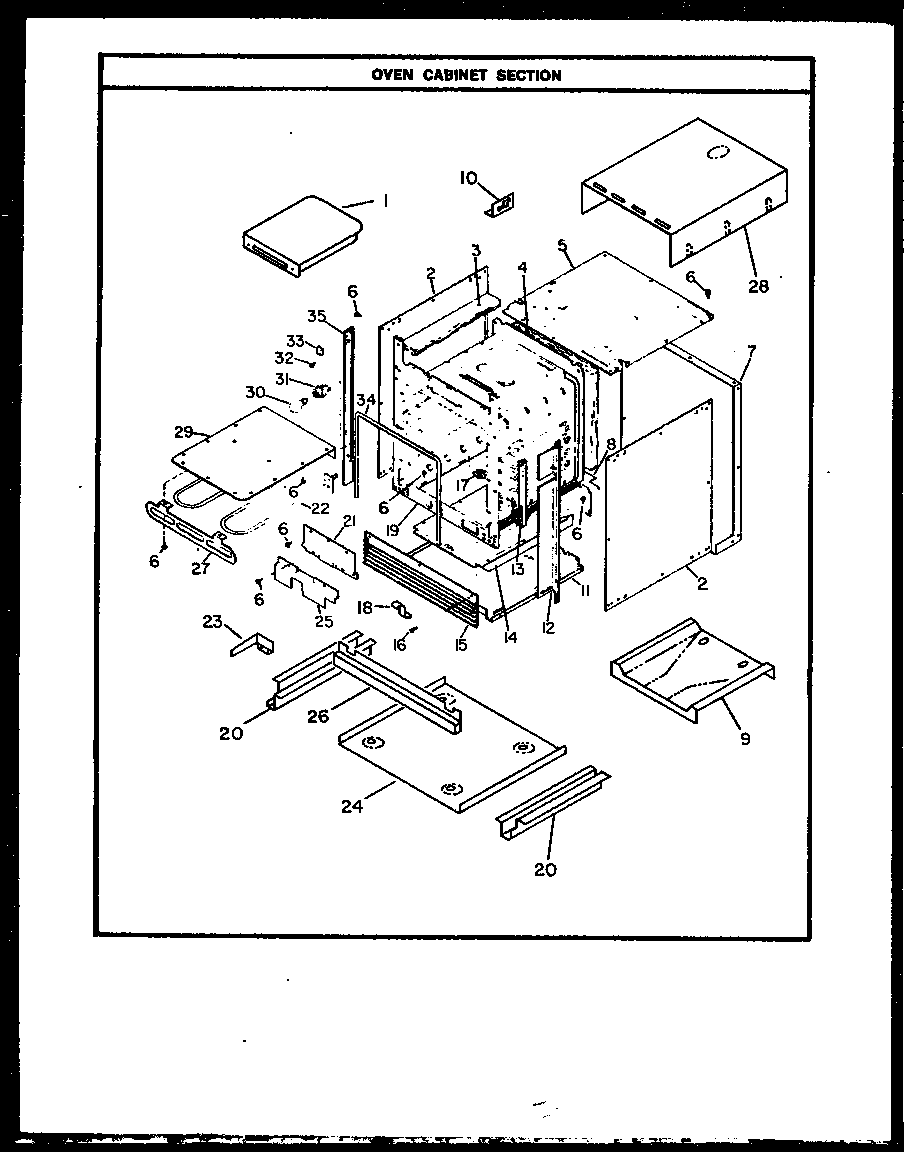

Oven cabinet section diagram
Flue box
Part #40572
The manufacturer no longer makes this part, and there's no substitute part
#7

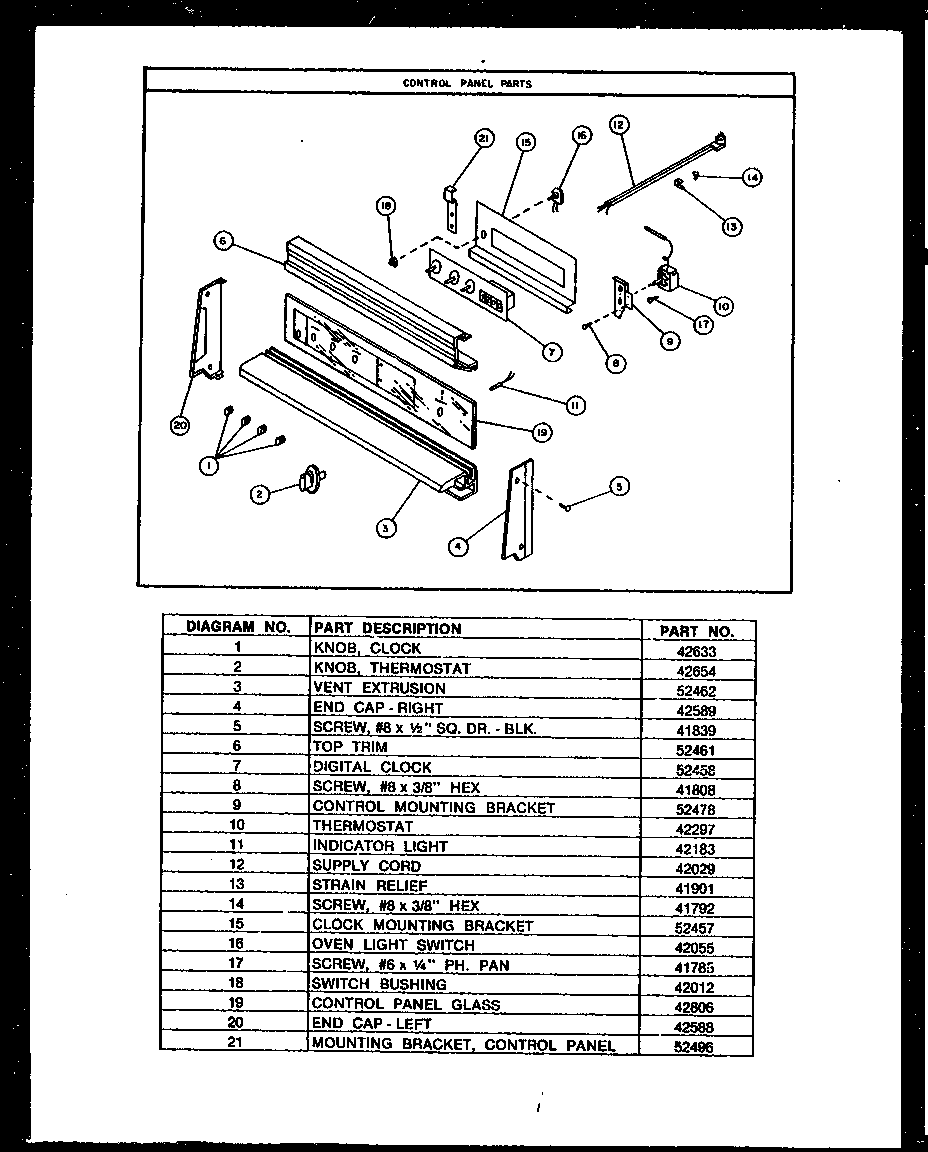

Controls diagram
Digital clock
Part #52458
The manufacturer no longer makes this part, and there's no substitute part
#10

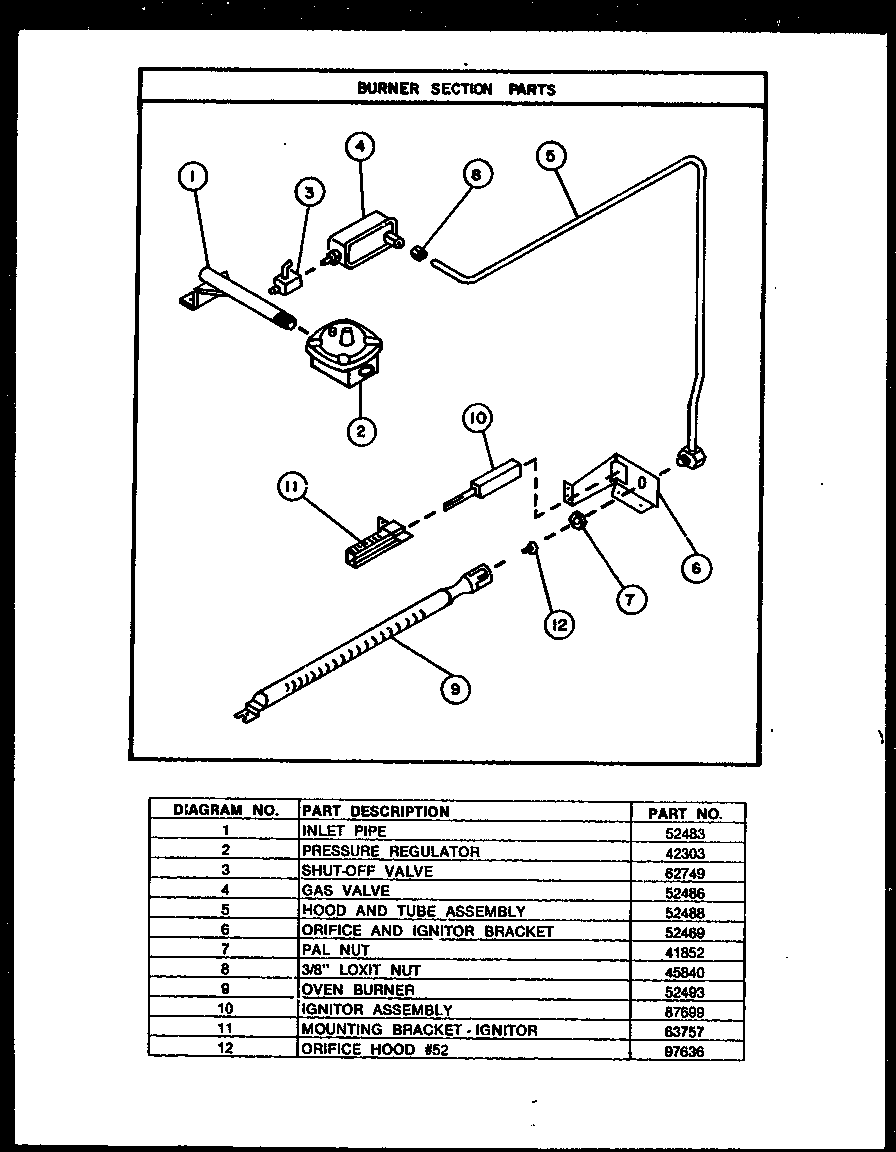

Burner section parts diagram
Igniter
Part #87699
The manufacturer no longer makes this part, and there's no substitute part
#4

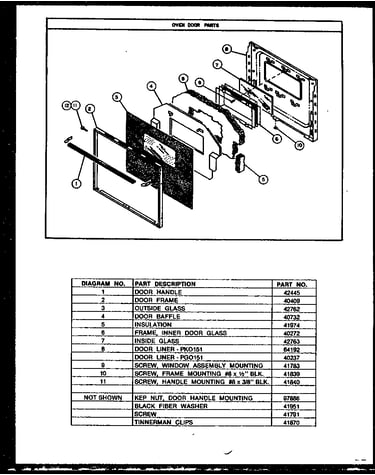

Oven door parts diagram
Door baffle
Part #40732
The manufacturer no longer makes this part, and there's no substitute part
#31
Oven cabinet section diagram
Oven lamp socket
Part #73028
The manufacturer no longer makes this part, and there's no substitute part
#8

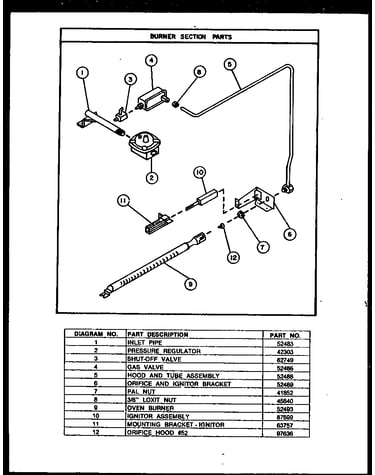

Burner section parts diagram
3/8" loxit nut
Part #45840
The manufacturer no longer makes this part, and there's no substitute part
#3
Burner section parts diagram
Shut-off valve
Part #62749
The manufacturer no longer makes this part, and there's no substitute part
#3
Oven / broiler parts diagram
Oven broiler pan
Part #11161
The manufacturer no longer makes this part, and there's no substitute part
