Maytag
Electric Wall Oven

Model # MEW6530AAB Official Maytag electric wall oven

Here are the diagrams and repair parts for Official Maytag MEW6530AAB electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

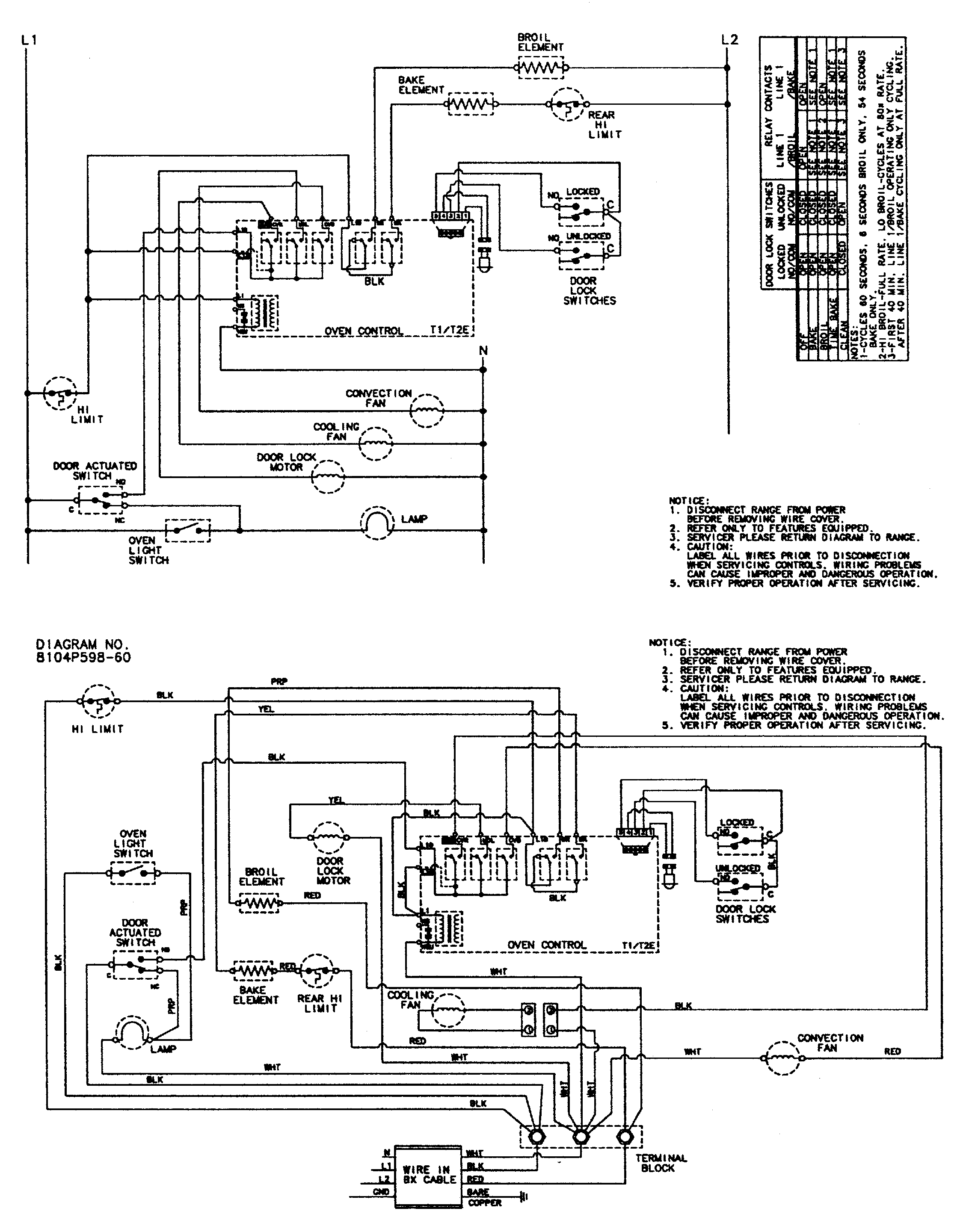

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Oven Bulb 7407P103-60
#14

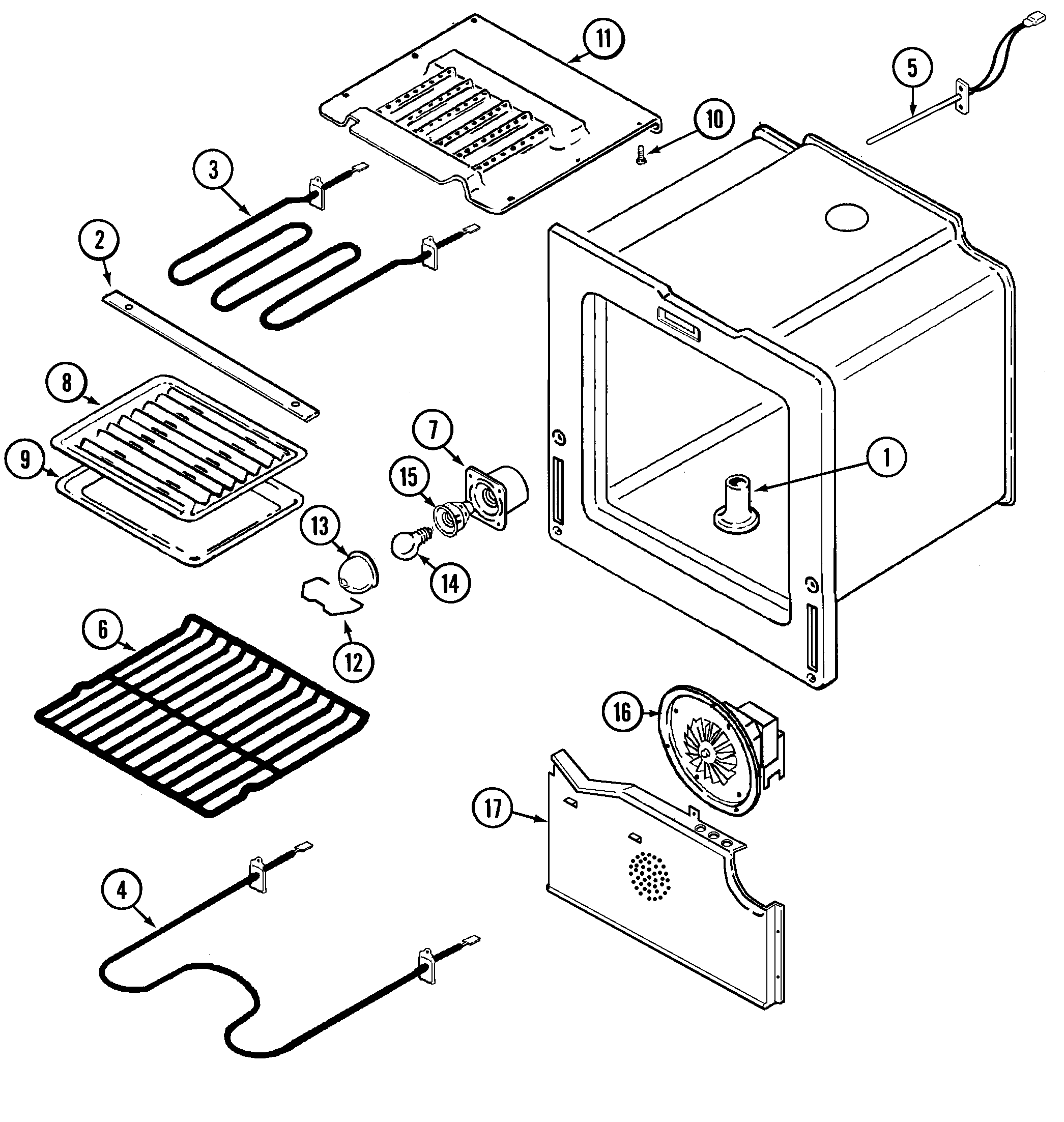

Oven/base diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Terminal Block 7401P038-60
#14

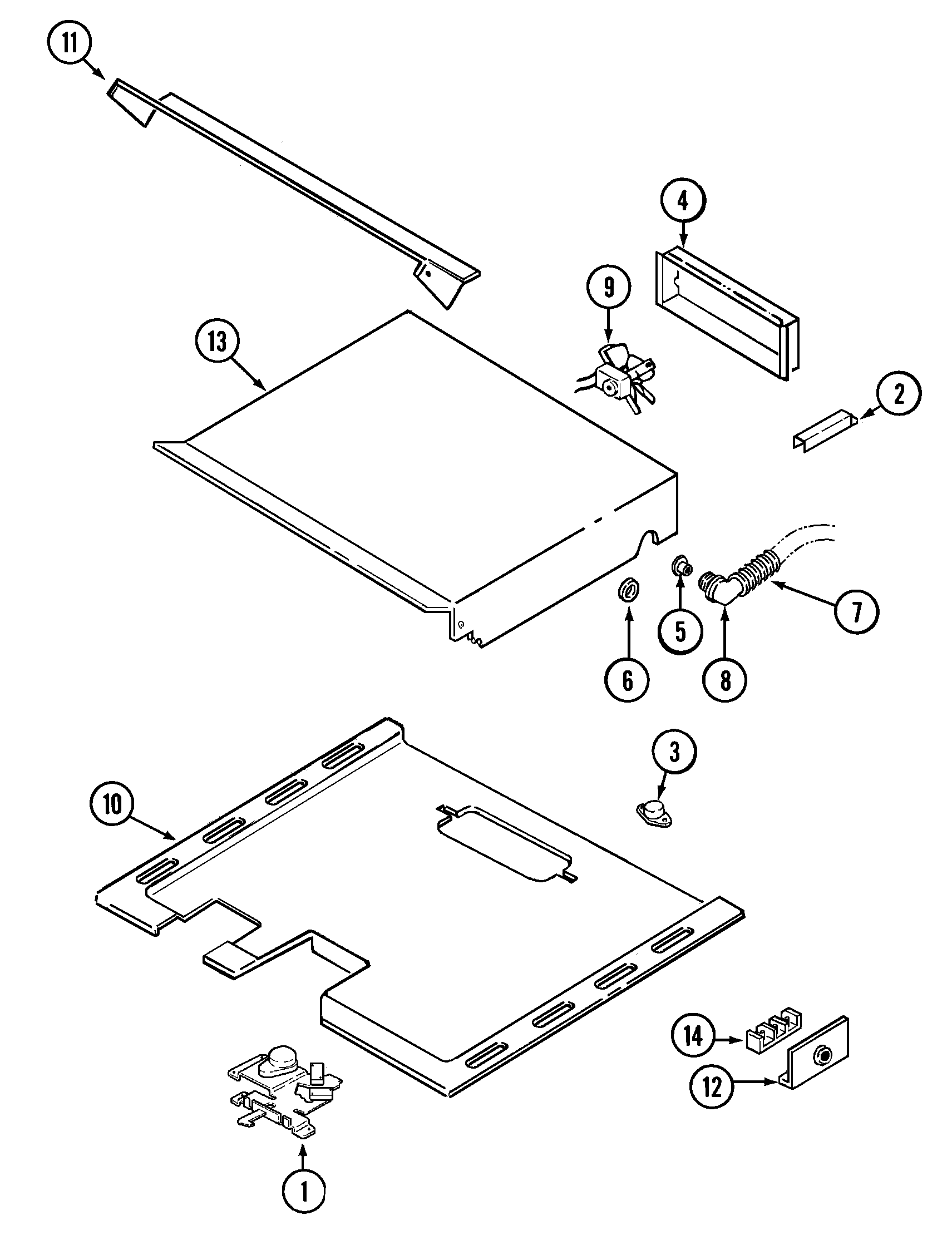

Internal controls diagram

Terminal block

Part #7401P038-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P038-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Oven Sensor 74003390
#5

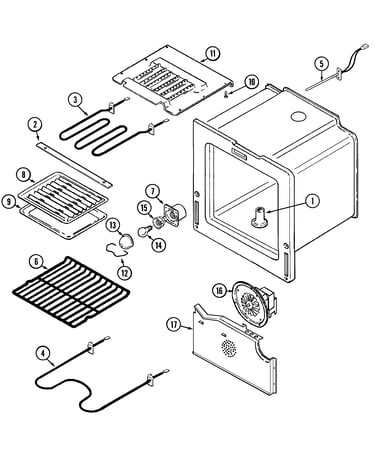

Oven/base diagram

Oven sensor

Part #74003390

Replaced by #12001656

?
Manufacturer substitution
This part replaces 74003390. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Door Gasket 7201P046-60
#4

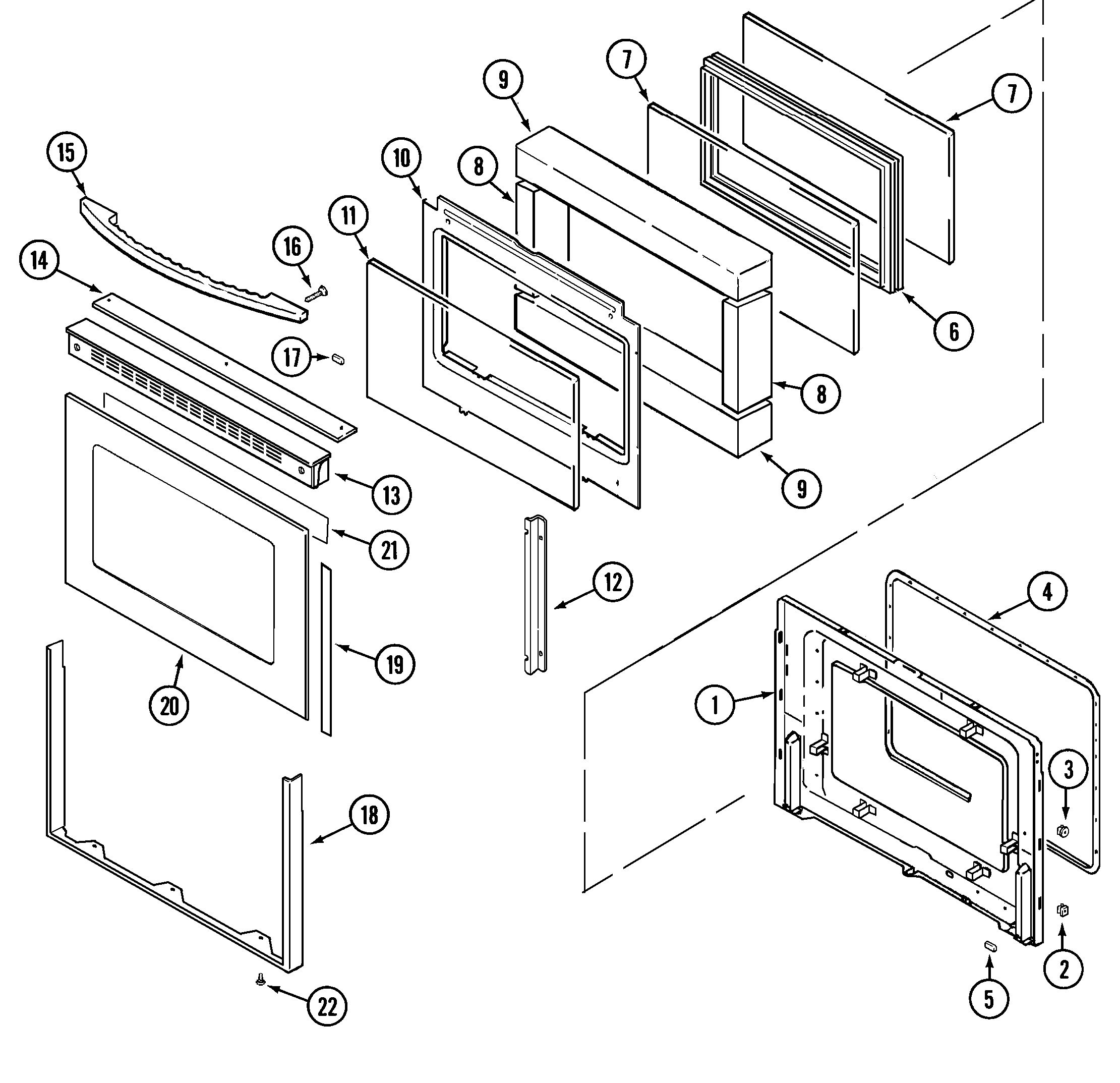

Door diagram

Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
BEST SELLER
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Screw 74001530
Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P313-60
#3A

Internal controls diagram

Screw

Part #7101P313-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P313-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P282-60
#8

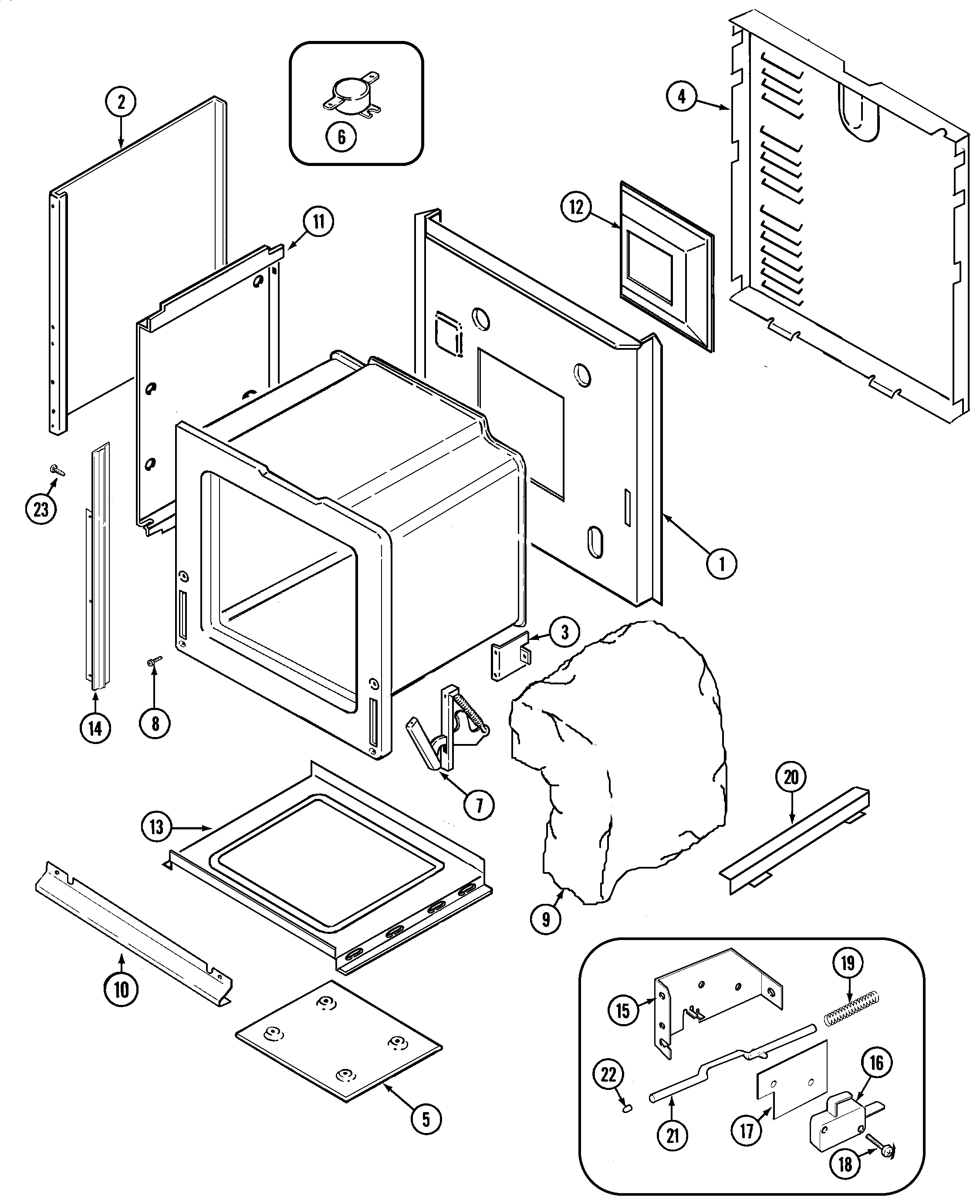

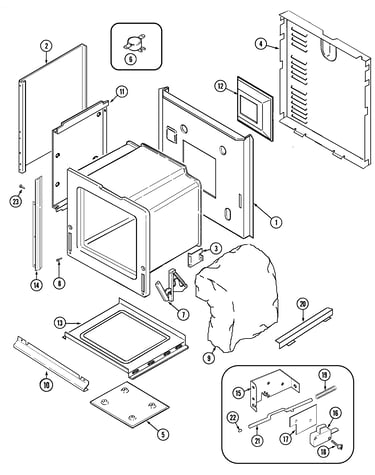

Body diagram

Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Oven Hinge 74003968
#7

Body diagram

Oven hinge

Part #74003968

Replaced by #WP74011141

?
Manufacturer substitution
This part replaces 74003968. Substitute parts can look different from the original.
$85.27 |
7% OFF Phone Price : $91.27
In Stock
Hinge Screw 7101P270-60
#10

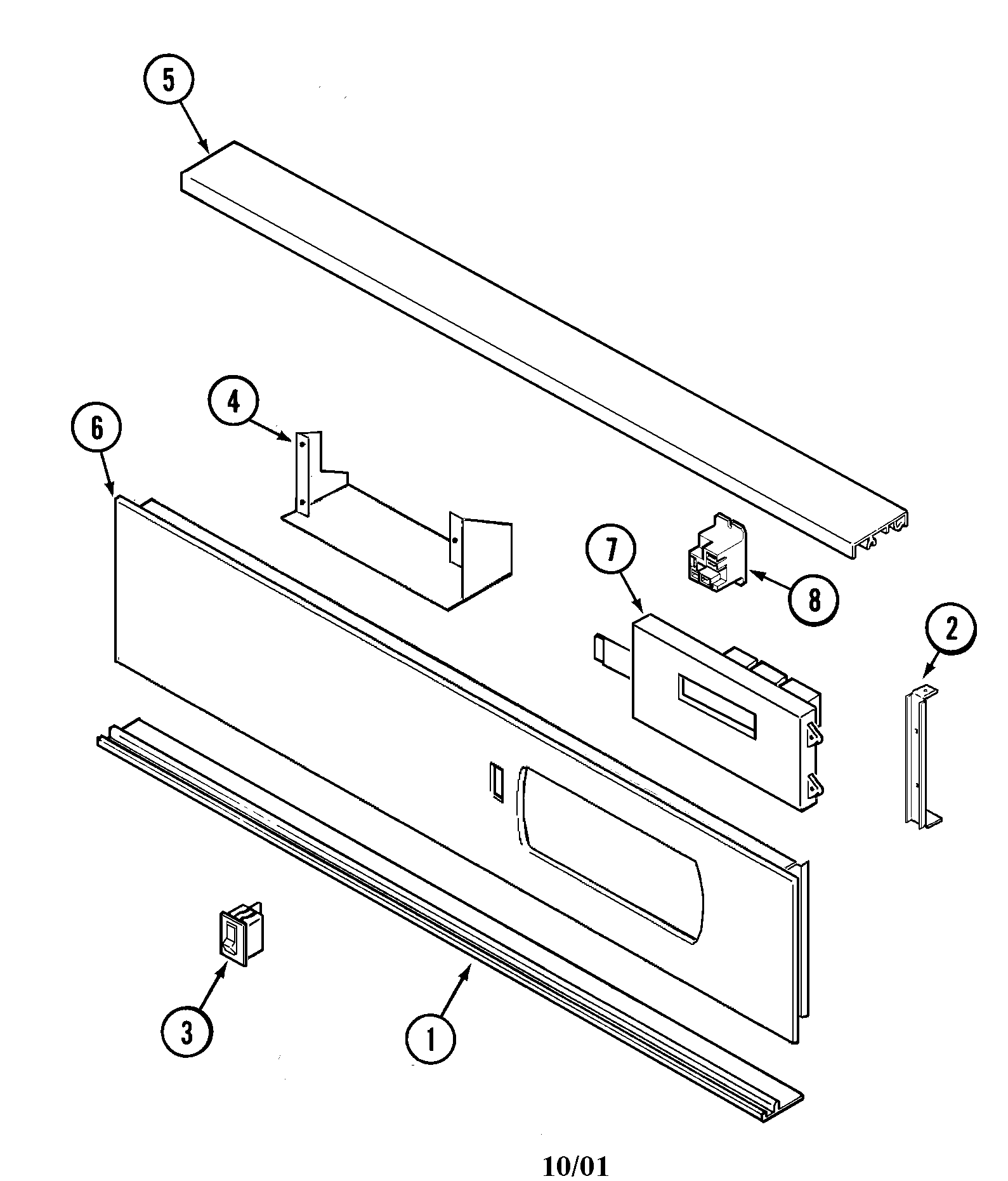

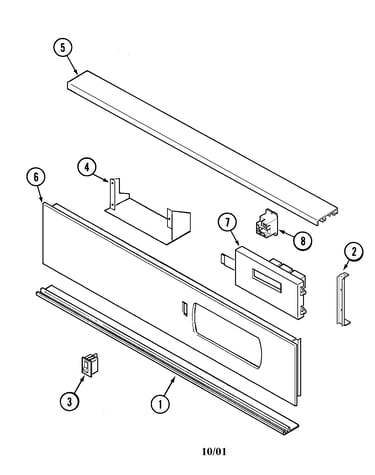

Control panel diagram

Hinge screw

Part #7101P270-60

Replaced by #W10828565

?
Manufacturer substitution
This part replaces 7101P270-60. Substitute parts can look different from the original.
This item is not returnable
$5.29 |
16% OFF Phone Price : $6.29
In Stock
Range Oven Door Vent (black) 74003652
#13

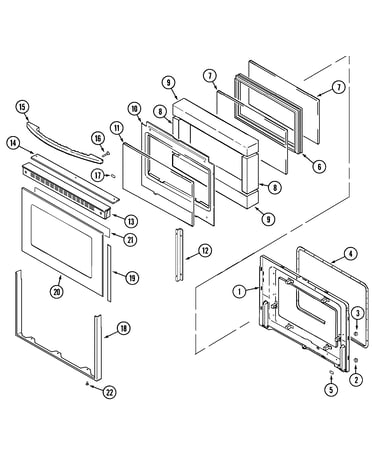

Door diagram

Range oven door vent (black)

Part #74003652

Replaced by #WP74003652

?
Manufacturer substitution
This part replaces 74003652. Substitute parts can look different from the original.
$102.11 |
11% OFF Phone Price : $114.11
In Stock
