Gas Range

Model # MGF324SEDD Official Universal/Multiflex (Frigidaire) gas range & oven

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MGF324SEDD gas range & oven, as well as links to manuals and error code tables, if available.

By Schematic
By Part

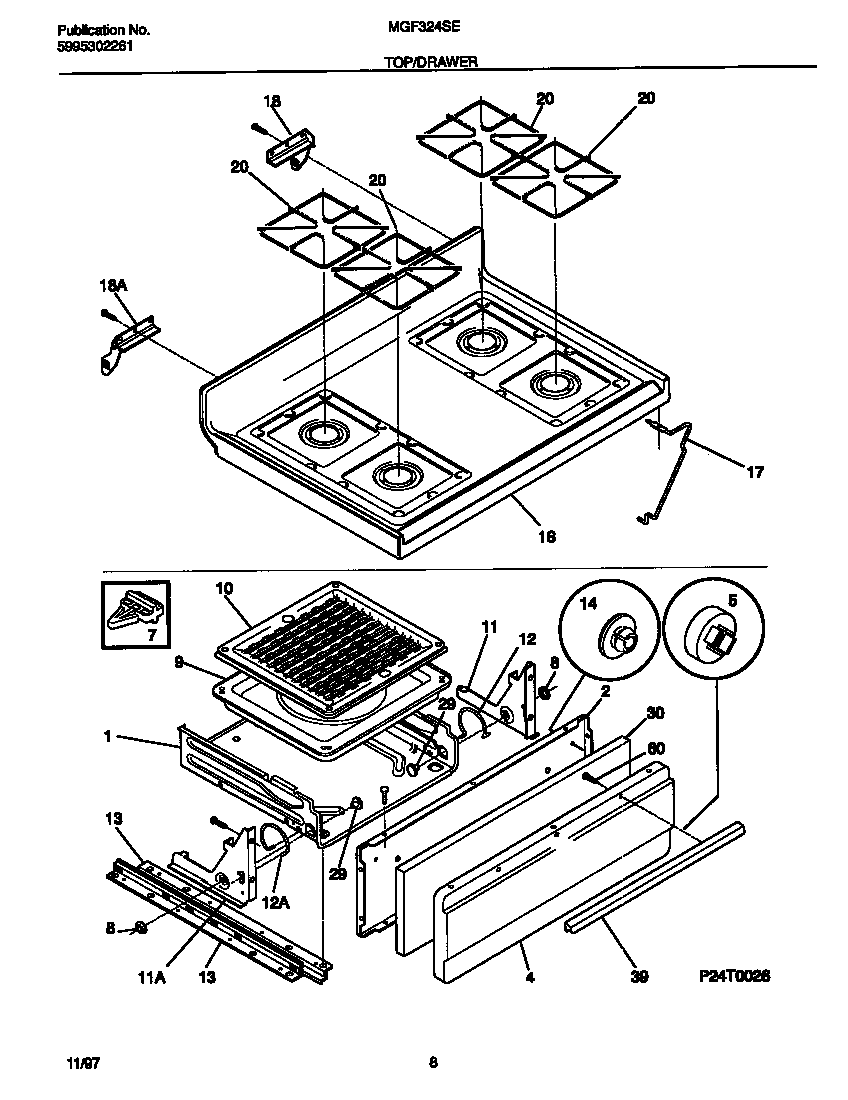

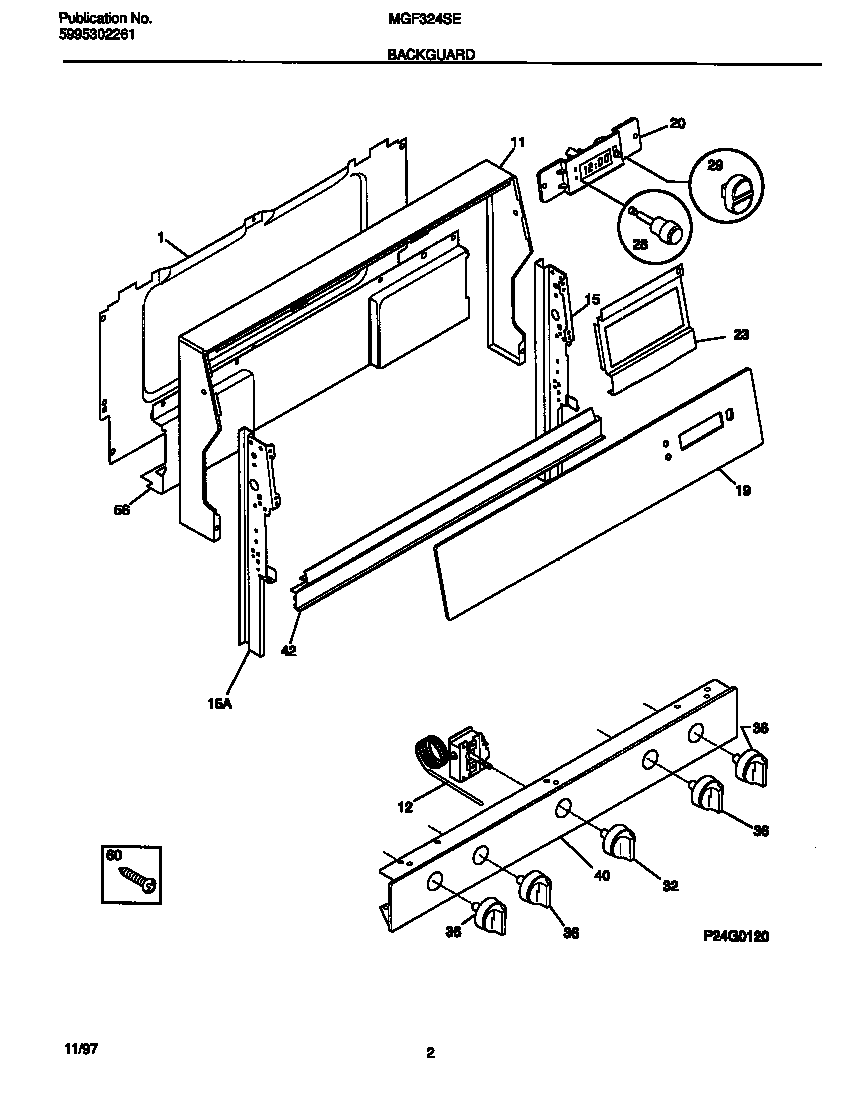

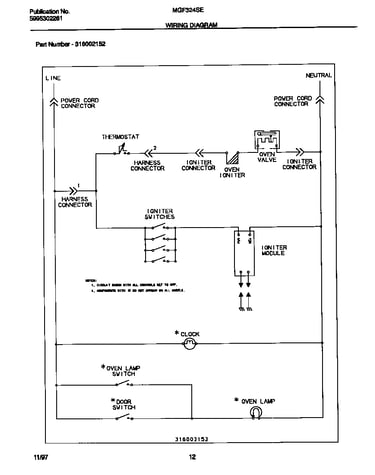

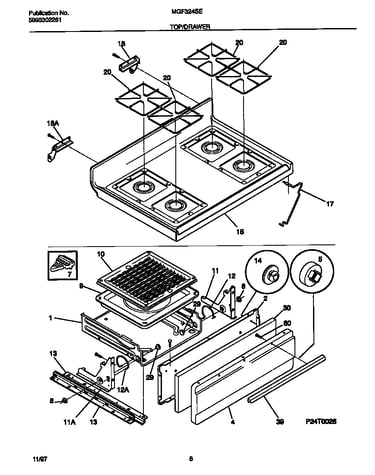

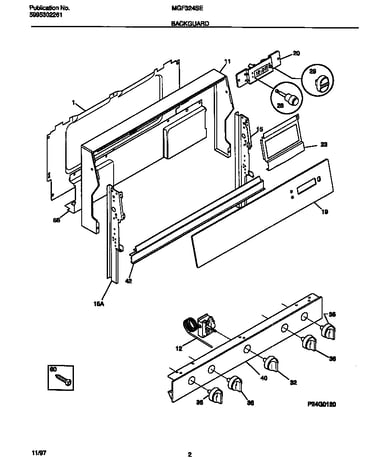

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
MGF324SEDD Ranges
Frigidaire Range Oven Burner Igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, Ap00205013, Ap205013, Ap205016, P205013, P205016, P205034) 5303935066
#19

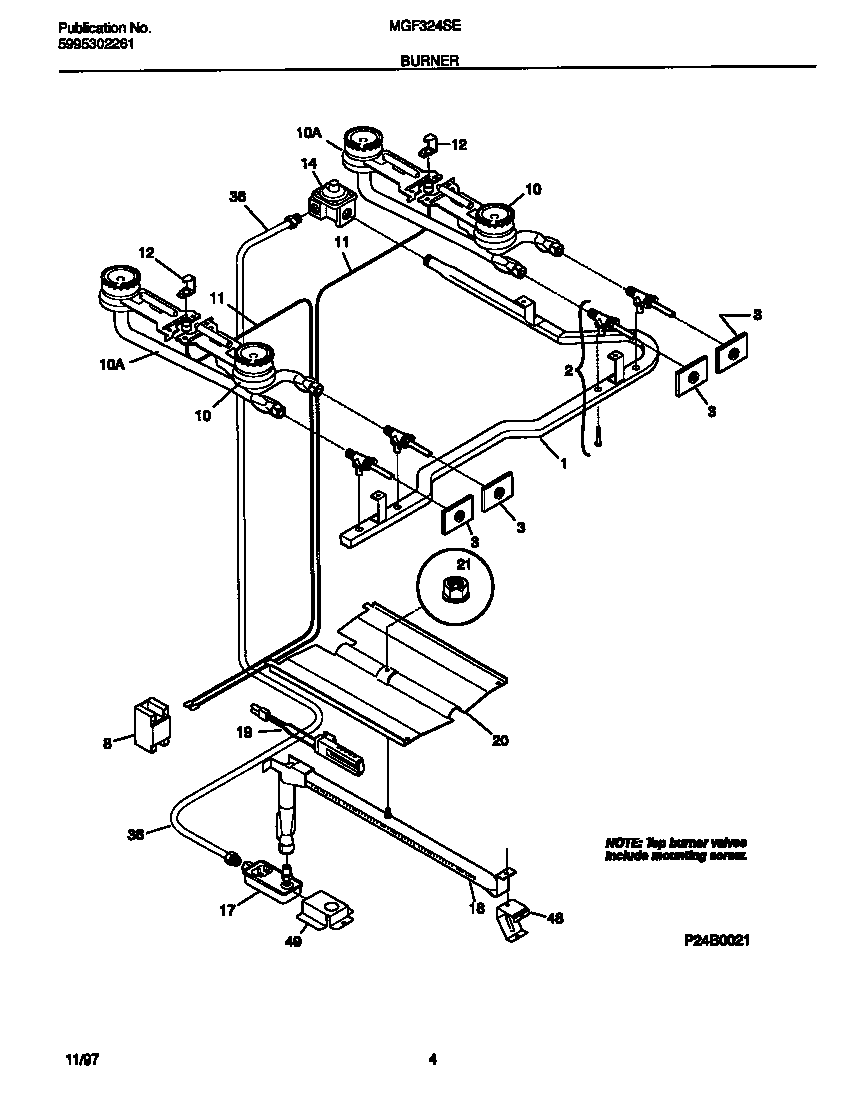

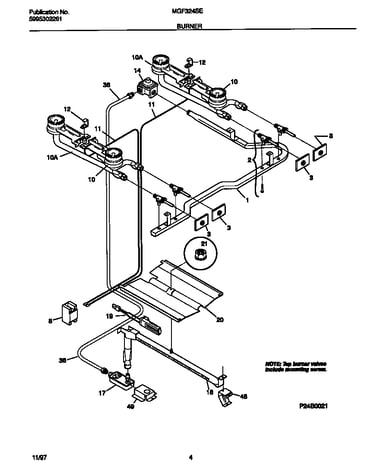

Burner diagram

Frigidaire range oven burner igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, ap00205013, ap205013, ap205016, p205013, p205016, p205034)

Part #5303935066

BEST SELLER
$33.33
15% OFF Phone Price : $39.33
In Stock
Range Oven Rack 316067902
#6

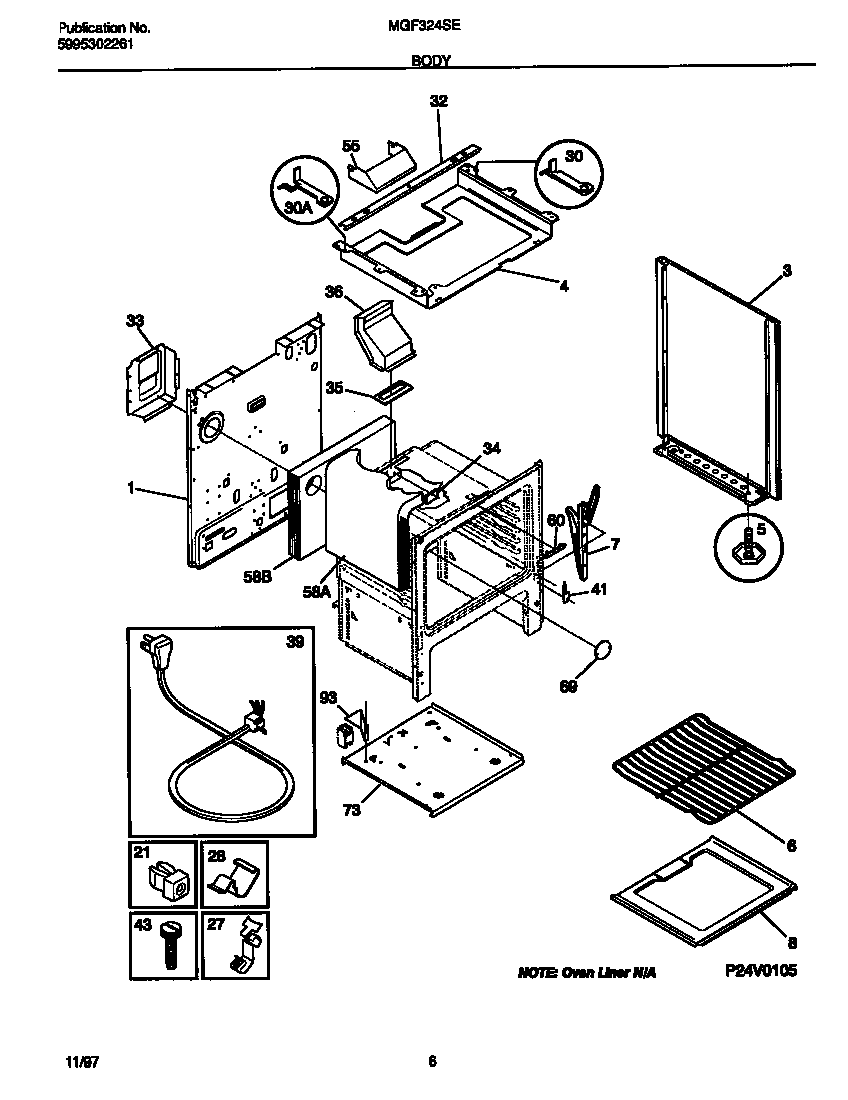

Body diagram

Range oven rack

Part #316067902

$76.35
7% OFF Phone Price : $82.35
In Stock
Range Screw 3131732
#43

Body diagram

Range screw

Part #3131732

Replaced by #316282700

?
Manufacturer substitution
This part replaces 3131732. Substitute parts can look different from the original.
This item is not returnable
$10.53
16% OFF Phone Price : $12.53
In Stock
Range Surface Burner Assembly, Rear 316039003
#10

Burner diagram

Range surface burner assembly, rear

Part #316039003

Replaced by #5304506426

?
Manufacturer substitution
This part replaces 316039003. Substitute parts can look different from the original.
$80.51
7% OFF Phone Price : $86.51
In Stock
Range Pressure Regulator Bracket Screw 316021104
#14B

Burner diagram

Range pressure regulator bracket screw

Part #316021104

This item is not returnable
In Stock
Range Spark Module 5303912606
#8

Burner diagram

Range spark module

Part #5303912606

$104.47
10% OFF Phone Price : $116.47
In Stock
Range Screw 316089500
#17B

Burner diagram

Range screw

Part #316089500

This item is not returnable
In Stock
Range Oven Control Thermostat Bulb Clip 5303284616
#27

Body diagram

Range oven control thermostat bulb clip

Part #5303284616

This item is not returnable
$10.14
16% OFF Phone Price : $12.14
In Stock
Range Surface Burner Igniter Retainer 3016993
#12

Burner diagram

Range surface burner igniter retainer

Part #3016993

In Stock
Anti-tip Scr 316078600
#5C

Body diagram

Anti-tip scr

Part #316078600

Replaced by #316116000

?
Manufacturer substitution
This part replaces 316078600. Substitute parts can look different from the original.
This item is not returnable
$13.29
13% OFF Phone Price : $15.29
In Stock
