Thermador
Upright Freezer

Model # T18ID80NRP/48 Official Thermador freezer

Here are the diagrams and repair parts for Official Thermador T18ID80NRP-48 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

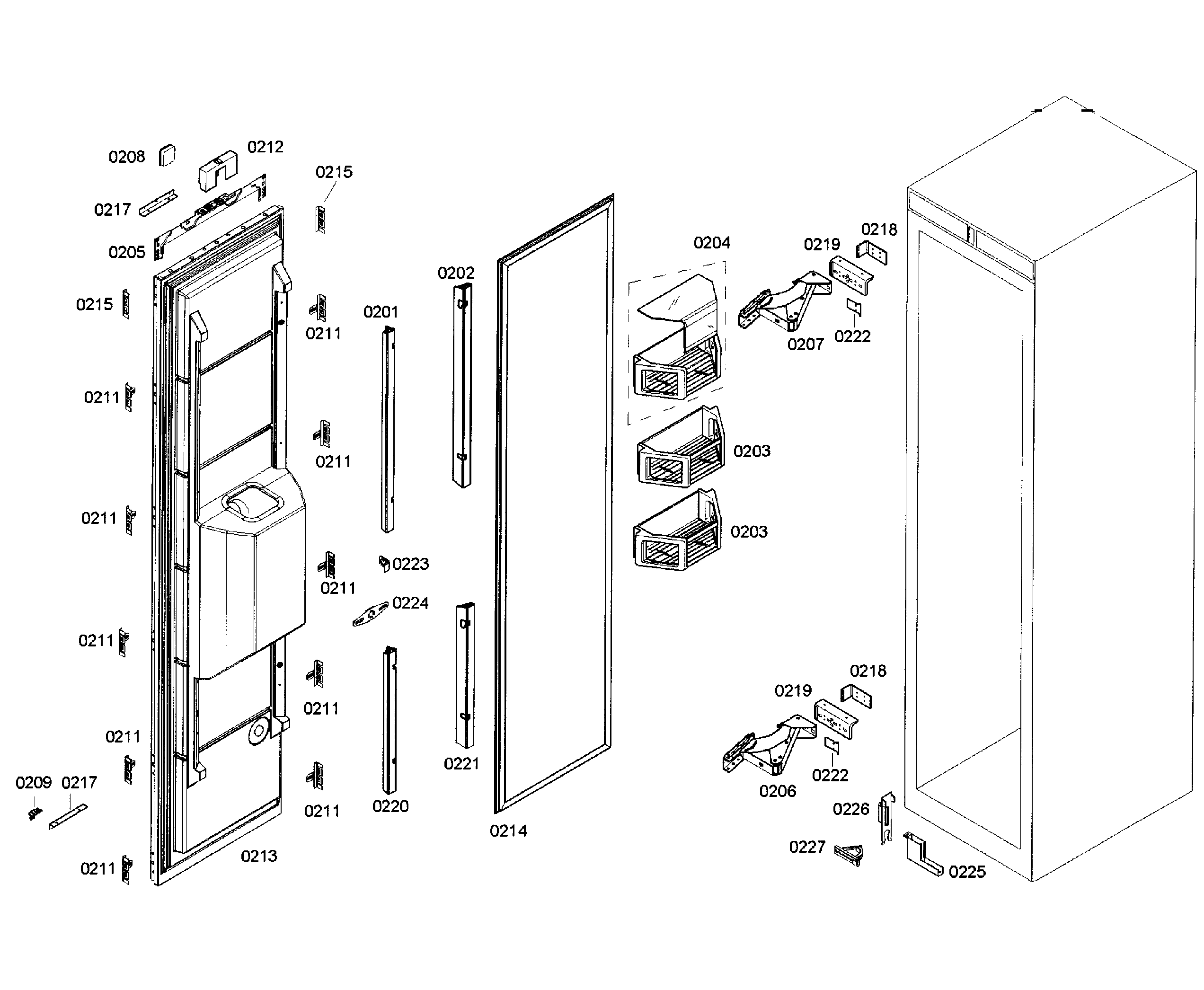

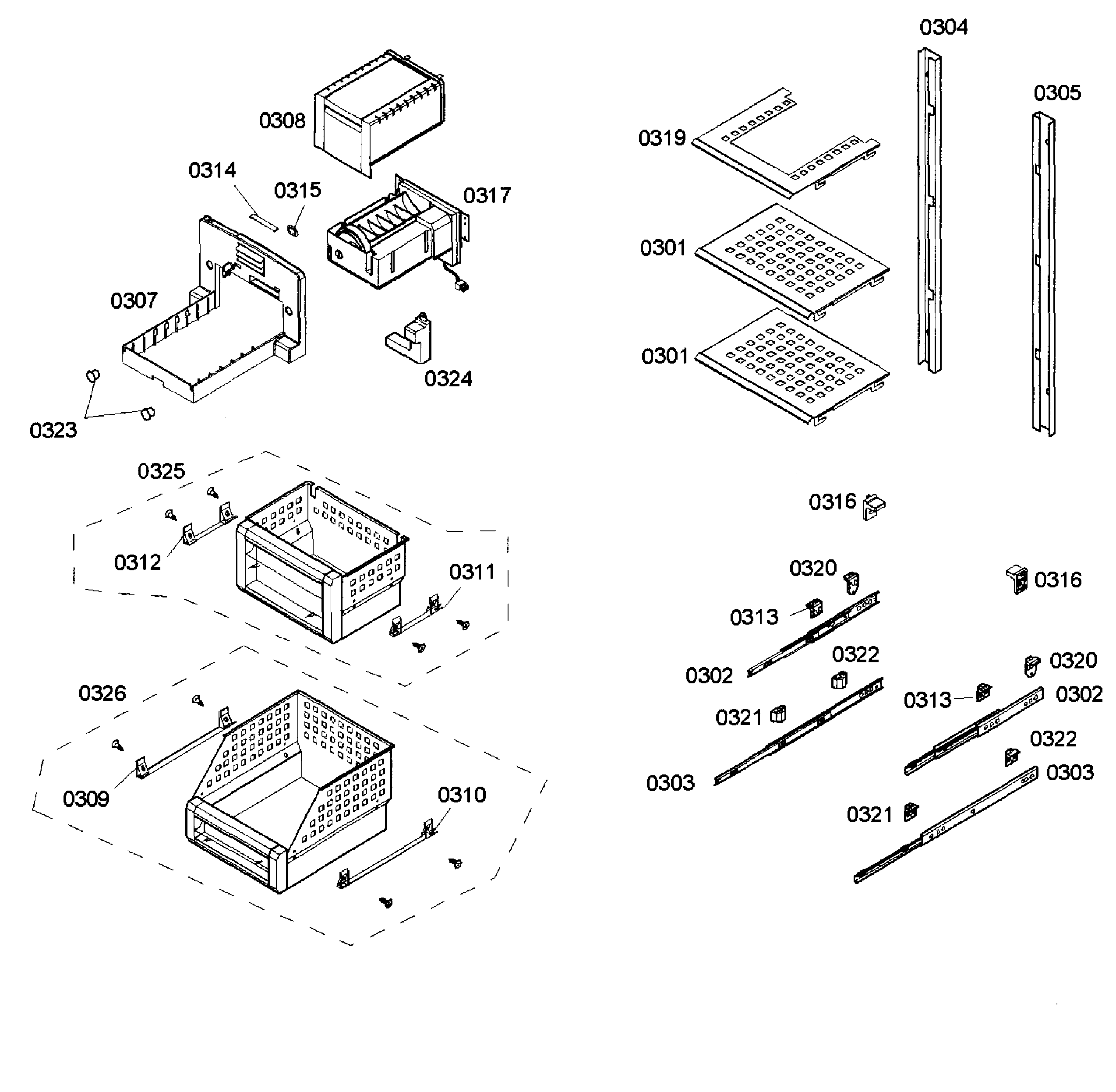

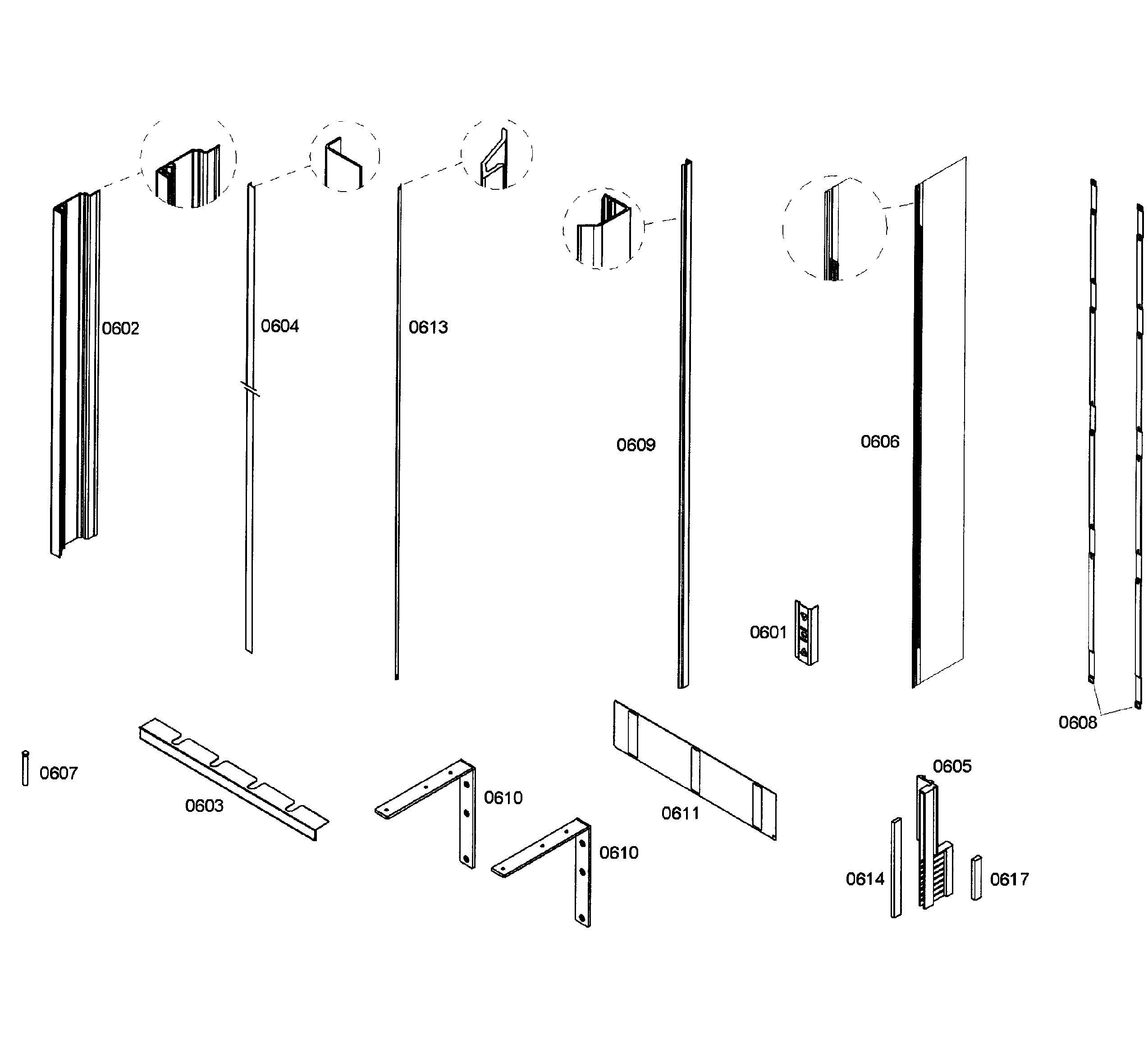

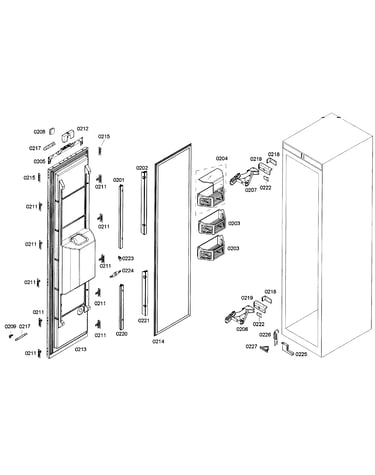

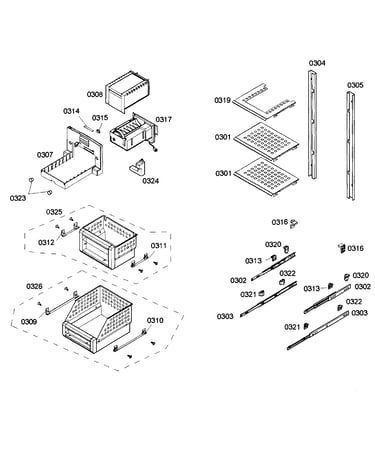

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |
Refrigerator Water Filter 641425
#411

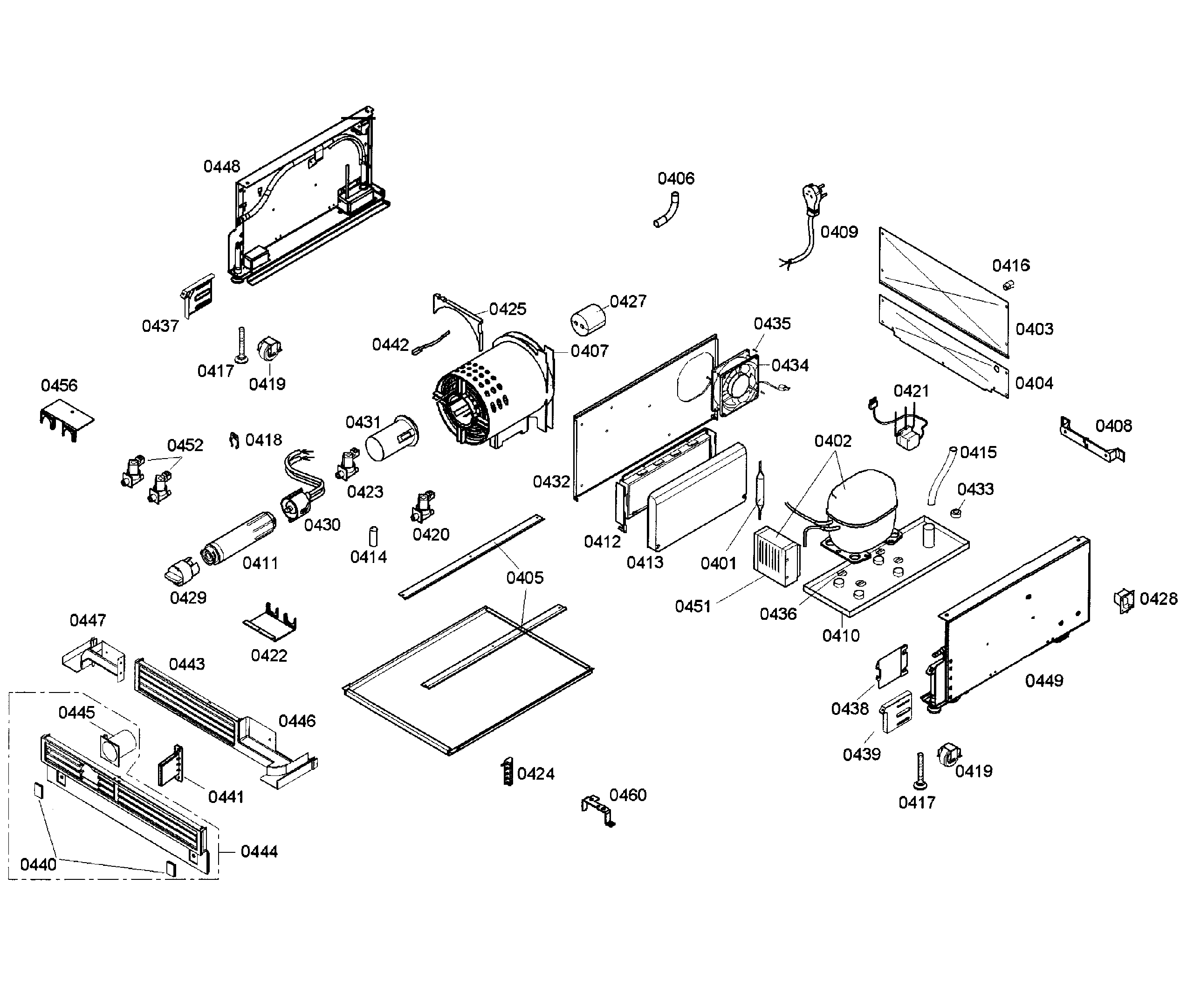

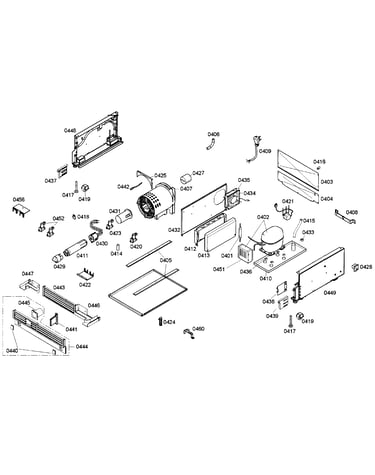

Compressor diagram

Refrigerator water filter

Part #641425

Replaced by #11034151

?
Manufacturer substitution
This part replaces 641425. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$89.19 |
6% OFF Phone Price : $95.19
In Stock
Sensor 617203
#130

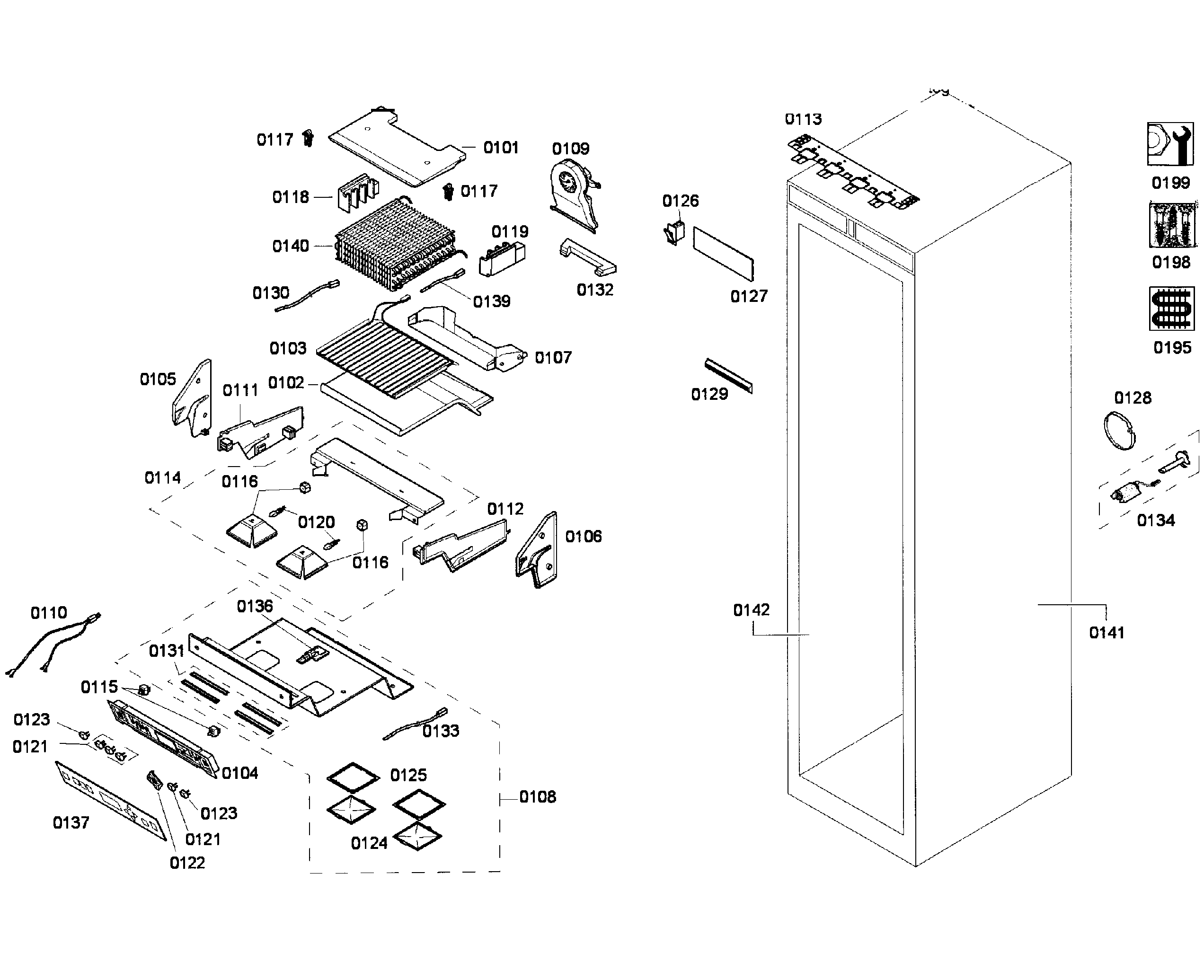

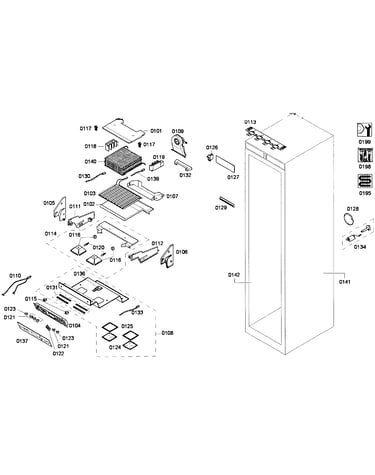

Cabinet parts diagram

Sensor

Part #617203

Replaced by #00617203

?
Manufacturer substitution
This part replaces 617203. Substitute parts can look different from the original.
This item is not returnable
$23.59 |
20% OFF Phone Price : $29.59
In Stock
Freezer Water Filter Cap 604684
#429

Compressor diagram

Freezer water filter cap

Part #604684

Replaced by #00604684

?
Manufacturer substitution
This part replaces 604684. Substitute parts can look different from the original.
$11.49 |
15% OFF Phone Price : $13.49
In Stock
Cover 499853
#413

Compressor diagram

Cover

Part #499853

Replaced by #00499853

?
Manufacturer substitution
This part replaces 499853. Substitute parts can look different from the original.
$50.89 |
11% OFF Phone Price : $56.89
In Stock
Freezer Water Valve 603967
#423

Compressor diagram

Freezer water valve

Part #603967

Replaced by #00639065

?
Manufacturer substitution
This part replaces 603967. Substitute parts can look different from the original.
$39.19 |
13% OFF Phone Price : $45.19
In Stock
Pc Board 654268
#532

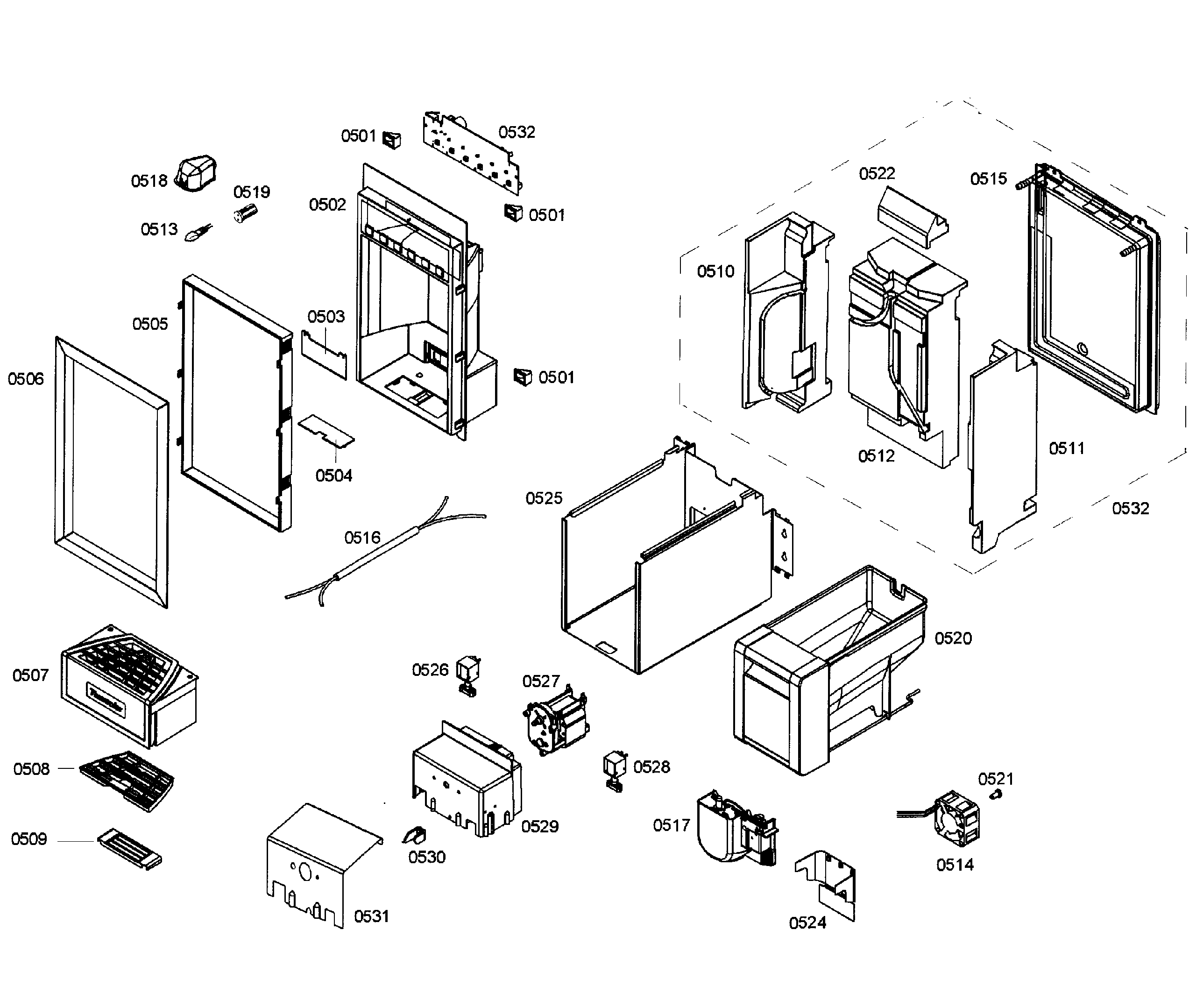

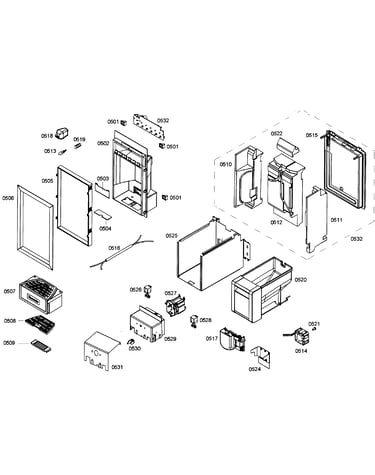

Dispenser diagram

Pc board

Part #654268

Replaced by #00654268

?
Manufacturer substitution
This part replaces 654268. Substitute parts can look different from the original.
$192.89 |
6% OFF Phone Price : $204.89
In Stock
Defrost Heater 686394
#103

Cabinet parts diagram

Defrost heater

Part #686394

Replaced by #11021376

?
Manufacturer substitution
This part replaces 686394. Substitute parts can look different from the original.
$212.38
In Stock
Holder 604674
#438

Compressor diagram

Holder

Part #604674

Replaced by #00604674

?
Manufacturer substitution
This part replaces 604674. Substitute parts can look different from the original.
$7.94
In Stock
Housing Pa 607364
#431

Compressor diagram

Housing pa

Part #607364

Replaced by #00607364

?
Manufacturer substitution
This part replaces 607364. Substitute parts can look different from the original.
This item is not returnable
$5.26
In Stock
Switch 168427
#115

Cabinet parts diagram

Switch

Part #168427

Replaced by #00168427

?
Manufacturer substitution
This part replaces 168427. Substitute parts can look different from the original.
$22.34
In Stock
