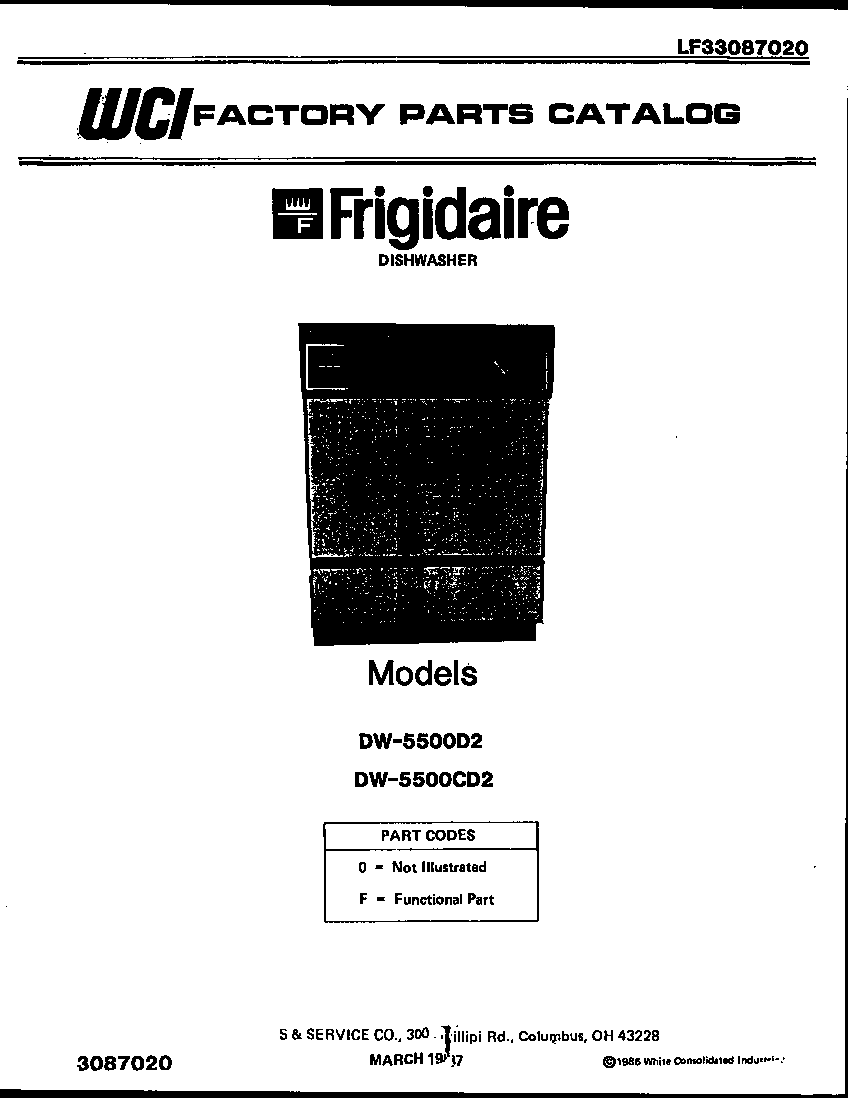

Model # DW5500CDW2 Official Frigidaire dishwasher - lf33087020
Here are the diagrams and repair parts for Official Frigidaire DW5500CDW2 dishwasher - lf33087020, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

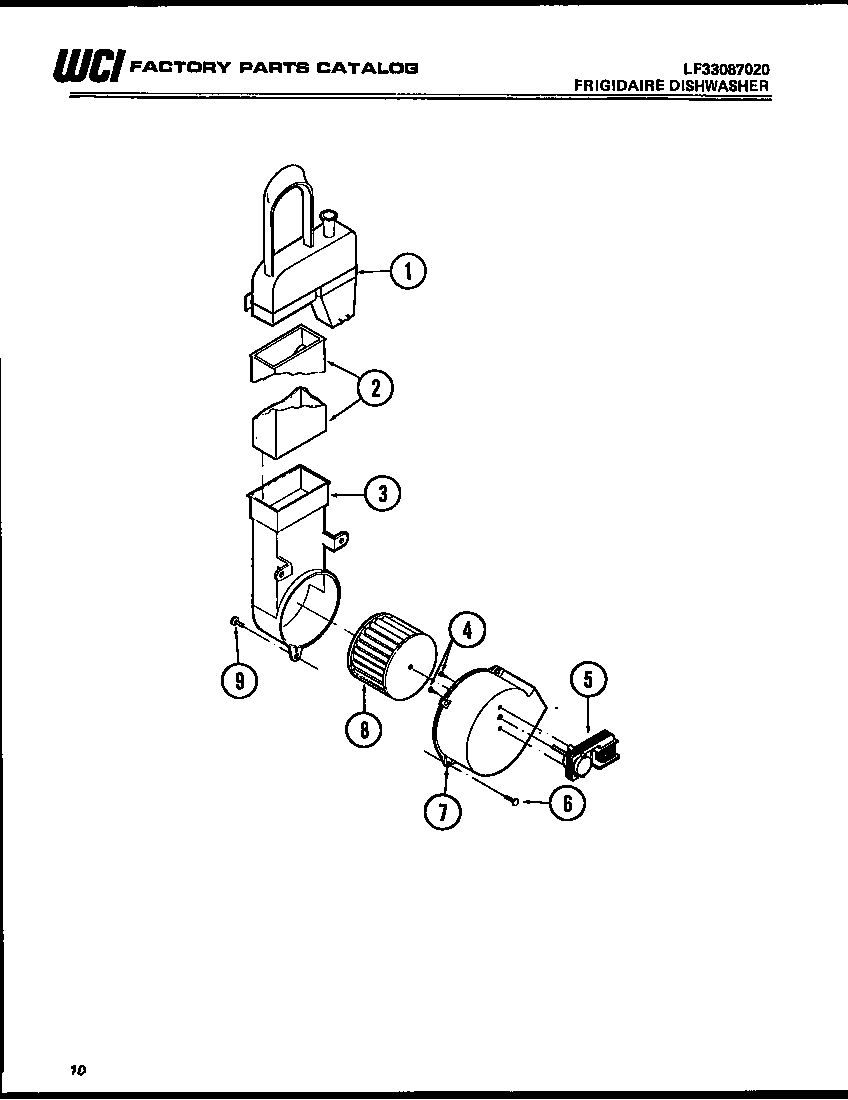

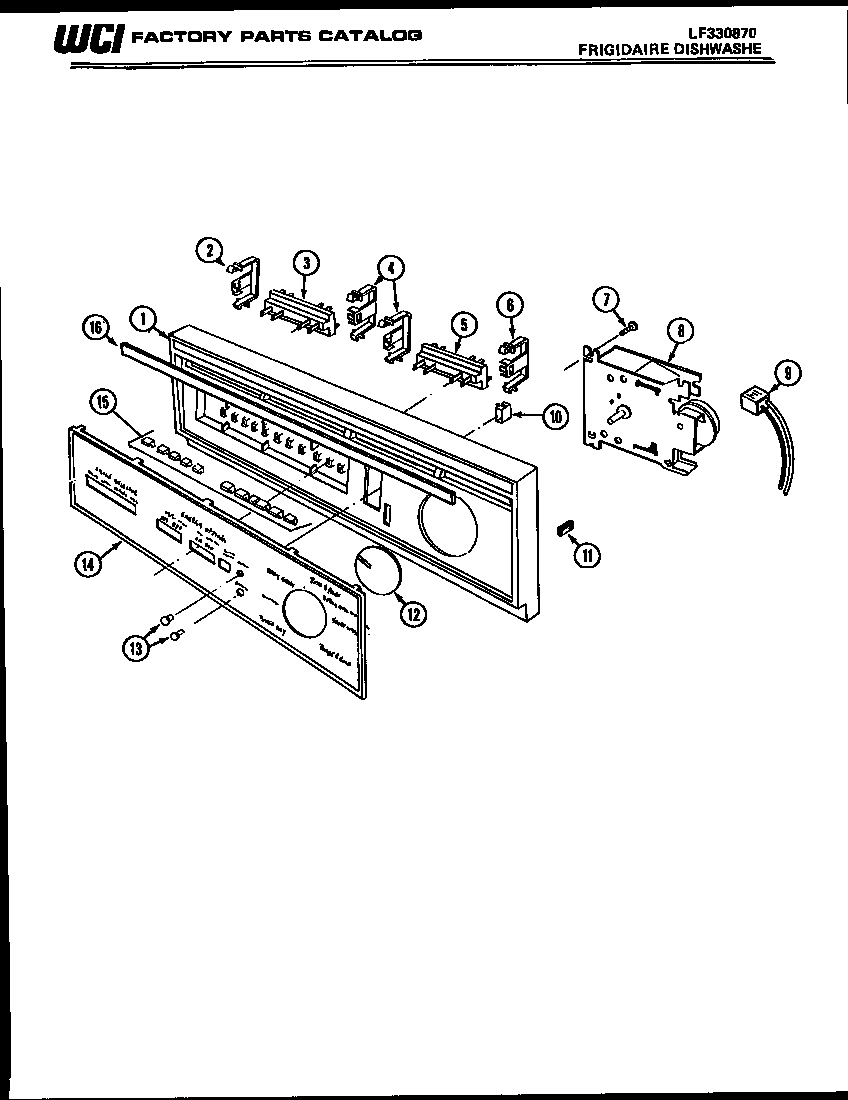

SELECT DIAGRAM
Browse Parts for
DW5500CDW2 Dishwasher - LF33087020
#24

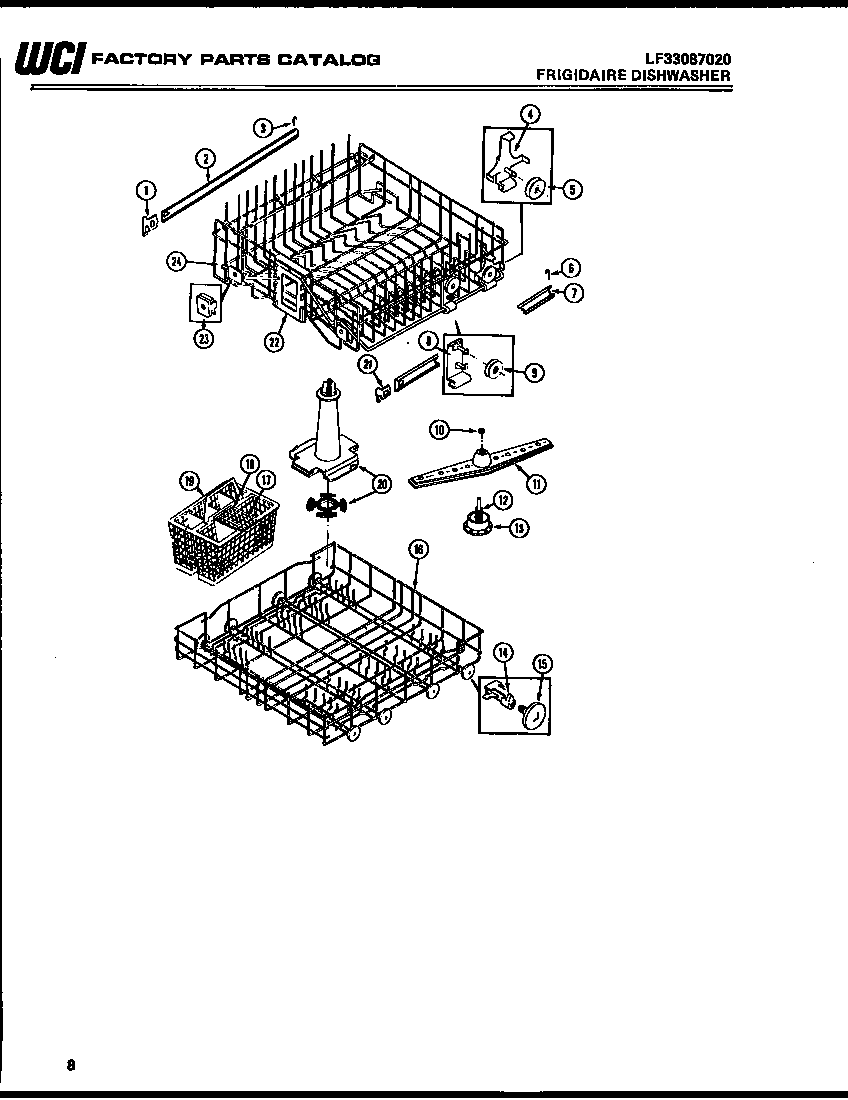

Racks and trays diagram
Upper rack
Part #8016071
The manufacturer no longer makes this part, and there's no substitute part
#4
Racks and trays diagram
Slide, rear
Part #8007042
The manufacturer no longer makes this part, and there's no substitute part
#5

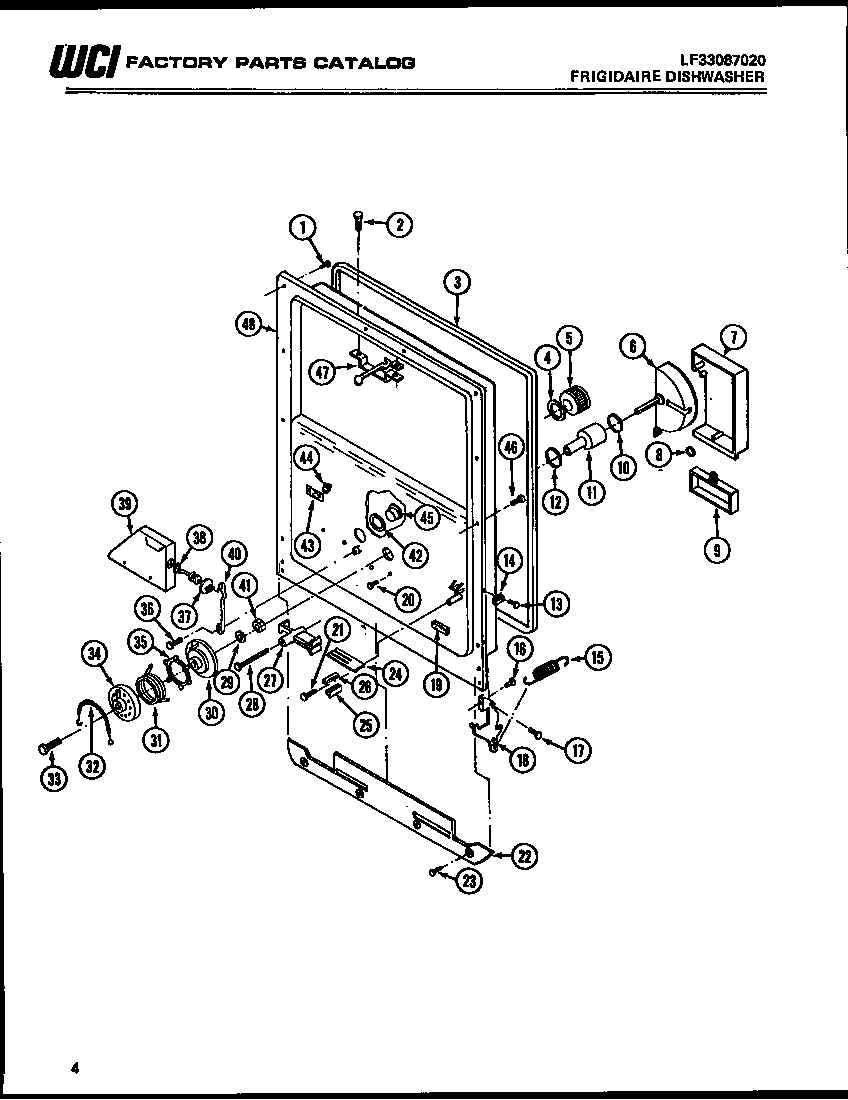

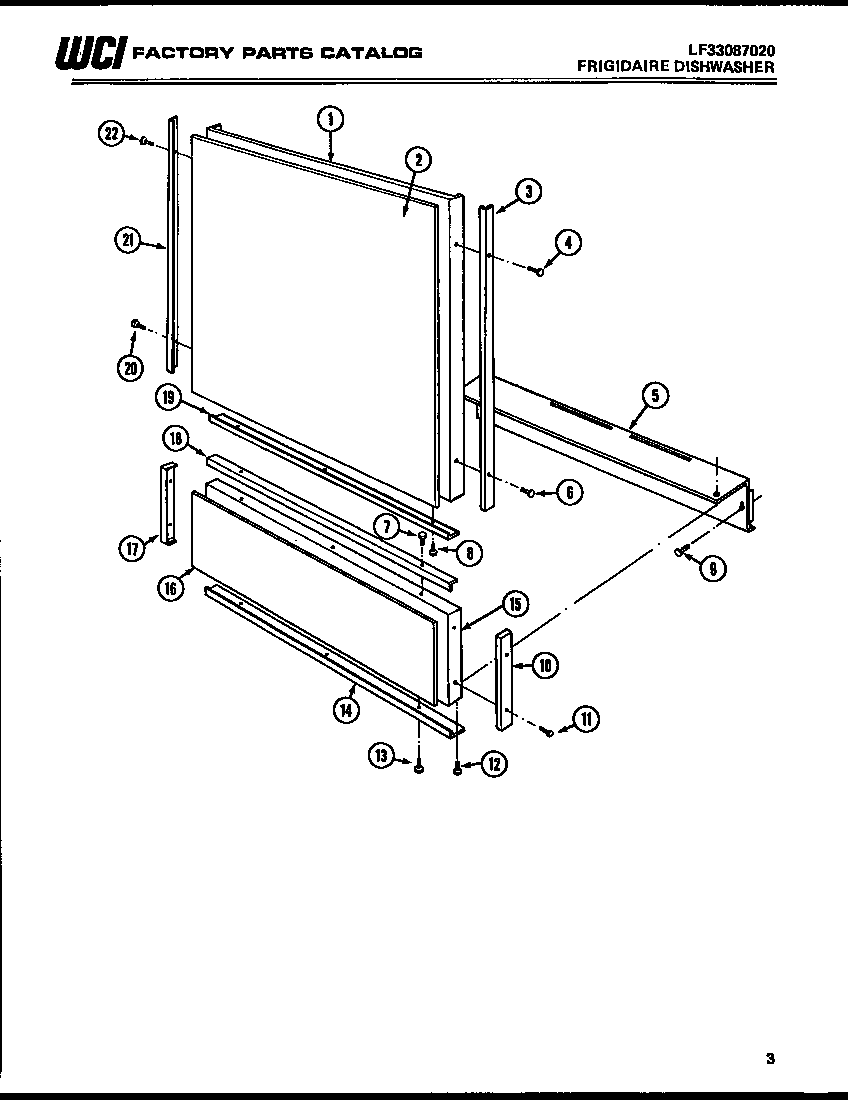

Door parts diagram
Cover
Part #8000663
The manufacturer no longer makes this part, and there's no substitute part
#26

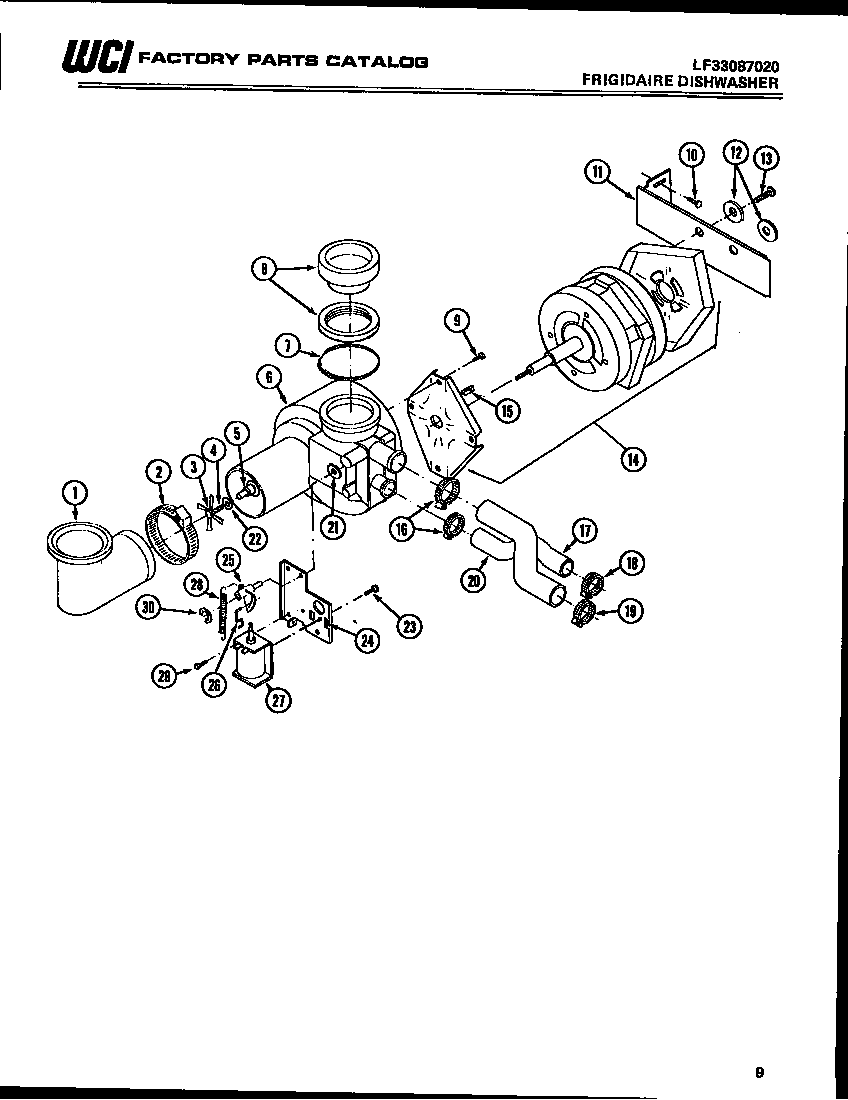

Motor pump parts diagram
Link
Part #8014816
The manufacturer no longer makes this part, and there's no substitute part
#13
Motor pump parts diagram
Screw
Part #8012492
The manufacturer no longer makes this part, and there's no substitute part
#37

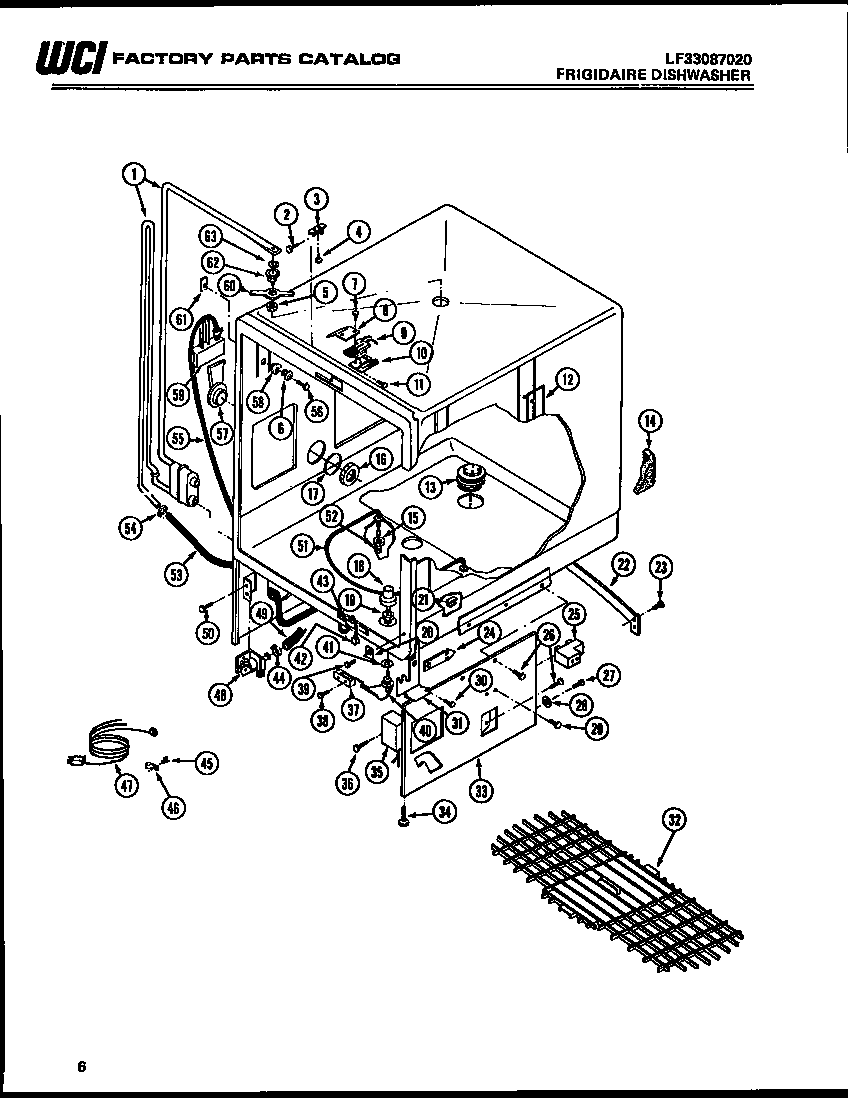

Tub parts diagram
Float switch
Part #8016030
The manufacturer no longer makes this part, and there's no substitute part
#11
Door parts diagram
Bearing
Part #8000574
The manufacturer no longer makes this part, and there's no substitute part
#44
Tub parts diagram
Clamp
Part #8000601
The manufacturer no longer makes this part, and there's no substitute part
Retainer
Part #8014854
The manufacturer no longer makes this part, and there's no substitute part
#22
Door parts diagram
Ret-gasket
Part #8016253
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your dishwashers
Choose a symptom to see related dishwasher repairs.
Main causes: broken door spring, damaged or broken door hinge…
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…
Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, contro…
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…
Main cause: damaged rack height adjuster…
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in was…
Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…
