Model # 79570322312 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 79570322312 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 186 parts  |
Refrigerator Filter Dryer ADH69749103
#317A

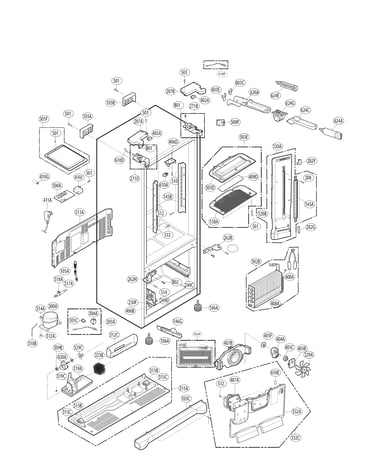

Case parts diagram

Refrigerator filter dryer

Part #ADH69749103

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces ADH69749103. Substitute parts can look different from the original.
BEST SELLER
$65.17 |
8% OFF Phone Price : $71.17
In Stock
Genuine Kenmore Refrigerator Water Filter 9690 ADQ36006102
#624A

Case parts diagram

Genuine kenmore refrigerator water filter 9690

Part #ADQ36006102

Replaced by #ADQ36006114

?
Manufacturer substitution
This part replaces ADQ36006102. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$67.95
In Stock
Refrigerator Ice Maker (replaces Aeq73110208) AEQ73110210
#600A

Ice maker parts diagram

Refrigerator ice maker (replaces aeq73110208)

Part #AEQ73110210

BEST SELLER
$166.25 |
7% OFF Phone Price : $178.25
In Stock
Refrigerator Dispenser Switch (replaces 6600jb3001b, 6600jb3001h) 6600JB3001C
#402C

Dispenser parts diagram

Refrigerator dispenser switch (replaces 6600jb3001b, 6600jb3001h)

Part #6600JB3001C

BEST SELLER
$34.88 |
15% OFF Phone Price : $40.88
In Stock
Refrigerator Dispenser Ice Chute Door Motor (replaces Eau59551201, Eau59551202, Eau59551203, Eau59551205, Eau59551207) EAU59551204
#405A

Dispenser parts diagram

Refrigerator dispenser ice chute door motor (replaces eau59551201, eau59551202, eau59551203, eau59551205, eau59551207)

Part #EAU59551204

BEST SELLER
$52.52 |
10% OFF Phone Price : $58.52
In Stock
Refrigerator Auger Motor EAU61843006
#612A

Ice maker parts diagram

Refrigerator auger motor

Part #EAU61843006

Replaced by #EAU61843018

?
Manufacturer substitution
This part replaces EAU61843006. Substitute parts can look different from the original.
BEST SELLER
$165.01 |
7% OFF Phone Price : $177.01
In Stock
Refrigerator Door Gasket MDS38201417
#203A

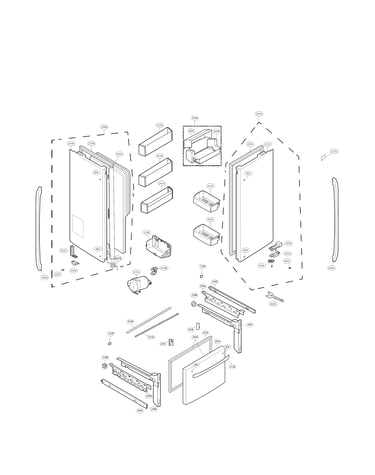

Door parts diagram

Refrigerator door gasket

Part #MDS38201417

Replaced by #MDS38201426

?
Manufacturer substitution
This part replaces MDS38201417. Substitute parts can look different from the original.
BEST SELLER
$55.82 |
10% OFF Phone Price : $61.82
In Stock
Refrigerator Ice Container Assembly AKC73249302
#611A

Ice maker parts diagram

Refrigerator ice container assembly

Part #AKC73249302

Replaced by #AKC73249304

?
Manufacturer substitution
This part replaces AKC73249302. Substitute parts can look different from the original.
BEST SELLER
$48.33 |
11% OFF Phone Price : $54.33
In Stock
Refrigerator Compressor Start Relay EBG60663213
#303A

Case parts diagram

Refrigerator compressor start relay

Part #EBG60663213

Replaced by #EBG60663230

?
Manufacturer substitution
This part replaces EBG60663213. Substitute parts can look different from the original.
BEST SELLER
$55.81 |
10% OFF Phone Price : $61.81
In Stock
Refrigerator Spring (replaces Mhy62044103) MHY62044106
#267A

Door parts diagram

Refrigerator spring (replaces mhy62044103)

Part #MHY62044106

BEST SELLER
$12.00 |
14% OFF Phone Price : $14.00
In Stock
