Kenmore
Gas Range

Model # 1037366600 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 1037366600 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

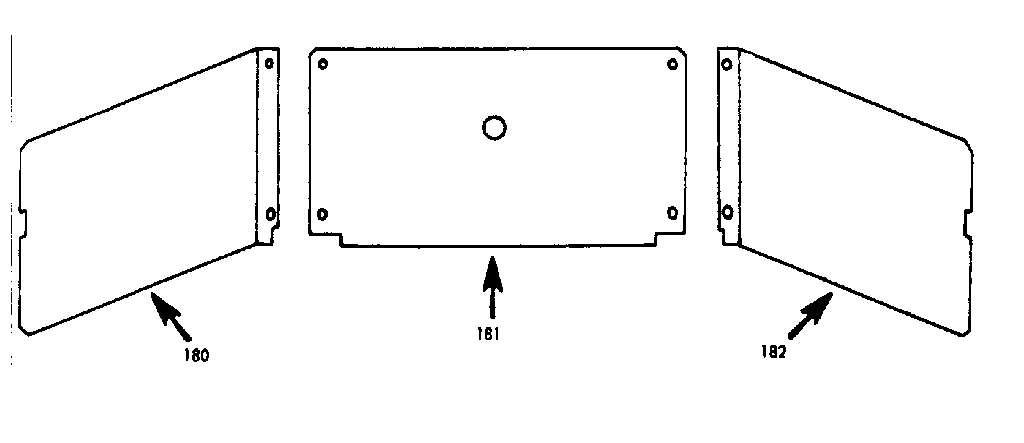

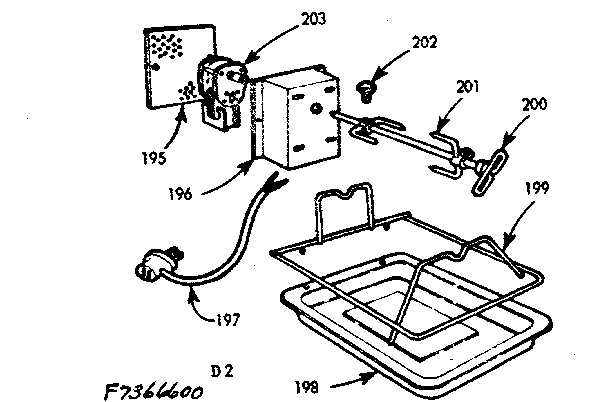

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 207 parts  |
Range Oven Light Bulb 111257

#NI

All parts diagram

Range oven light bulb

Part #111257

Replaced by #40A15

?
Manufacturer substitution
This part replaces 111257. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Trim Clip 70588
Trim clip

Part #70588

Replaced by #WB2X9573

?
Manufacturer substitution
This part replaces 70588. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Door Arm 97758
#142B

Body section diagram

Door arm

Part #97758

Replaced by #230872

?
Manufacturer substitution
This part replaces 97758. Substitute parts can look different from the original.
This item is not returnable
$6.99
In Stock
Glass Gasket 105025
#159

Body section diagram

Glass gasket

Part #105025

Replaced by #WB2X9168

?
Manufacturer substitution
This part replaces 105025. Substitute parts can look different from the original.
This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Loxit Nut 79719
#71

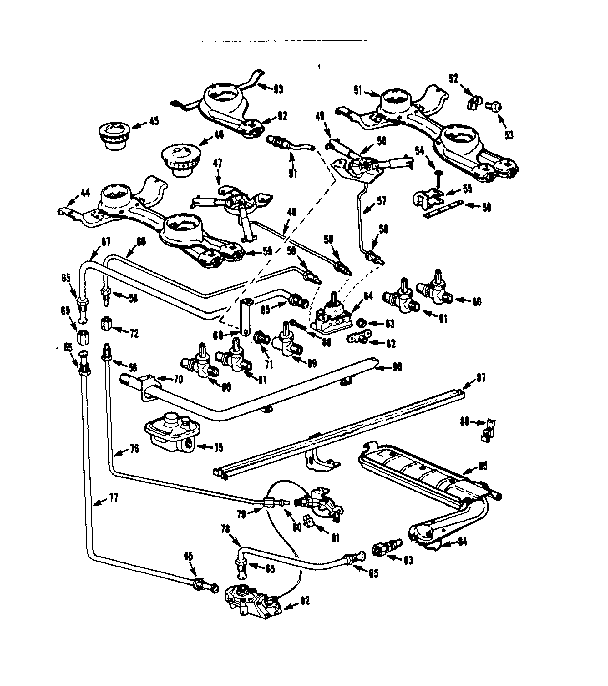

Burner section diagram

Loxit nut

Part #79719

Replaced by #100108370

?
Manufacturer substitution
This part replaces 79719. Substitute parts can look different from the original.
$36.67
In Stock
Knob 113255
#33A

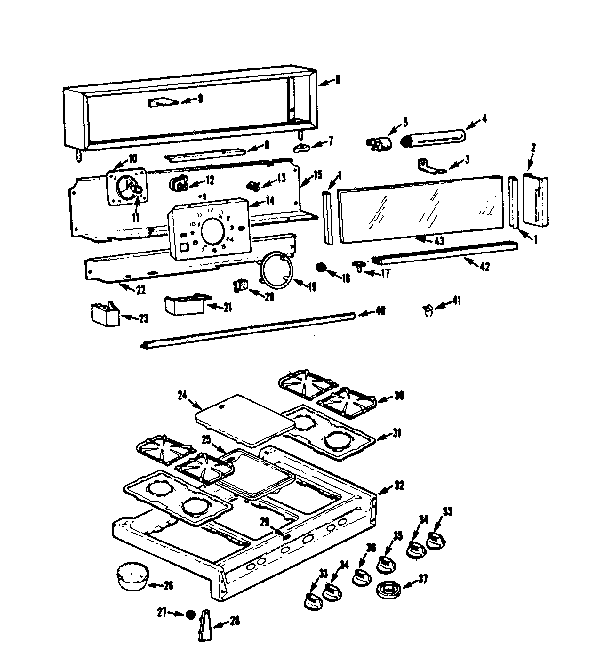

Backguard and maintop section diagram

Knob

Part #113255

The manufacturer no longer makes this part, and there's no substitute part

Orifice Spud 73892

#NI

All parts diagram

Orifice spud

Part #73892

The manufacturer no longer makes this part, and there's no substitute part

Gasket 102007
#113

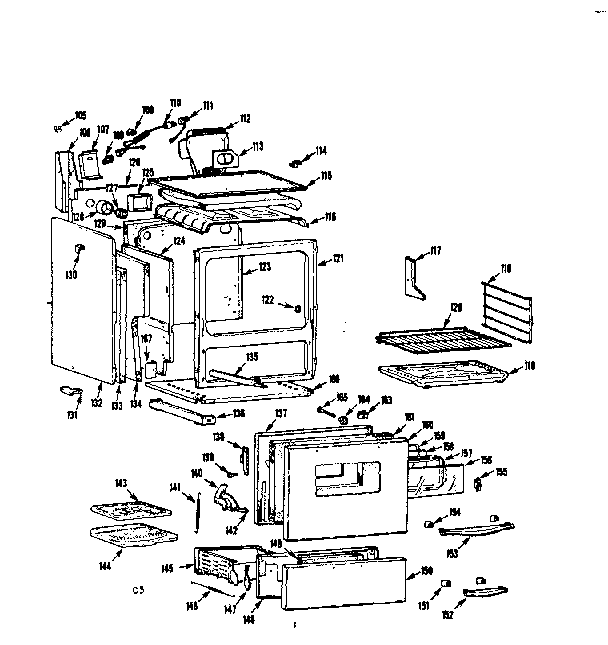

Body section diagram

Gasket

Part #102007

The manufacturer no longer makes this part, and there's no substitute part

Hinge 114683
#140A

Body section diagram

Hinge

Part #114683

The manufacturer no longer makes this part, and there's no substitute part

Angle 104471
#8

Backguard and maintop section diagram

Angle

Part #104471

The manufacturer no longer makes this part, and there's no substitute part
