Frigidaire
Dehumidifier

Model # MDH40TF8 Official Frigidaire dehumidifier - 5995264057

Here are the diagrams and repair parts for Official Frigidaire MDH40TF8 dehumidifier - 5995264057, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

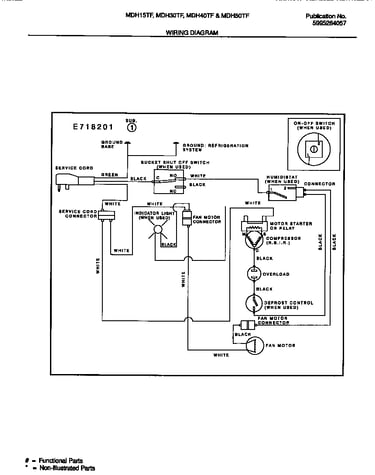

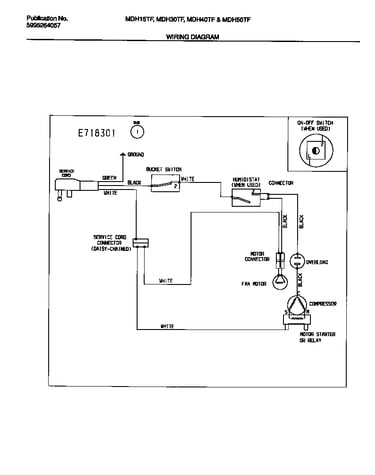

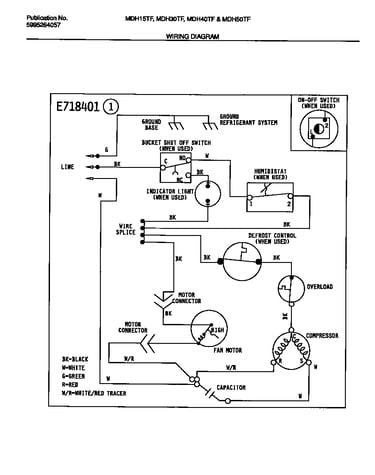

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Cover Capacitor 5303303821
#48

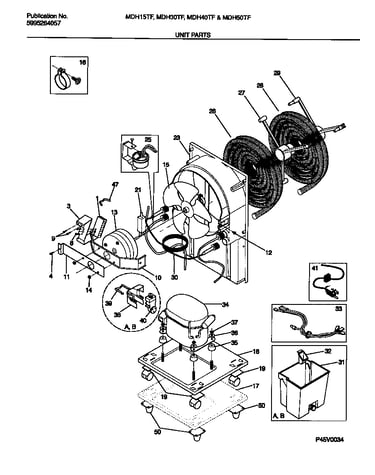

Unit parts diagram

Cover capacitor

Part #5303303821

This item is not returnable
$3.49
In Stock
Capacitor 5303303824
#46

Unit parts diagram

Capacitor

Part #5303303824

$30.99
In Stock
Gibson Electronic Harness 5303289839
#33

Unit parts diagram

Gibson electronic harness

Part #5303289839

$51.49
In Stock
Compressor 5303015383
#34

Unit parts diagram

Compressor

Part #5303015383

$201.99
In Stock
Kelvinator Room Air Conditioner Lock Nut 08007481
#14

Unit parts diagram

Kelvinator room air conditioner lock nut

Part #08007481

This item is not returnable
$5.74
In Stock
Relay 3204486
#42

Unit parts diagram

Relay

Part #3204486

Replaced by #216594300

?
Manufacturer substitution
This part replaces 3204486. Substitute parts can look different from the original.
$53.69 |
10% OFF Phone Price : $59.69
In Stock
Retainer 5303274000
#39

Unit parts diagram

Retainer

Part #5303274000

The manufacturer no longer makes this part, and there's no substitute part

Wrapper 5303304135
#1

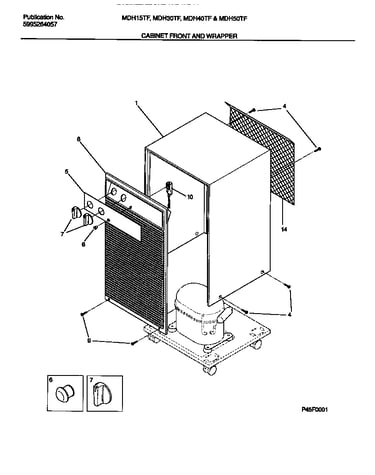

Cabinet front and wrapper diagram

Wrapper

Part #5303304135

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 5303304137
#13

Unit parts diagram

Fan motor

Part #5303304137

The manufacturer no longer makes this part, and there's no substitute part
