Model # AQF1201TRW03 Official Amana vertical freezer

Here are the diagrams and repair parts for Official Amana AQF1201TRW03 vertical freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Light Bulb 4390465
#11

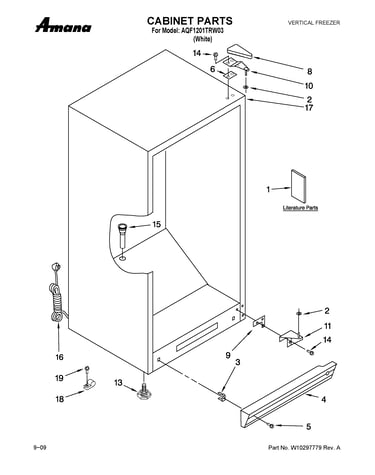

Liner parts diagram

Light bulb

Part #4390465

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4390465. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Switch 4390513
#9

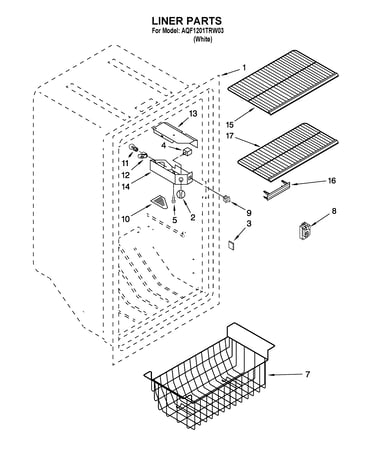

Liner parts diagram

Switch

Part #4390513

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 4390513. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Drier Tube 4357299
#16

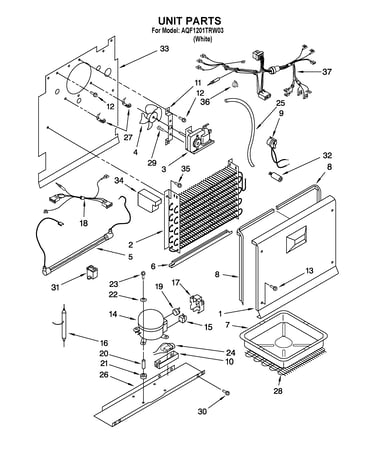

Unit parts diagram

Drier tube

Part #4357299

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4357299. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Compressor 4390734
#14

Unit parts diagram

Compressor

Part #4390734

Replaced by #W10309989

?
Manufacturer substitution
This part replaces 4390734. Substitute parts can look different from the original.
BEST SELLER
$502.83 |
$12.00 OFF Phone Price : $514.83
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray Paint (white) 350930
#NI

Optional parts (not included) diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Screw 4357243
Screw

Part #4357243

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 4357243. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 4390821
#35

Unit parts diagram

Screw

Part #4390821

Replaced by #WP489491

?
Manufacturer substitution
This part replaces 4390821. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Refrigerator Screw 489491
#9

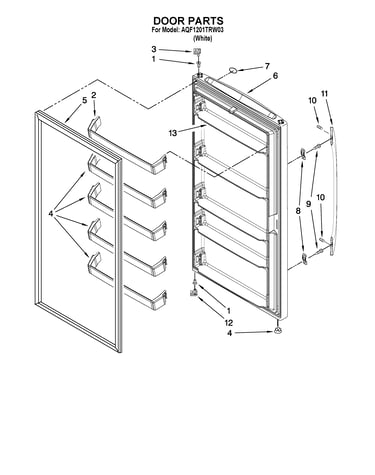

Door parts diagram

Refrigerator screw

Part #489491

Replaced by #WP489491

?
Manufacturer substitution
This part replaces 489491. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Defrost Timer 4357124
#8

Liner parts diagram

Defrost timer

Part #4357124

Replaced by #WP3-81329

?
Manufacturer substitution
This part replaces 4357124. Substitute parts can look different from the original.
$88.66 |
6% OFF Phone Price : $94.66
In Stock
