Maytag
Top-Mount Refrigerator

Model # MRT118FFFE04 Official Maytag top-mount refrigerator

Here are the diagrams and repair parts for Official Maytag MRT118FFFE04 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

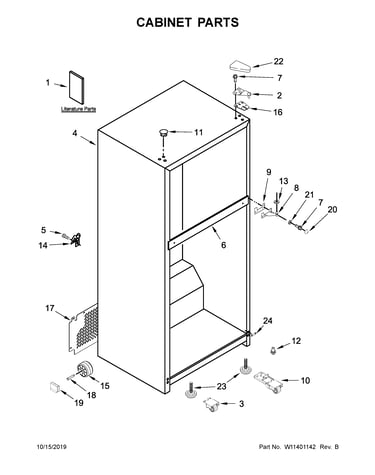

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Refrigerator Thermistor W10384183
#15

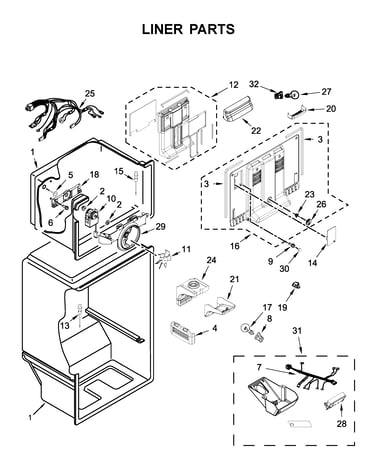

Liner parts diagram

Refrigerator thermistor

Part #W10384183

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Switch 1118894
#19

Liner parts diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Fan Blade 2200509
#11

Liner parts diagram

Fan blade

Part #2200509

Replaced by #WP2163777

?
Manufacturer substitution
This part replaces 2200509. Substitute parts can look different from the original.
BEST SELLER
$35.42 |
14% OFF Phone Price : $41.42
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Refrigerator Track W10468555
#7

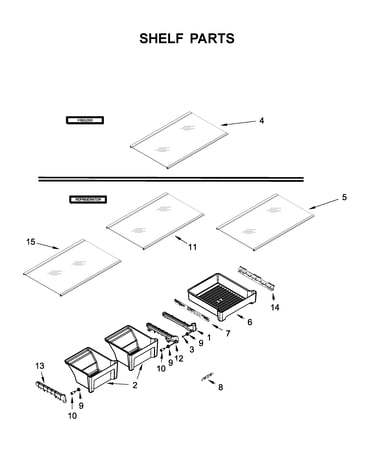

Shelf parts diagram

Refrigerator track

Part #W10468555

Replaced by #WPW10468555

?
Manufacturer substitution
This part replaces W10468555. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.18 |
14% OFF Phone Price : $14.18
In Stock
Spray Paint (white) 350930
#NI

Optional parts diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Refrigerator Screw 489478
#10

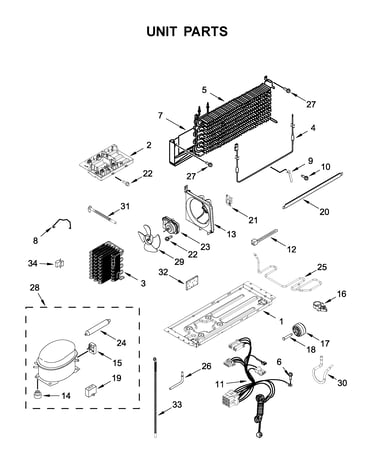

Unit parts diagram

Refrigerator screw

Part #489478

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 489478. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Comp Nc1116h W11135151
#28

Unit parts diagram

Comp nc1116h

Part #W11135151

Replaced by #W11209866

?
Manufacturer substitution
This part replaces W11135151. Substitute parts can look different from the original.
BEST SELLER
$268.56
In Stock
Cond Fan,mla W10909387
#23

Unit parts diagram

Cond fan,mla

Part #W10909387

Replaced by #W11127829

?
Manufacturer substitution
This part replaces W10909387. Substitute parts can look different from the original.
BEST SELLER
$100.13 |
11% OFF Phone Price : $112.13
In Stock
Refrigerator Door Shelf Trim End Cap 2156003
#17

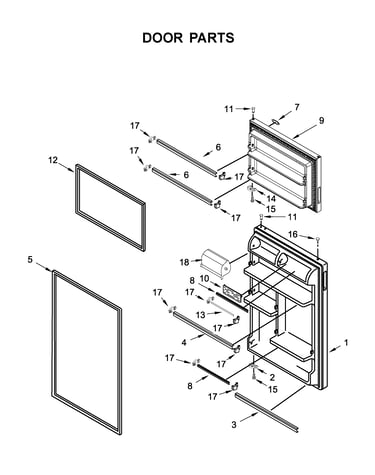

Door parts diagram

Refrigerator door shelf trim end cap

Part #2156003

Replaced by #WP2156003

?
Manufacturer substitution
This part replaces 2156003. Substitute parts can look different from the original.
BEST SELLER
$11.06 |
15% OFF Phone Price : $13.06
In Stock
