Power Stapler

Model # 836272240 Official Craftsman cordless stapler

Here are the diagrams and repair parts for Official Craftsman 836272240 cordless stapler, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
836272240 Power Tools
Screw M4x12 2700414R
#29

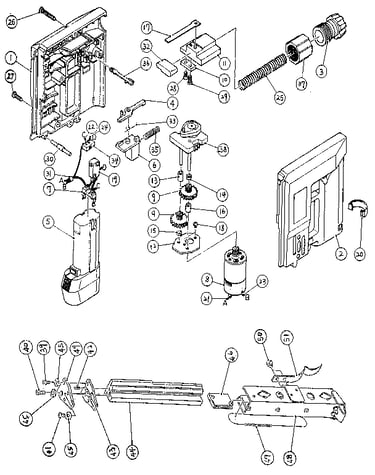

Unit parts diagram

Screw m4x12

Part #2700414R

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 751010030R
#34

Unit parts diagram

Micro-switch

Part #751010030R

The manufacturer no longer makes this part, and there's no substitute part

Contactor 471101R
#7

Unit parts diagram

Contactor

Part #471101R

The manufacturer no longer makes this part, and there's no substitute part

Screw 2805820R
#26

Unit parts diagram

Screw

Part #2805820R

The manufacturer no longer makes this part, and there's no substitute part

Fl Wheel Set 471104R
#38

Unit parts diagram

Fl wheel set

Part #471104R

The manufacturer no longer makes this part, and there's no substitute part

Connect Wire 6800005R
#22

Unit parts diagram

Connect wire

Part #6800005R

The manufacturer no longer makes this part, and there's no substitute part

Screw M3x6 2700306R
#18

Unit parts diagram

Screw m3x6

Part #2700306R

The manufacturer no longer makes this part, and there's no substitute part

Slot Externl 470705R
#48

Unit parts diagram

Slot externl

Part #470705R

The manufacturer no longer makes this part, and there's no substitute part

Connect Wire 6800004R
#23

Unit parts diagram

Connect wire

Part #6800004R

The manufacturer no longer makes this part, and there's no substitute part

Main Spring 3451014R
#25

Unit parts diagram

Main spring

Part #3451014R

The manufacturer no longer makes this part, and there's no substitute part
