GE
Electric Wall Oven

Model # JT952SF2SS Official GE electric oven

Here are the diagrams and repair parts for Official GE JT952SF2SS electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

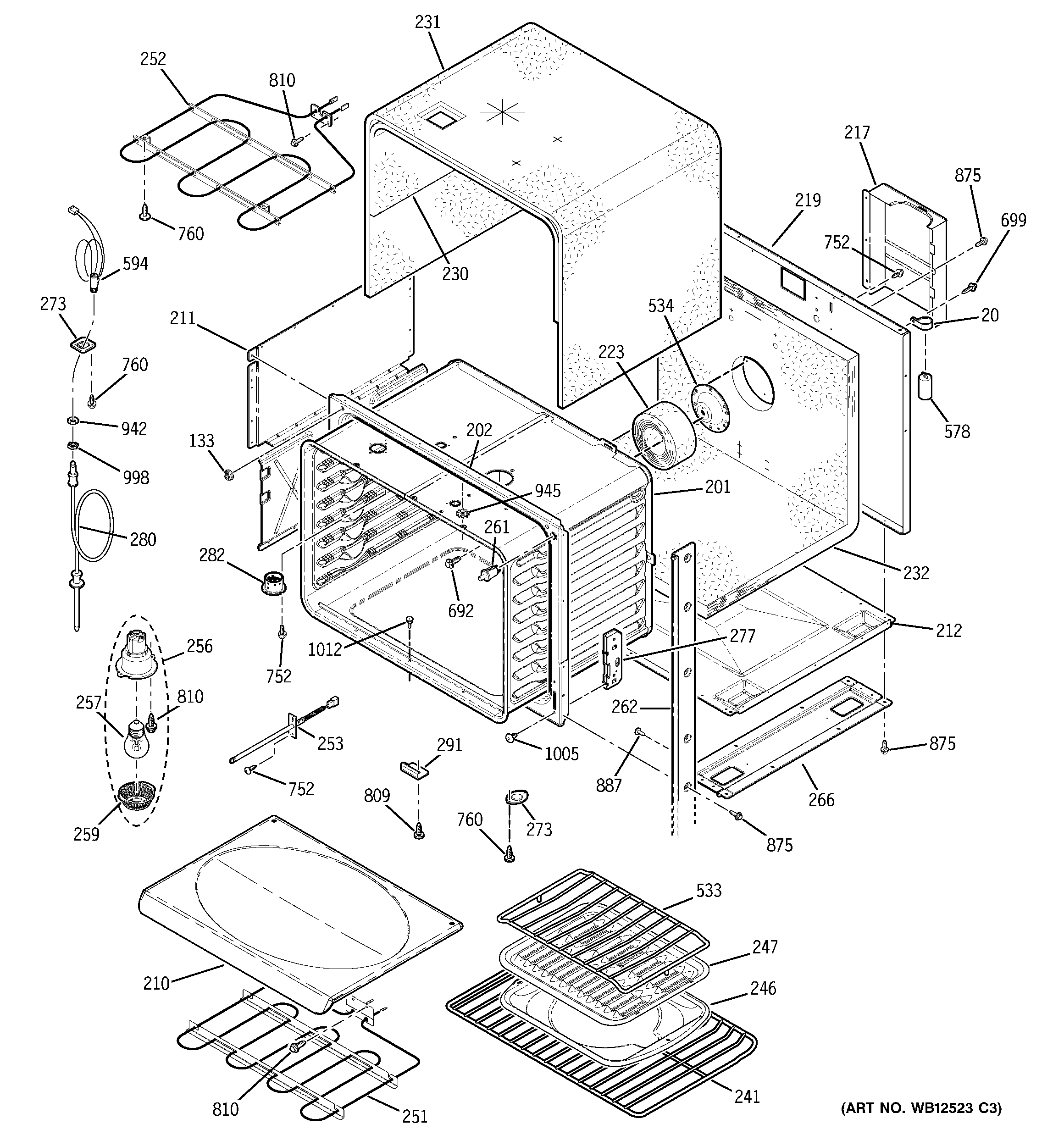

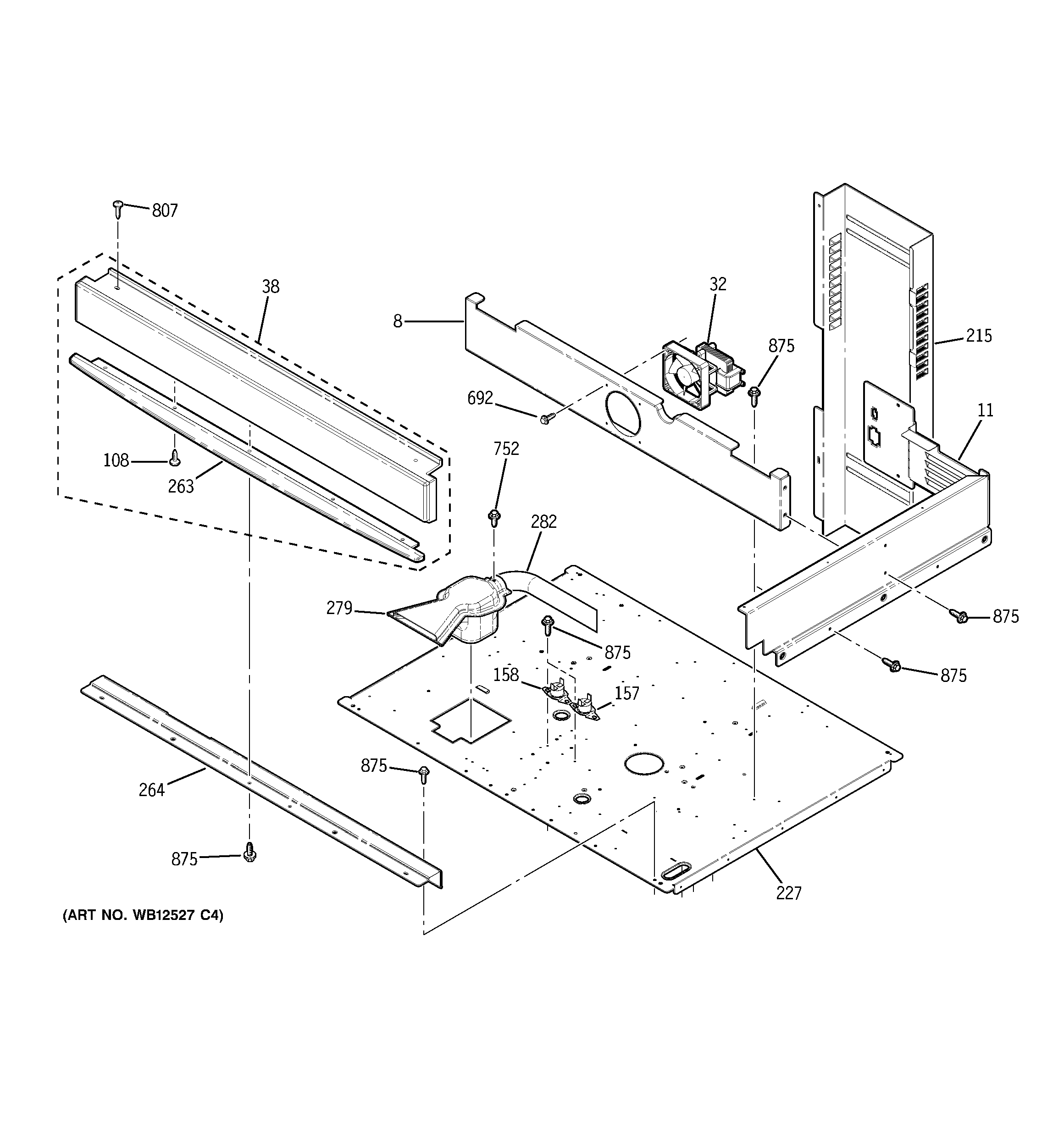

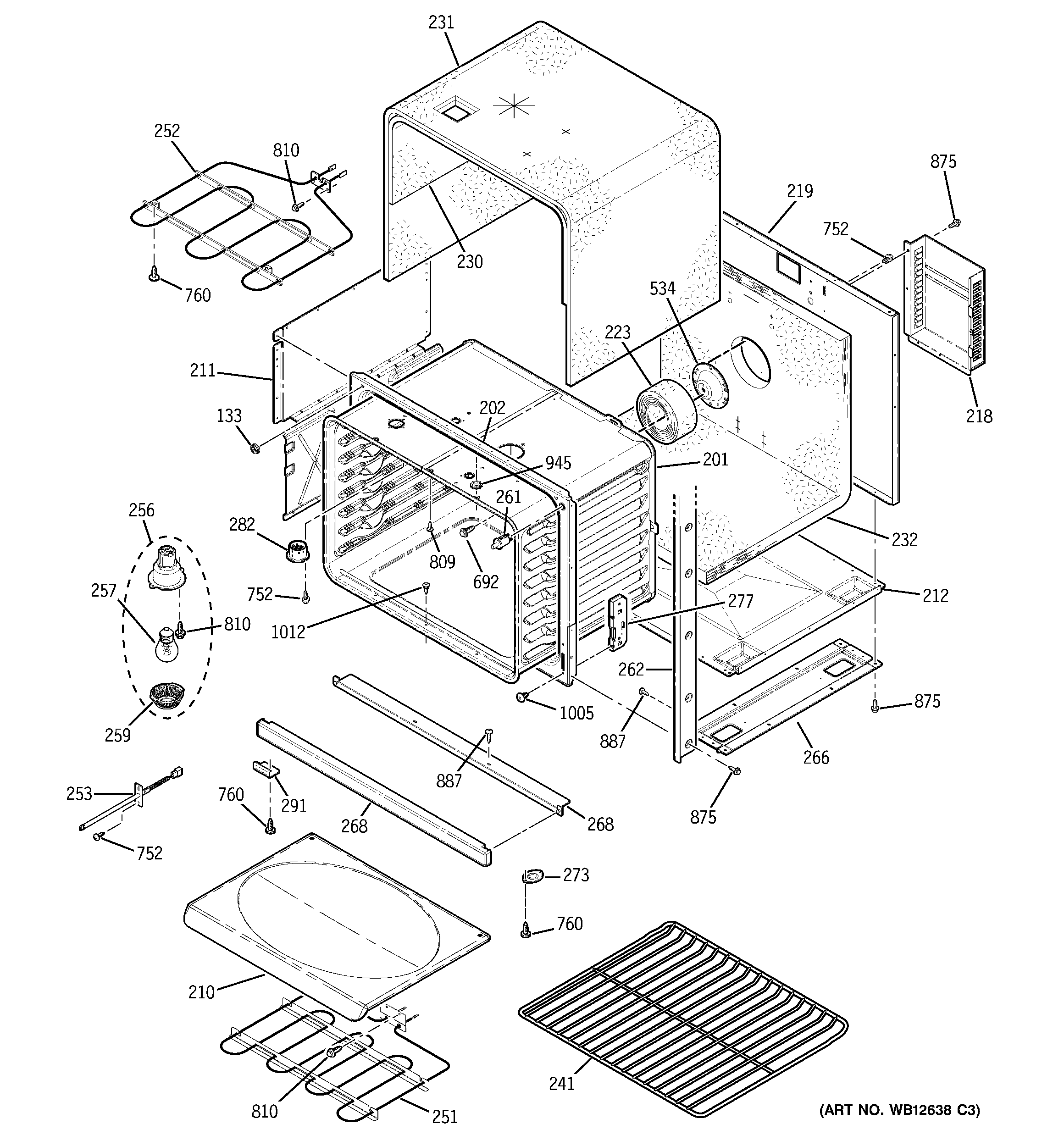

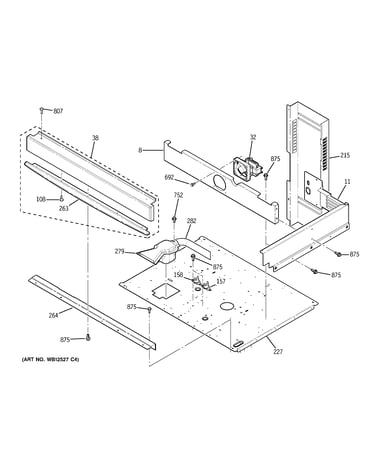

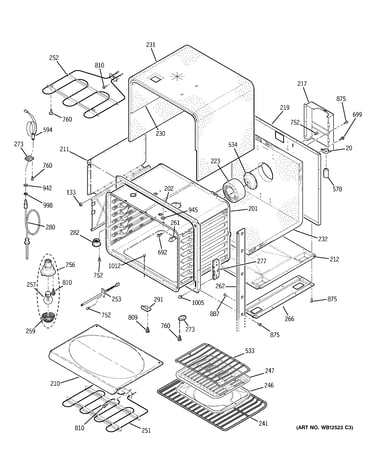

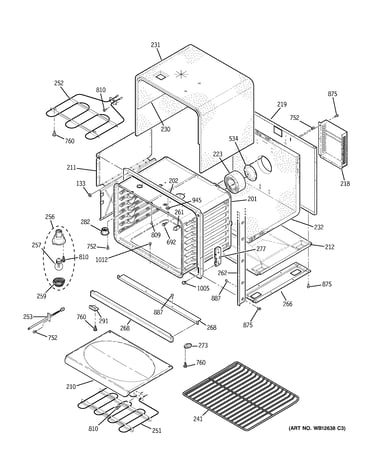

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Oven Lamp WB08T10022
Oven lamp

Part #WB08T10022

Replaced by #40A15

?
Manufacturer substitution
This part replaces WB08T10022. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Wall Oven Temperature Sensor WB23T10015
Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Range Bake Element (replaces Wb44t10055) WB44T10021
Range bake element (replaces wb44t10055)

Part #WB44T10021

BEST SELLER
$49.66 |
11% OFF Phone Price : $55.66
In Stock
Range Oven Door Middle Glass (replaces Wb55t10191) WB56T10105
#338

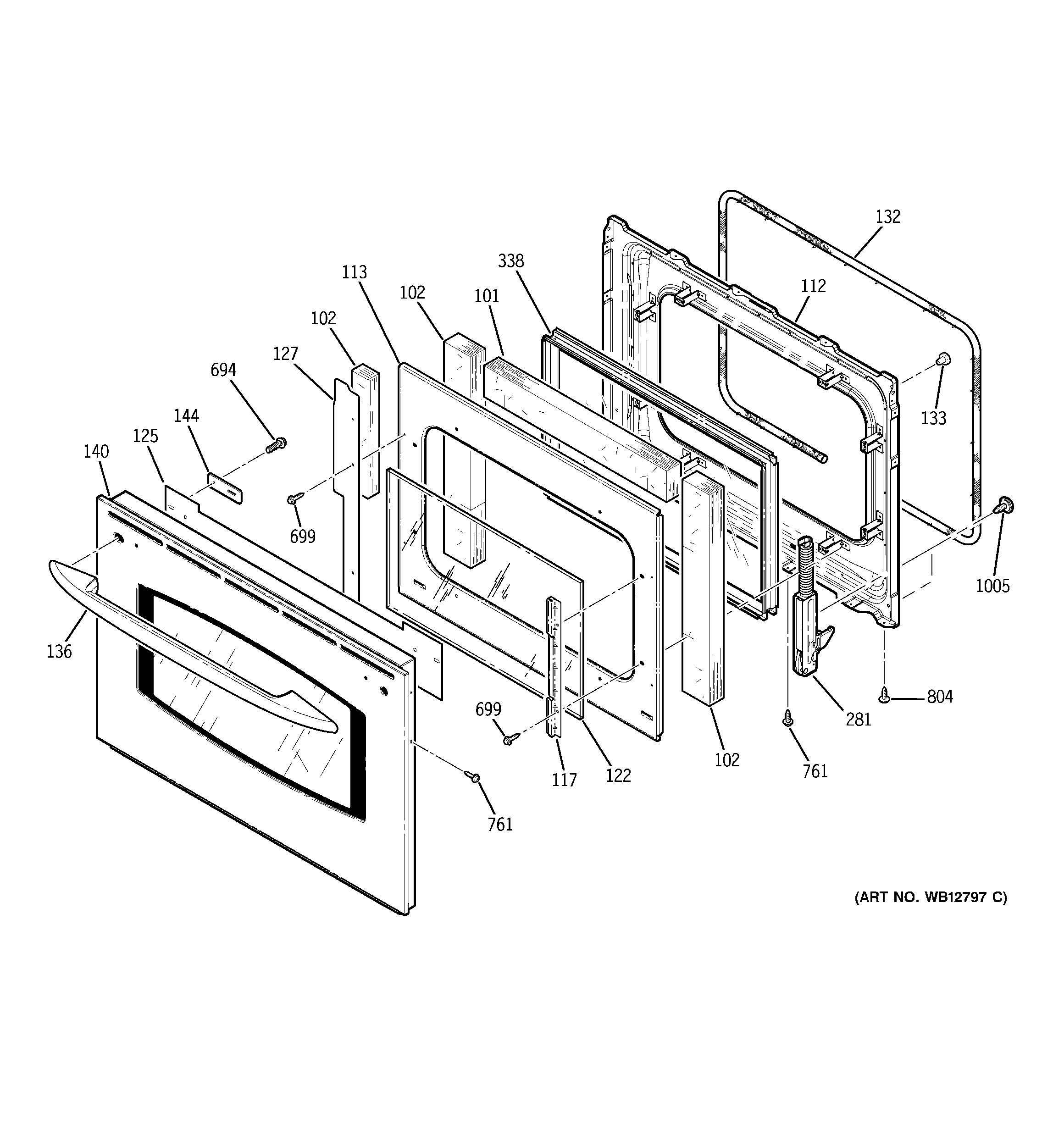

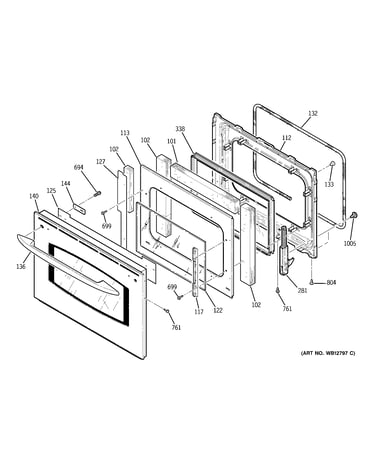

Door diagram

Range oven door middle glass (replaces wb55t10191)

Part #WB56T10105

BEST SELLER
$98.87 |
11% OFF Phone Price : $110.87
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#159

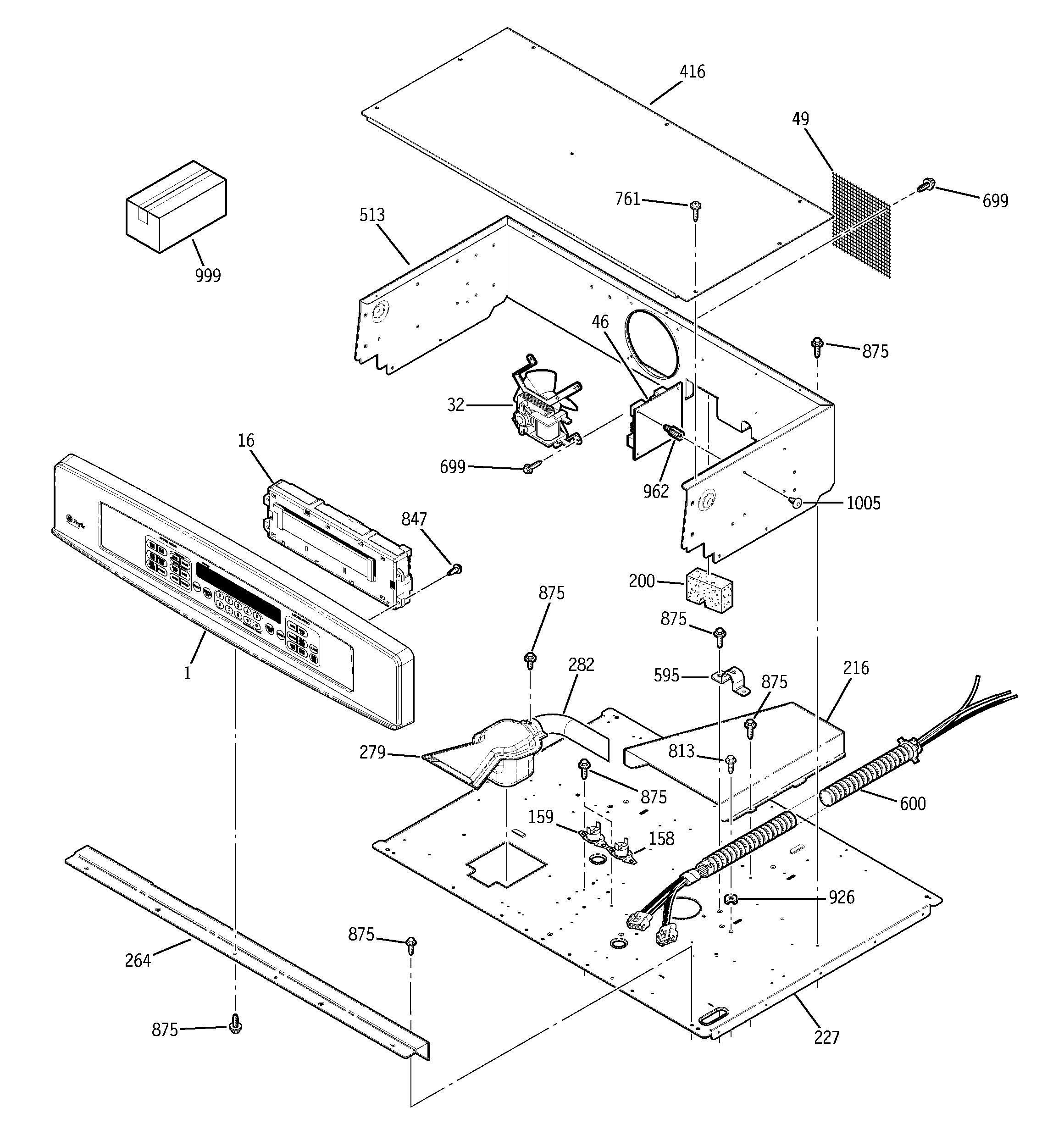

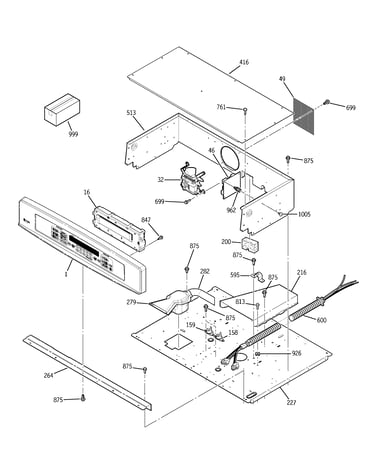

Control panel diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Conversion Element WB44T10020
#298

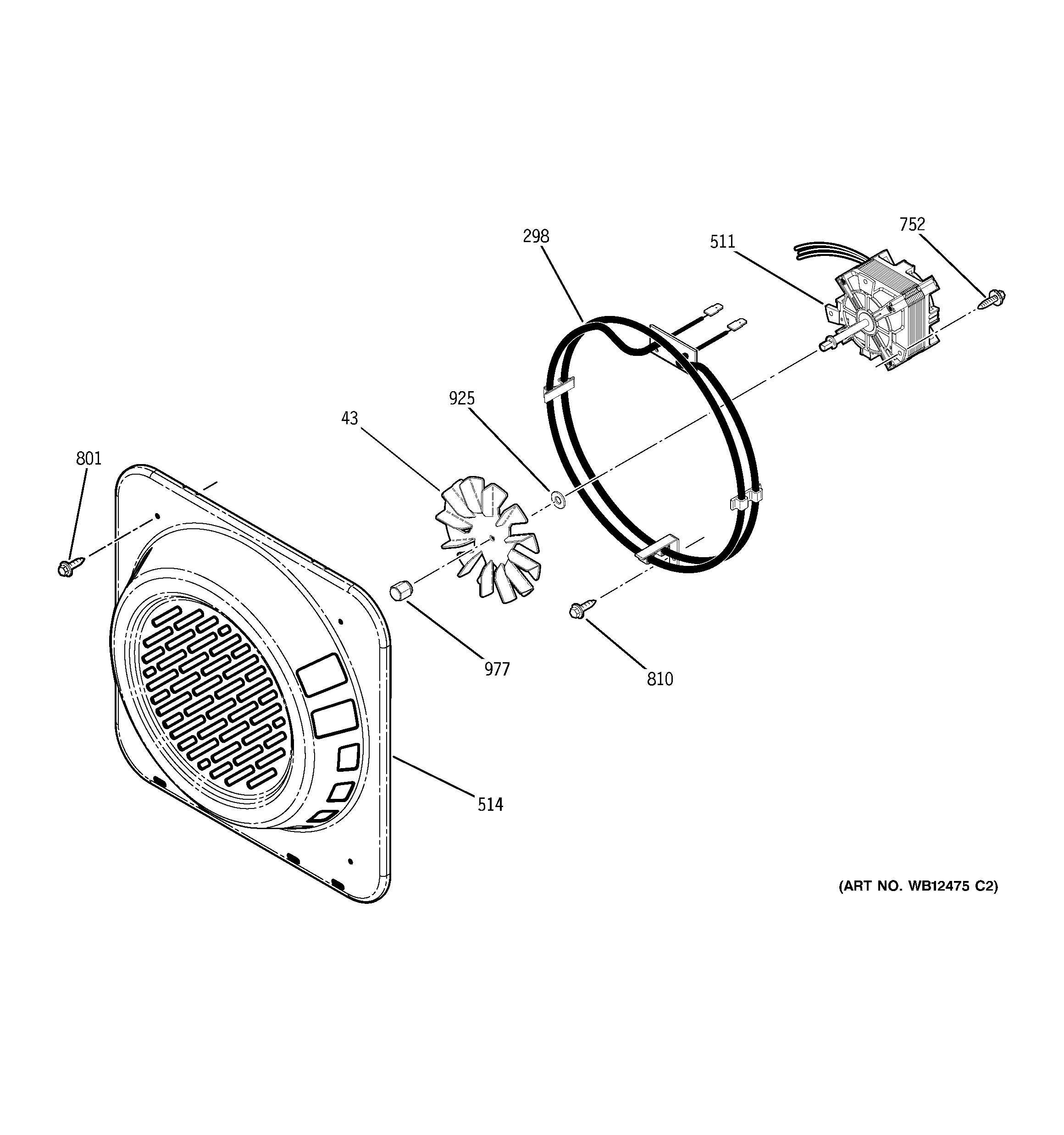

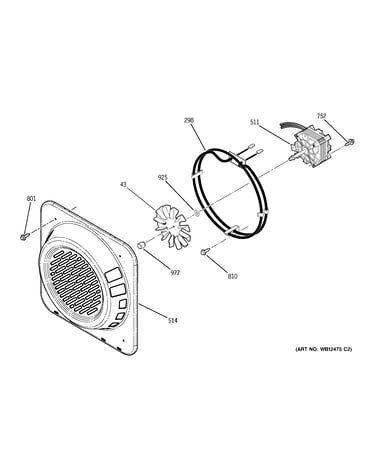

Convection fan diagram

Conversion element

Part #WB44T10020

Replaced by #WB44T10053

?
Manufacturer substitution
This part replaces WB44T10020. Substitute parts can look different from the original.
$57.06 |
10% OFF Phone Price : $63.06
In Stock
Nut WB02T10017
#977

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Complete Fan Blade WB02T10142
#43

Convection fan diagram

Complete fan blade

Part #WB02T10142

Replaced by #WB02T10289

?
Manufacturer substitution
This part replaces WB02T10142. Substitute parts can look different from the original.
This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Range Oven Rack WB48T10021
Range oven rack

Part #WB48T10021

$51.96 |
10% OFF Phone Price : $57.96
In Stock
Screw WB01X1137
Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

  • Foam Tape WB01T10052
    Foam tape
    $7.88 |
    11% OFF Phone Price : $8.88
