Model # FCM20SUBWW Official GE freezer - b series

Here are the diagrams and repair parts for Official GE FCM20SUBWW freezer - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 47 parts |

#150

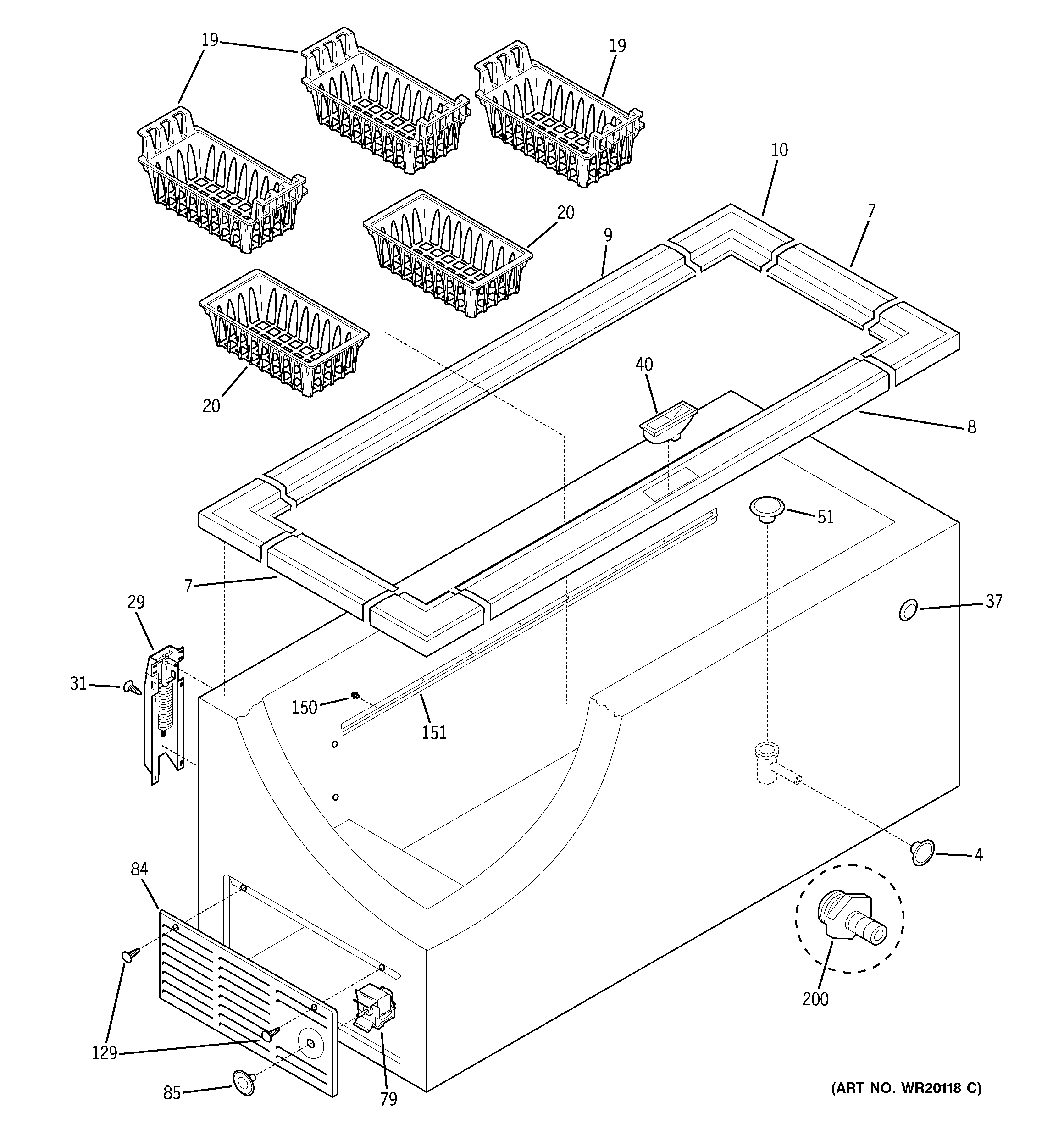

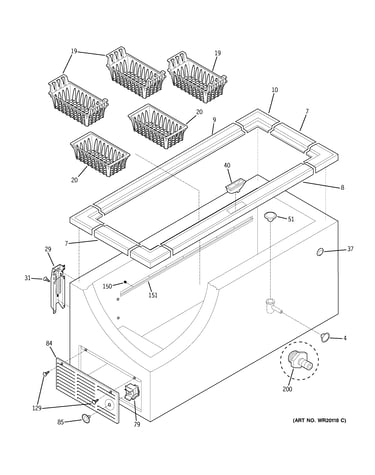

Cabinet diagram

Support track

Part #WR02X12326

$8.11

In Stock

Qty

Cabinet diagram

Freezer cabinet hole plug

Part #WR02X12063

$41.53

In Stock

Qty

#14

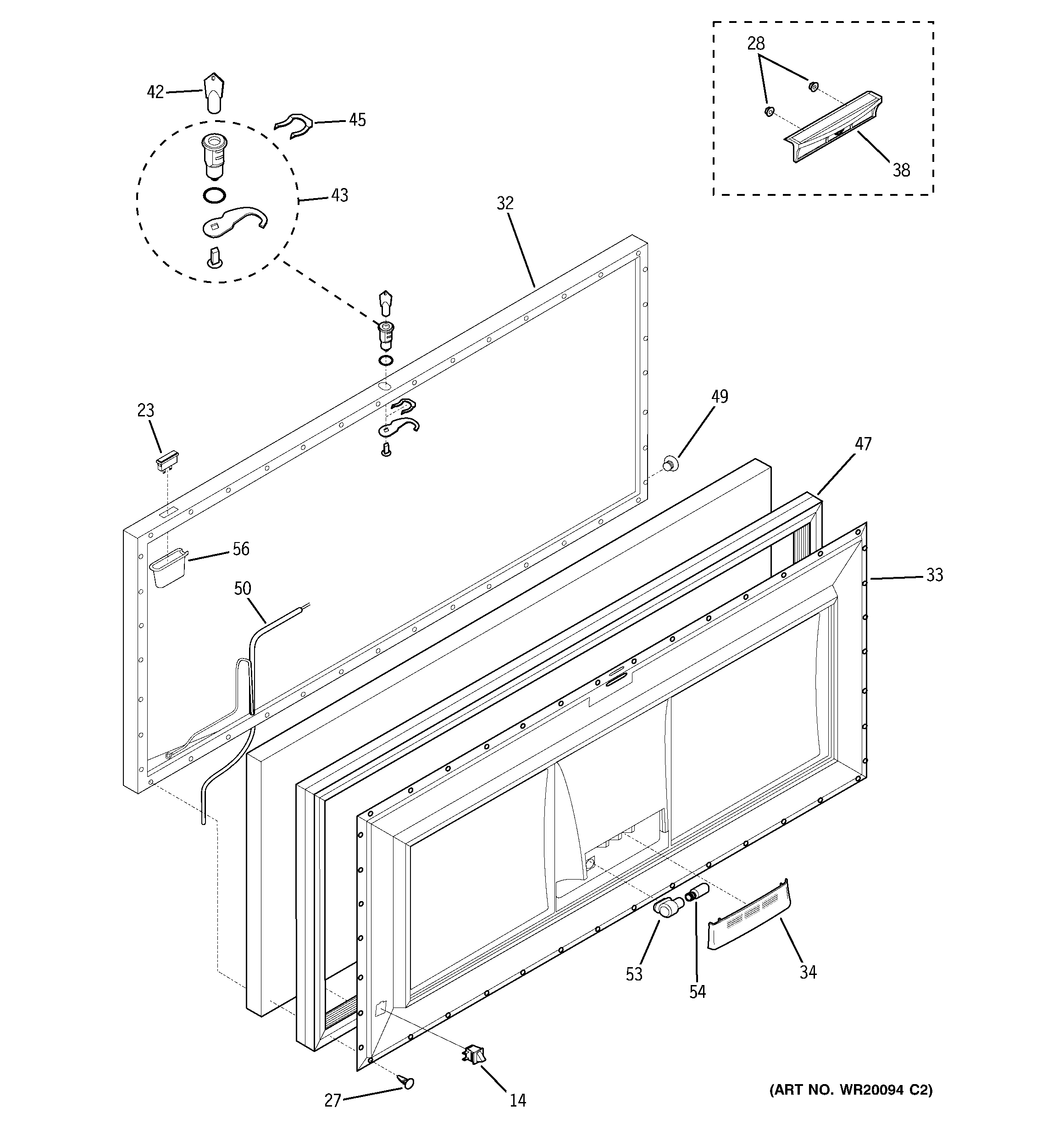

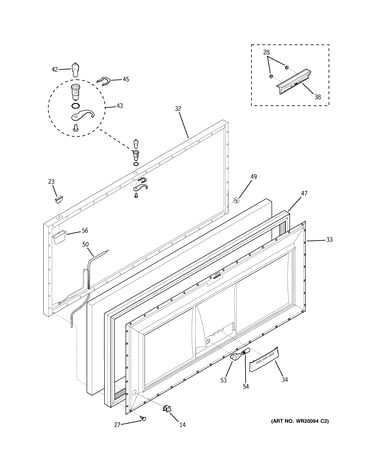

Freezer door diagram

Freezer door switch

Part #WR23X10303

$64.46 |

9% OFF Phone Price : $70.46

In Stock

Qty

#40

Cabinet diagram

Catch-lock w

Part #WR02X12337

$8.33

In Stock

Qty

#100

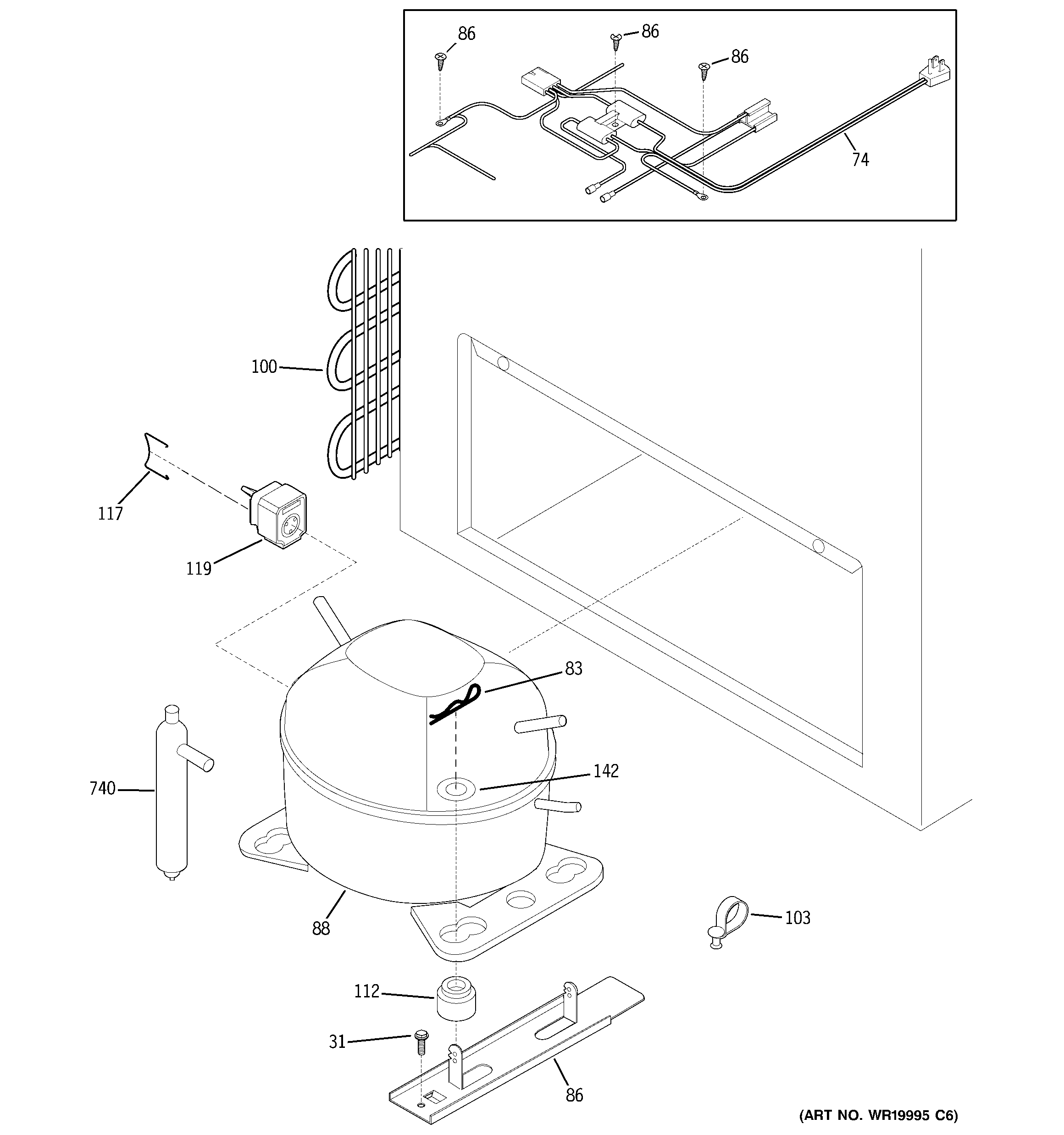

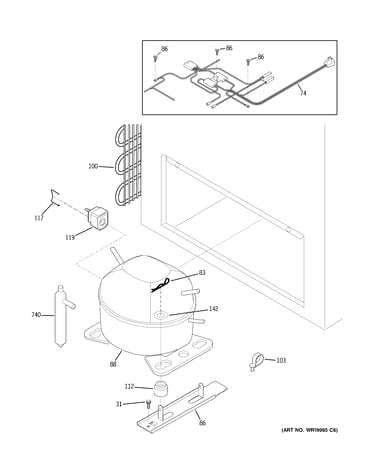

Unit parts diagram

Auxillary co

Part #WR84X10003

$197.98

In Stock

Qty

#84

Cabinet diagram

Access panel

Part #WR17X3069

$88.70

In Stock

Qty

#43

Freezer door diagram

Lock assembly

Part #WR05X10028

$34.07

In Stock

Qty

#49

Freezer door diagram

Plugbutton1/

Part #WR02X11935

$9.31

In Stock

Qty

#83

Unit parts diagram

Clip-compres

Part #WR01X10761

This item is not returnable

$4.35

In Stock

Qty

#50

Freezer door diagram

Wire harness

Part #WR23X10457

$88.44

In Stock

Qty

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

View all

Why don't the lights in my freezer work?

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

What should I do when my freezer's high-temperature alarm sounds?

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Why isn't my freezer cooling?

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Why does my freezer have a lot of frost inside?

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Why is my freezer too warm?

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Why is my freezer hot on the outside?

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Why isn't my freezer running?

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Why is my freezer so noisy?

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …

Repair guides for chest freezers

View all

How to replace a freezer compressor start relay

The compressor start relay starts the compressor. If the compressor won’t start, follow these steps to replace a defect…

Repair difficulty

Time required

15 minutes or less

How to replace a freezer temperature control thermostat

The cold control thermostat regulates the freezer temperature. A defective cold control thermostat can prevent the compr…

Repair difficulty

Time required

15 minutes or less

How to replace a freezer lid gasket

The lid gasket prevents air and moisture from entering the freezer when the lid is closed. Follow these steps to replace…

Repair difficulty

Time required

30 minutes or less
