Bosch
Dishwasher

Model # SGE53U56UC/A5 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SGE53U56UC-A5 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

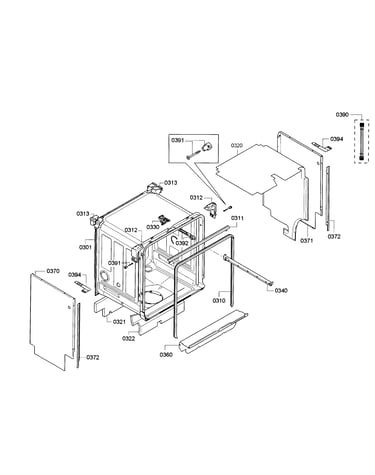

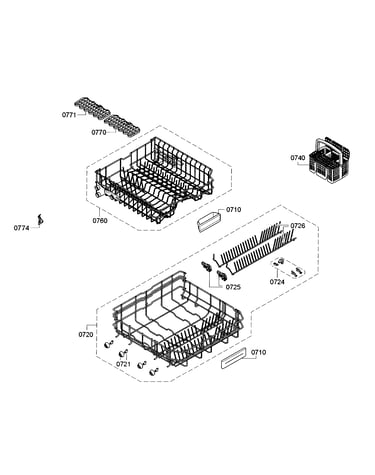

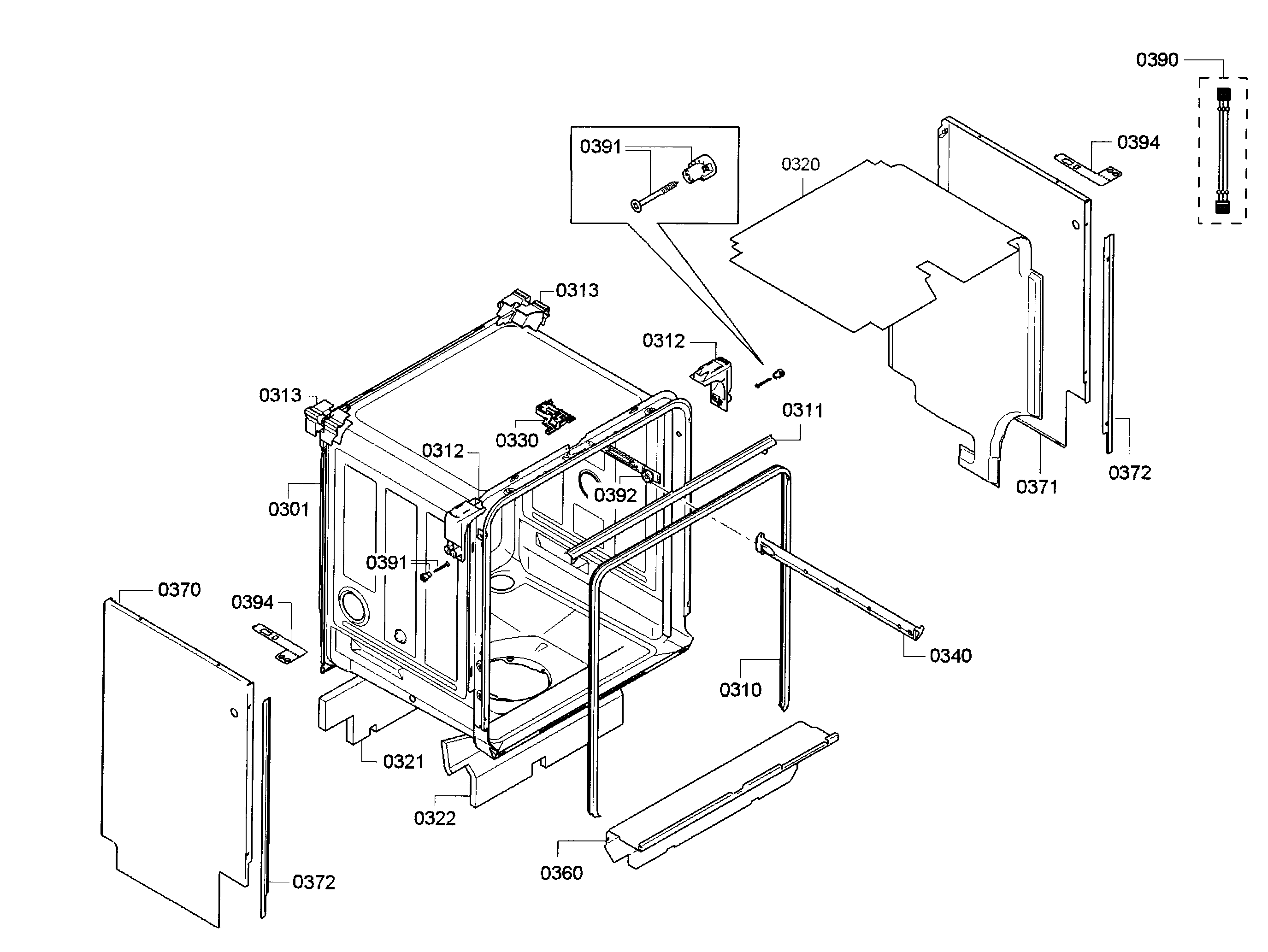

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Dishwasher Drain Pump 00631200
#455

Pump diagram

Dishwasher drain pump

Part #00631200

BEST SELLER
$37.57 |
14% OFF Phone Price : $43.57
In Stock
Dishwasher Detergent Dispenser Assembly 12008380
#201

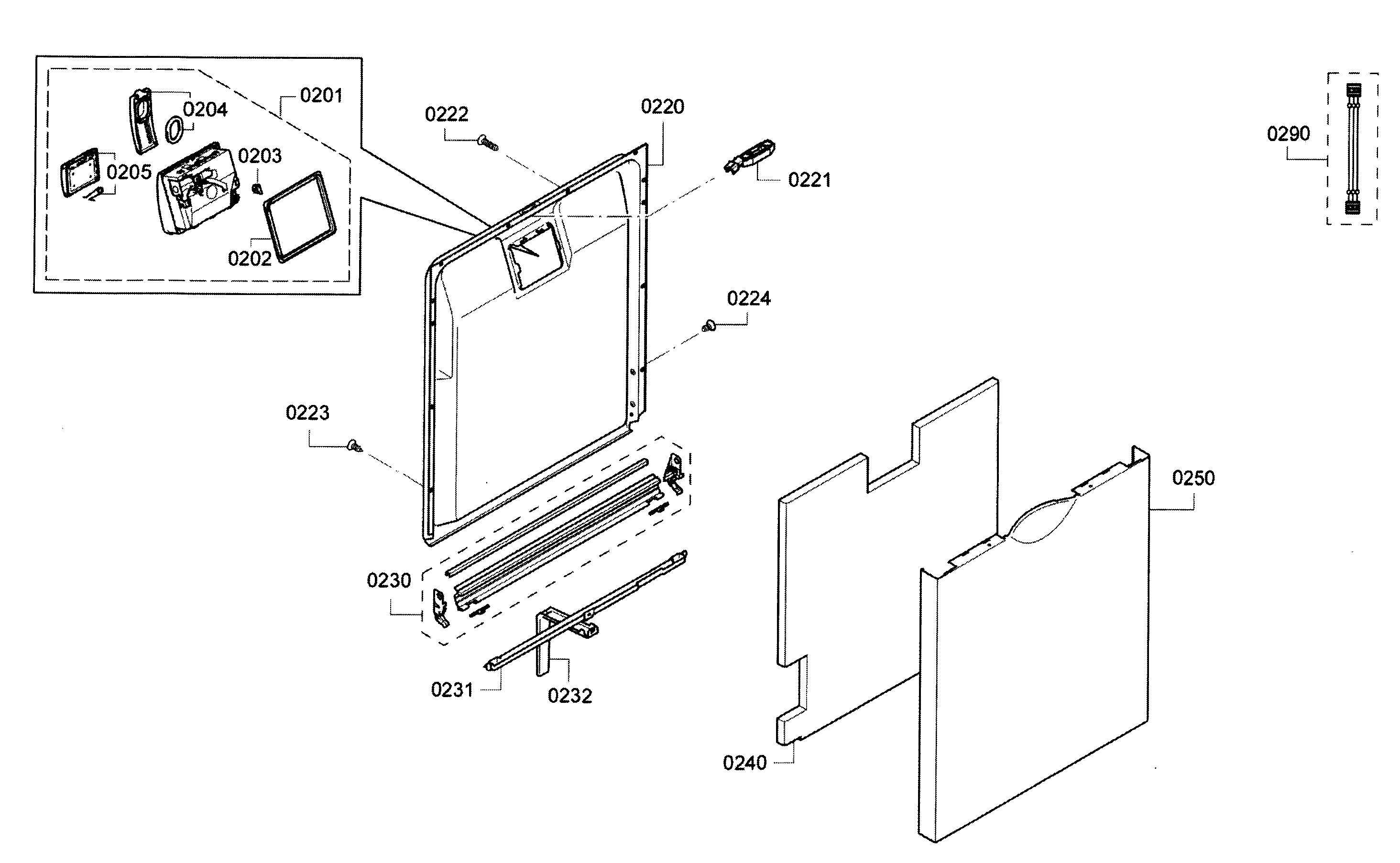

Door diagram

Dishwasher detergent dispenser assembly

Part #12008380

BEST SELLER
$47.00 |
11% OFF Phone Price : $53.00
In Stock
Dishwasher Dishrack Roller, Lower (replaces 611475) 00611475
#721

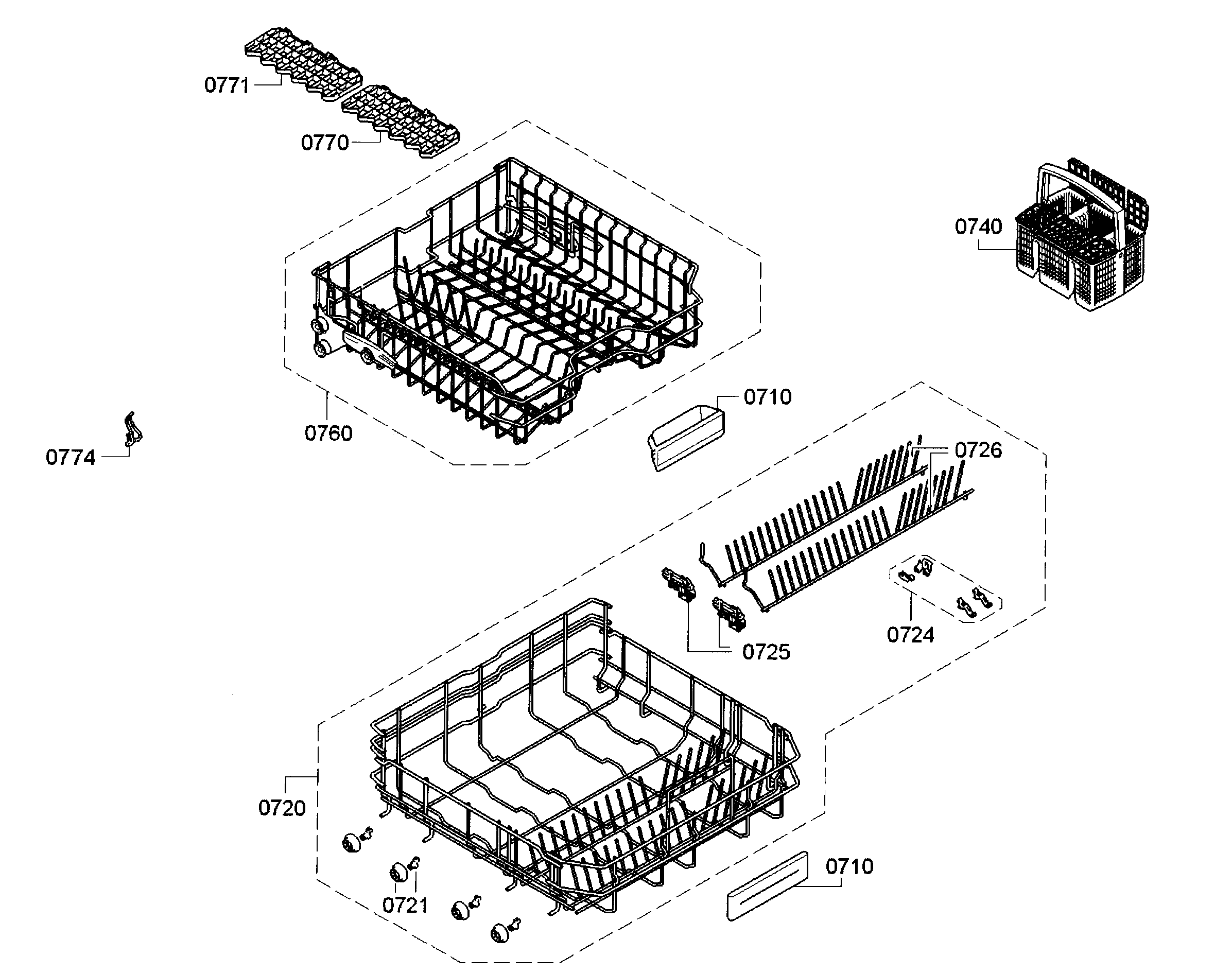

Rack diagram

Dishwasher dishrack roller, lower (replaces 611475)

Part #00611475

BEST SELLER
$14.27 |
12% OFF Phone Price : $16.27
In Stock
Dishwasher Sump (replaces 00752078, 668102) 00668102
#430

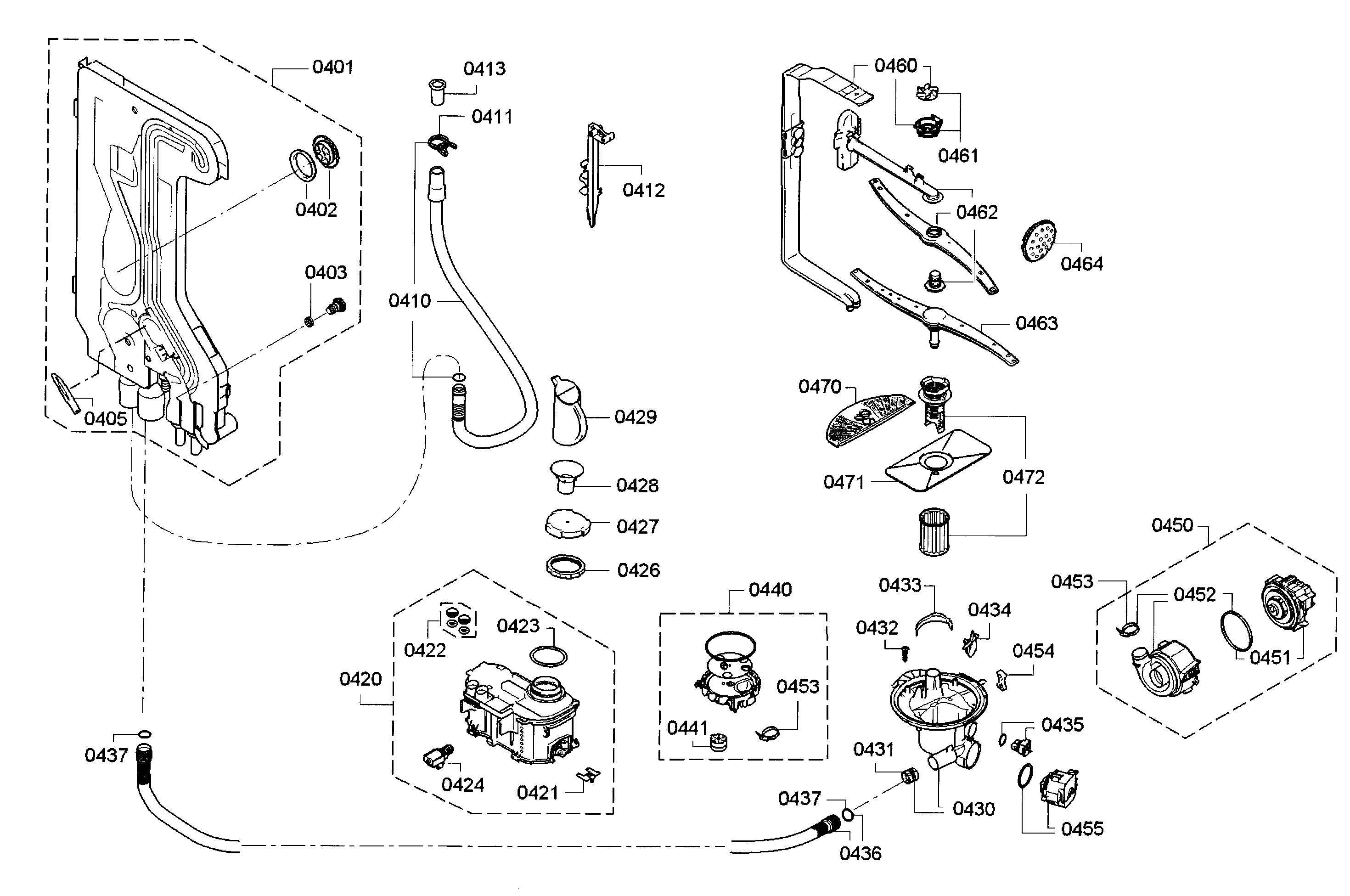

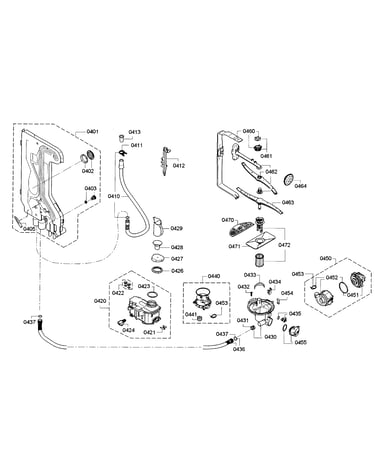

Pump diagram

Dishwasher sump (replaces 00752078, 668102)

Part #00668102

BEST SELLER
$71.79 |
8% OFF Phone Price : $77.79
In Stock
Dishwasher Door Cable Roller (replaces 00611372, 00628834, 00628835, 623536, 628834, 628835) 00623536
#622

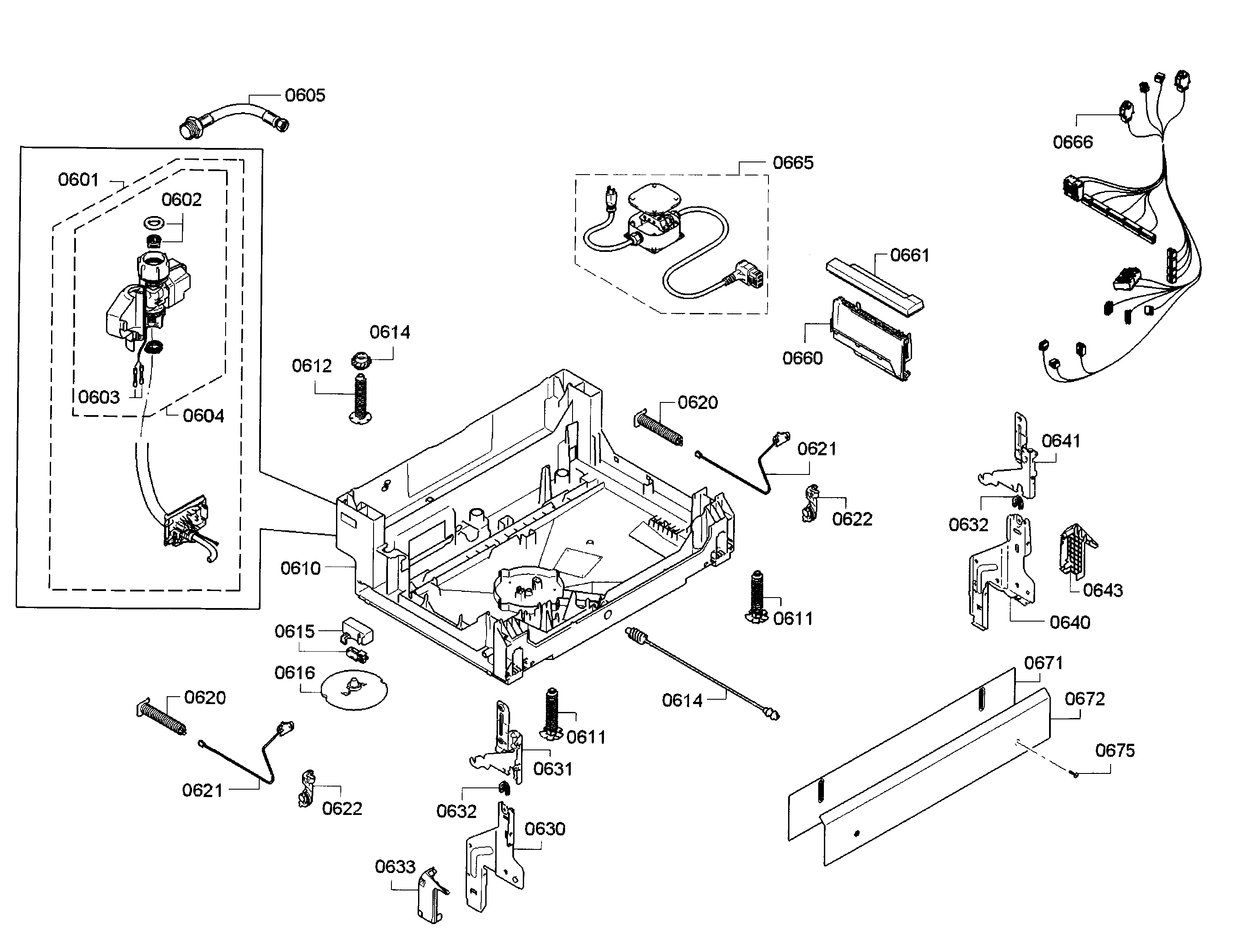

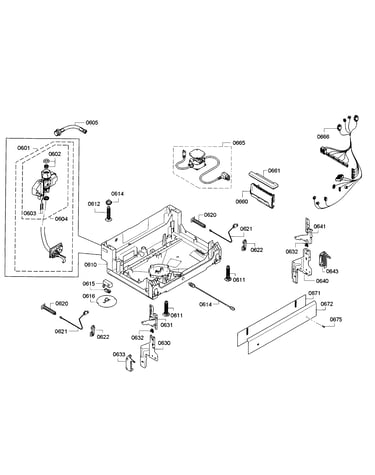

Base diagram

Dishwasher door cable roller (replaces 00611372, 00628834, 00628835, 623536, 628834, 628835)

Part #00623536

BEST SELLER
$20.16 |
23% OFF Phone Price : $26.16
In Stock
Dishwasher Float Assembly (replaces 622036) 00622036
#616

Base diagram

Dishwasher float assembly (replaces 622036)

Part #00622036

BEST SELLER
This item is not returnable
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Dishwasher Sump Hose (replaces 668104) 00668104
#436

Pump diagram

Dishwasher sump hose (replaces 668104)

Part #00668104

This item is not returnable
$9.49 |
10% OFF Phone Price : $10.49
In Stock
Dishwasher Circulation Pump Micro Filter (replaces 645038) 00645038
#472

Pump diagram

Dishwasher circulation pump micro filter (replaces 645038)

Part #00645038

$38.86 |
13% OFF Phone Price : $44.86
In Stock
Dishwasher Wire Harness (replaces 00611663, 00630611, 648135) 00648135
#190

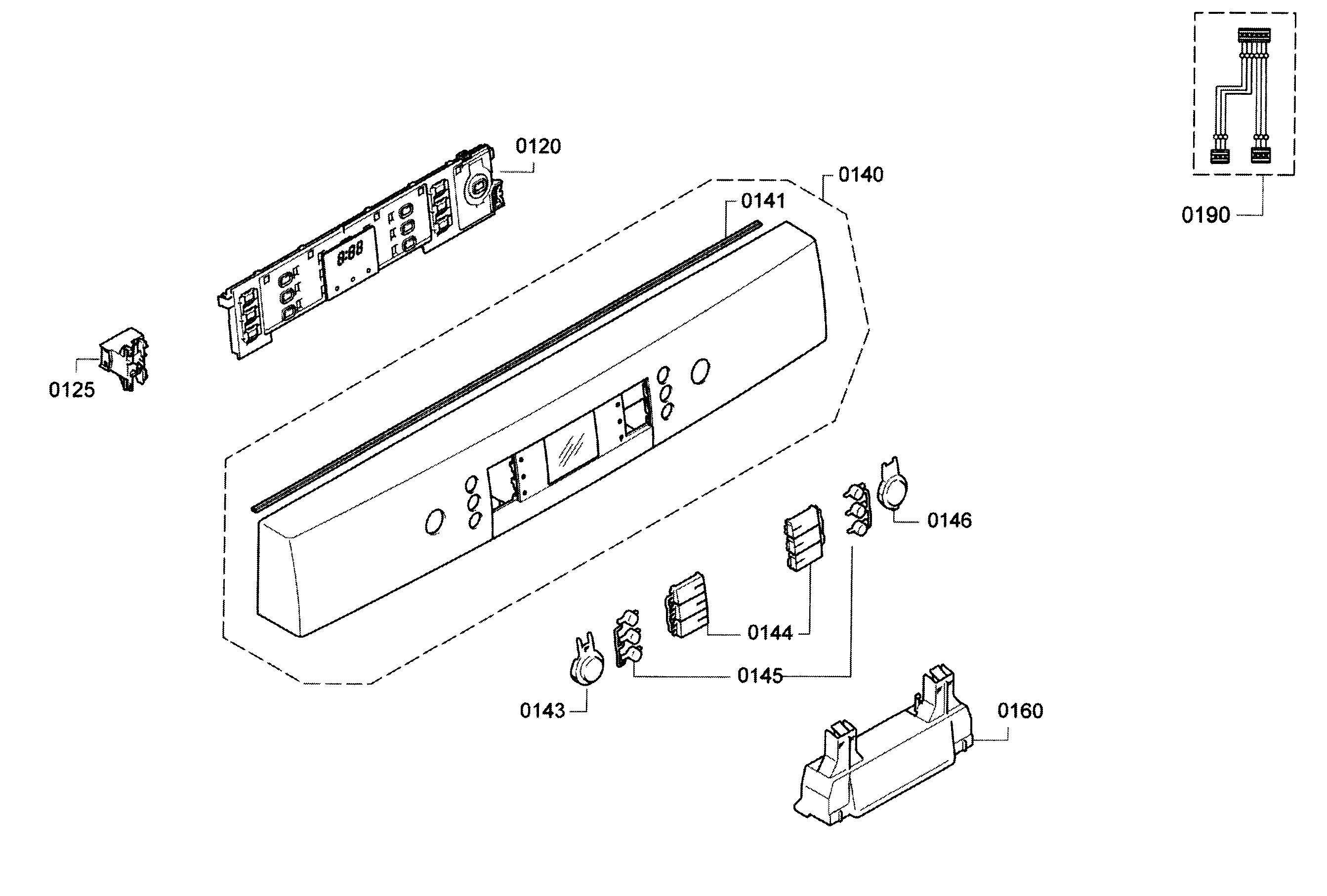

Control panel diagram

Dishwasher wire harness (replaces 00611663, 00630611, 648135)

Part #00648135

$80.49 |
7% OFF Phone Price : $86.49
In Stock
Appliance Screw 00151703
#223

Door diagram

Appliance screw

Part #00151703

This item is not returnable
$11.47 |
15% OFF Phone Price : $13.47
In Stock
