Amana
Gas Cooktop

Model # AKGD3050CC-P1131632NCC Official Amana gas downdraft cooktop

Here are the diagrams and repair parts for Official Amana AKGD3050CC-P1131632NCC gas downdraft cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |

Screw 31750432

#NI

All parts diagram

Screw

Part #31750432

The manufacturer no longer makes this part, and there's no substitute part

Burner 0315768
#3

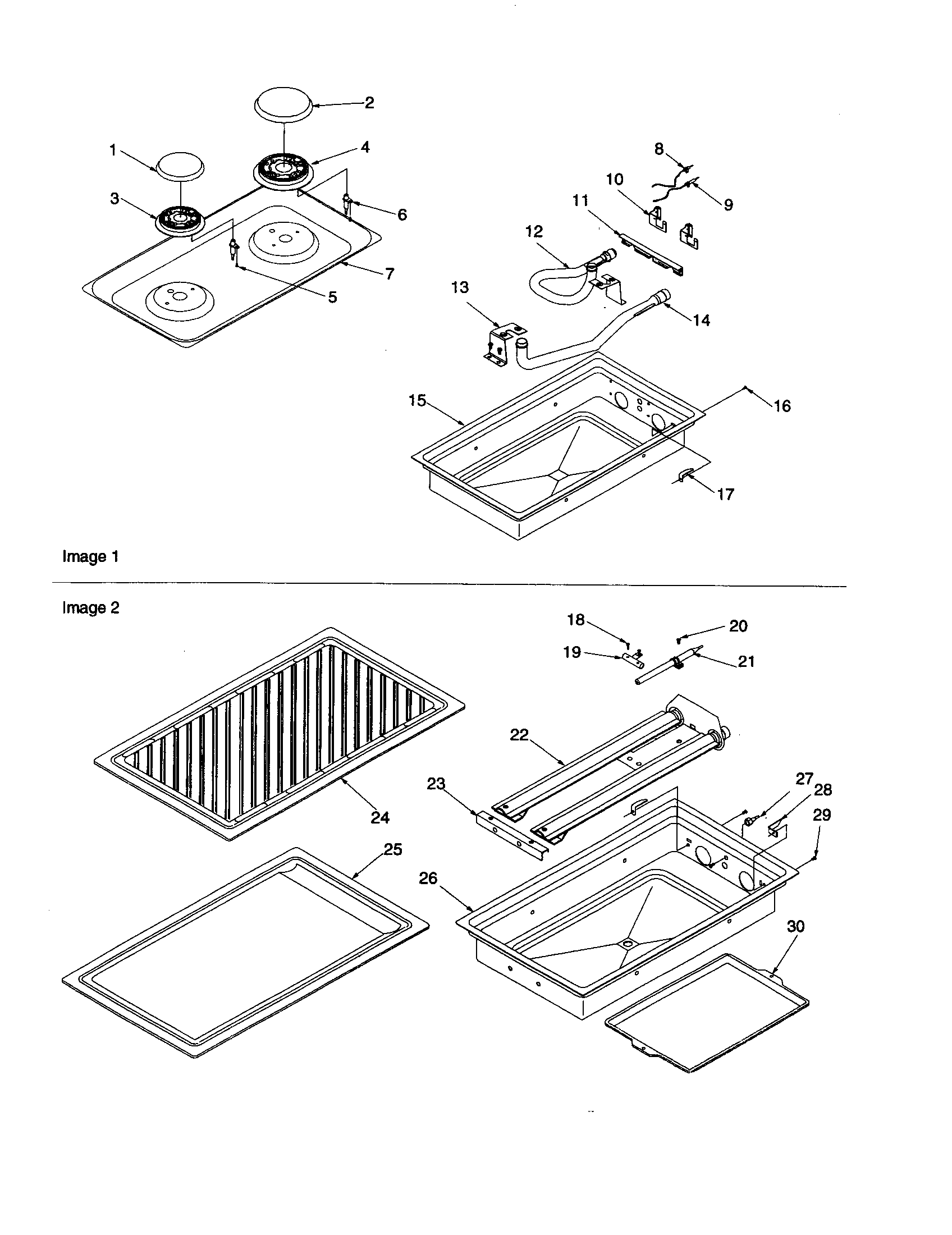

Burner diagram

Burner

Part #0315768

The manufacturer no longer makes this part, and there's no substitute part

12k Burn Cap 31782701MB
#2

Burner diagram

12k burn cap

Part #31782701MB

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Igniter 0316773
#6

Burner diagram

Cooktop igniter

Part #0316773

The manufacturer no longer makes this part, and there's no substitute part

Glass, Control Panel (p1131632ncc) 31818503C
#3B

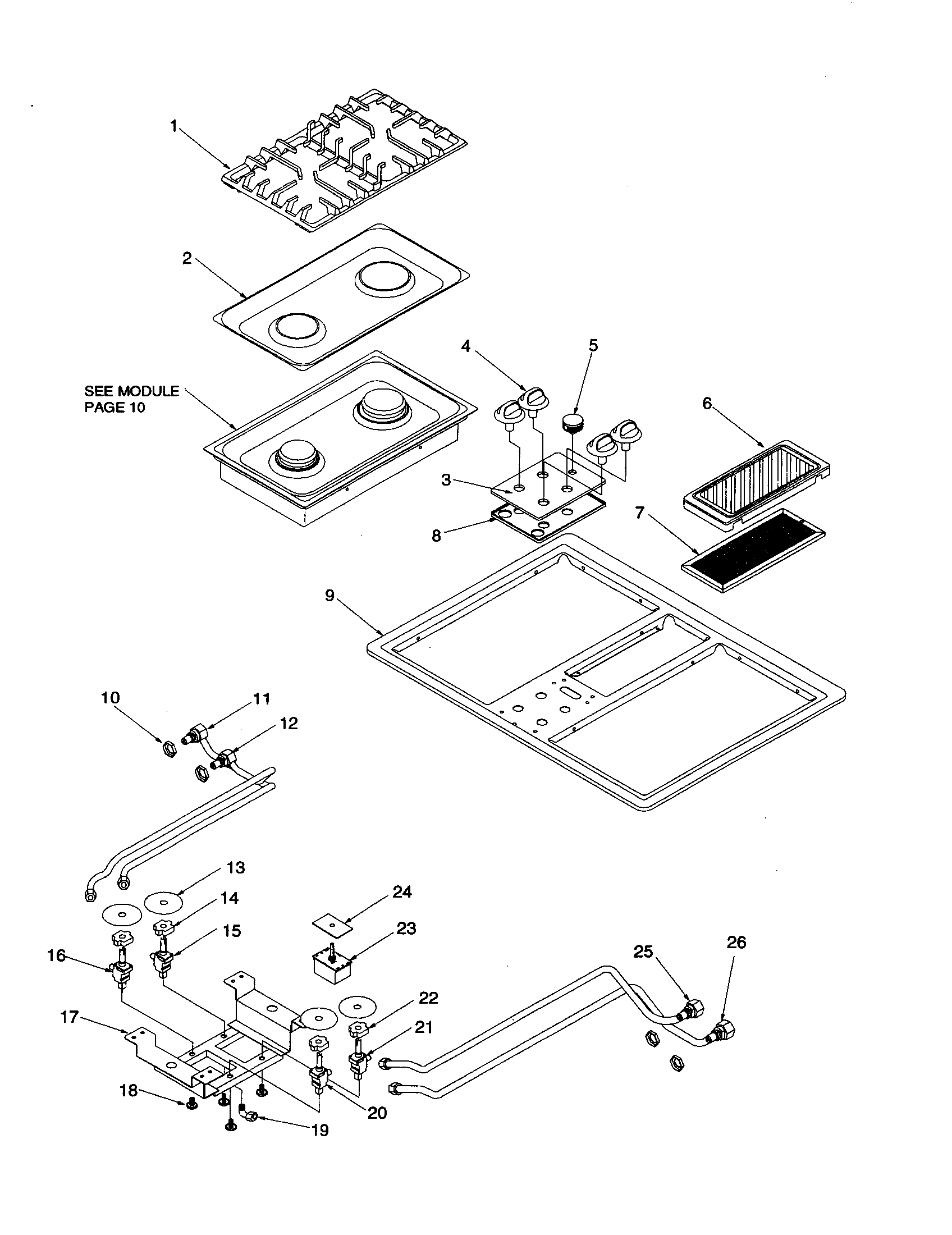

Main top diagram

Glass, control panel (p1131632ncc)

Part #31818503C

The manufacturer no longer makes this part, and there's no substitute part

Fan Shield 31902901CG
#1A

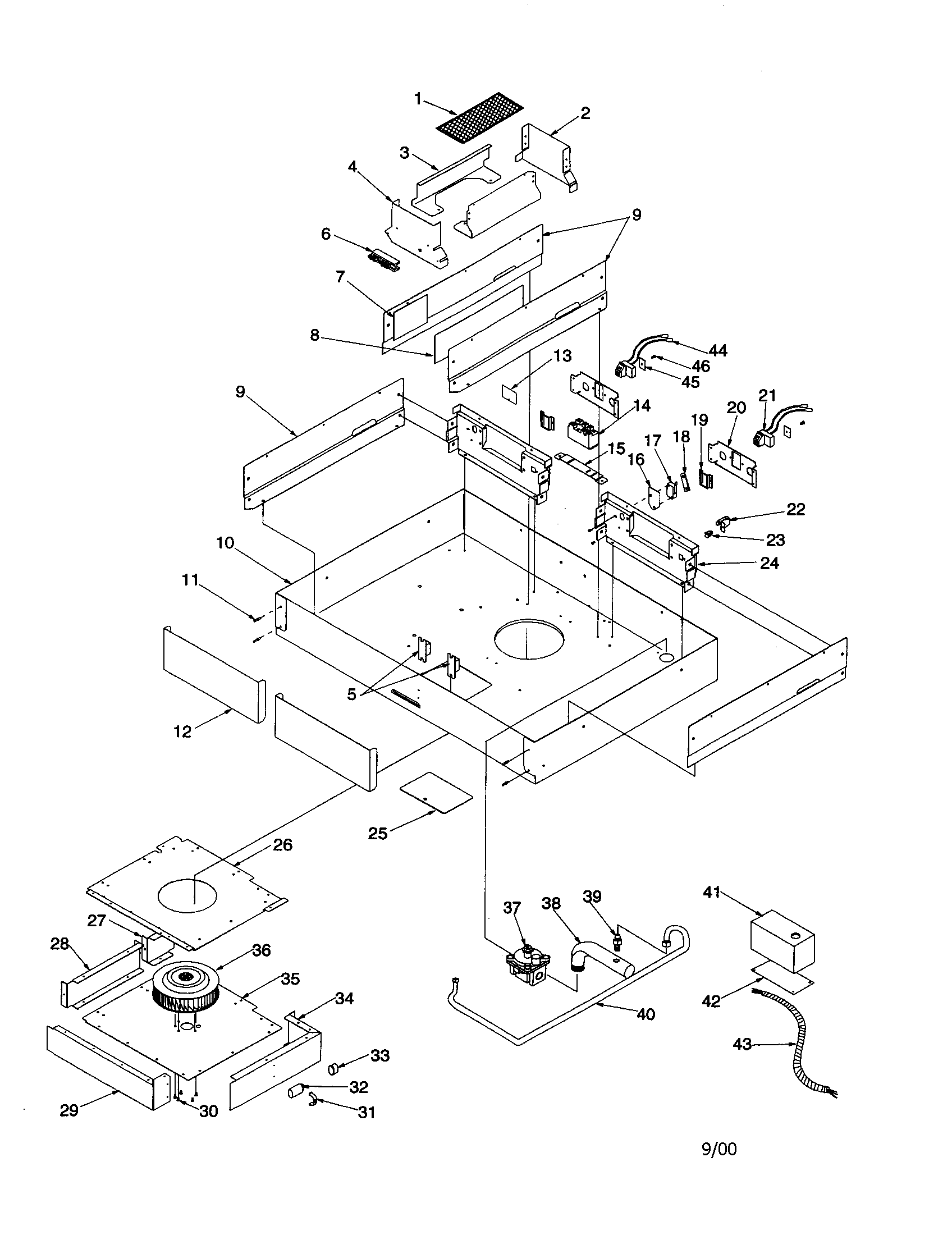

Cavity diagram

Fan shield

Part #31902901CG

The manufacturer no longer makes this part, and there's no substitute part

Switch 31751601
#17

Cavity diagram

Switch

Part #31751601

The manufacturer no longer makes this part, and there's no substitute part

Tubing 0316764
#40

Cavity diagram

Tubing

Part #0316764

The manufacturer no longer makes this part, and there's no substitute part

Burner Box-gas (p1131632ncc) 31935701
#10A

Cavity diagram

Burner box-gas (p1131632ncc)

Part #31935701

The manufacturer no longer makes this part, and there's no substitute part

Burner Knob 31760504B
#4

Main top diagram

Burner knob

Part #31760504B

The manufacturer no longer makes this part, and there's no substitute part
