Modern Maid
Side-By-Side Refrigerator

Model # GRH220-1D Official Modern Maid side-by-side 2-door refrigerator with ice & water

Here are the diagrams and repair parts for Official Modern Maid GRH220-1D side-by-side 2-door refrigerator with ice & water, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

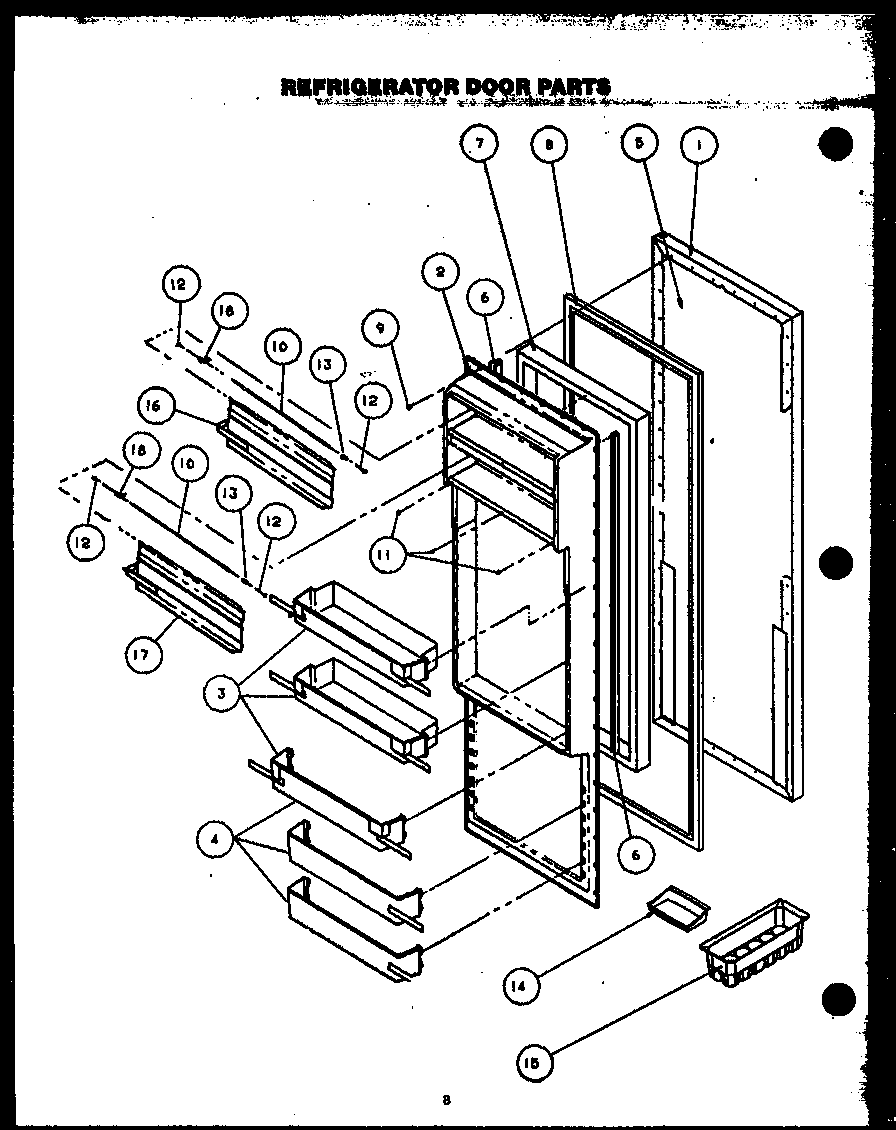

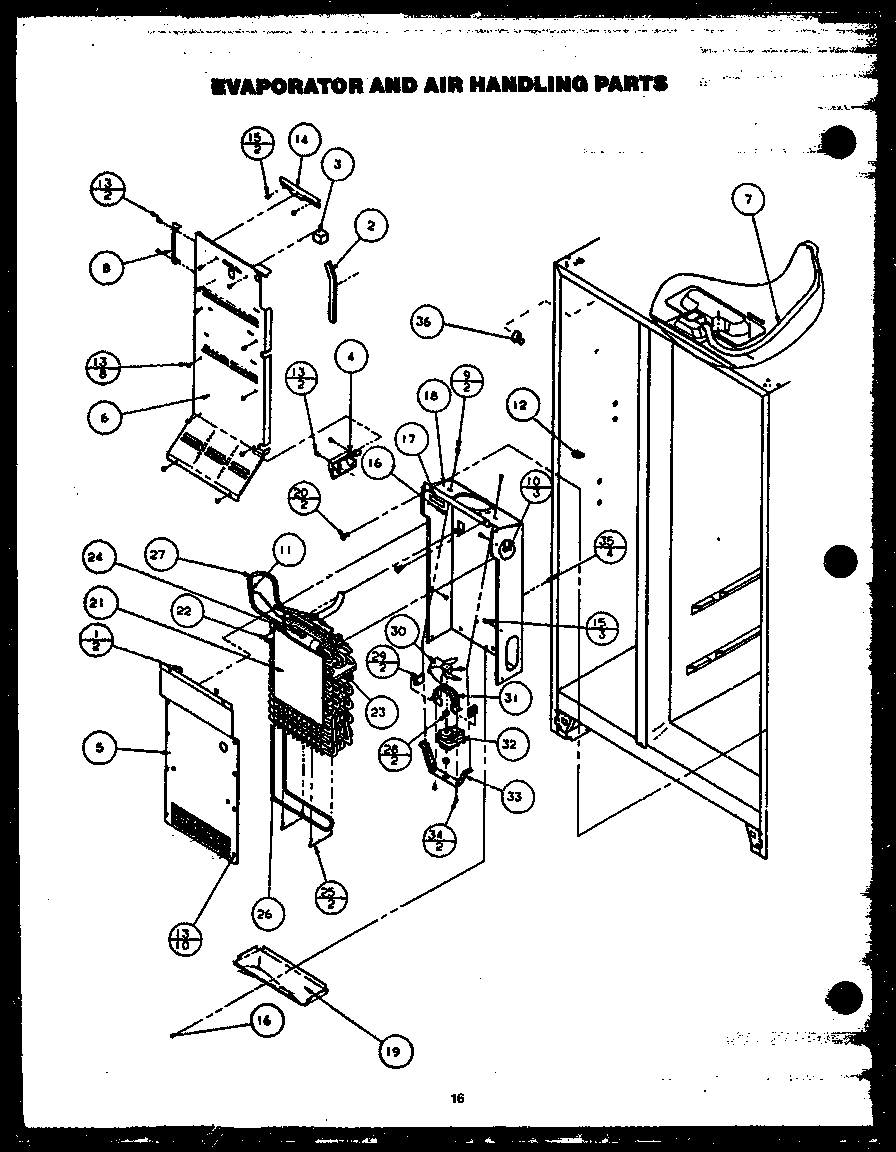

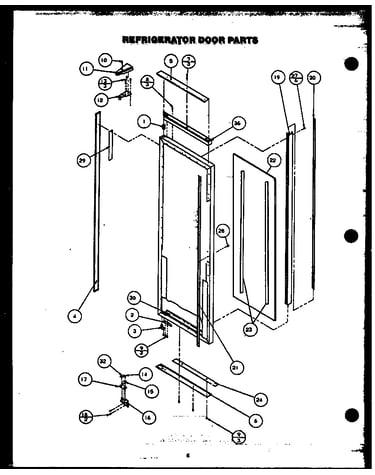

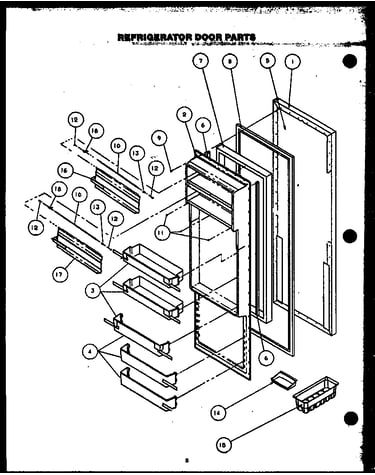

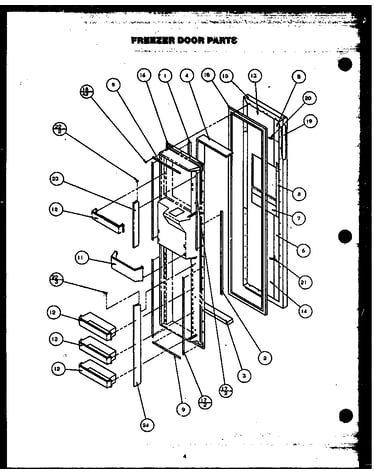

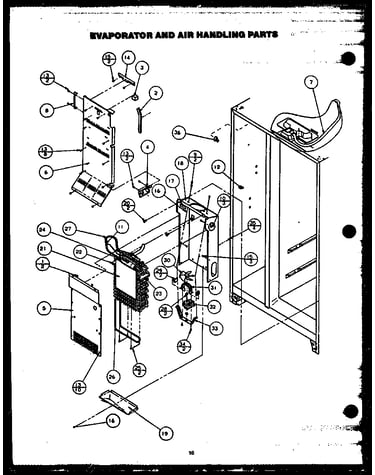

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 398 parts  |
Refrigerator Machine Screw 56298
#21

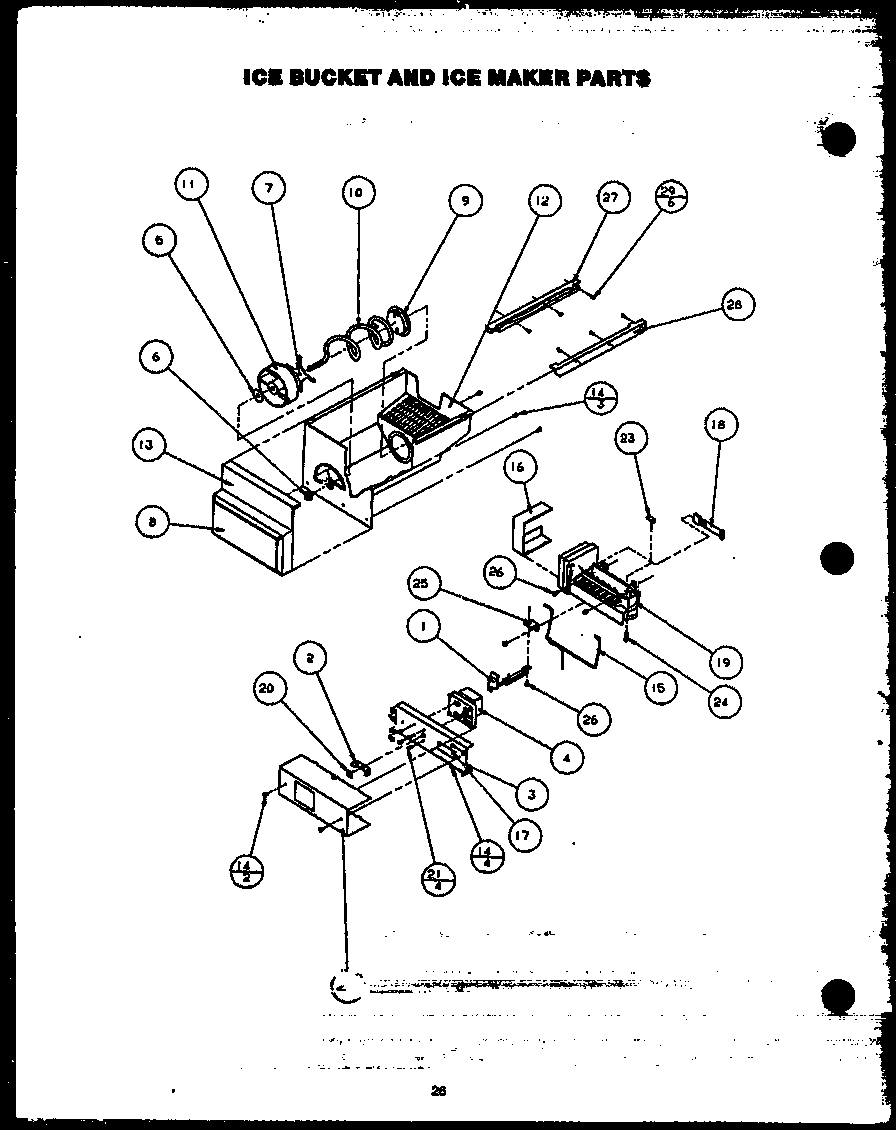

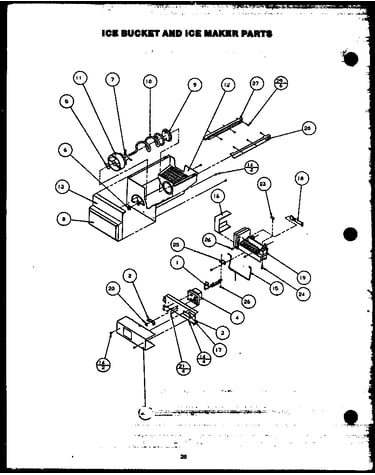

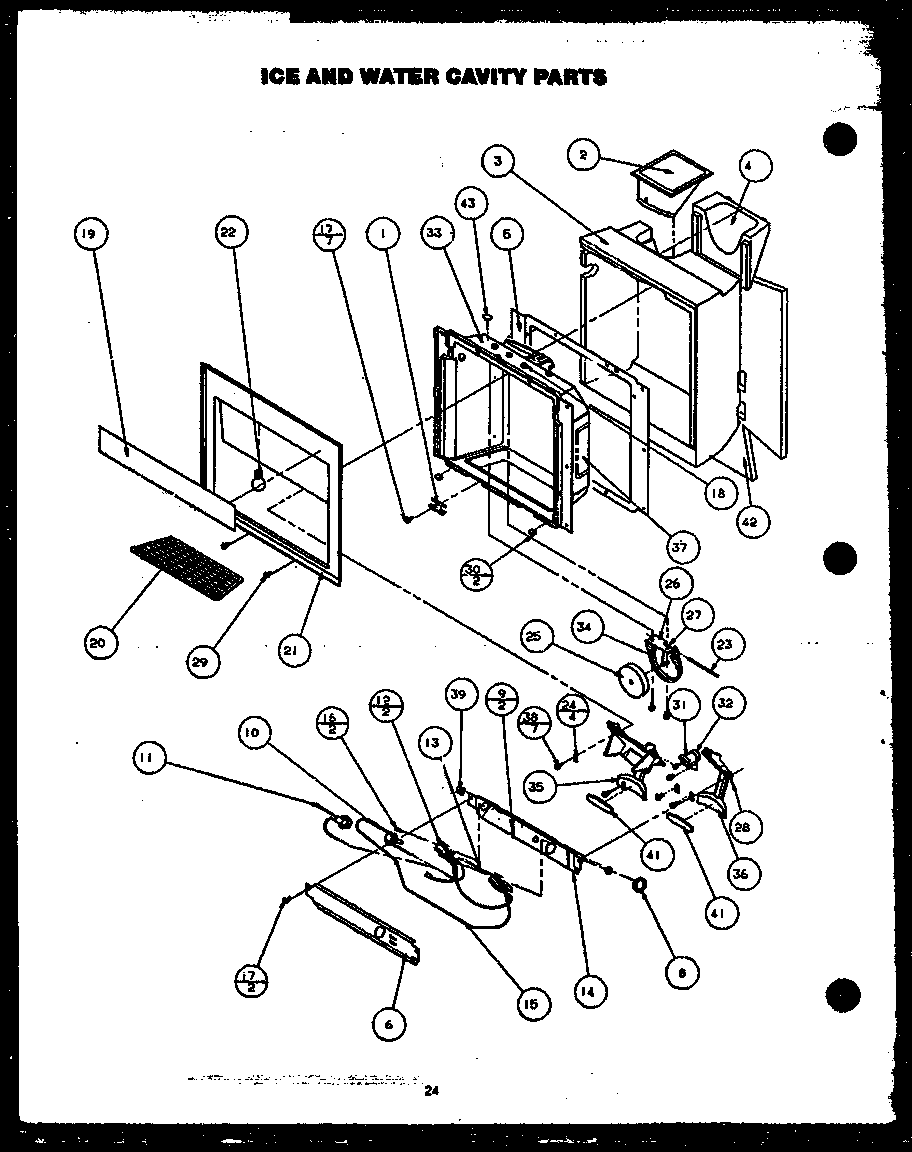

Ice bucket and ice maker parts diagram

Refrigerator machine screw

Part #56298

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 56298. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Refrigerator Defrost Timer 312555
#28

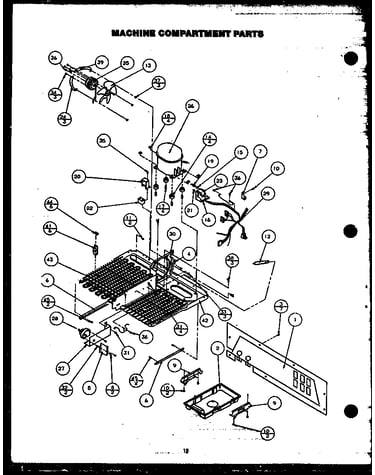

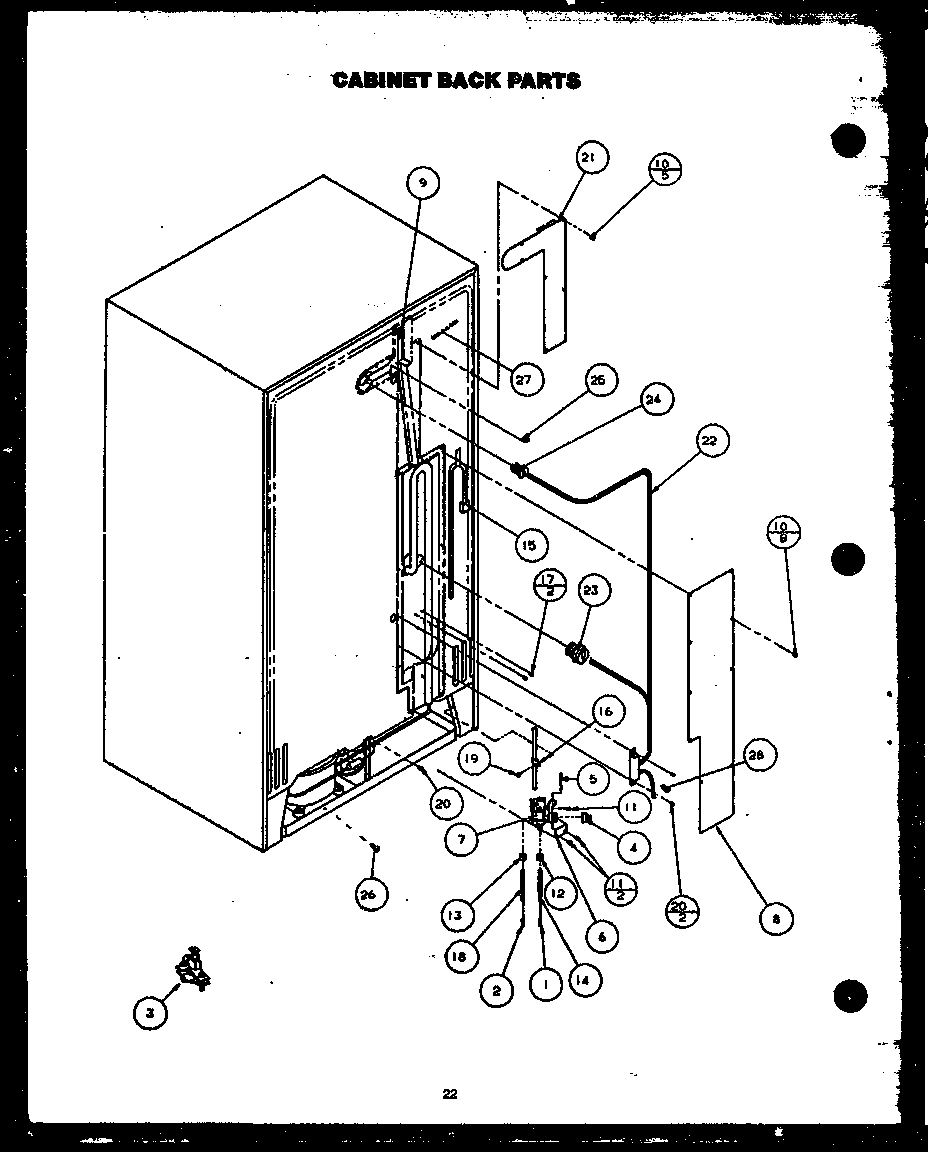

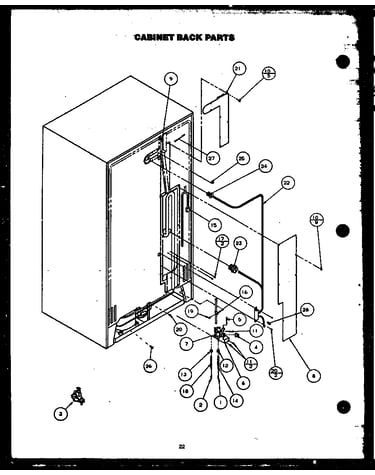

Machine compartment parts diagram

Refrigerator defrost timer

Part #312555

Replaced by #R0131577

?
Manufacturer substitution
This part replaces 312555. Substitute parts can look different from the original.
$31.09 |
16% OFF Phone Price : $37.09
In Stock
Glide, Freezer - L.h. 312594
#27

Ice bucket and ice maker parts diagram

Glide, freezer - l.h.

Part #312594

The manufacturer no longer makes this part, and there's no substitute part

Crisper Top Assembly, Lower; (note 1 - Includes Items 1- 312664

#NI

All parts diagram

Crisper top assembly, lower; (note 1 - includes items 1-

Part #312664

The manufacturer no longer makes this part, and there's no substitute part

Pin Cotter 54624
#7

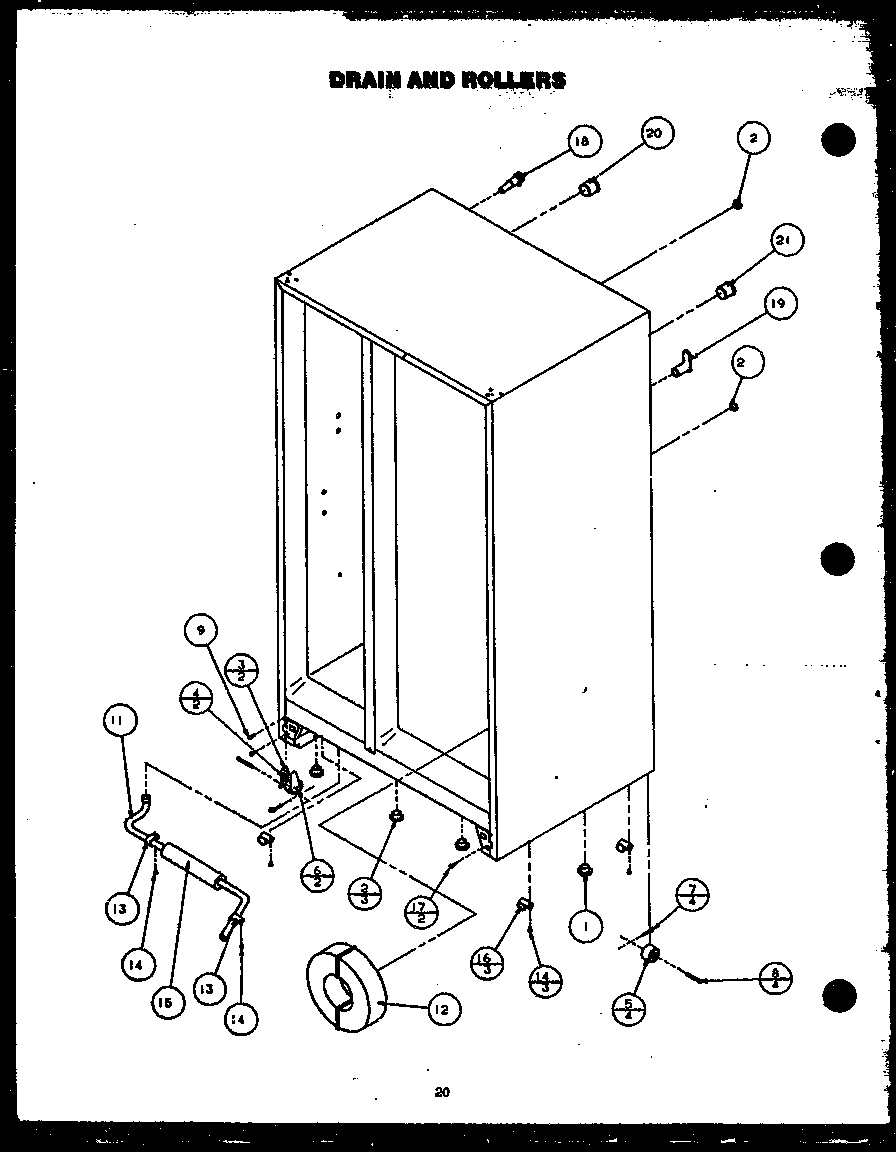

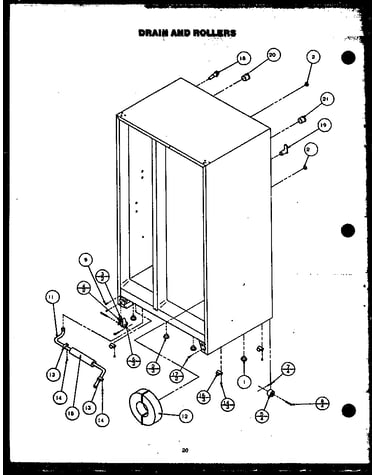

Drain and rollers diagram

Pin cotter

Part #54624

The manufacturer no longer makes this part, and there's no substitute part

Top Hinge Assembly 312598
#12

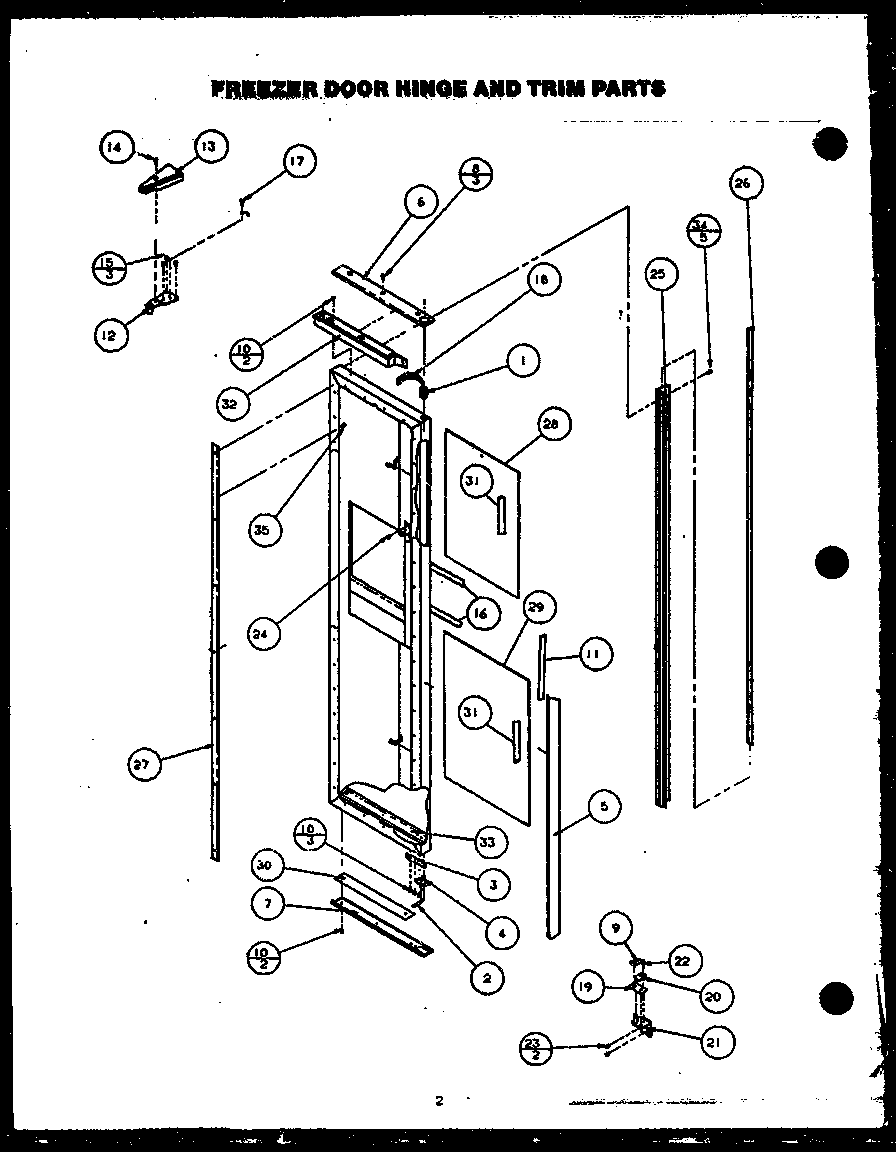

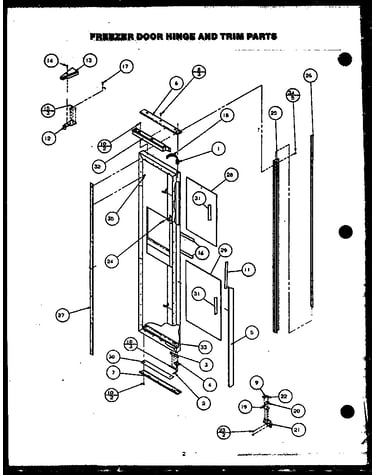

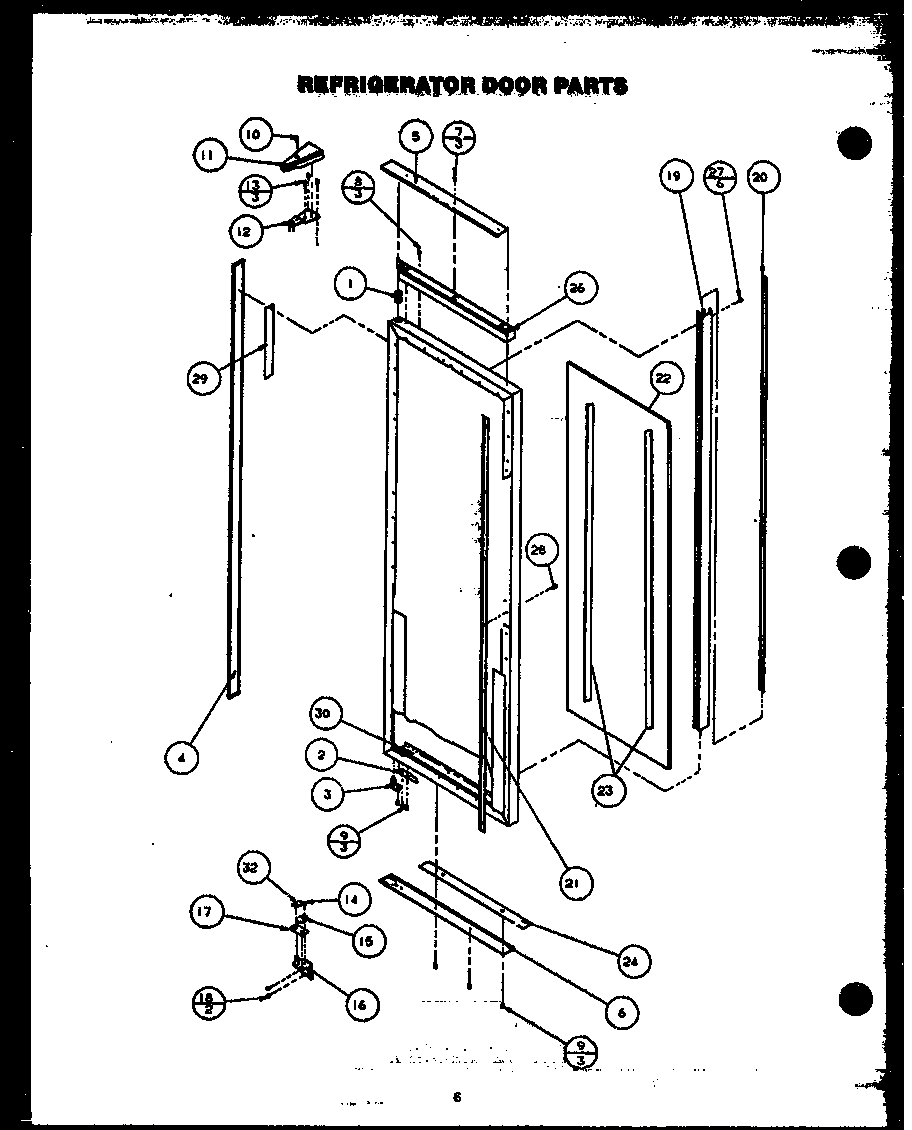

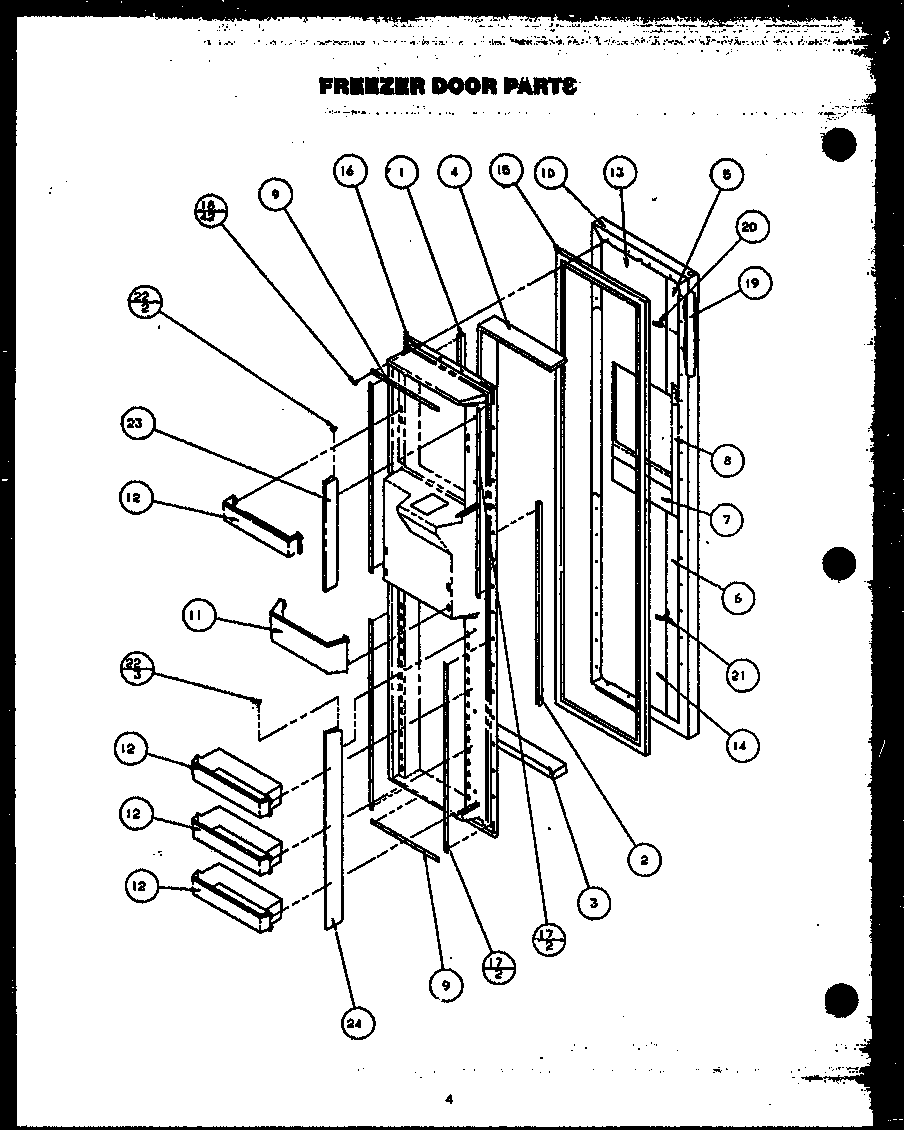

Freezer door hinge and trim diagram

Top hinge assembly

Part #312598

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Capacitor 54164
#22

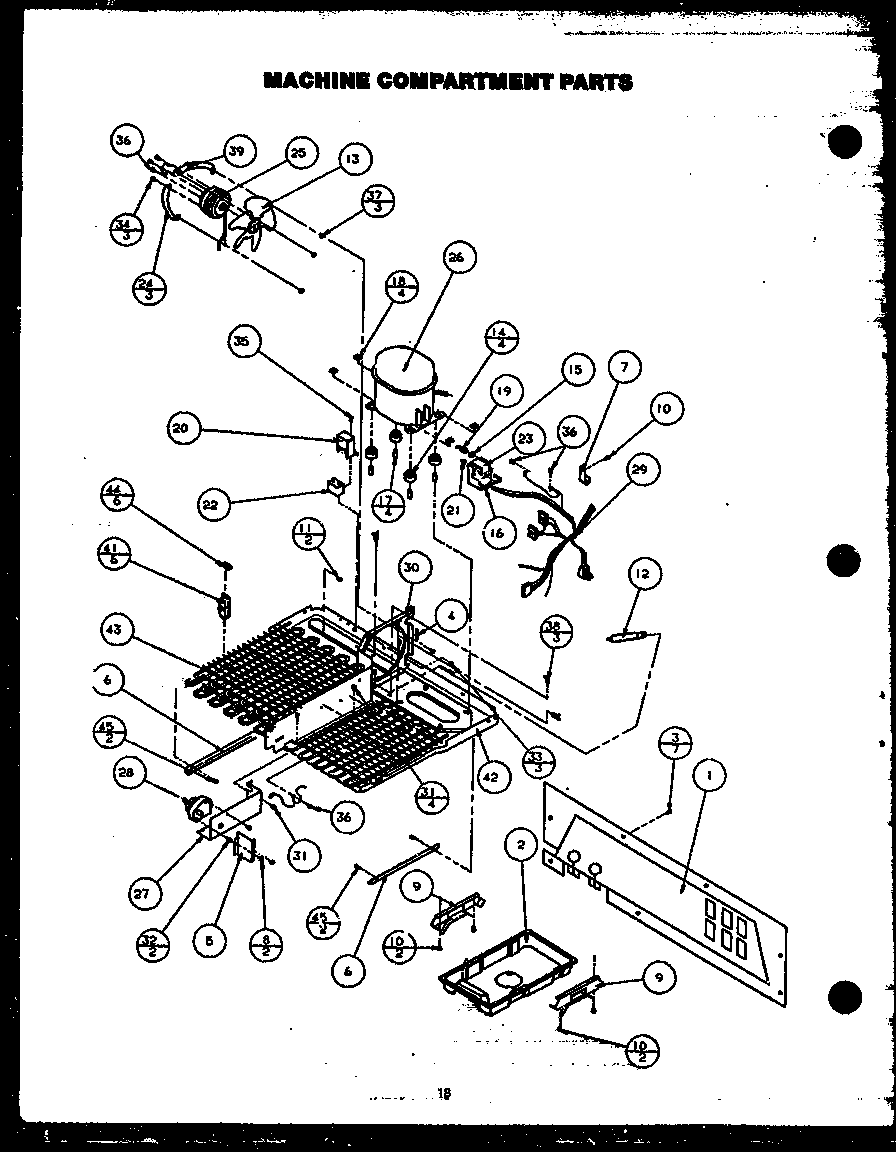

Machine compartment parts diagram

Refrigerator capacitor

Part #54164

The manufacturer no longer makes this part, and there's no substitute part

Screw, Heater Switch 87682
#37

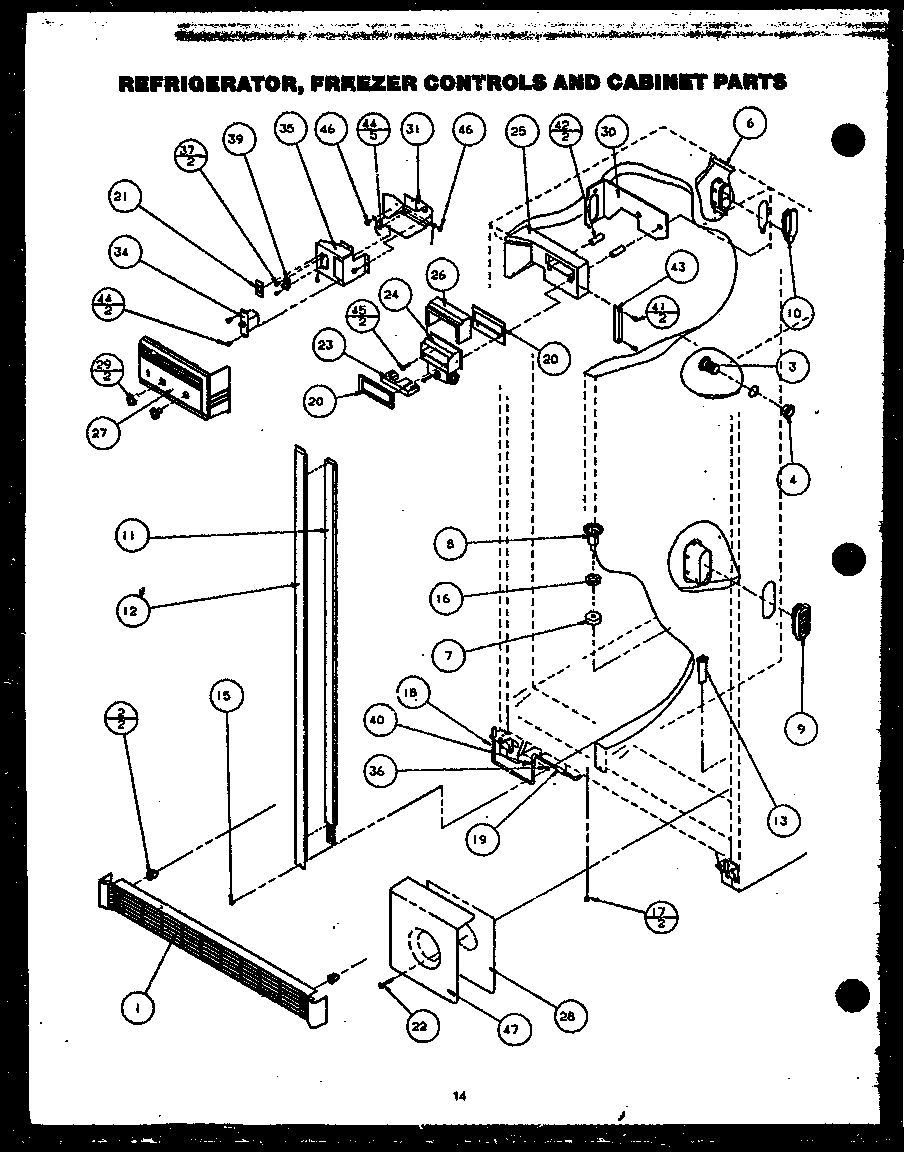

Controls and cabinet diagram

Screw, heater switch

Part #87682

The manufacturer no longer makes this part, and there's no substitute part

Seal, Crisper-rear 312506
#33B

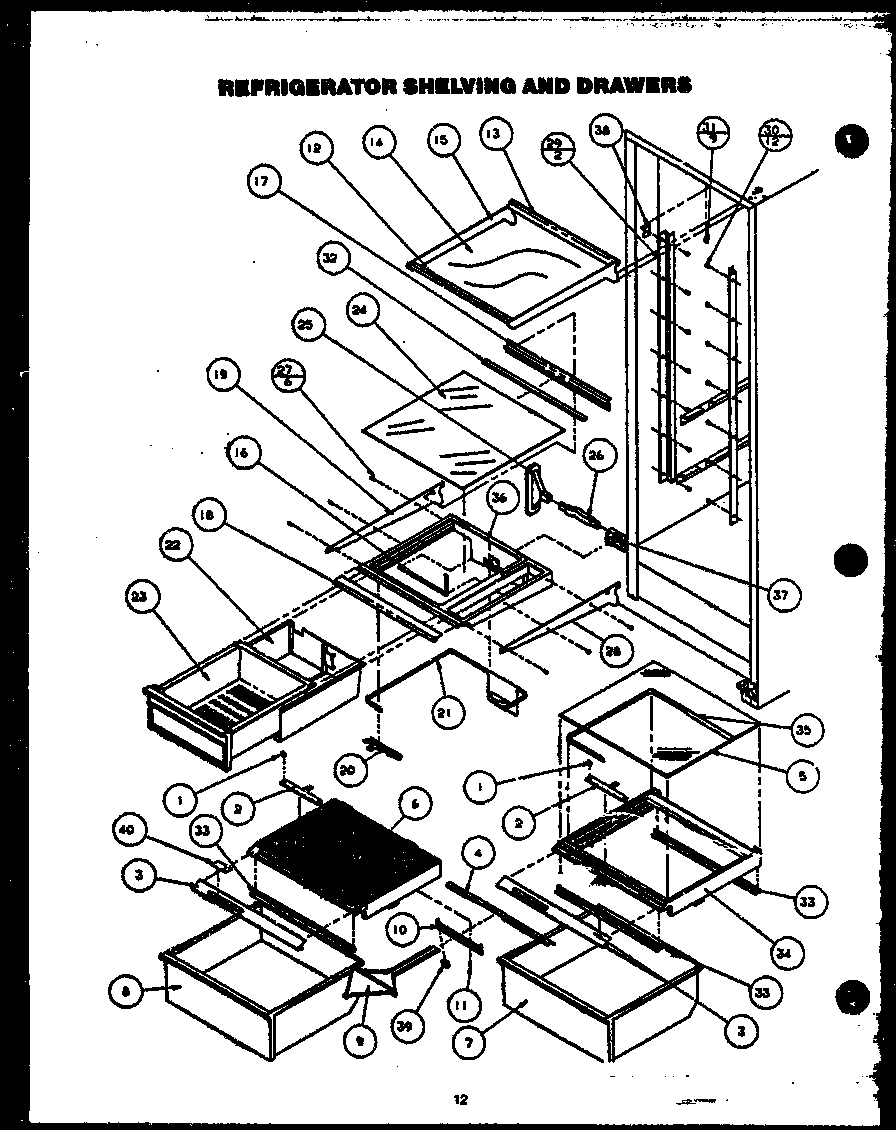

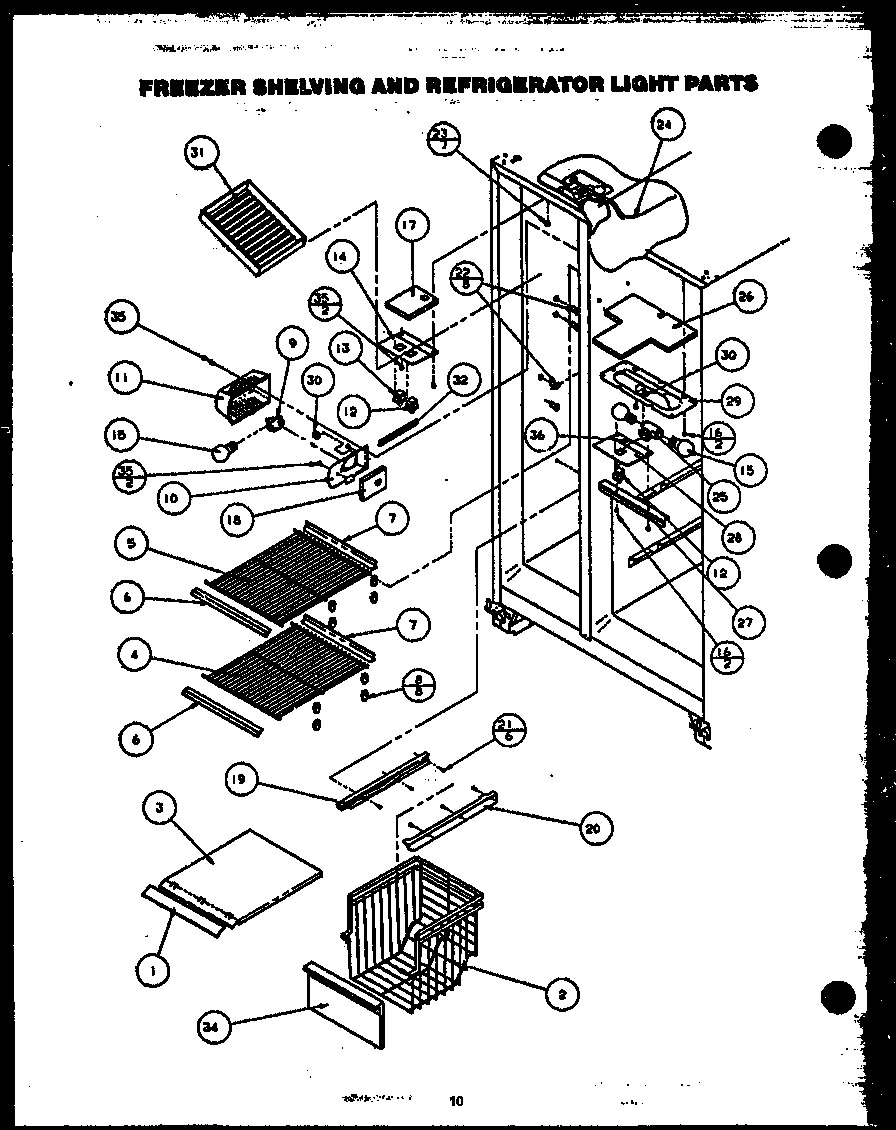

Refrigerator shelving and drawers diagram

Seal, crisper-rear

Part #312506

The manufacturer no longer makes this part, and there's no substitute part

Spacer, Condenser 55456
#41

Machine compartment parts diagram

Spacer, condenser

Part #55456

The manufacturer no longer makes this part, and there's no substitute part
