Kenmore
Washer

Model # 11031312020 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 11031312020 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

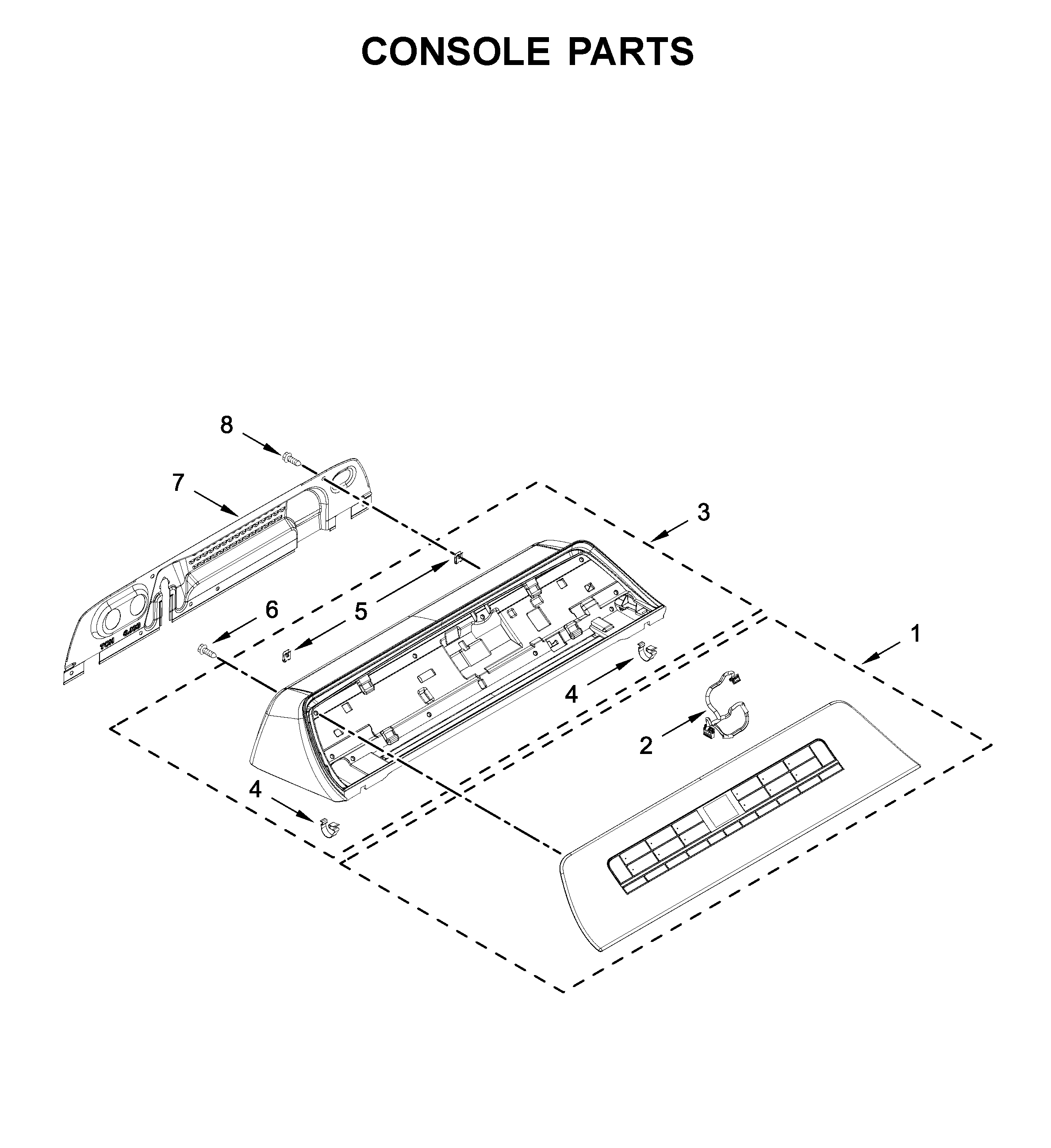

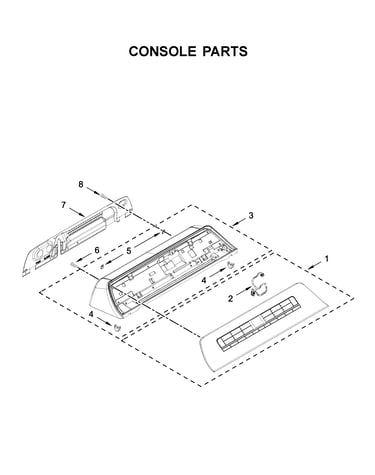

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Washer Drive Pulley (replaces W10006356, W10239973, W10315818, W10536113, W11396423) W10721967
#6

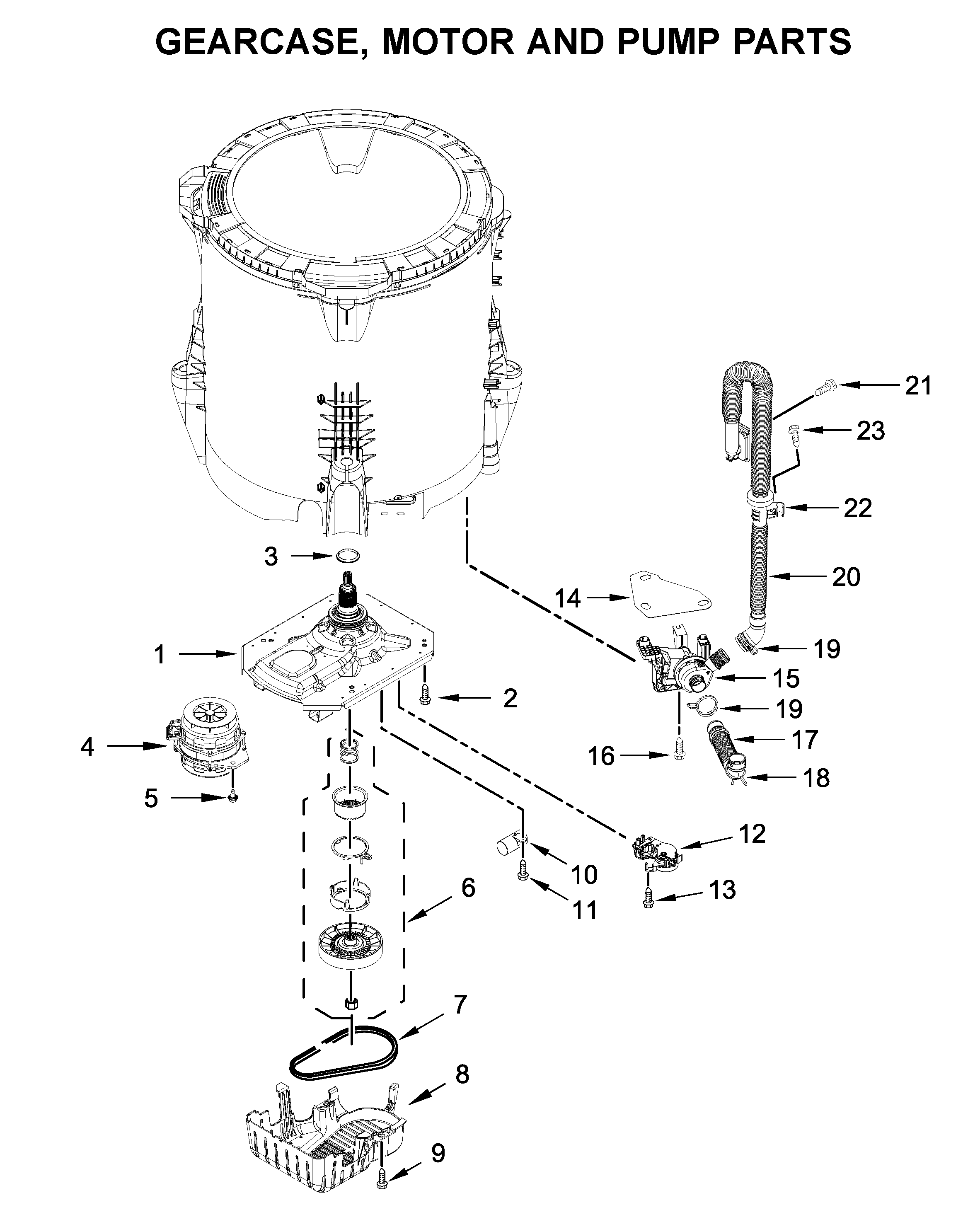

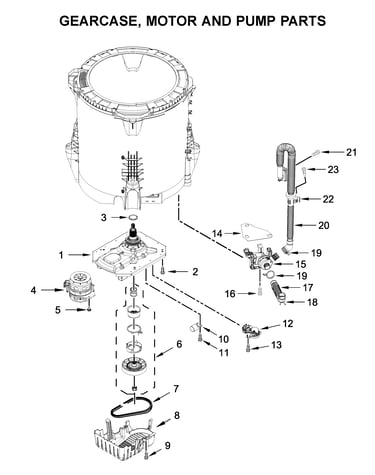

Gearcase, motor and pump parts diagram

Washer drive pulley (replaces w10006356, w10239973, w10315818, w10536113, w11396423)

Part #W10721967

BEST SELLER
$54.88 |
10% OFF Phone Price : $60.88
In Stock
Washer Actuator W10815026
#12

Gearcase, motor and pump parts diagram

Washer actuator

Part #W10815026

Replaced by #W10913953

?
Manufacturer substitution
This part replaces W10815026. Substitute parts can look different from the original.
BEST SELLER
$49.66 |
11% OFF Phone Price : $55.66
In Stock
Impeller-fla W10834904
#4

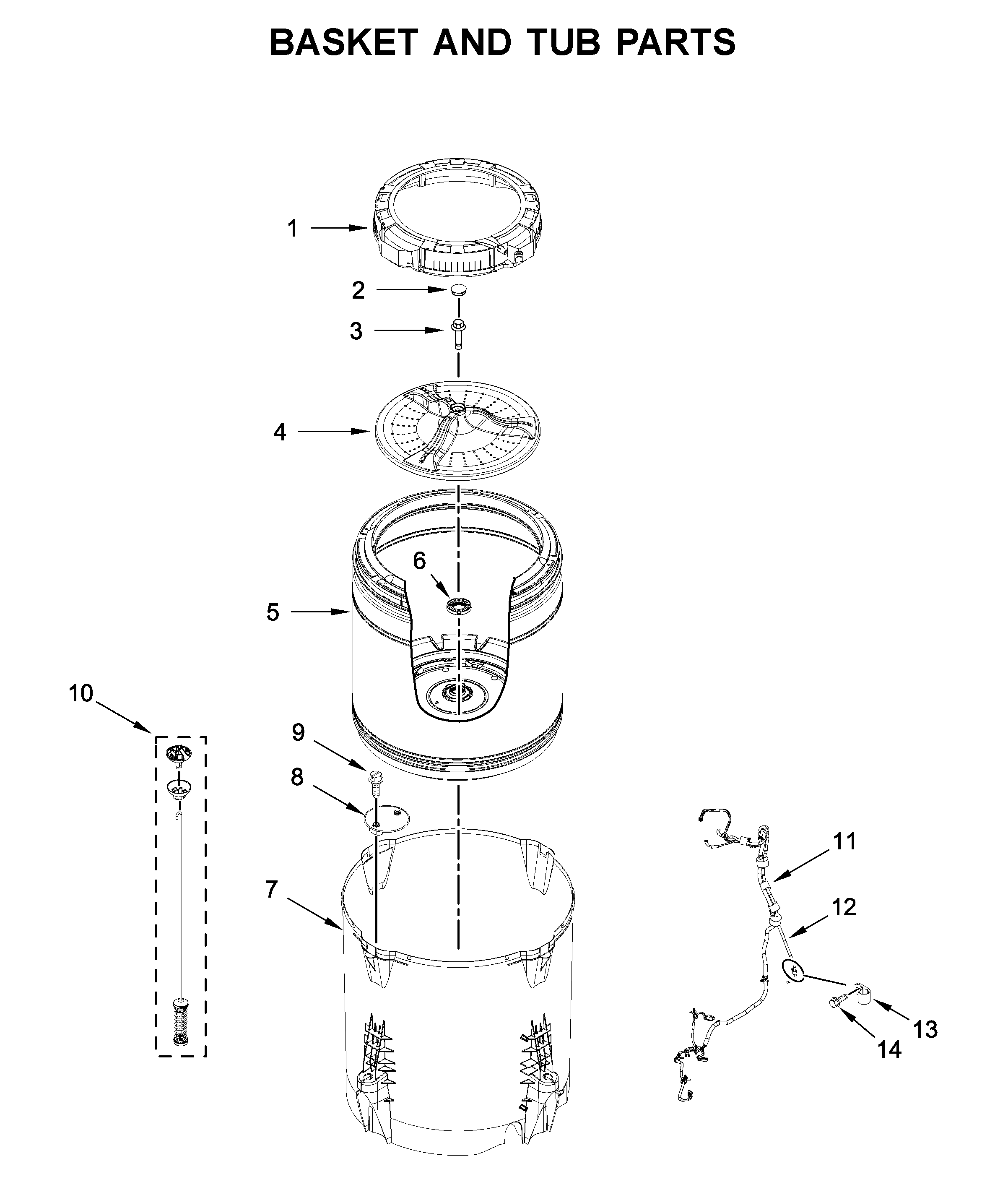

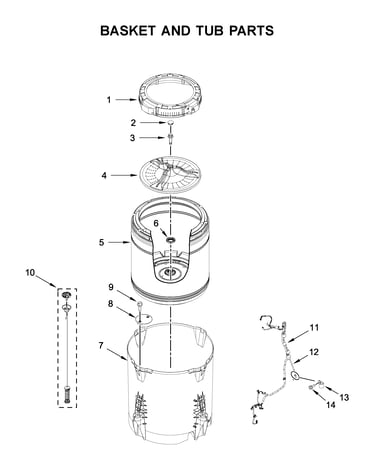

Basket and tub parts diagram

Impeller-fla

Part #W10834904

Replaced by #W10752285

?
Manufacturer substitution
This part replaces W10834904. Substitute parts can look different from the original.
BEST SELLER
$72.72 |
8% OFF Phone Price : $78.72
In Stock
Washer Water Inlet Valve W11096267
#25

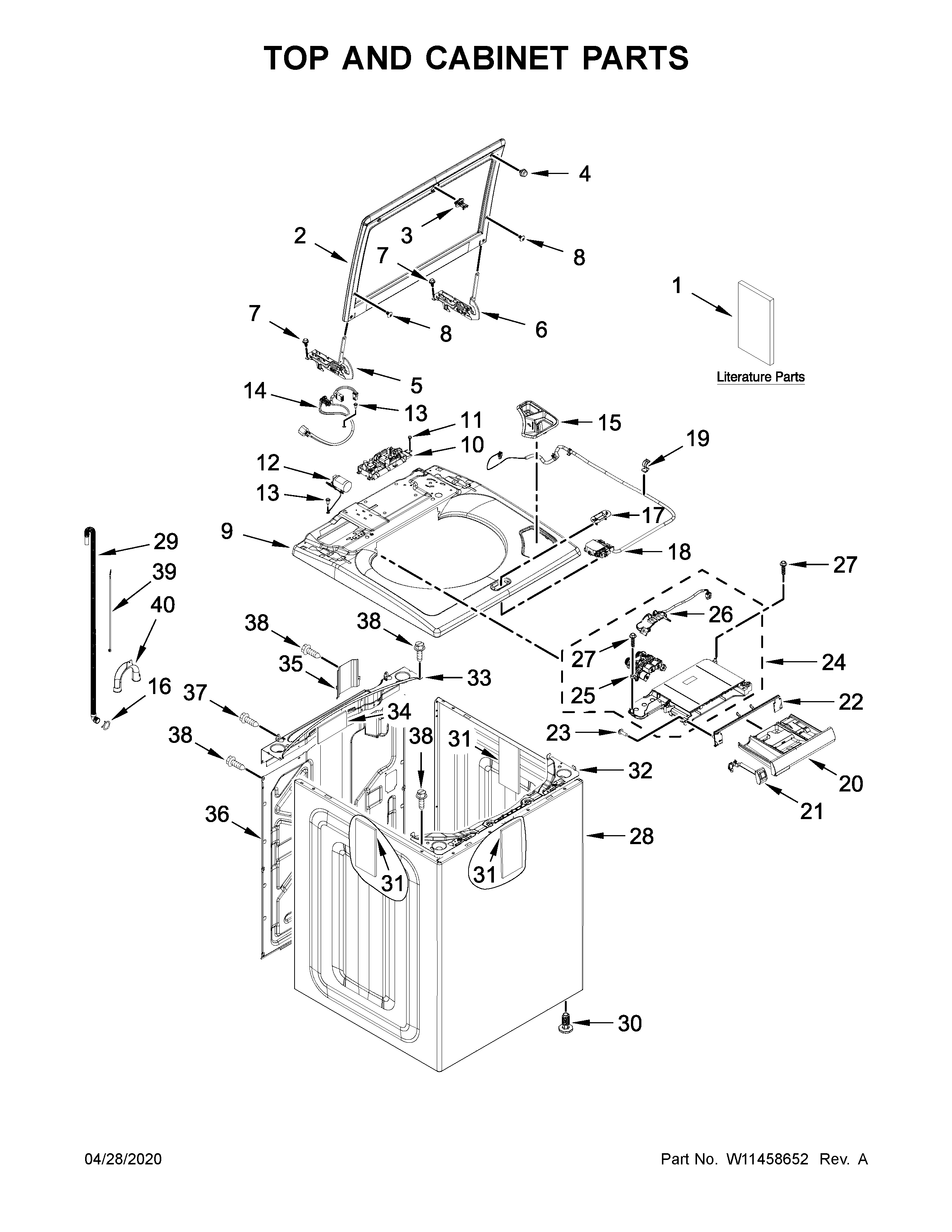

Top and cabinet parts diagram

Washer water inlet valve

Part #W11096267

Replaced by #W11165546

?
Manufacturer substitution
This part replaces W11096267. Substitute parts can look different from the original.
BEST SELLER
$62.01 |
9% OFF Phone Price : $68.01
In Stock
Drive Belt W10808317
#7

Gearcase, motor and pump parts diagram

Drive belt

Part #W10808317

Replaced by #W11239857

?
Manufacturer substitution
This part replaces W10808317. Substitute parts can look different from the original.
BEST SELLER
$33.43 |
15% OFF Phone Price : $39.43
In Stock
Washer Washplate Screw W10625252
#3

Basket and tub parts diagram

Washer washplate screw

Part #W10625252

Replaced by #W10752187

?
Manufacturer substitution
This part replaces W10625252. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.13 |
24% OFF Phone Price : $4.13
In Stock
Lid Lock-sol W11032875
#18

Top and cabinet parts diagram

Lid lock-sol

Part #W11032875

Replaced by #W11700916

?
Manufacturer substitution
This part replaces W11032875. Substitute parts can look different from the original.
BEST SELLER
$37.57 |
14% OFF Phone Price : $43.57
In Stock
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$11.91 |
14% OFF Phone Price : $13.91
In Stock
Washer Start/run Capacitor W11162560
#10

Gearcase, motor and pump parts diagram

Washer start/run capacitor

Part #W11162560

Replaced by #W11395618

?
Manufacturer substitution
This part replaces W11162560. Substitute parts can look different from the original.
BEST SELLER
$59.95 |
9% OFF Phone Price : $65.95
In Stock
Washer Lid Strike W11091027
#3

Top and cabinet parts diagram

Washer lid strike

Part #W11091027

Replaced by #W11457841

?
Manufacturer substitution
This part replaces W11091027. Substitute parts can look different from the original.
BEST SELLER
$13.87 |
13% OFF Phone Price : $15.87
In Stock
