Jenn-Air
Dishwasher

Model # JDB2150AWP Official Jenn-Air dishwasher

Here are the diagrams and repair parts for Official Jenn-Air JDB2150AWP dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

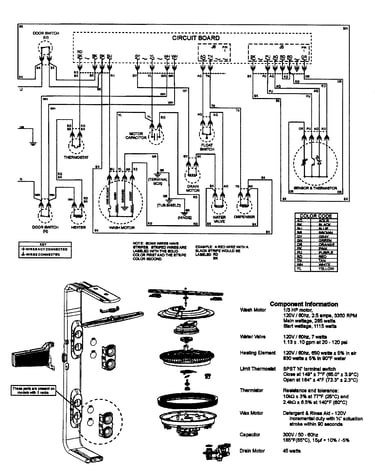

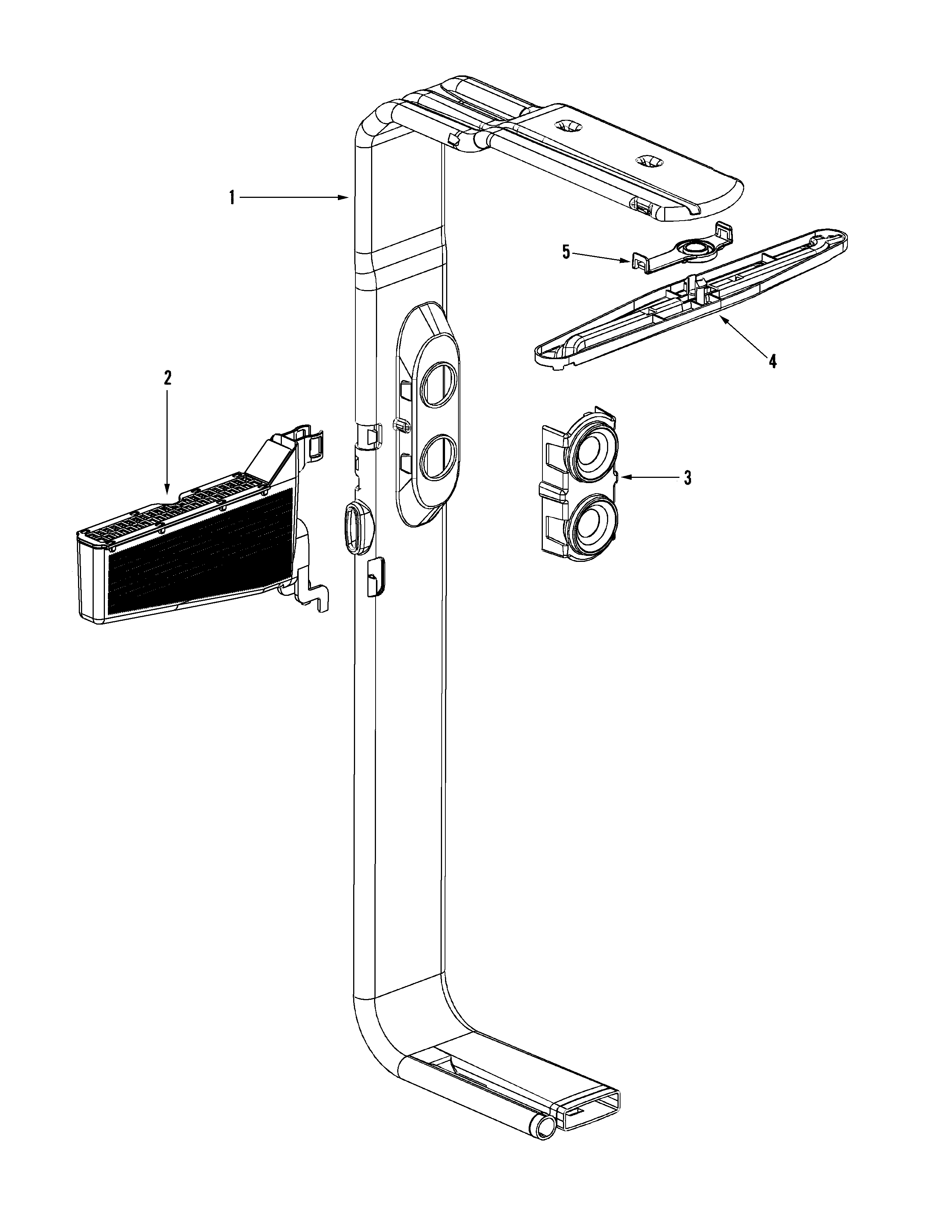

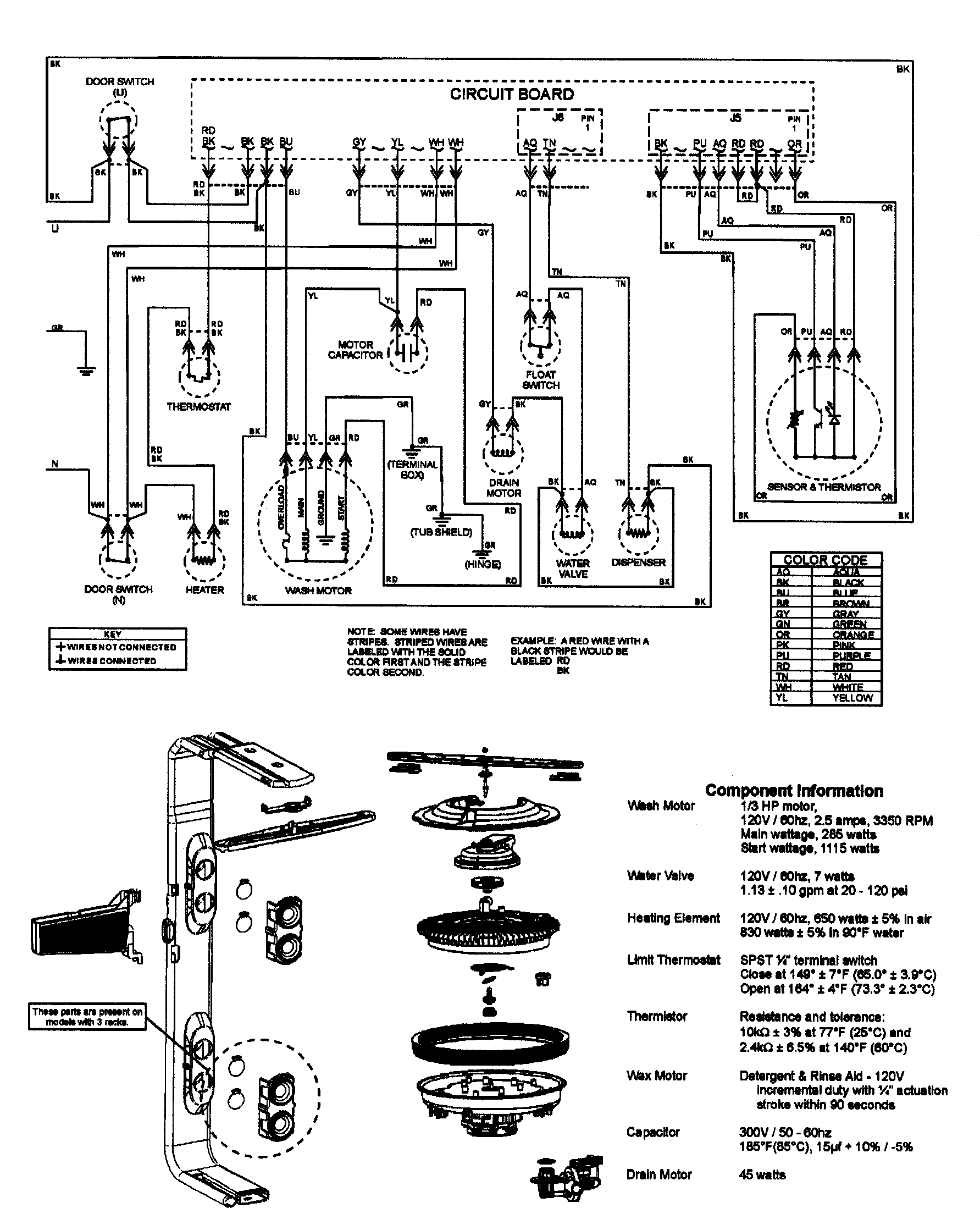

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 161 parts  |
Clamp Spring 911856
#3

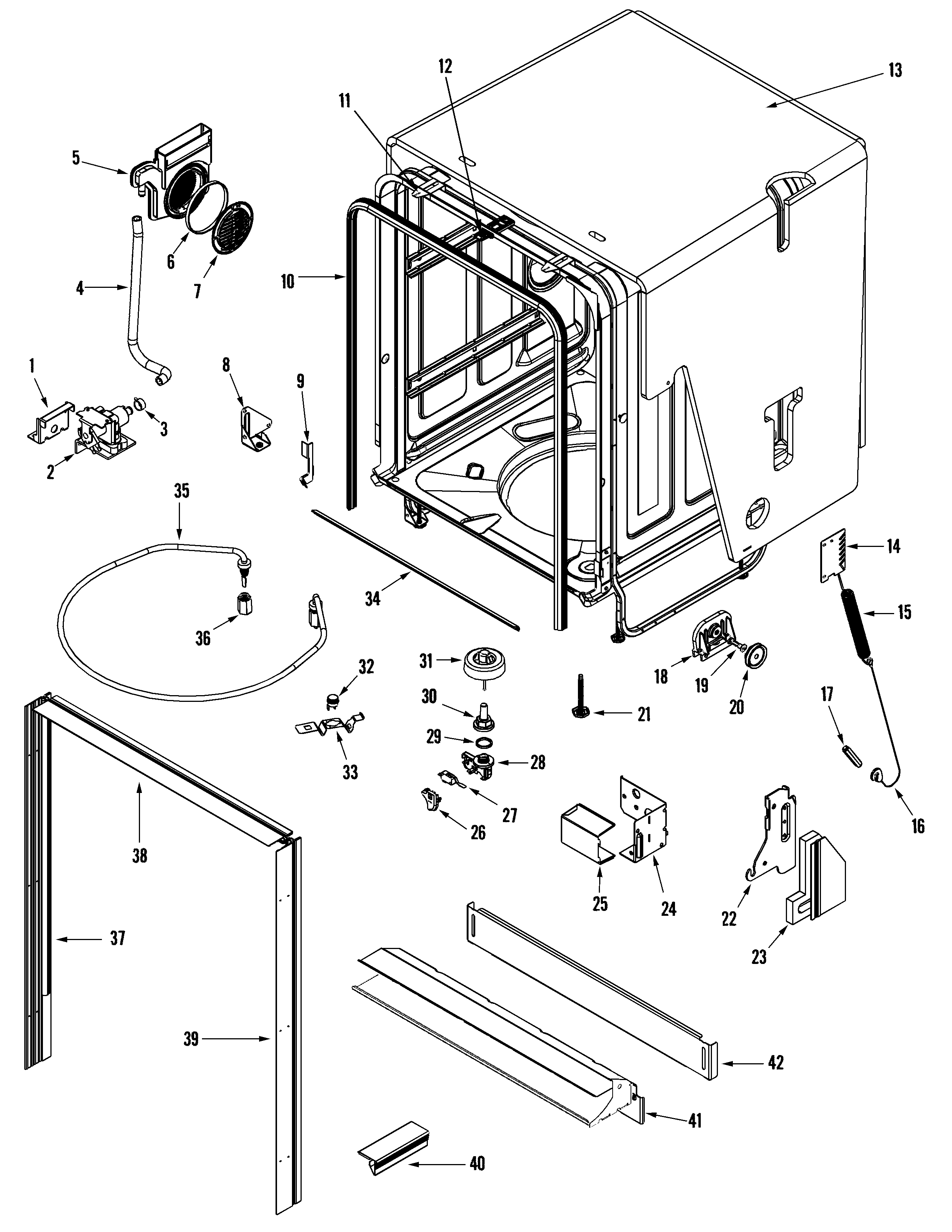

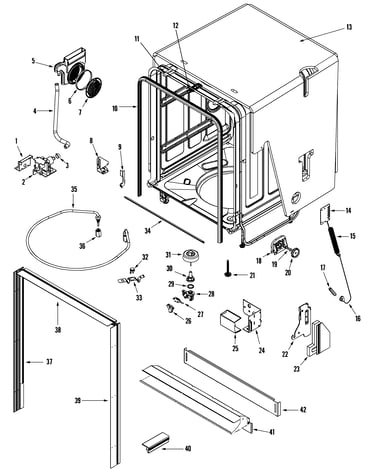

Tub diagram

Clamp spring

Part #911856

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 911856. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Latch 99002580
#11

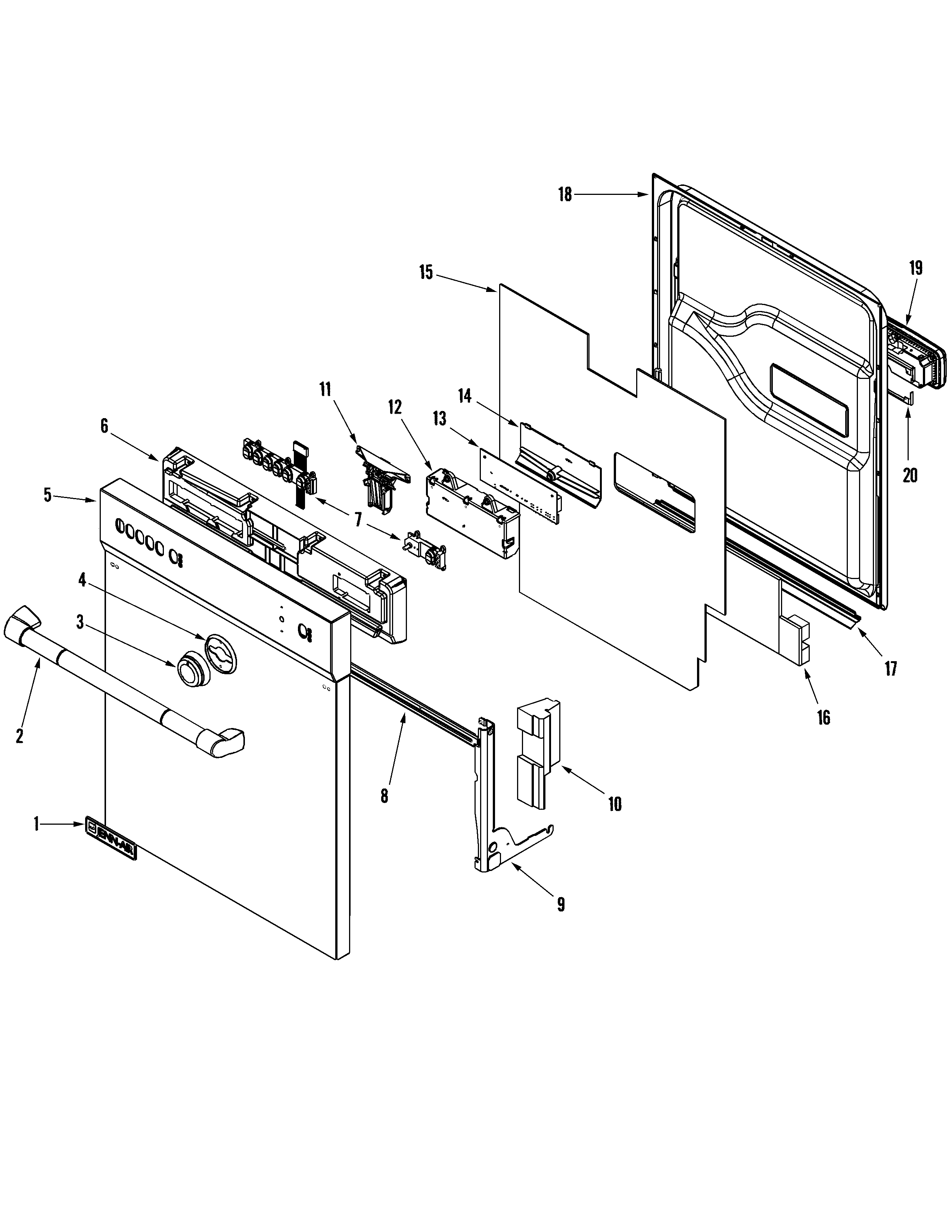

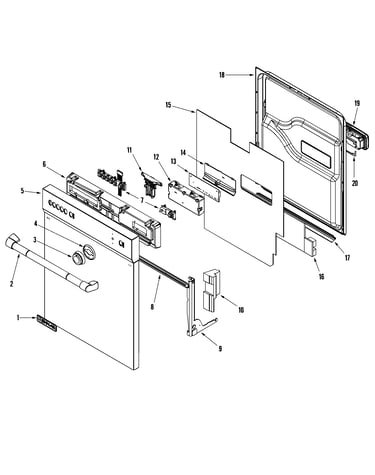

Control panel & door diagram

Latch

Part #99002580

Replaced by #WPW10275768

?
Manufacturer substitution
This part replaces 99002580. Substitute parts can look different from the original.
BEST SELLER
$52.75 |
10% OFF Phone Price : $58.75
In Stock
Silverware Basket 99003101
#29A

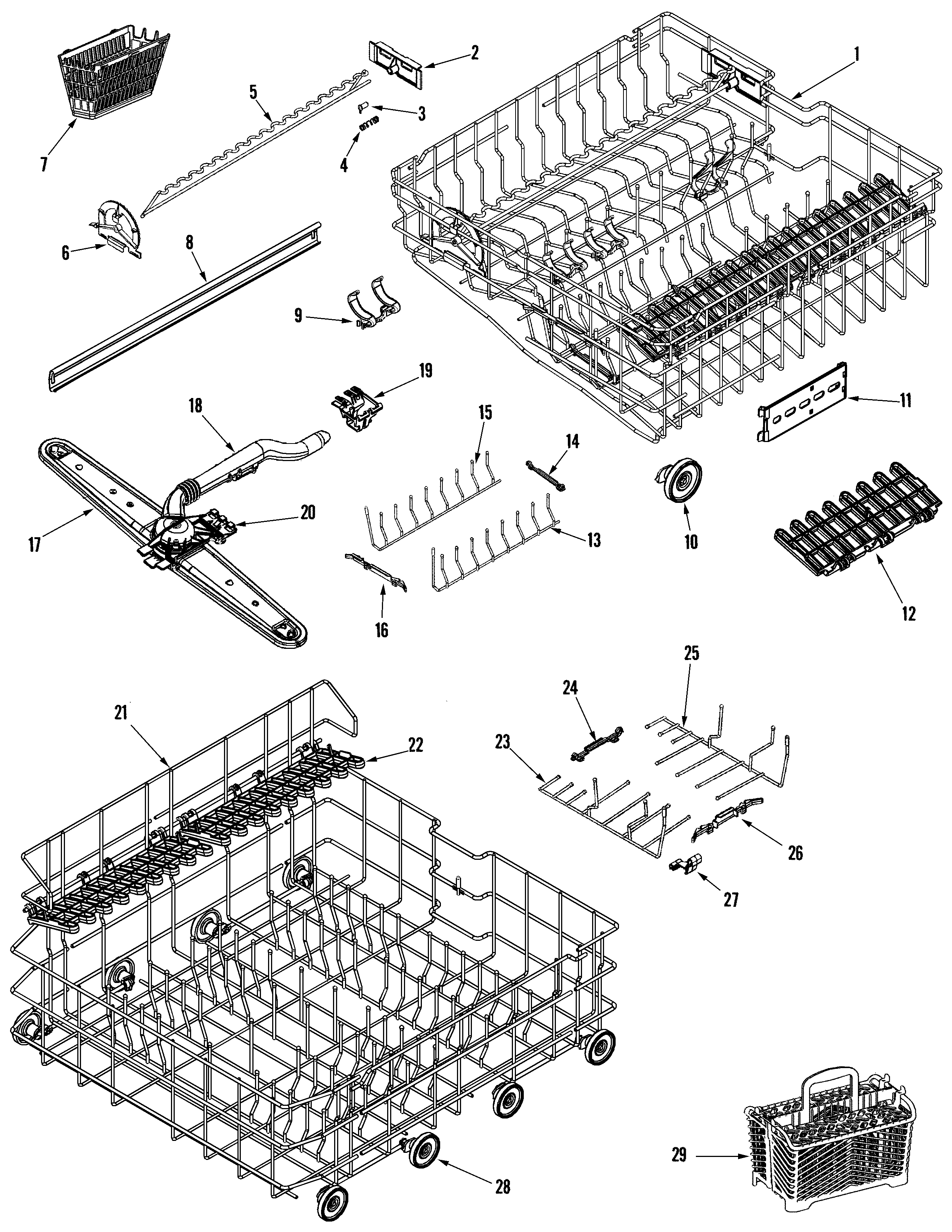

Rail & rack assembly diagram

Silverware basket

Part #99003101

Replaced by #WP6-918873

?
Manufacturer substitution
This part replaces 99003101. Substitute parts can look different from the original.
$20.61 |
23% OFF Phone Price : $26.61
In Stock
Dishwasher Pump Impeller 99002659
#6

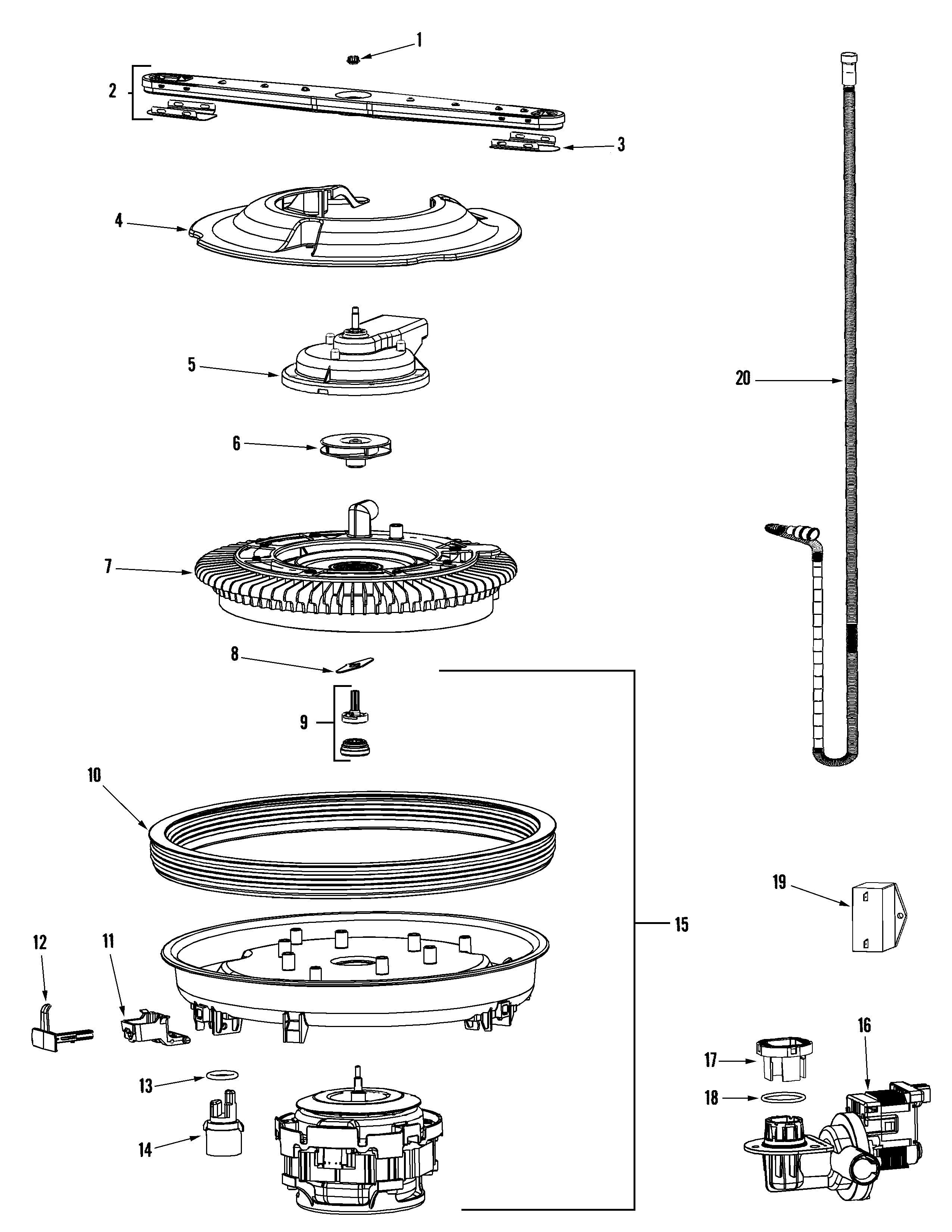

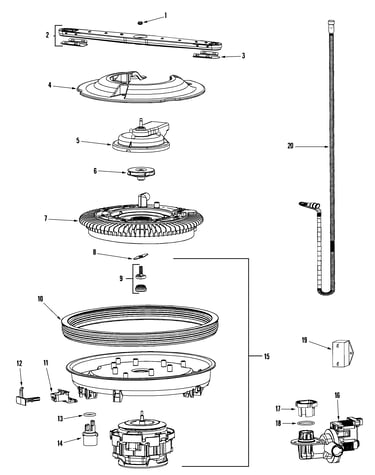

Pump & motor diagram

Dishwasher pump impeller

Part #99002659

Replaced by #WP99002659

?
Manufacturer substitution
This part replaces 99002659. Substitute parts can look different from the original.
$32.71 |
15% OFF Phone Price : $38.71
In Stock
Silverware Basket 99003100
#29

Rail & rack assembly diagram

Silverware basket

Part #99003100

Replaced by #WP6-918873

?
Manufacturer substitution
This part replaces 99003100. Substitute parts can look different from the original.
$20.61 |
23% OFF Phone Price : $26.61
In Stock
Wash Motor A 99003146
#15

Pump & motor diagram

Wash motor a

Part #99003146

Replaced by #6-919963

?
Manufacturer substitution
This part replaces 99003146. Substitute parts can look different from the original.
$350.80 |
$12.00 OFF Phone Price : $362.80
In Stock
Heater Element 99002971
#35

Tub diagram

Heater element

Part #99002971

Replaced by #W10283681

?
Manufacturer substitution
This part replaces 99002971. Substitute parts can look different from the original.
$69.33 |
8% OFF Phone Price : $75.33
In Stock
Dishwasher Screw Y912620
#18A

Control panel & door diagram

Dishwasher screw

Part #Y912620

The manufacturer no longer makes this part, and there's no substitute part

Plate Screw 912365
#25A

Tub diagram

Plate screw

Part #912365

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 912365. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Wash Motor S 99002981
#9

Pump & motor diagram

Wash motor s

Part #99002981

Replaced by #WP6-919539

?
Manufacturer substitution
This part replaces 99002981. Substitute parts can look different from the original.
$89.50 |
6% OFF Phone Price : $95.50
In Stock
