KitchenAid
Downdraft Ventilation System

Model # KXD4736YSS0 Official KitchenAid 36" retractable downdraft vent system

Here are the diagrams and repair parts for Official KitchenAid KXD4736YSS0 36" retractable downdraft vent system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Downdraft Vent Position Switch W10421483
#14

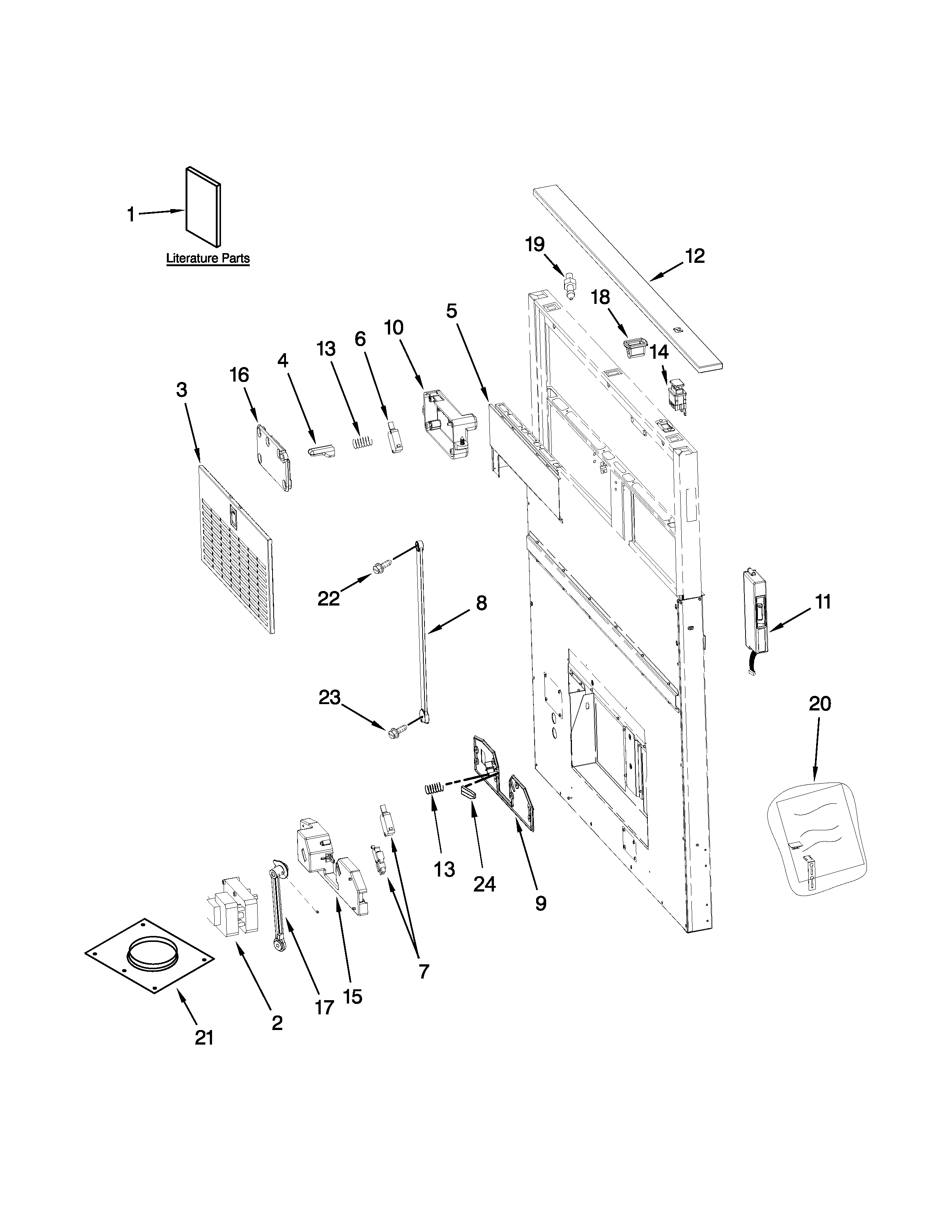

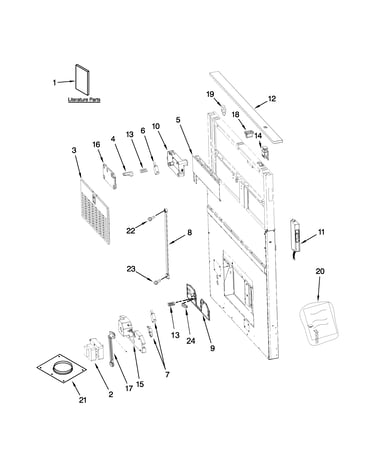

Ventilation parts diagram

Downdraft vent position switch

Part #W10421483

Replaced by #W11230930

?
Manufacturer substitution
This part replaces W10421483. Substitute parts can look different from the original.
$57.39 |
9% OFF Phone Price : $63.39
In Stock
Motor W10398274
#2

Ventilation parts diagram

Motor

Part #W10398274

The manufacturer no longer makes this part, and there's no substitute part

Arm Motor W10421277
#17

Ventilation parts diagram

Arm motor

Part #W10421277

Replaced by #WPW10421277

?
Manufacturer substitution
This part replaces W10421277. Substitute parts can look different from the original.
$48.69
In Stock
Downdraft Vent Switch Panel Trim, 36-in (stainless) W10421497
#12

Ventilation parts diagram

Downdraft vent switch panel trim, 36-in (stainless)

Part #W10421497

Replaced by #WPW10421497

?
Manufacturer substitution
This part replaces W10421497. Substitute parts can look different from the original.
$165.78 |
7% OFF Phone Price : $177.78
In Stock
Screw W10422764
#23

Ventilation parts diagram

Screw

Part #W10422764

Replaced by #WPW10422764

?
Manufacturer substitution
This part replaces W10422764. Substitute parts can look different from the original.
$23.79 |
20% OFF Phone Price : $29.79
In Stock
Clip W10421517
#19

Ventilation parts diagram

Clip

Part #W10421517

$8.09
In Stock
Air Duct W10421260
#21

Ventilation parts diagram

Air duct

Part #W10421260

$93.91
In Stock
Control Button W10421258
#4

Ventilation parts diagram

Control button

Part #W10421258

$12.19 |
14% OFF Phone Price : $14.19
In Stock
Oven Cover W10421449
#5

Ventilation parts diagram

Oven cover

Part #W10421449

$126.13
In Stock
Downdraft Vent Top Trim W10388170
#NI

Ventilation parts diagram

Downdraft vent top trim

Part #W10388170

$178.37 |
6% OFF Phone Price : $190.37
In Stock
